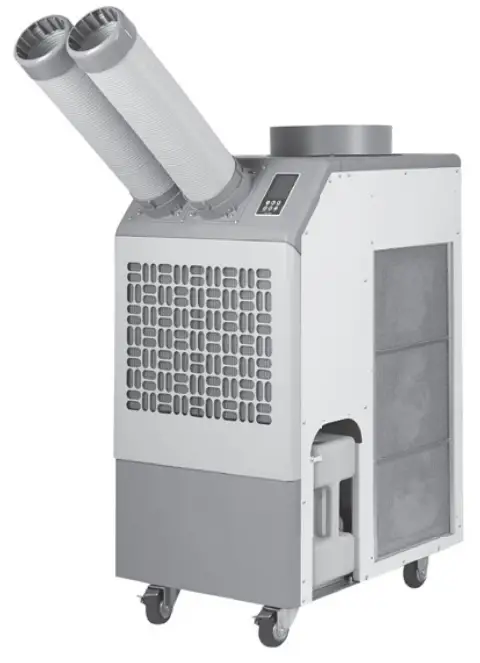

GLOBAL INDUSTRIAL 293149 Portable Air Conditioner

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and / or property damage! Retain instructions for future reference.

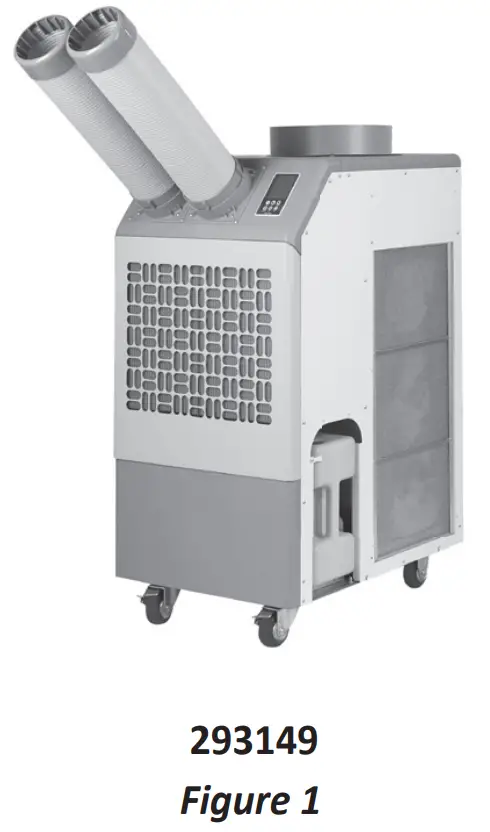

Description

Global industrial Portable Air Conditioners feature spot cooling for large areas where cooling of the entire area is not practical, A dedicated spot cooling thermostat controls the unit in this application,
These air conditioners can also be used in smaller areas for room cooling,
Using the HEPA filter of grade H13, filter out dust with a size of 0.3 microns(μm) A control panel provides ease of use and contains a self-diagnostic function and display, showing operating modes, room and set temperatures, and faults.
If an abnormal operation occurs, a visual display of the fault is shown. Caster wheels are included for easy portability. Suitable applications include: a factory or work place, industrial kitchen, computer room, emergency cooling, outdoor event, etc.

Unpacking

After unpacking the unit, carefully inspect unit for any damage that may have occurred during transit. Check for any loose, missing, or damaged parts

Model No	Power Supply Ph-V-Hz	Cooling Capacity Btu/h	Power Consumption Watts	Rated Current Amps	EER Btu/ Wh
293149	Single Phase, 115V, 60Hz	13,200	1,058	9.2	11.0
Model No	Nema Plug	Power Cord Gauge AWG	Power Cord Length ft	Dimensions W x D x H – in. (mm)
293149	5-15P	14	10	20.5 x 27 x 41.1 (520 x 685 x 1044)
Model No.	Weight (Net / Gross) Lbs(kg)	Condensate tank Gallons(Liters)	No. of Cool Air Outlets Pcs	Ambient temperature range °F( °C)
293149	179 / 194 lbs.(81 / 88 kg)	3.17 (12)	2	64~113(18~45)
Model No.		Setting temperature (Room cool mode) °F( °C)		Setting temperature (Spot cool mode) °F( °C)
293149		64~86 (18~30)		32~86 (0~30)
Model No.		Application Area (Room cool mode) ft²(m²)		Refrigerant Type / oz(g)	Design Pressure – Hi/Low Psig
293149		355(33)		R-410A / 22.2(630)	465 / 160
Model No.	Indoor Air Flow (High/Low)CFM(CMM)	Wheels pcs / diameter		Hot Air Duct Diameter In.(mm)	Maximum Duct Length ft(m)
293149	405/ 345 (11.5 / 9.8)	4 / 76mm		12 (300)	50 (15
Safety Devices		Compressor overload protector, Anti-freezing thermistor, Full drain tank switch, Automatic restart (Power interruption), Compressor time delay program, High pressure switch
Features		Temperature control, Self-diagnostic function, Two speed fan, Optional drain pump kit, Washable filters, °F( °C) display, Off-timer

General Safety Information

Please read this manual carefully for instructions on correct installation and usage. Please read all safeguards.

Transport and store the unit in an upright position only. Leave unit in an upright position for at least 3 hours before first use.
Always place the unit on an even, level surface.
Ensure the unit is connected to a grounded power supply of the correct rating/ capacity.
The unit will cool when the room temperature is between l8°C (64°F) ~ 45°C(113°F) depending on the thermostat setting.
DO NOT use this unit for functions other than those described in this instruction manual.
DO NOT tilt the unit.
DO NOT cover or obstruct the unit’s inlet and outlet grilles.
DO NOT use the unit in areas where it will be exposed to rain or water.
NEVER unplug the unit while it is operating.
DO NOT use the unit in wet environments, such as a laundry room, to avoid the risk of electrical shock.
DO NOT place any foreign objects on the unit.
DO NOT operate the unit with wet or damp hands.
DO NOT allow chemical substances to come into contact with the unit.
DO NOT operate the unit in the presence of flammable substances or vapors such as alcohols, pesticides, gasoline, etc.
DO NOT operate the unit in explosive or flammable environments
DO NOT use the plug to start and to stop the unit. Always use the control panel to start and to stop the unit.
Always turn off the unit when it is not in use and unplug the power plug from the electrical outlet.
Always turn the unit off and unplug the main power plug from the electrical outlet before cleaning, moving or performing maintenance.
AVOID the use of adapter plugs or extension cords. If it is necessary to use an extension cord or an adapter plug to operate the unit, ensure that they are correctly rated for the application. Consult a local qualified lectrician and all local electrical codes to ensure proper setup.
Any extension cord used with this device must be rated for a minimum of 15A.(120V)
DO NOT unplug the unit by pulling on the electrical cord. Keep electrical cord away from heat sources and always completely unroll the cord to avoid overheating. If the power cord becomes damaged, a qualified service agent, qualified electrician, or similarly qualified person must replace it, in order to avoid a hazard or shock.
DO NOT operate a unit with a damaged power cord
The filters must be used with the product at all times. When the filters are removed for cleaning, always ensure that the unit has been turned off and unplugged from the electrical outlet.
Regularly clean the filters to maintain efficiency. If the filters are not cleaned regularly, the units output performance and efficiency will decline and energy consumption will increase.
DO NOT operate the unit with a damaged power cord or plug, after it malfunctions, has been dropped or damaged.
Only use in the upright position on an even, flat surface. Unit must be positioned at least 24 inches (60 cm) from the nearest object in any direction.
Stop operation immediately if abnormal noise or odor is noticed. Contact a local service center.
Appliance is not to used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
Children being supervised not to play with appliance.
That the appliance shall be installed in accordance with national wiring regulations.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

SAVE THESE INSTRUCTIONS

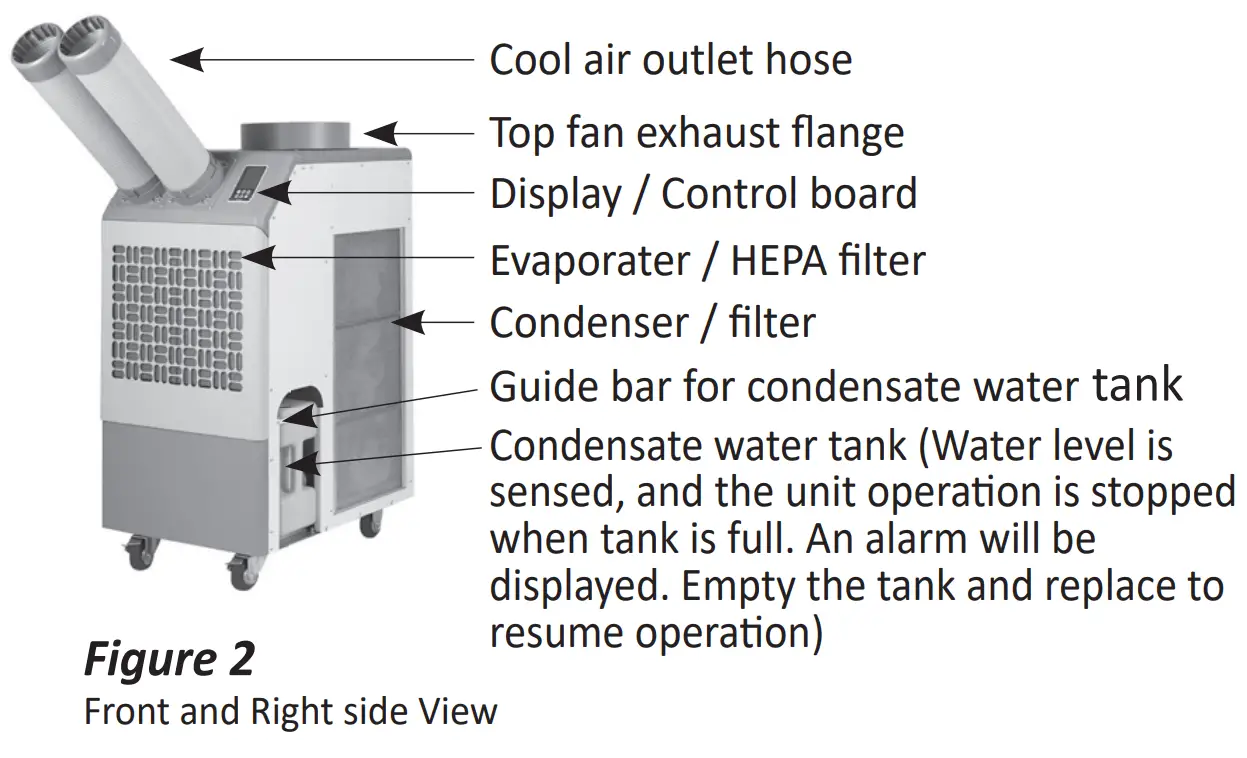

Assembly

POWER CORD HOLDER

Take out the cord holder from the accessory box.
Place the cord holder on the back side of air conditioner.
Use screws (enclosed inside of accessory box with cord holder) to install the cord holder on the air conditioner as shown in Figure 4.

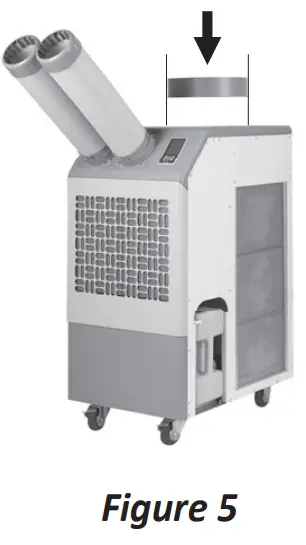

TOP FAN EXHAUST FLANGE

Remove the top fan exhaust flange from carton.
Place the top fan exhaust flange on the top of air conditioner.
Use screws (enclosed inside of box with the top fan exhaust flange) to install the top fan exhaust flange on air conditioner as shown in Figure 5.

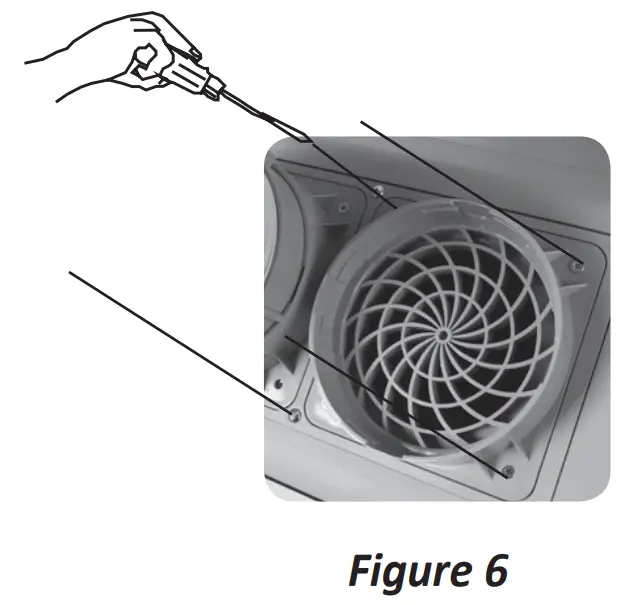

DISCHARGE DUCTS/SUPPLY AIR DUCT

Remove cool air outlet hose(s) from carton.
Place the cool air outlet hose(s) on the front top of air conditioner.
Use screws (enclosed inside of box with cool air outlet hose(s) to install the cool air outlet hose(s) on the air conditioner as shown in Figure 6.

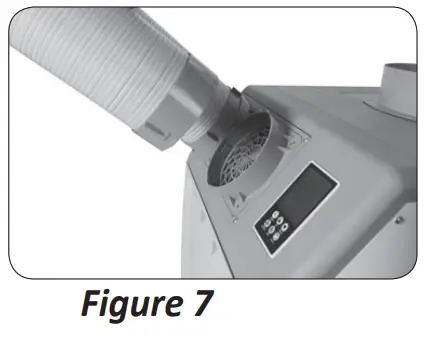

CONVENIENT DETACHABLE DUCT

By applying a detachable duct that can be easily inserted by turning it around at once, it is easy to attach and detach, adding convenience to air conditioner management.

Installation

WARNINGS REGARDING PROPER LOCATION FOR INSTALLATION

Do not use the unit in explosive environments or in areas where flammable gas leakage may occur.
Do not use the unit in areas where it will be exposed to rain or water.
Do not use the unit in a corrosive atmosphere.
Do not use the unit above 18°C(64°F) ~ 45°C(113°F).
Do not install the unit on uneven or sloping surface. The unit may roll or topple over even if the casters are set to the locked position.

MOVING THE UNIT

Unlock the casters and push the unit using the side handles to a flat, level surface and set the
caster brakes to the locked position.

PLUGGING IN THE UNIT

Check the prongs and surface of the power cord plug for dust/dirt. If dust and/or dirt are present, wipe off with a clean, dry cloth.
Check the power cord, plug and prongs for damage or excess play.
If any damage or excess play is found, contact a qualified repair technician or a qualified electrician to perform replacement or repair of the power cord, plug or prongs.

If the power cord or plug is damaged, repair should only be performed by qualified electrical personnel.
Do not connect / disconnect the power cord or attempt to operate buttons with wet hands. This could result in electrical shock.

NOTE: Make sure the AC outlet is free of dirt, dust, oil, water, or any other foreign material. The unit is equipped with an approved NEMA plug configuration. (292660(5-15P), 292661(5- 20P), 292662(6-15P)) The appropriate outlet must be used for each plug type.

Operation

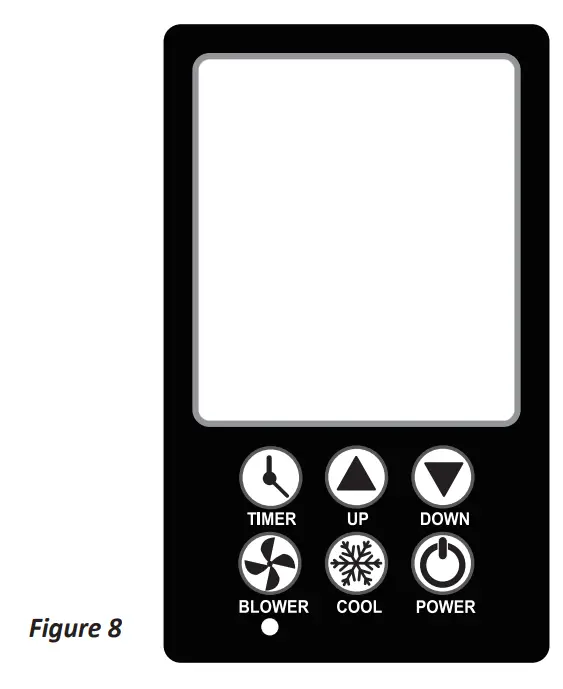

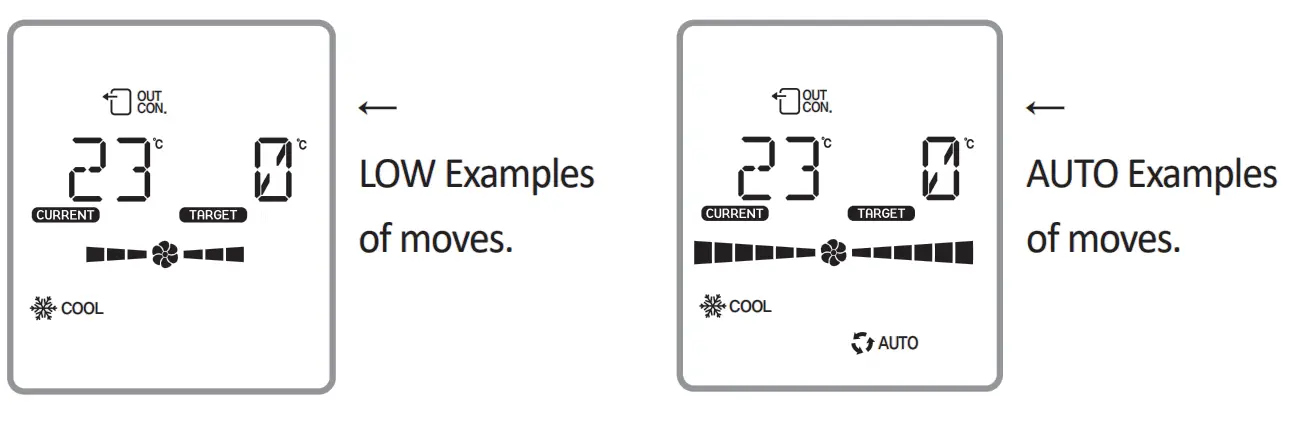

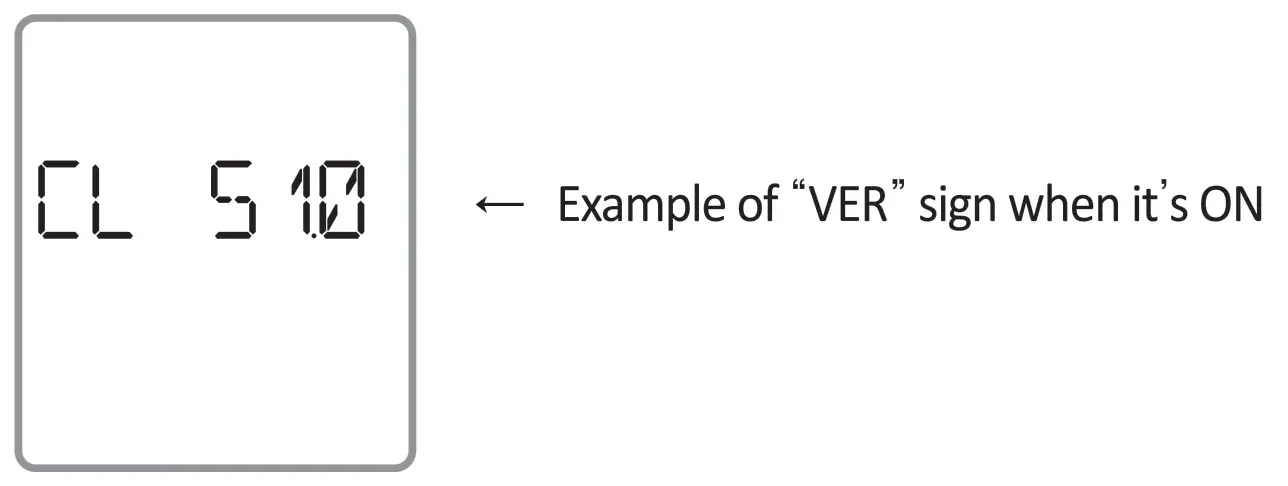

CONTROL PANEL

	Press the power button for 2 seconds to activate the product. Press the power button for 2 seconds while driving to stop the product. Self-diagnosis will be performed to test for abnormalities, after marking “VER” for 3seconds when power is “ON”. And the blowing is operated as “High”, and the compressor is operated after 1 minute.

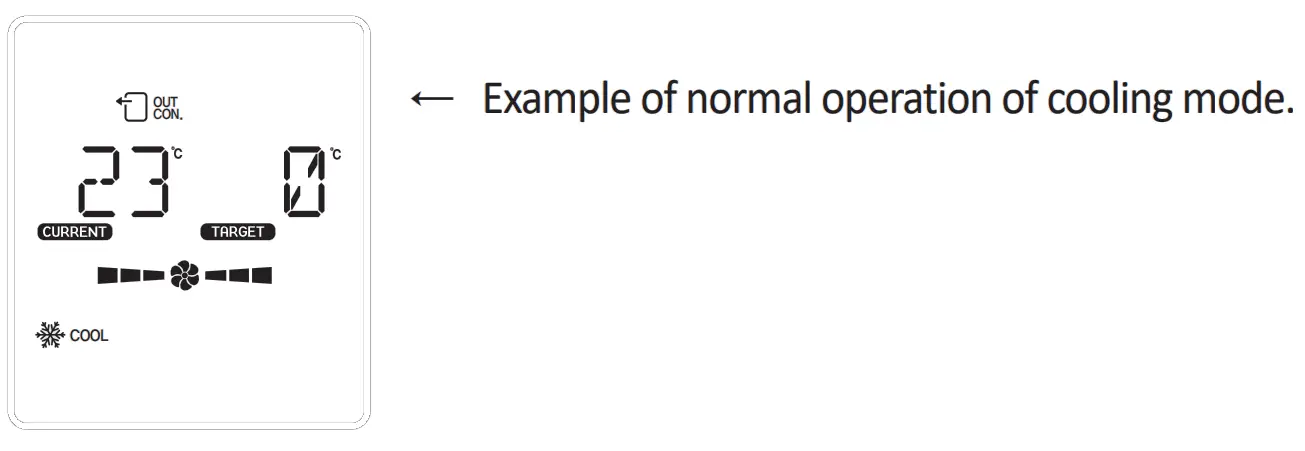

Cooling mode.	Cooling mode · The basic operation is based on “out” control. (discharge temperature TH1) · On/off the operation of the compressor. (COOL ↔ BLOWER) · The set temperature cannot be changed and it operates which is set to 0 degrees Celsius. When blower is operating · LOW → HIGH → AUTO It consists of three modes and operates in circulation. · LOW, HIGH, AUTO In “LCD”, the middle wing of each mode rotate and operate. · AUTO MODE – If the power source becomes “on” after “off”, it operates as “auto” and then as “high” or “low” depending on the sensor value after 3 seconds. – The difference between “current temp” and “target temp” operates as “high” when it is 8 degrees Celsius or higher, and “low” when it is 6 degrees Celsius or lower.

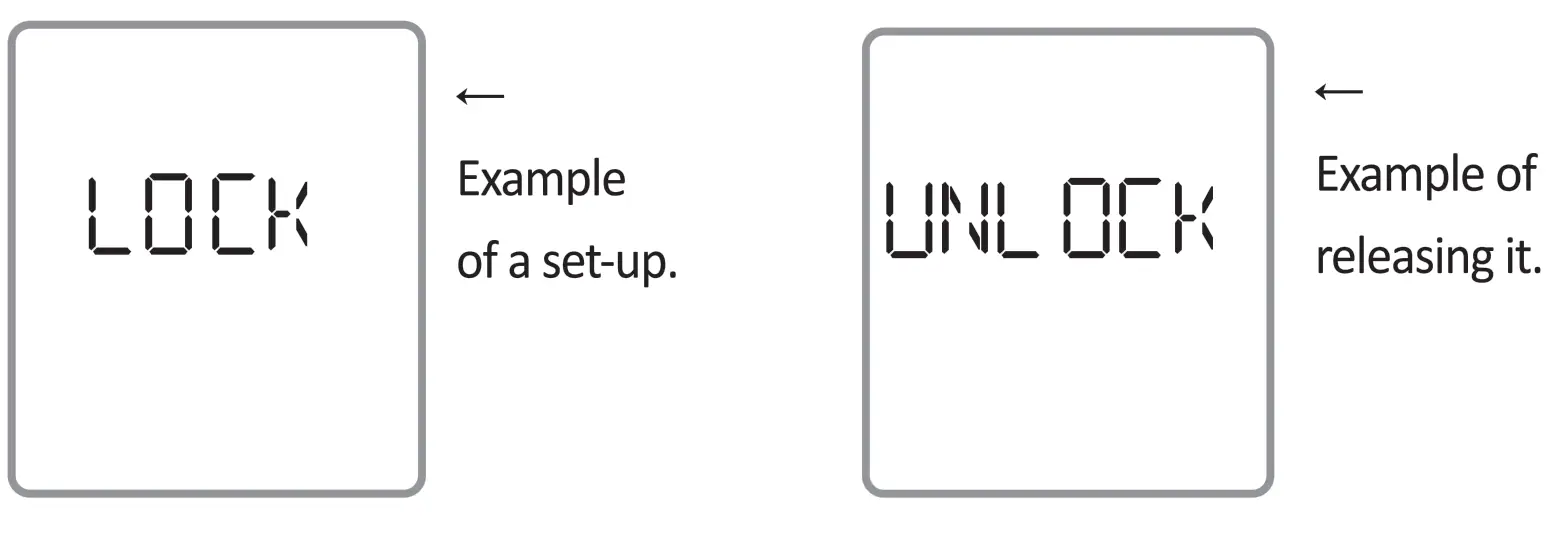

LOCK MODE	It is a mode that prevents the operation of the rest of the buttons except for power. · It can be operated and released by pressing for 2 seconds.
Blowing mode	The compressor does not operate, but only the blowing fan operates. · LOW → HIGH → AUTO It consists of three modes and operates in circulation.

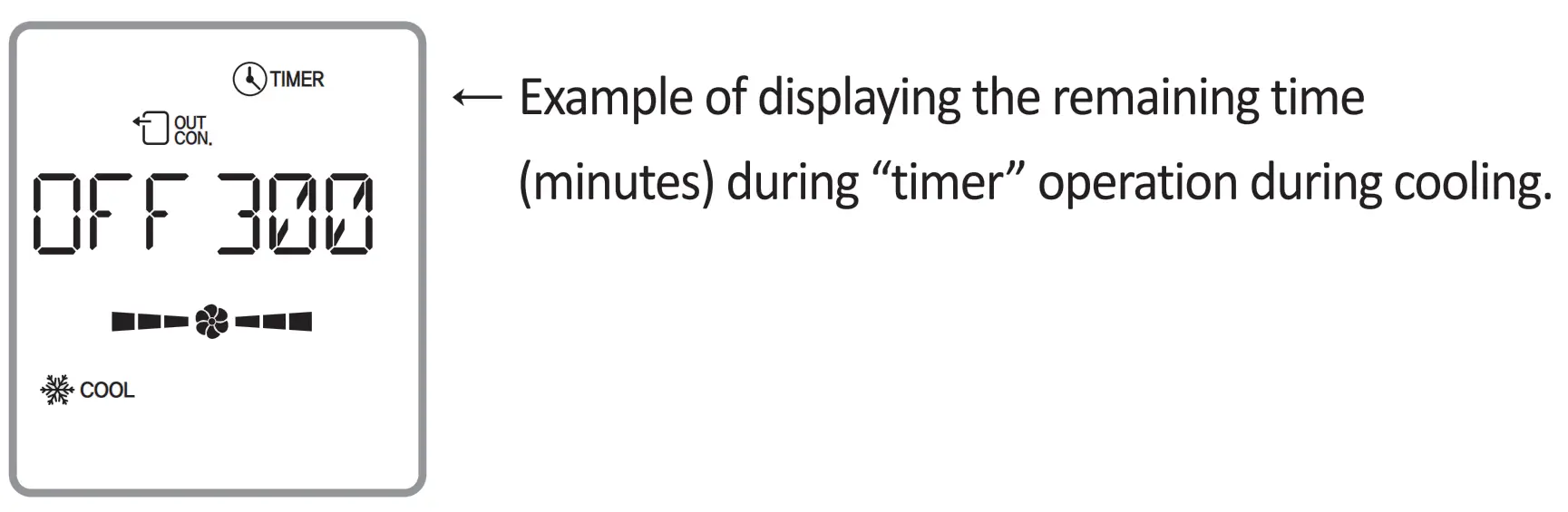

Reservation mode	It’s the off reservation mode. · Press the ‘time’ button for 2 seconds, select the ‘blower’ button, and select ‘on/off’, minutes as the ‘up/down’ button. · You can choose to make a reservation for turning it on -> ON, off->OFF. · UIt can be adjusted every 30 minutes with up/down’ and up to 720 minutes (12 hours). · If the ‘time+up’ button or the time is “0”, the reservation will be canceled.

Maintenance

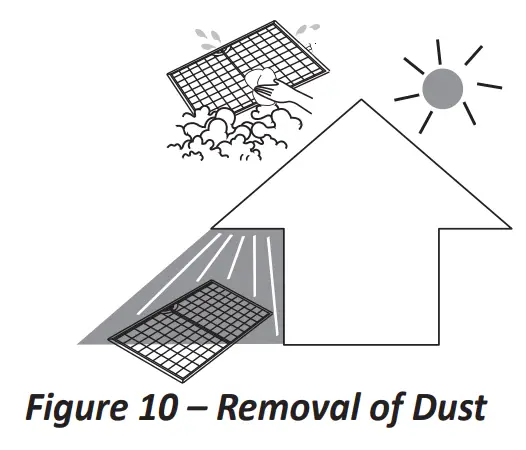

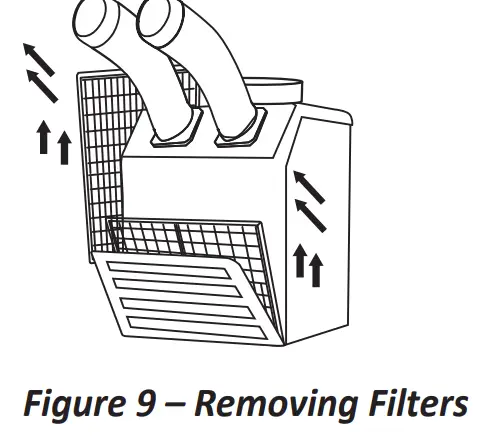

FILTER CLEANING (See Figures 9 and 10)

There are two filters in the unit. The evaporator filter is located at the front of the unit. The condenser filter is located at the side of the unit.

loosen up 2 bolts on the front filter guard.
Slide filter up and use a vacuum cleaner to remove the dust from the filter.
If the filter is heavily covered with dust and dirt, warm water and mild soap or neutral detergent may be used to wash the filter. Do not use any other chemicals to clean filter, as they will likely damage the filter.
Dry the filter in a shaded area before replacing it. Do not operate the unit without the filter installed and the filter guard in the closed position.
Replace the clean filter and close the filter guard.
To clean the condenser filter, lift up on the side filter from the middle bar slightly and then angle the filter outwards from the bottom and remove. 7.Use the same cleaning procedure as above (3 – 5).
To replace the condenser filter, place the top of the filter in the guide and slide the filter up until the bottom of the filter clears the frame. Then push the bottom of filter into the guide and let filter gently fall inside the guide.

NOTE: For effective cooling clean the filter at least every 2 weeks.

Loosen up 2 bolts on the front filter guard.
Slide filter up and use a vacuum cleaner to remove the dust from the filter.
Remove dust from the filter using a vacuum cleaner hose attachment.
If required wash the filter in lukewarm water with a mild detergent. Leave to dry ina shaded area before reinstalling.

Do not operate without the filter fitted.
Do not operate the unit with a damaged cord or plug, after the unit malfunctions, or if the unit has been dropped or damaged.

For your convenience, record the complete model number and product name (located on the Product Identification Plate), the purchase date, purchase location, serial number, and warranty period in the table below.
Also, attach your purchase receipt as proof of purchase to this instruction manual for future reference.
To ensure your product is covered by warranty, the complete faulty product along with your original purchase receipt must be provided at the place of purchase.
To ensure your product is covered by warranty, the complete faulty product along with your original purchase receipt must be provided at the place of purchase.

Product Portable Air Conditioner

Model No.
Date of Purchase
Place of Purchase
Serial No.
Period of Warranty

Customer: Please read and keep this manual for future reference and keep sales receipt as proof of purchase.

SPRING REPLACEMENT (See Figure 11)

There are two springs on the rear of condensate water tank guide.

Release the screw on the spring hook.
Take off the spring hook, and then pull out the opposite spring hook from hole in the condensate water tank guide.
Replace with a new spring in reverse order.
Repeat this cycle for the other spring.

SELF-DIAGNOSTIC CODES (See Table 1)

The alarm light is activated if abnormal operation occurs, and a code is displayed on the control panel. The compressor and condenser fan motor will stop operating. The evaporator fan will continue to run for 3 minutes. If the fault is rectified within 3 minutes, the unit will resume operation. If the fault persists for more than 3 minutes, the evaporator fan also stops. The fault must be rectified before the unit can resume normal operation.

SELF‐DIAGNOSTIC ALARM CODES
Alarm Display	Alarm Display	Cause	Corrective Action
	Compressor overloaded	Ambient temperature is too high Unstable voltage supply Defective compressor	Do not use the air conditioner if ambient temperature is higher than 45°C (113°F) Contact a qualified service agent Replace compressor
	Condensate water level alarm	Condensate tank is full	Empty the water tank After installation of the water tank, press the SPOT/COOL or ROOM/ COOL button to resume operation
	Drain pump alarm	Drain pump defective or improper hose connection (including kink or blockage)	Check the a connection and hose Replace drain pump
	Refrigerant high pressure switch	Blocked air filter Blocked/ kinked exhaust duct Ambient temperature is too high	Clean air filter Ensure exhaust duct is not blocked/ kinked Do not use the air conditioner if ambient temperature is higher than 45°C (113°F)
	Abnormal temperature sensor value	THl (Outlet) temperature sensor has a loose or broken connection	Contact a qualified service agent
	Abnormal temperature sensor value	TH2(1nlet) temperature sensor has a loose or broken connection	Contact a qualified service agent
	Abnormal temperature sensor value	TH3 {Prevention of Freeze) Sensor open circuit or poor connection.	Contact a qualified service agent
	Frost prevention sensor and Abnormal temperature sensor value	Indoor heat ex- changer temperature too low TH3 temperature sensor has a loose or broken connection	Do not use the air conditioner if ambient temperature is lower than l8°C (64°F) Contact a qualified service agent

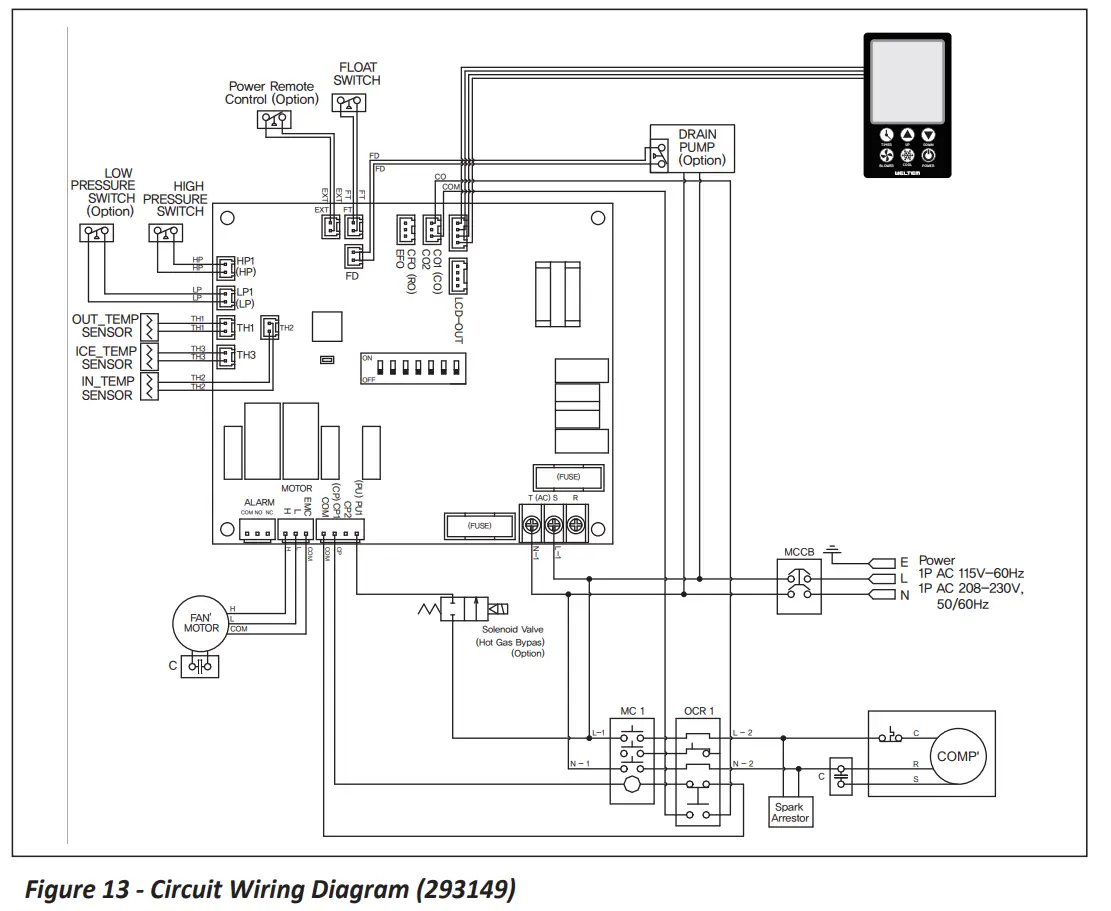

Wiring Diagram

Troubleshooting chart

Symptom	Possible Cause(s)	Corrective Action
Water leakage	High water level in condensate tank	Remove blockage from drain hose Remove any object stuc undeerneath of the black panel nuder the water tank
The unit doesn’t work	Check the power supply to verify that power is available to the unit Verify that the power cord is connected	Reset the circuit breaker and restart the unit Connect power cord
No cold air flows from the cold air outlet	Ambient air cannot be properly cooled if the filter is dirty and not regularly cleaned Compressor will not work if the unit is turned off and on quickly. The ambient air temperature may be too high	Clean the filter Wait 2 minutes after unit is turned off before turning the unit back on. The temperature of the compressor can be higher when the ambient temperature is too high. The compressor will not work unless the ambient air temperature is within the acceptable operating range of the unit
	No cause	Common to hear coolant flowing after unit shuts off
Alarm displays “FT” with less than half of condensate water in the tank Spring is possibly broken	Spring is possibly broken	Replace a new spring (See Maintenance page 8)

LIMITED WARRANTY

Global industrial ONE-YEAR LIMITED WARRANTY. Global industrial PORTABLE AIR CONDITIONERS, MODELS COVERED IN THIS MANUAL, ARE WARRANTED BY Global industrial TO THE ORIGINAL USER AGAINST DEFECTS IN WORK MANSHIP OR MATERIALS UNDER NORMAL USE FOR ONE YEAR AFTER DATE OF PURCHASE. ANY PART WHICH IS DETERMINED TO BE DEFECTIVE IN MATERIAL OR WORKMANSHIP AND RETURNED TO AN AUTHORIZED SERVICE LOCATION, Global industrial DESIGNATES, SHIPPING COSTS PREPAID, WILL BE, AS THE EXCLUSIVE REMEDY, REPAIRED OR REPLACED BY Global industrial OPTION. FOR LIMITED WARRANTY CLAIM PROCEDURES, SEE “PROMPT DISPOSITION” BELOW. THIS LIMITED WARRANTY GIVE PURCHASERS SPECIFIC LEGAL RIGHTS WHICH VARY FROM JURISDICTION TO JURISDICTION.

LIMITATION OF LIABILITY. TO THE EXTENT ALLOWABLE UNDER APPLICABLE LAW, Global industrial LIABILITY FOR CONSEQUENTIAL AND INCIDENTAL DAMAGES IS EXPRESSLY DISCLAIMED. Global industrial LIABILITY IN ALL EVENTS IS LIMITED TO AND SHALL NOT EXCEED THE PURCHASE PRICE PAID.

WARRANTY DISCLAIMER. A DILIGENT EFFORT HAS BEEN MADE TO PROVIDE PRODUCT INFORMATION AND ILLUSTRATE THE PRODUCTS IN THIS LITERATURE ACCURATELY; HOWEVER, SUCH INFORMATION AND ILLUSTRATIONS ARE FOR THE SOLE PURPOSE OF IDENTIFICATION, AND DO NOT EXPRESS OR IMPLY A WARRANTY THAT THE PRODUCTS ARE MERCHANTABLE, OR FIT FOR PARTICULAR PURPOSE, OR THAT THE PRODUCTS WILL NECESSARILY CONFORM TO THE ILL STRATIONS OR DESCRIPTIONS. EXCEPT AS PROVIDED BELOW, NO WARRANTY OF AFFIRMATION OF FACT, EXPRESSED OR IMPLIED, OTHER THAT AS STATED IN THE “LIMITED WARRANTY” ABOVE IS MADE OR AUTHORIZED BY Global industrial.

Technical Advice and Recommendations, Disclaimer. Notwithstanding any past practice or dealings or trade custom, sales shall not include the furnishing of technical advice or assistance or system design. Global industrial assumes no obligations or liability on account of any unauthorized recommendations, opinions or advice as to the choice, installation or use of products.

Product Suitability. Many jurisdictions have codes and regulations governing sales, construction, installation, and/or use of products for certain purposes, which may vary from those in neighboring areas. While attempts are made to assure that Global industrial products comply with such codes, Global industrial cannot guarantee compliance, and cannot be responsible for how the product is installed or used. Before purchase and use of a product, review the product applications, and all applicable national and local codes and regulations, and be sure that the product, installation, and use will comply with them.

Certain aspects of disclaimers are not applicable to consumer products; e.g., (a) some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you; (b) also, some jurisdictions do not allow a limitation on how long an implied warranty lasts, consequently the above limitation may not apply to you; and (c) by law, during the period of this Limited Warranty, any implied warranties of implied merchantability or fitness for a particular purpose applicable to consumer products purchased by consumers, may not be excluded or otherwise disclaimed.

Prompt Disposition. A good faith effort will be made for prompt correction or other adjustment with the respect to any product which proves to be defective within limited warranty. For any product believed to be defective within limited warranty, first write or call dealer from whom the product was purchased. Dealer will give additional directions. If unable to resolve satisfactorily, write to Global industrial at the address below, giving dealer’s name, address, date, and number of dealer’s invoice, and describing the nature of the defect. Title and risk of loss pass to buyer on delivery to common carrier. If product was damaged in transit to you, file claim with carrier.

Manufactured in Global industrial co., Ltd., 11 Harbor Park Drive Port Washington, NY 11050 USA 1.888.628.3466 Customer Support
