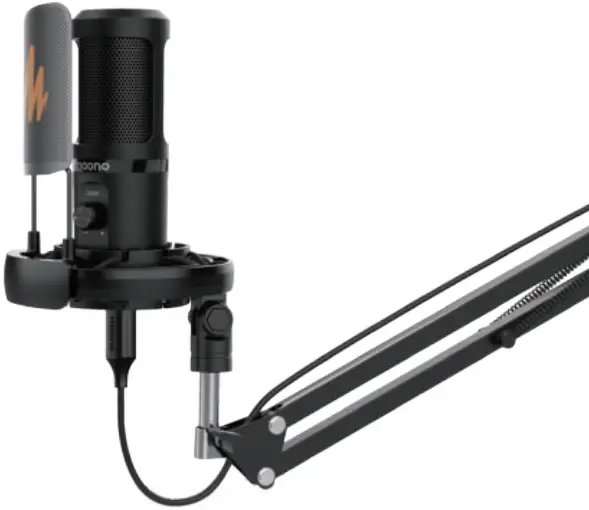

AU-PM461S
USB Microphone Boom Arm set
User Manual

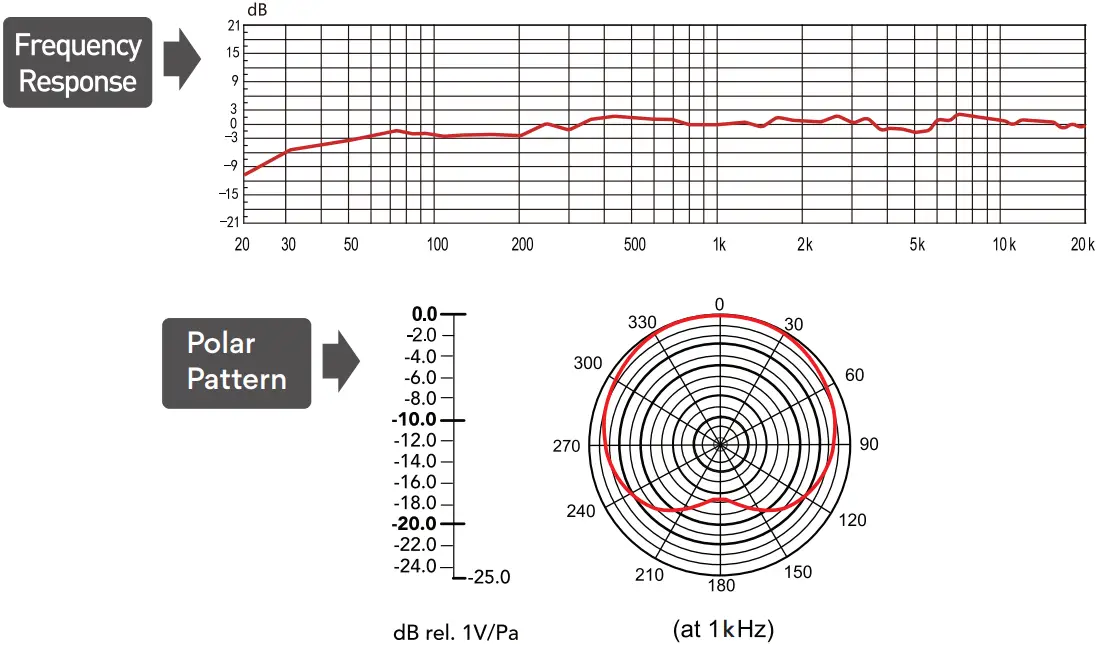

Specification
| Microphone-core | Dia.14mm Condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 20Hz-20kHz |
| Sensitivity | -13.5dBFS～0.5dBFS (±3dB, 94dB SPL at 1kHz) |
| Maximum SPL | 93.5dB |
| S/N Ratio | 60dB |
| Cable | USB A to B cable |
Introduction

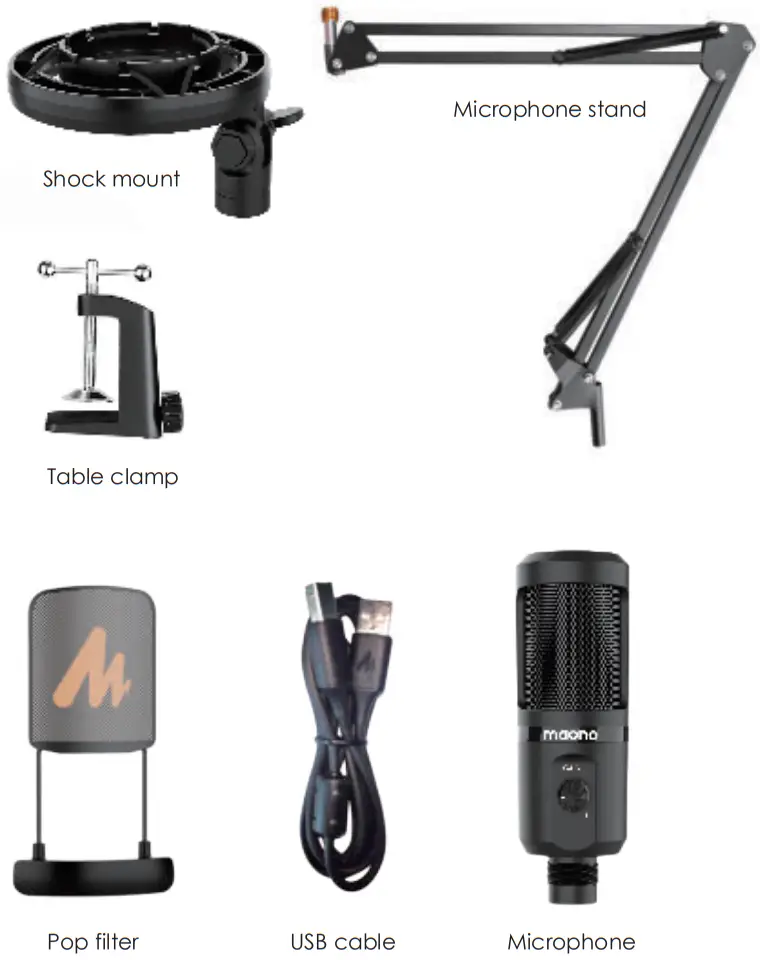

Items in package
| USB Microphone | x1 | Microphone stand | x1 |
| USB Cable | x1 | Table clamp | x1 |
| Shock mount | x1 | Pop flter | x1 |

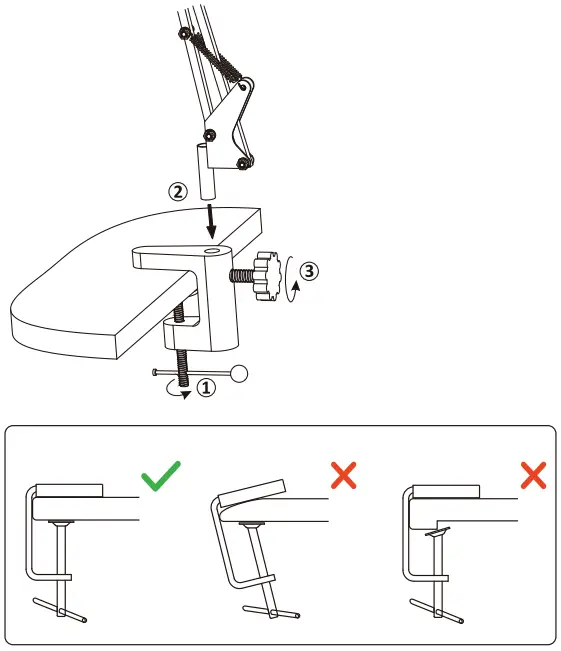

Install Microphone stand on table

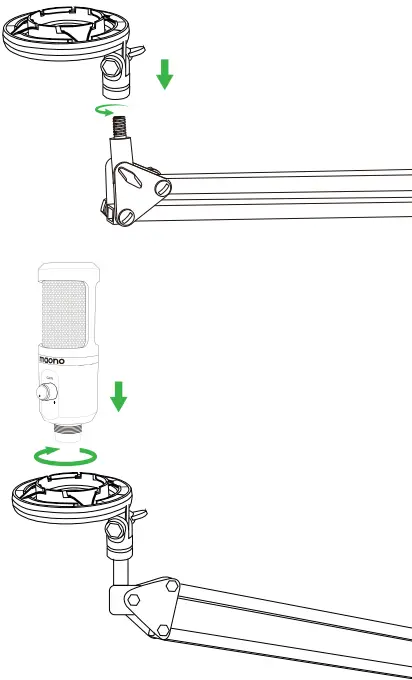

Installation quick guide
 |  |

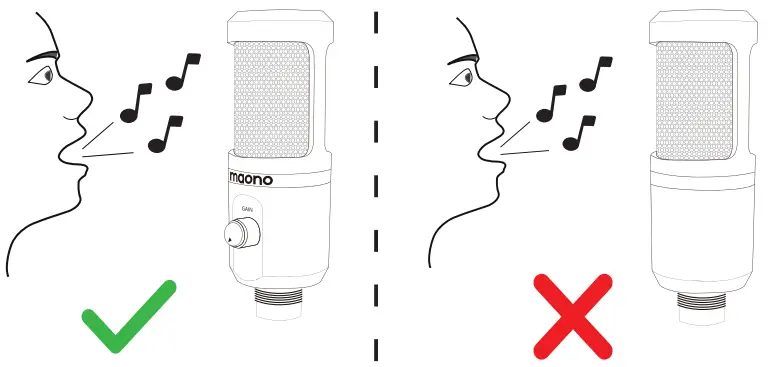

Microphone placement

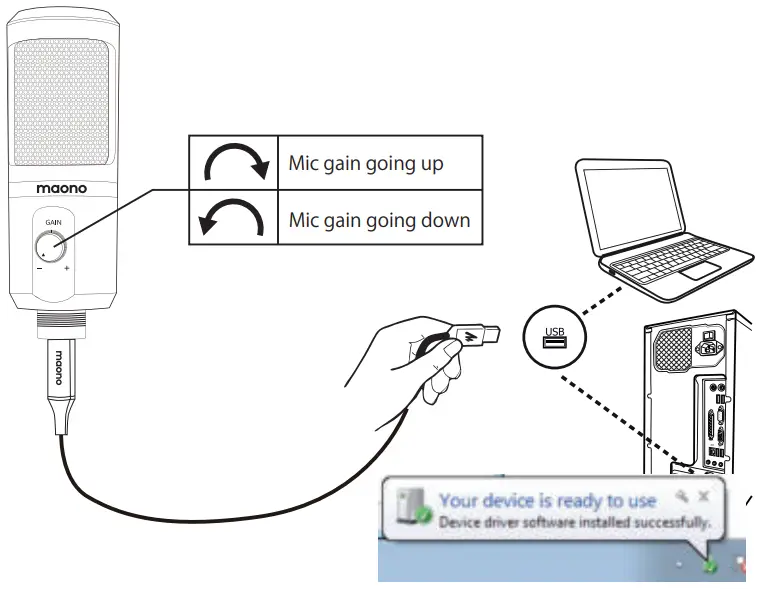

Connect to Computer

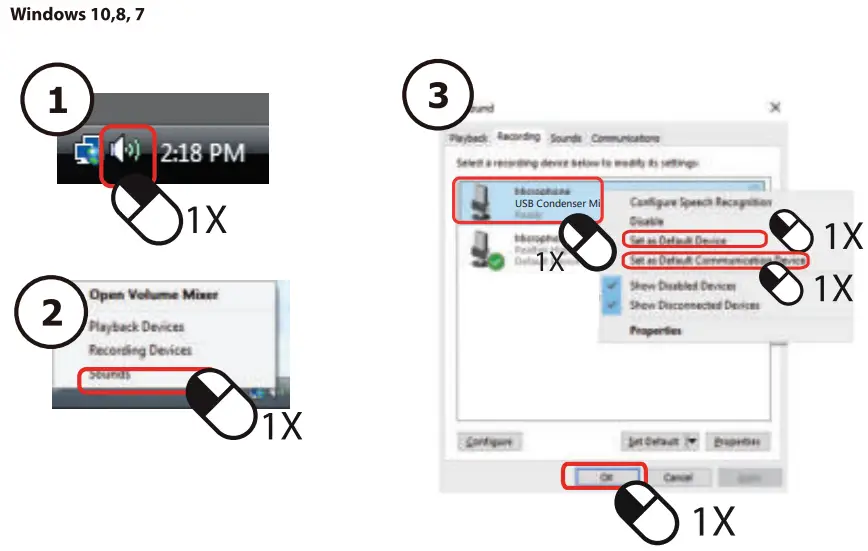

How to set on PC
Set microphone level

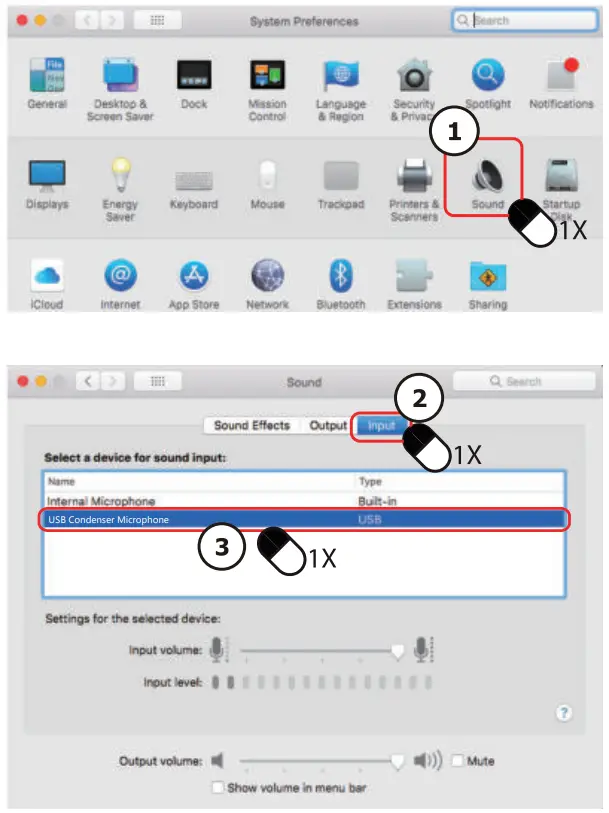

How to set on Apple Mac
 |  |
| Company：Qing UG（haftungsbeschränkt） Address: Undinestr. 7,12203 Berlin Germany Tell: 004917662179550 E-mail: [email protected] | Company: CET PRODUCT SERVICE LTD. Address: Chase Business Centre, 39-41 Chase Side, London N14 5BP United Kingdom Email: [email protected] TEL: +447419325266 |
Technical support:
[email protected]
www.maono.com
