Parts Manual
Oxford® Up
Instruction Manual

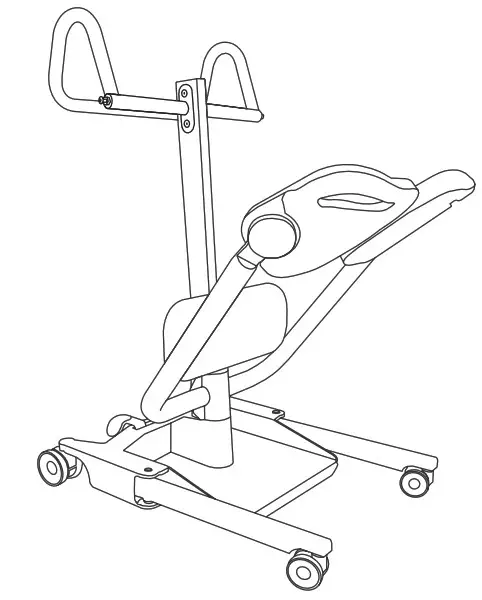

Stand Aid Professional Lift Healthcare

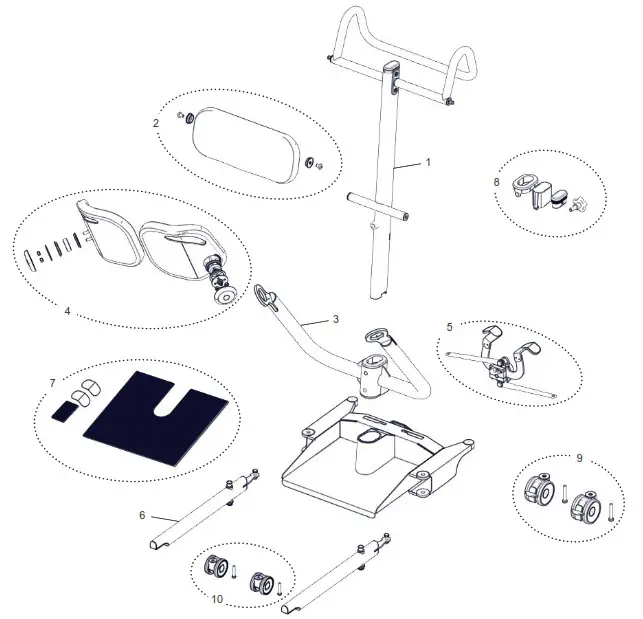

| NO | PART NUMBER | DESCRIPTION | QTY |
| 1 | 39001970 | Mast Assembly | 1 |
| 2 | 39001971 | Knee Pad (Including Fixings) | 1 |
| 3 | 39001972 | Seat Post Assembly with Mast Inserts | 1 |
| 4 | 39001973 | Seat Pads – Left & Right Hand (Including Fixings) | 1 |
| 5 | 39001975 | Foot Pedal Assembly (Including Fixings) | 1 |
| 6 | 39001976 | Leg Assembly (Single) | 1 |
| 7 | 39001977 | Rubber Pads (Foot Tray, Pedals and Push Pad) | 1 |
| 8 | 39001978 | Plastic Molded Parts (Including Locking Knob) | 1 |
| 9 | 39001987 | Rear Castors (Braked) (Including Fixing) (Pair) | 1 |
| 10 | 39001988 | Front Castors (Including Fixing) (Pair) | 1 |
| N/S | 39001979 | Decal Set (Not Shown) | 1 |
Joins Healthcare Limited
Drakes Broughton Business Park, Worcester Road, Drakes Broughton
Per shore, Worcestershire, WR10 2AG United Kingdom
(T) 0344 811 1158
www.joerns.co.uk · email: [email protected]
6130139 Rev A · DCO22-0038
© 2022, Joins Healthcare. All rights reserved.
