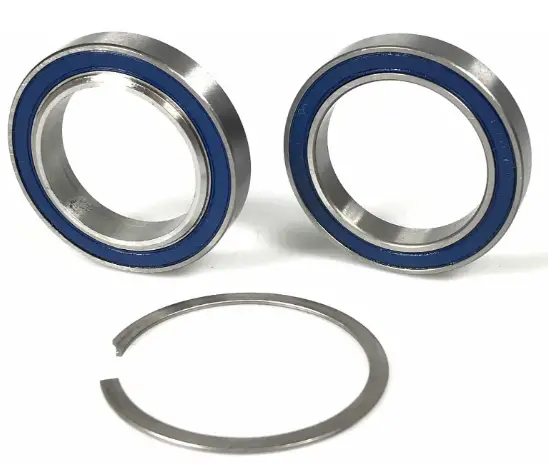

PRAXIS M30-BB30 Bearing Rebuild Kit
IMPORTANT: You are required to use proper bearing installation/removal tools to pull/press these bearings into a Praxis bottom bracket. Failing to use the correct tools can and will damage your new bearings and/or your BB and void your warranty. We highly suggest using Enduro’s bearing removal/press tool kits or similar shop level bearing tool kits. Do NOT attempt to replace bearings without the correct bearing tools. If you do not have the correct tools, please take your bike to your local bike shop for bearing replacement!
Model does not have c-clip
REFERENCE PHOTOS / NOTES

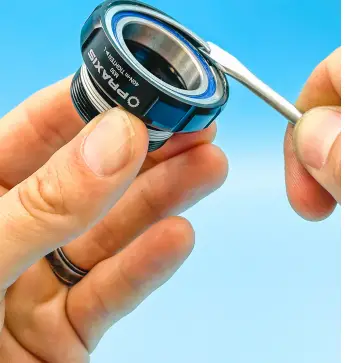

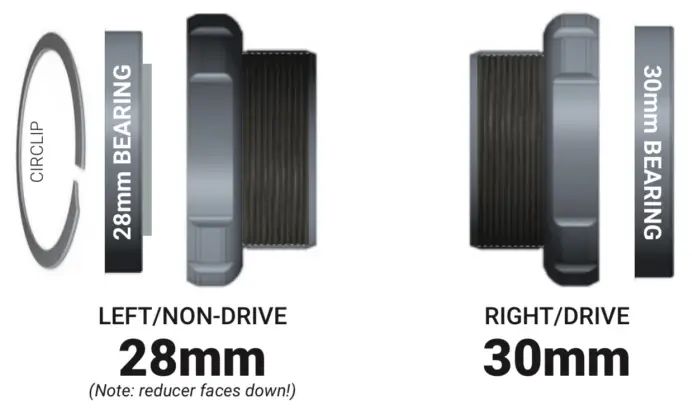

- 28MM SIDE – Gently pop the clip out if your model BB has one. Then you can pull the bearing (Reinstall after the new 28mm bearing is pressed back in)

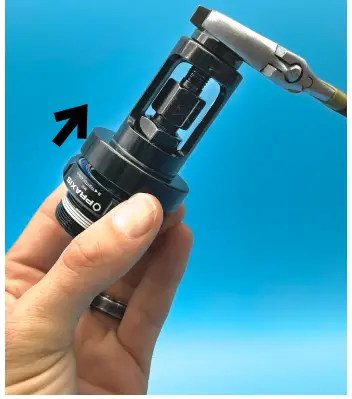

- PULLING BEARINGS – Reference of a bearing puller to correctly pull out worn bearings.

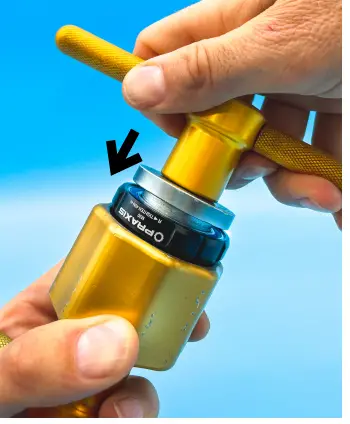

- 30mm PRESS – 30mm use a drift to press.

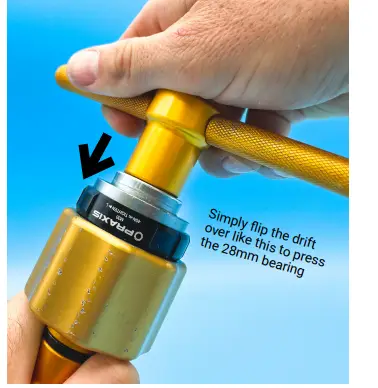

- 28mm PRESS – Flip the 30mm drift over and use it to press the 28MM down
