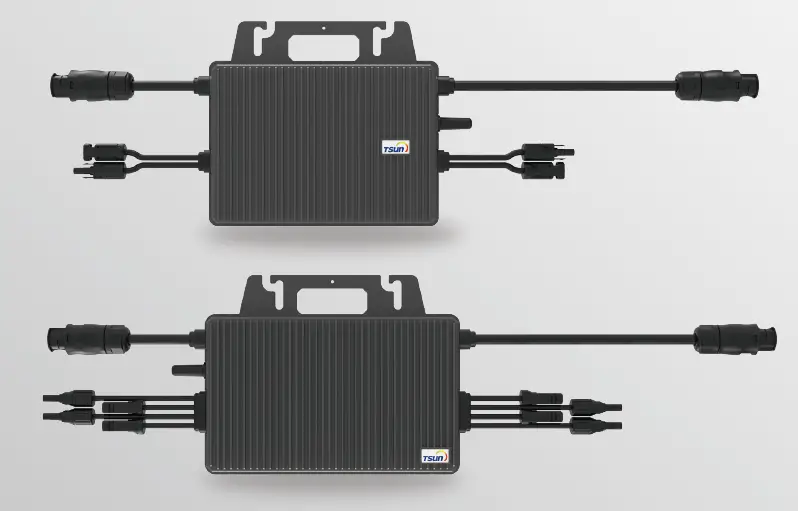

TSUN TSOL-M800 Micro Inverter
TSUN TSOL-M800 Micro Inverter
About the product
Maximized Efficiency
- Individual optimization, separate dedicated MPPT for
- New topology design, max.
Flexibility
- Plug & play installation. Easy to install.
- Multi-channel MPPT for complex installation environments with higher cost
Safety
- Max. DC voltage 60V. No threat for high DC voltage.
- Integrated LoM protection function. Ensure the safety
Reliability
- Die-casting design and glue filling technology. Better thermal dissipation.
- Standard 12 years warranty, Quality guaranteed.

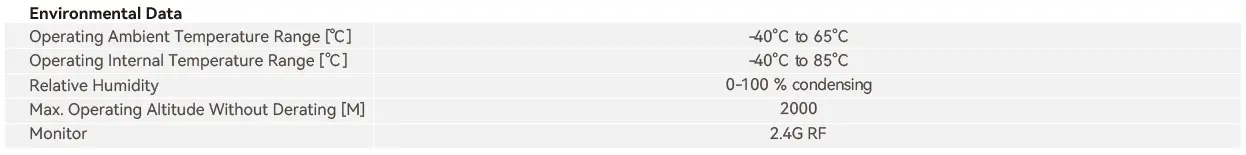

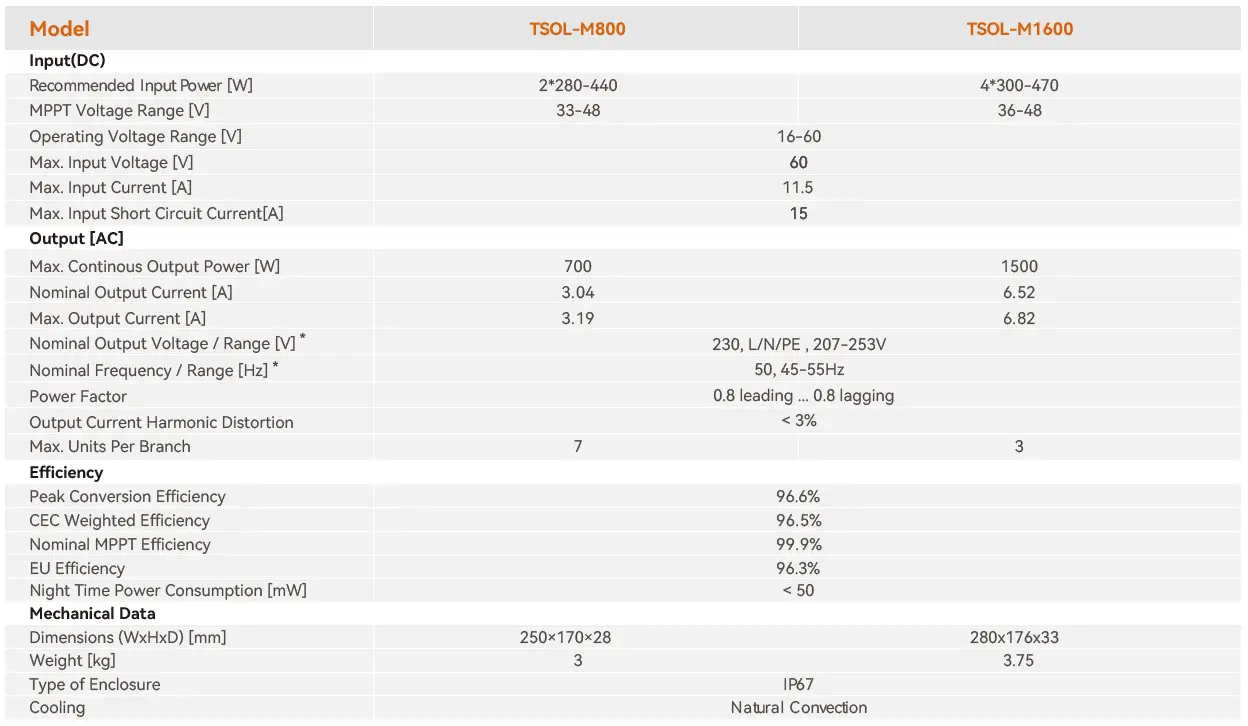

Technical Data
The AC voltage and frequency range may vary depending on specific country grid.

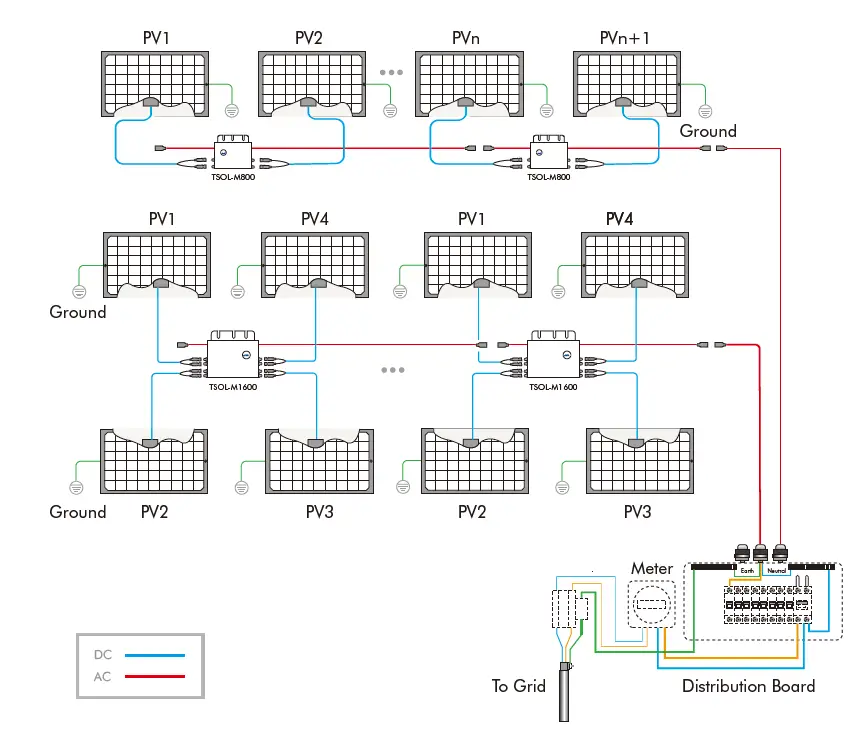

Diagram
Ordering Information
| Ordering NO. | Model | Description |
| 04.02.01.003 | TSOL-M800 | Microinverter, output 700W |
| 04.02.01.005 | TSOL-M1600 | Microinverter, output 1500W |
| 04.02.02.001 | TSOL-MT-F | AC connector, female |
| 04.02.02.002 | TSOL-MP-F | Protect cap, female |
| 04.02.02.003 | TSOL-MT-T | AC connector, male |
| 04.02.02.004 | TSOL-MP-T | Protect cap, male |
| 04.02.02.005 | TSOL-MC200-G2 | Interconnection cable, 2m |
For more information, visit/contact us at www.tsun-ess.com
