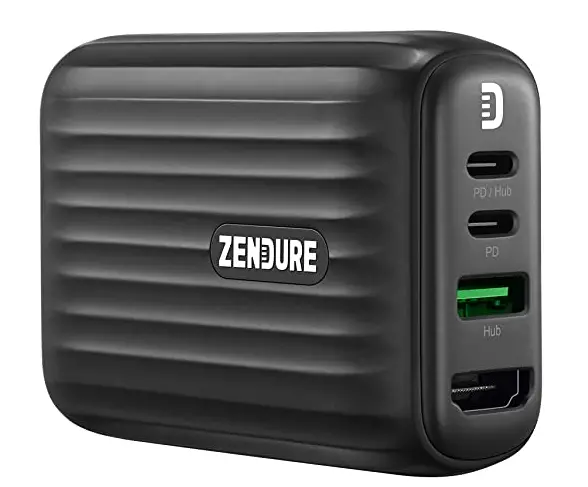

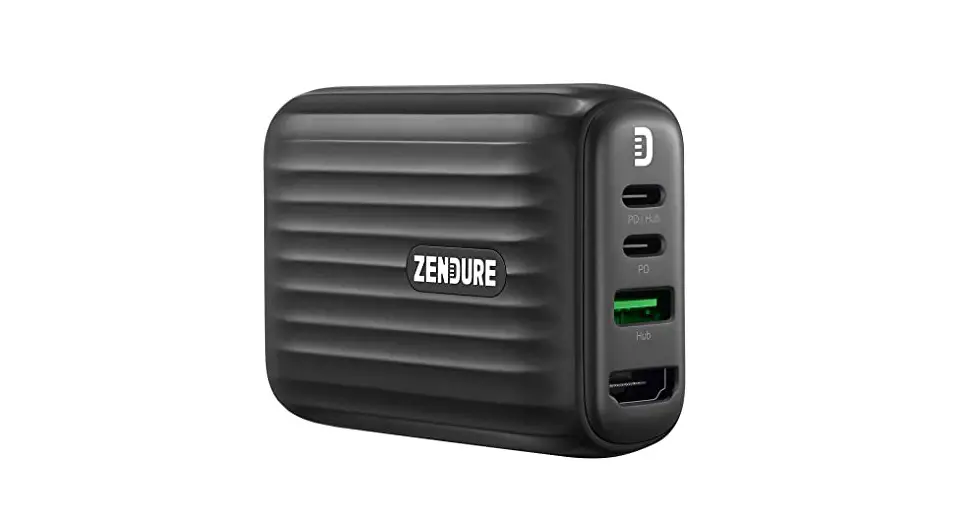

ZENDURE SuperHub 4-in-1 48W USB Hub

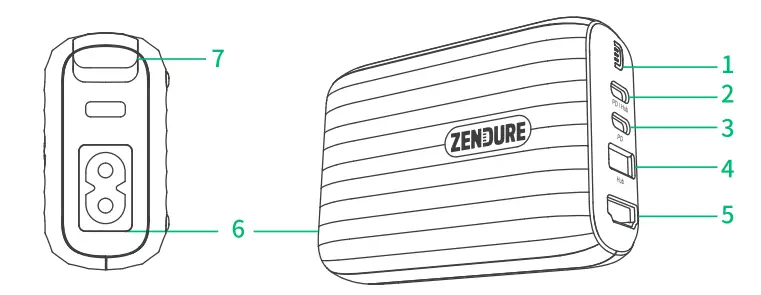

Product Overview

1. LED Indicator
2. USB-C(1) Port
3. USB-C(2) Port
4. USB-A Port
5. HDMI Port
6. ACPort
7. Plug Snap Button

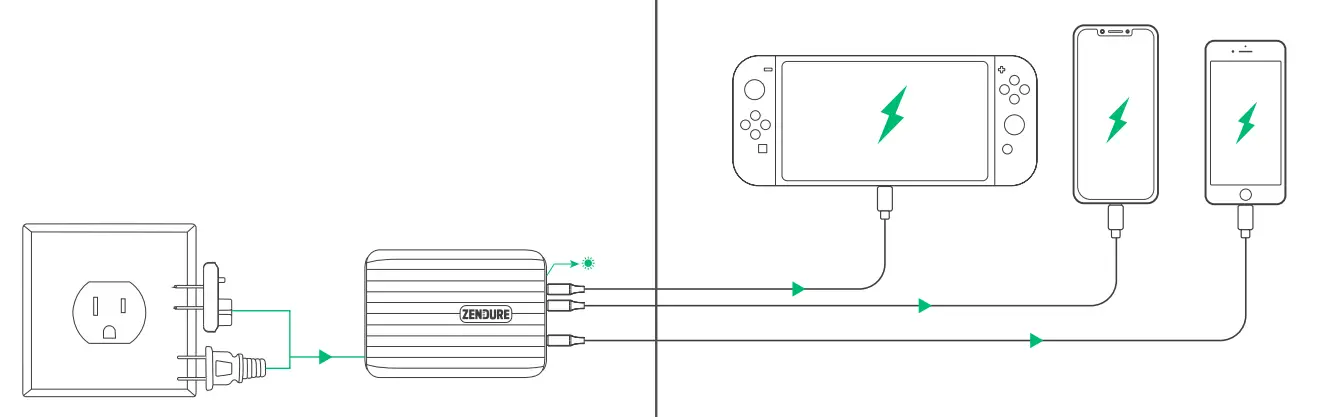

Charging Mode

1. Use the suitable global adapter plug into the SuperHub.
2. Power on the SuperHub by plugging it into the power supply, and the
   light is on.
   • Plug your USB-C cable into your Nintendo Switch / Macbook/ iPad Pro / iPhone/
     Android and into your SuperHub USB-C(1) Port, your device will automatically
     detect the connection to the SunerHub
   • Plug your USB-C cable into your iPhone/ Android and into your SuperHub
     USB-C(2) Port, your device will automatically detect the connection to the SuperHub.
   • Plug your USB-A connecting cable into your iPhone / Android and into your
     SuperHub USB-A Port,your device will automatically detect the connection to
     the SuperHub.

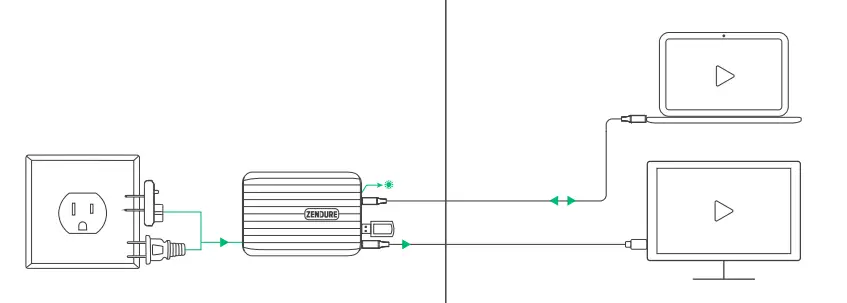

Hub Mode

Hub-Modus

• Power on your Nintendo Switch / Macbook /iPad Pro / iPhone/ Android and
  externalmonitor
• Use the suitable global adapter plug into the SuperHub.
• Power on the SuperHub by plugging it into the power supply, and the light is on.
• Plug your USB-C cable into your Nintendo Switch/ Macbook/ iPad Pro/iPhone/
  Android and into your SuperHub USB-C(1) Port, your device will automatically
  detect the connection to the SuperHub.
• Connect USB peripherals to USB-A port on the SuperHub.
• Plug your HDMI cable into your SuperHub and into your external monitor,your
  external monitor will automatically detect the connection to the SuperHub.

Caution

The socket-outlet shall be installed near the equipment and shall be easily accessible.

• Do not disassemble or attempt to re-purpose or modify it in any manner.
• Storage in a cool and dry place. Recommend storage temperature: -20°C to
  55° C; Operating temperature: -10°C to 45°C.
• Use origin or certified cables.
• Do not expose to moisture or submerge it in liquid.
• Avoid strenuous vibration, impact, extrusion on transportation, and keep
  the product away from intense sunlight and rain.
• Stop using and contact manufacturer if the product is excessively hot, is
  emitting odor, deformed or any other abnormalities.
• Be cautious of drops, bumps, abrasions, or other impacts.
• Keep it away from children under 3 years old for safety.
• Please dispose of discarded products properly according to local
  regulations.
• Do not clean with harmful chemicals or detergents.
• The attached cable is available for only this product, please do not use this
  cable for other purpose.

Specifications

• Model
  • ZDSHBO1
• AC Input
  • 100V-240V~50-60Hz 1.5A
• Charging Mode Output
  • USB-C(1):
    5V-3A, 9V-3A, 12V=2.5A, 15V=2A,
    20V1.5A 30W Max
  • USB-C(2):
    5V3A, 9V2A, 12V=1.5A 18W Max
  • USB-A:
    5V1.5A Max
  • USB-C(2)+USB-A:
    5V-3A Max
• Total DC Output
  • 48W Max
• USB-C(1) Port
  • USB 3.1 Gen 1 ,5Gbps
• USB-A Port
  • 4K@60Hz
• Dimensions
  • 3.3″ x 2.3″ x 1.2″
  • 83mm x 58mm x 30mm

Zendure USA Inc.
Phone: (800) 219-0960 (US)
Office Hours: Mon – Fri 9:00 – 17:00 PST
Support / Contact: www.zendure.com/support
Website: www.zendure.com

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interterence, and (2) this device must accept any interference received, including interference that may cause undesired operation.
