Quick FDWCB0400000A00 WCB Hydraulic Magnetic Circuit Breaker Installation Guide
DRAWING OF ASSEMBLY
Proceed with installation following the numbering of the elements.
- Hydraulic-magnet
- Plastic washer
- Neoprene gasket
- Control plate
- 4 self-tapping screws
- Anti-rotation screw
- WCB label
7a): Remove the protective paper from the back of the label. For a better seal, avoid touching the adhesive part with your fingers. Clean the surface of the control plate (4) before applying.
WARNING: it is recommended not to apply the adhesive on the control plate (4) at temperatures below 18° C.
7b): To apply the label properly, we recommend placing one side against the edge of the control plate (4) first and then completing the application.
Press the entire surface firmly to make it stick well.
7c): Remove the transparent protective film. - Red magnetic-hydraulic protective cap
Installation and use manual
HYDRAULIC MAGNETIC CIRCUIT BREAKER
The Quick® hydraulic-magnetic circuit breaker is a specific amperometric protection for direct current. It is triggered in the event of an overcurrent, breaking the electric circuit. It needs to be reset manually.
| MODEL | TRIP CURRENT | OPERATING VOLTAGE | OPERATING TEMPERATURE |
| WCB 40 | 40 A | Max. 80 Vdc | – 40°C ÷ + 85°C |
| WCB 50 | 50 A | ||
| WCB 60 | 60 A | ||
| WCB 80 | 80 A | ||
| WCB 100 | 100 A |
Referring to the Hydraulic-magnetic breaker.

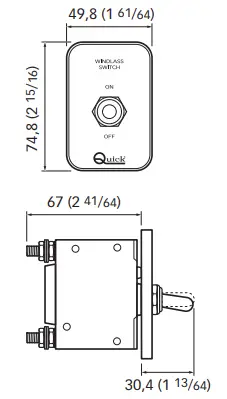

DIMENSION
mm (inches)

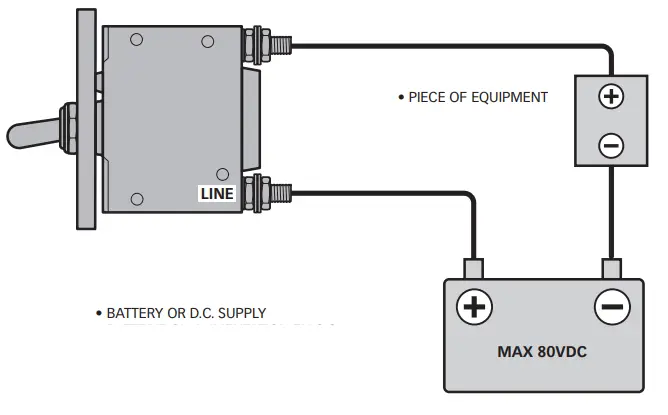

WIRING DIAGRAM
Customer Service
QUICK® S.p.A. – Via Piangipane, 120/A – 48124 Piangipane (RA) – ITALY
Tel. +39.0544.415061
Fax +39.0544.415047
Website: www.quickitaly.com
