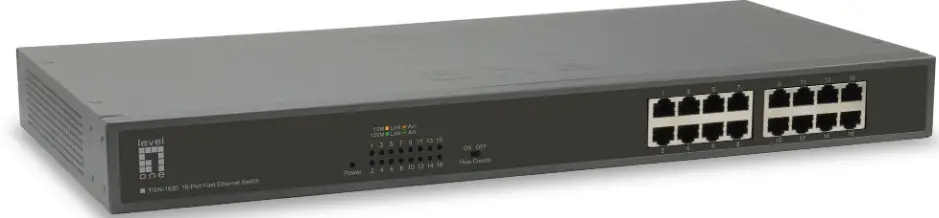

level one FSW-1650 16-Port Fast Ethernet Switch
Hardware Installation Figures

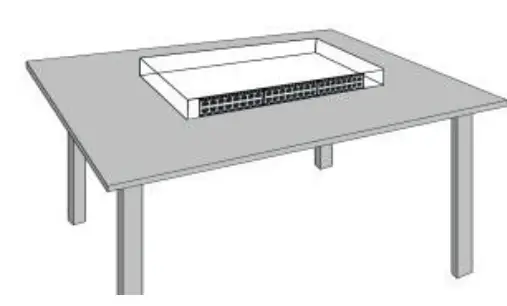

Flat Surface Installation
Installation
LED Indicator
| LED Indicator | Status | Meaning |
| Power | Solid green | Power is on. |
| Off | Power is off. | |
| Link/up | Solid green | The port is connected, but no data is transmitting or receiving. |
| Blinking | The port is transmitting or receiving data. | |
| Off | The port is NOT connected. |

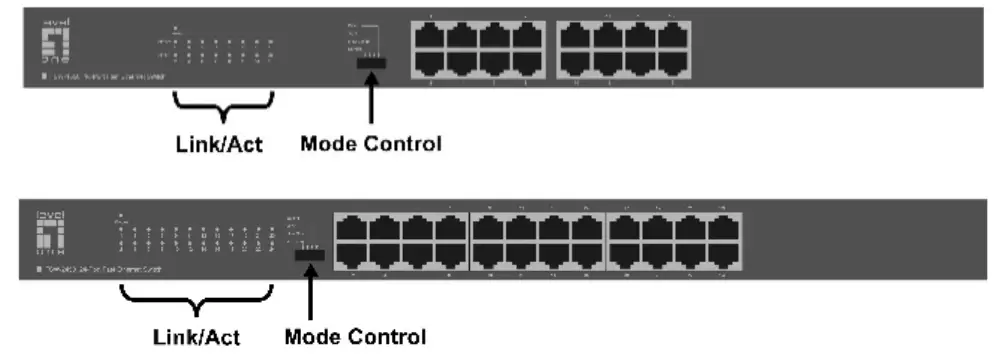

- Mode Control: You can select the switch mode.
- Normal mode: All ports can communicate with each other.
- Flow control mode: The flow control function is close, all ports can communicate with each other.
- VLAN mode:1~14 ports can not communicate with each other, but can communicate with 15~16 ports.
- Extend mode: Speed of 1~8 ports is reduced to 10 Mbps, the transmission distance can reach 250m.
Connecting Equipment
- Step1. Inspect the PowerAdapter carefully, and make sure that it is properly connected to a power source.
- Step2. Plug in the Power Adapter to the Switch.
- Step3. Connect your network devices with the switch by using an Ethernet cable. (e.g. Cat-5e)
