USER’S MANUAL
2.4GHz Digital
WIRELESS MICROPHONE SYSTEM+
INTRODUCTION
Introduction
Thank you for purchasing our product. This wireless microphone system operates in 2.4GHz frequency with 8 selectable channels. Please read this instruction manual carefully before operating the system. This manual covers the function and operation of the wireless microphone system.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example – use only shielded interface cables when connecting to computer or peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 0.5 centimeters between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The antennas used for this transmitter must be installed to provide a separation distance of at least 0.5 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Quick Start Guide

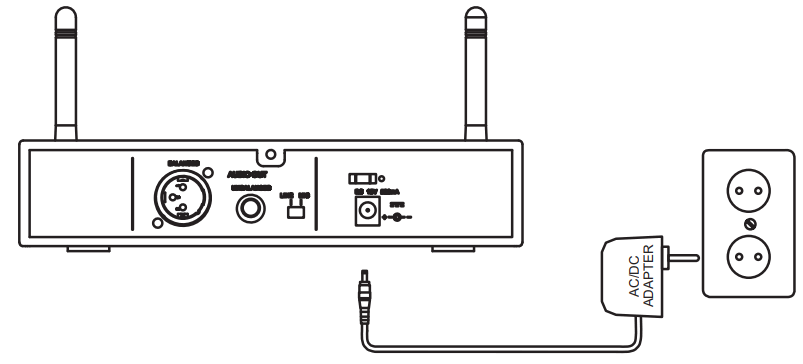

- Connected Receiver Power Cable

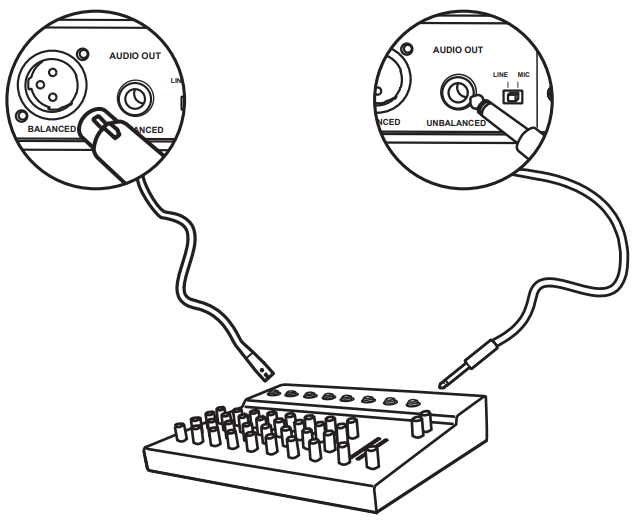

- Connect Mixer or Amplifier
- Select Channel
- Insert Batteries
- SYNC

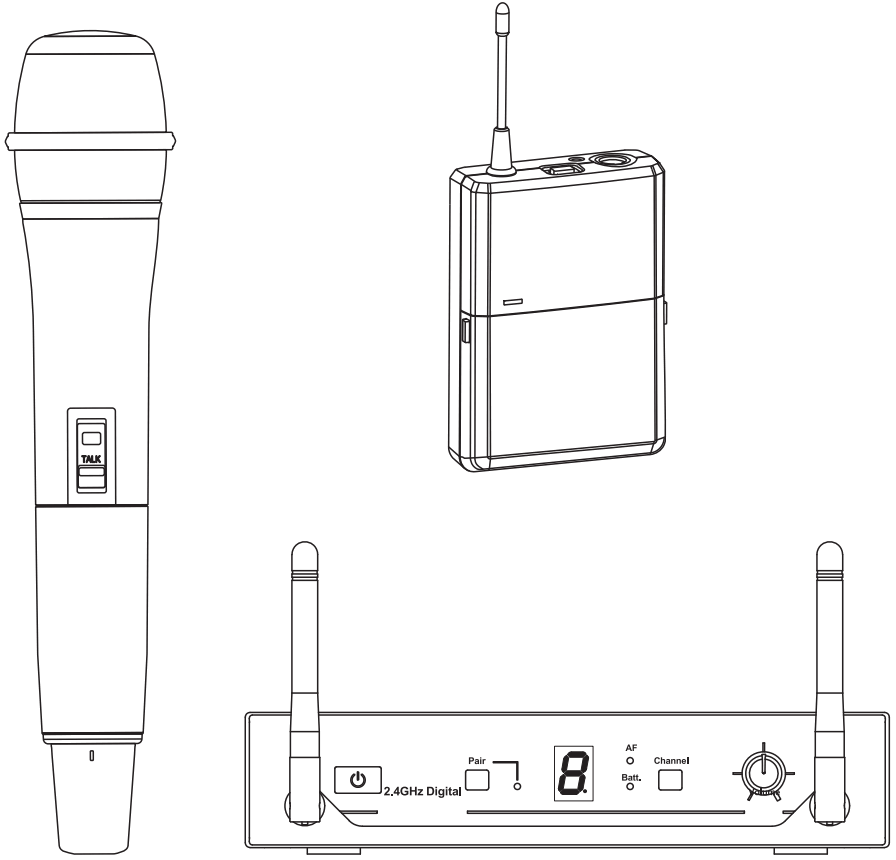

PRODUCTION DESCRIPTION
Receiver

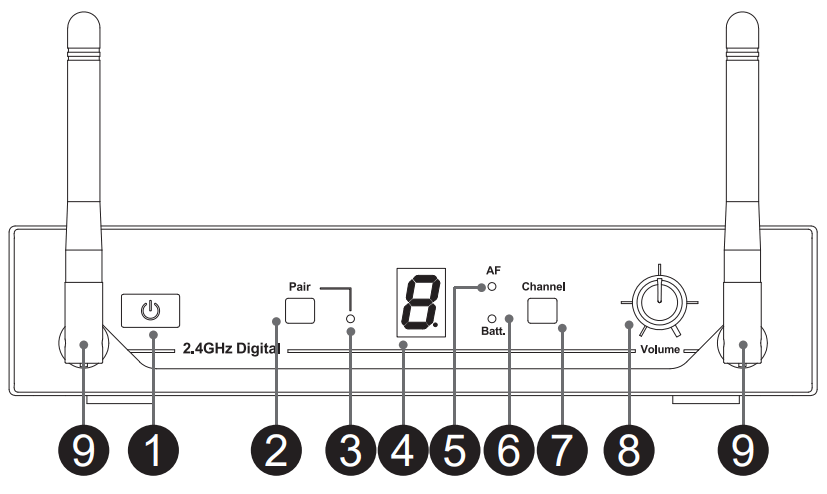

Front:
- Power Button
- Pair Button: Press the button to activate the pair function with the transmitter.
- RF Indicator: The LED lights indicate that the RF signal has been received.
- LED Display: Display selected channel.
- AF Indicator: The LED lights indicate that the AF signal has been received.
- Battery LED: If the Red LED stays flashing, it indicates the batteries on the transmitter will out of power soon and should be changed.
- Channel Selector: Tap the channel backward.
- Volume Control: Adjust the receiver output level.
- Fixed 2.4GHz Antenna

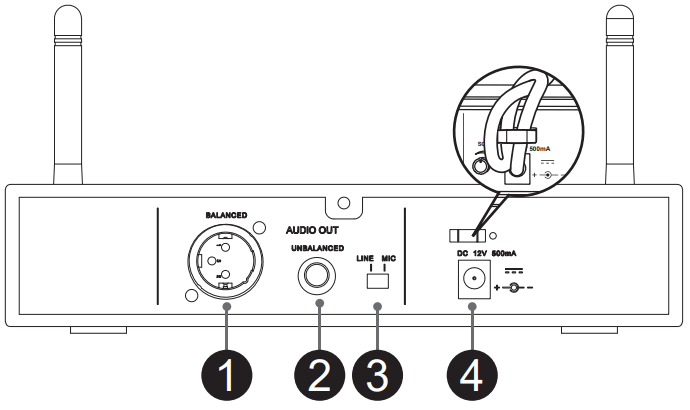

Rear:
- Balanced XLR Audio Output
- Unbalanced 6.3mm Audio Output
- MIC/LINE Switch: Use this switch to adjust audio output level for MIC level (-20dB) or LINE level (0dB).
- Power Adapter Connector

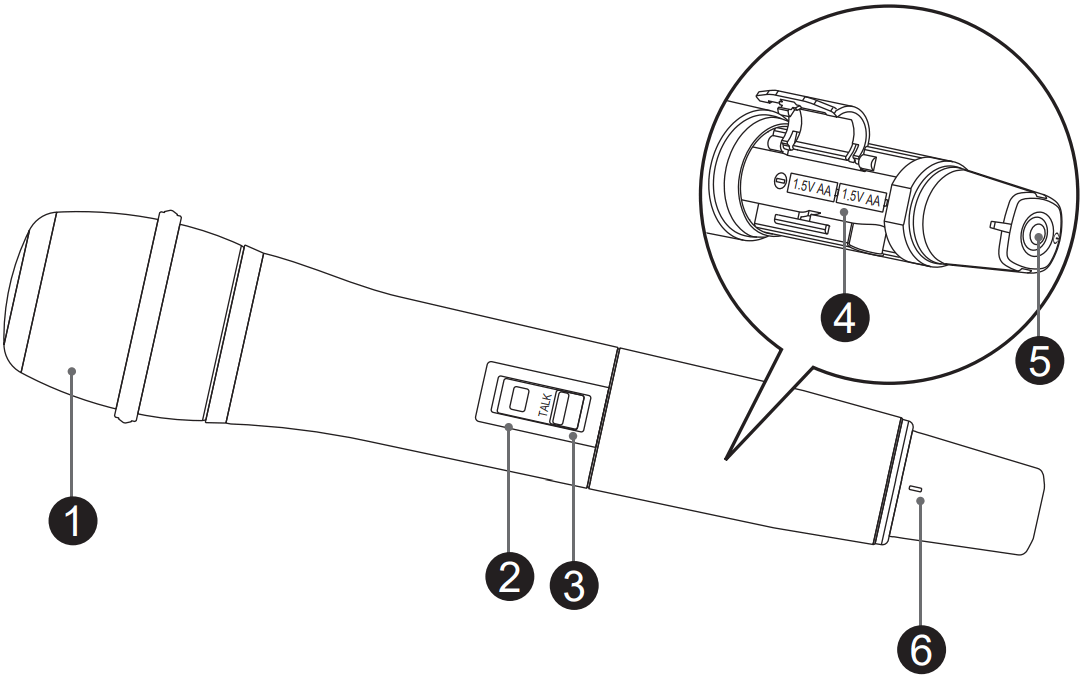

Handheld Microphone
- Grille: Protects the microphone capsule and helps reduce breath sounds and wind noise.
- Pair Button: Press the button to activate the pair function with the receiver.
- Talk Button: Push the button up to talk. Push the button down for mute.
- Battery compartment: Insert two AA size batteries into the compartment and make sure that the polarity of the batteries is correct.
- Power Button: Press for 1 second to power the microphone on or press for 3 seconds to power the microphone off.
- Power LED: Indicate the power / low battery level status.
LED Indicator Status Green Ready Flashing Green The synchronization process is actuated. Flashing Red Low battery power when less than 10 minutes of operation

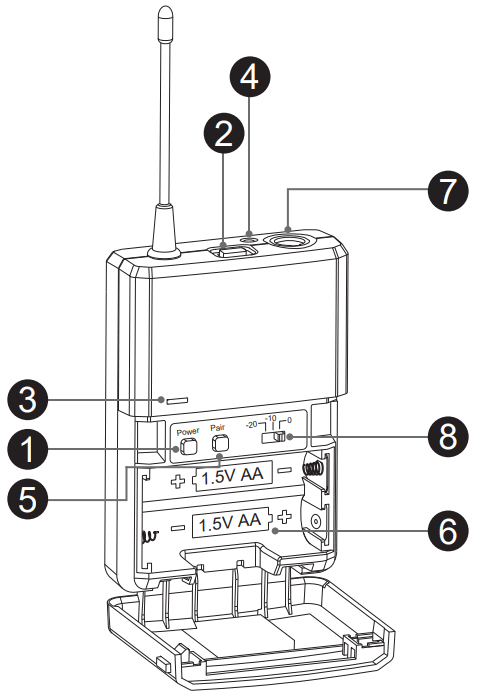

Bodypack Transmitter
- Power Button: Press for 1 second to power transmitter on or press for 3 seconds to power transmitter off.
- Mute Button: With the transmitter on, a slight press for the button will toggle between mute and unmute function.
- Power LED: Indicate the power / low battery level status.
LED Indicator Status Green Ready Flashing Green The synchronization process is actuated. Flashing Red Low battery power when less than 10 minutes of operation - MUTE LED: Blue LED light on in mute status.
- Pair Button: Press the button to activate the pair function with the receiver.
- Battery compartment: Insert two AA size batteries into the compartment and make sure that the polarity of the batteries is correct.
- Mini XLR Connector: Connect to the lapel microphone or headset microphone.
- Gain Switch: The switch sets the audio input to -20dB, -10dB, 0dB.
SYSTEM OPERATION
Connecting the receiver
Prior to setting up, please check that the transmitter and receiver are tuned to the same channel. Two or more transmitters operating in the same channel can not be used at the same time and area.

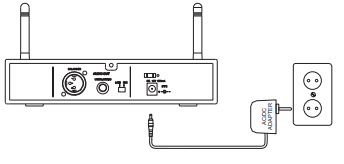

| 1 |  |  Connected the provided DC power supply to the receiver power input with an appropriate AC power source. The LED display will light and the receiver is on. |

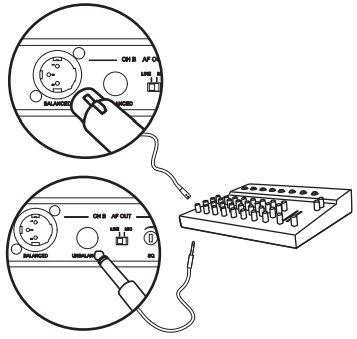

| 2 |  | Use a standard audio cable with 3-pin XLR connectors or 6.3mm phone plugs to connect the mixer or amplifier.
|
| 3 |  | Set the audio output level for MIC: -20dB LINE: 0dB (Default Setting) |
| 4 |  | Using the Volume Controller to adjust the AF audio level to the input of the amplifier or mixer.
|
Channel setting on the receiver
Notice: Do not put two or more transmitters operating nearby when setting up the channel.
Please keep the transmitter at least one meter away from the receiver.
Setting interference-free channel by manual operation.

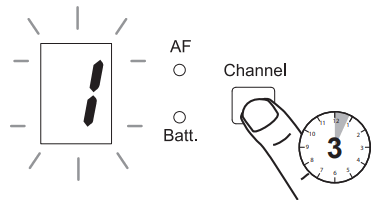

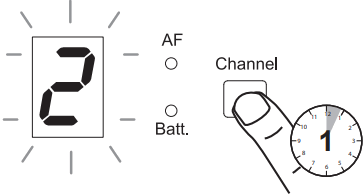

 | Press the “Channel” button for 3 seconds till the LED display is flashing. |
 | Slight press the “Channel” button to change the channel forward. |

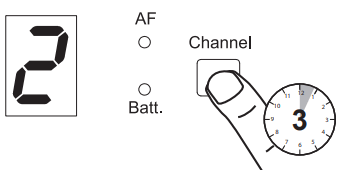

 | Press the “Channel” button for 3 seconds to lock the setting. If you do not press the “Channel” button for 3 seconds to lock the setting, the LED will keep flashing for a while and revert to the last set channel. |

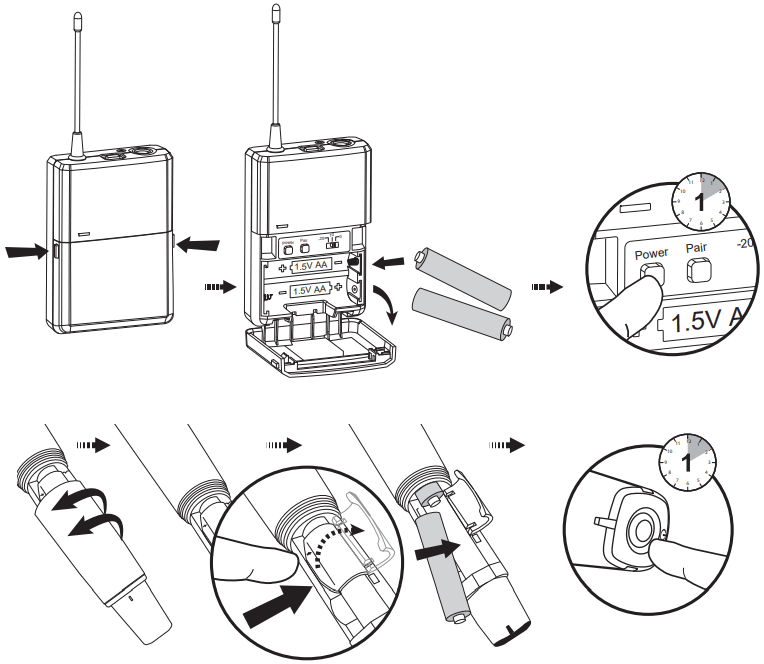

Set up the handheld microphone/bodypack transmitter
Open the battery cover and insert batteries into the battery compartment conforming to the polarity (+)(-) marks.

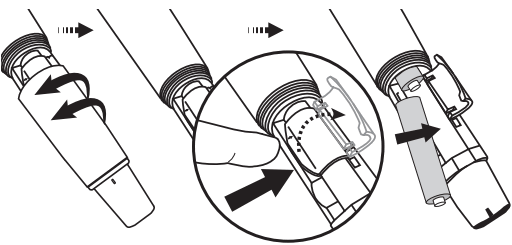

Unscrew the handheld Mic and open the battery cover to insert the battery into the battery compartment and confirm the marks of the polarity (+) (-).

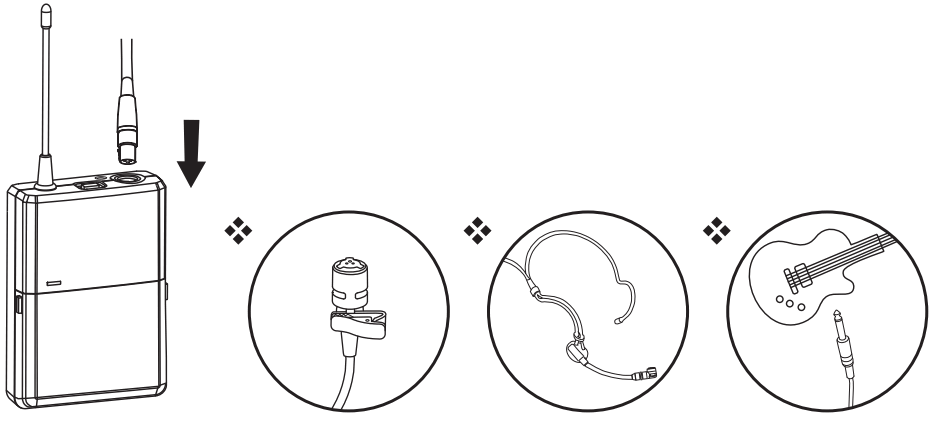

Connect to the lavalier microphone, headset microphone, or guitar cable.
NOTE: When you don’t use this device for a long-term period, please switch the power “off” in order to save more electricity.

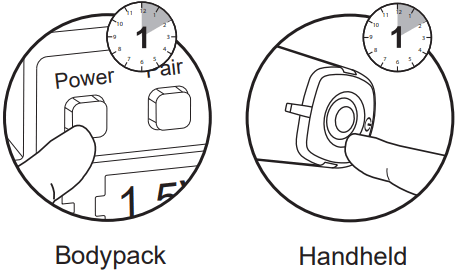

Press for 1 second to turn the Handheld/Bodypack transmitter on.
If the LED stays flashing, it indicates that the battery will out of power soon and should be changed.

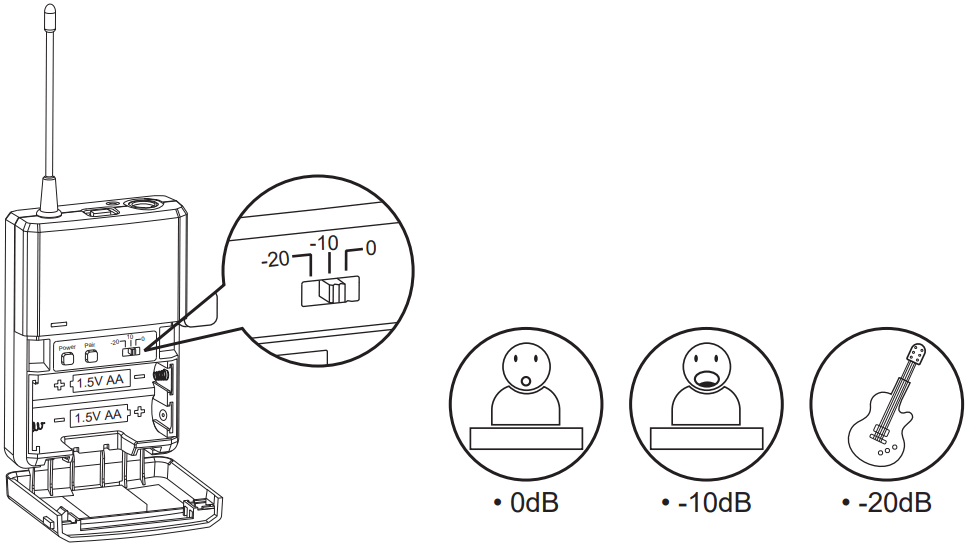

Adjust the audio input level.
- 0dB
- -10dB (Default Setting)
- -20dB
NOTE: When you don’t use this device for a long-term period, please switch the power switch to “off” mode to save more electric power.

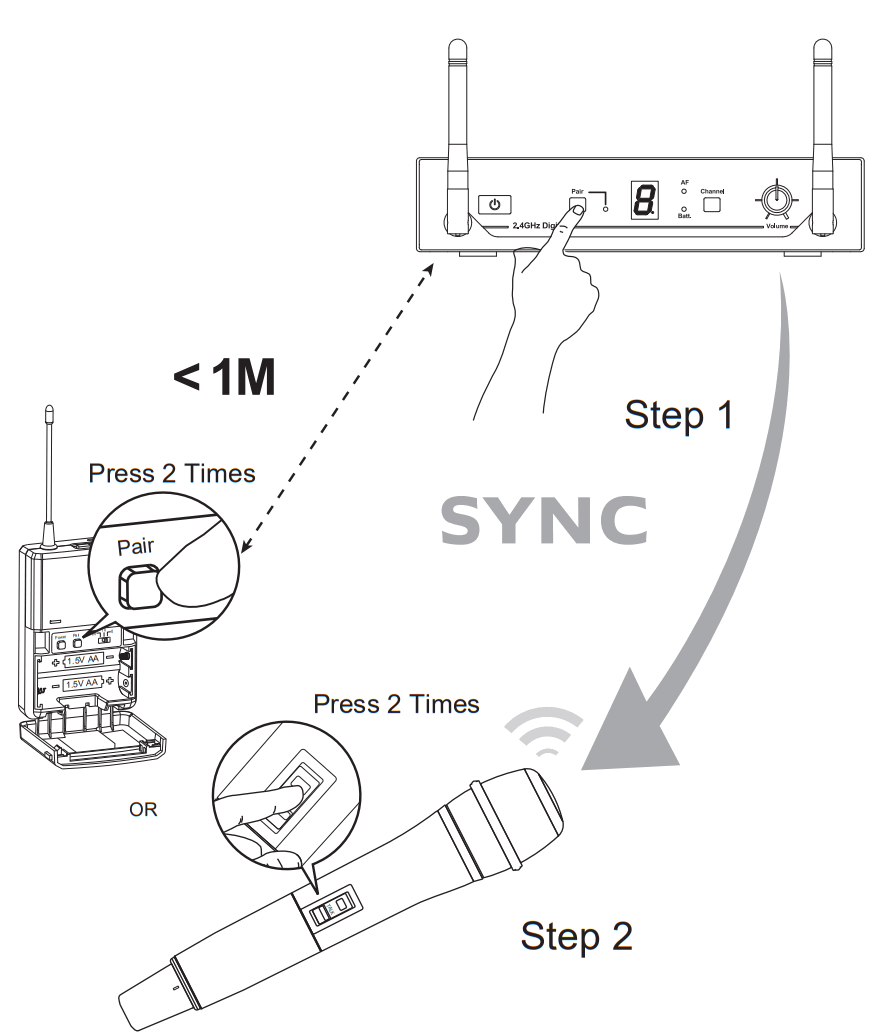

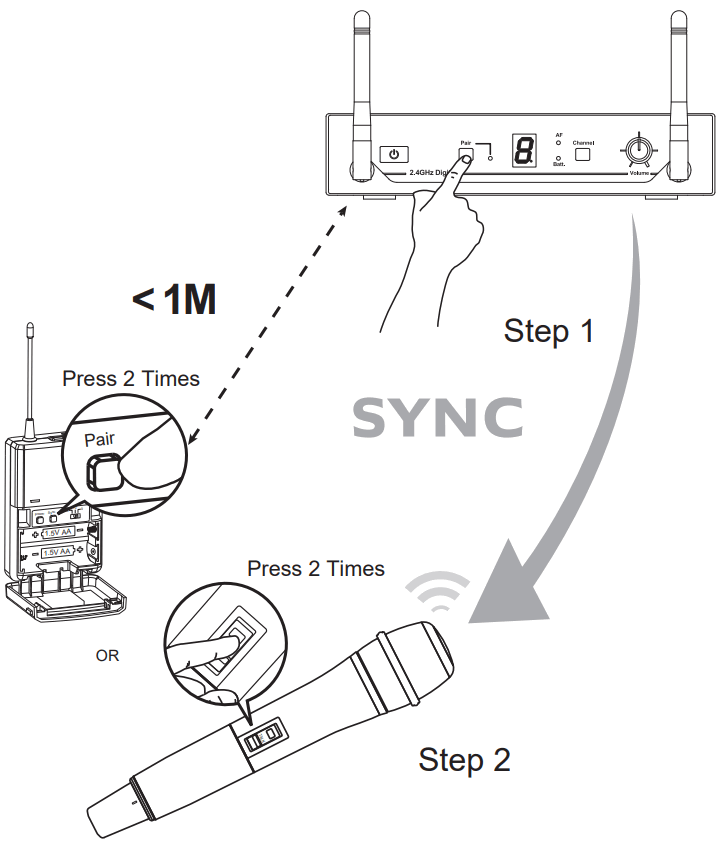

Pairing a transmitter with a receiver
Automatic frequency synchronization via remote channel for easy setup.
First, switch the transmitter and the receiver on.
Press the Pair button on the front panel of the receiver.
The Pair LED flashes on the receiver.
Then, press 2 times on the Pair button of the transmitter to set the selected channel automatically. When using the Pair button setting, the distance of receiver and transmitter is within 1 M.

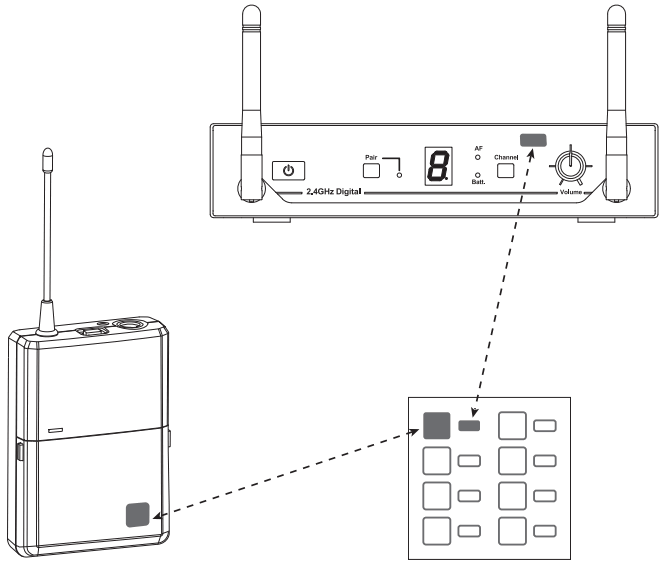

Color Label Identification
You can also stick the color label on the receiver and transmitter to quickly identify the pair system.
 |  |
Trouble Shooting
| Problem | Solution |
| No sound | Check the power supply of the microphone and receiver. Check that the transmitter and receiver are tuned to the same frequency. Check whether the hi-fi appliance is switched on and the receiver output is connected to the audio mixer or amplifier input. Check whether the receiver is located too near a metal object or there are obstructions between transmitter and receiver. |
| Sound interference | Check the antenna location. When using 2 or above microphone sets simultaneously, make sure that the chosen frequencies do not interfere. Check whether the interference comes from other wireless microphones, TV, radio and etc. |
| Distortion | Check the receiver volume level whether is set too high or too low. Check whether the interference comes from other wireless microphones, TV, radio and etc. |
Safety
Do not spill liquid on the appliance and do not drop it on a hard concrete floor. Do not place the equipment near heat sources such as radiators, heating ducts, amplifiers, etc. Do not expose the equipment to direct sunlight, extremely dust, excessive moisture, rain, mechanical vibrations, or shock. Take out the battery from the transmitter, if the appliance has been not used for a longer period. This will avoid the damage resulting from a defective leaking battery. If the equipment is not going to be used for a long time, disconnect the AC adapter from the power outlet. Please note that if you turn the equipment off while leaving the AC adapter plugged in, it is not fully isolated from the power supply.WARNING: To reduce the risk of fire or electric shock, do not use the products near water and do not expose them to rain or moisture. No guarantee claims for the equipment and no liability for any resulting personal damage or material damage will be accepted if the equipment is used for another purpose than originally intended, if the equipment is not correctly connected or operated, or if the equipment is not repaired in an expert way.
Environment Do not throw used batteries into a fire or garbage bin with domestic rubbish. Be sure to dispose of used batteries in accordance with local waste disposal rules. When disposing of the equipment, remove the batteries, separate the case, circuit boards, and cables, and dispose of all components in accordance with local waste disposal rules.
Specification
System Performance
Receiver
| Frequency Range | : ISM 2,400MHz ~ 2,483MHz |
| Case | : Half 19” EIA Rack Case |
| Modulation | : FSK digital modulation |
| Receiving Mode | : True Diversity |
| S/N Ratio | : >100dB(A) |
| Audio Frequency Response | : 20Hz to 20kHz |
| Audio Sampling | : 24bit / 48kHz |
| T.H.D. | : < 0.1%(at 1kHz) |
| Dynamic Range | : >100dB |
| Latency | : < 5.5ms |
| Audio Output | : Balanced XLR & Unbalanced 1/4” (6.3mm) output |
| Power Supply | : DC 12V |
| Power Consumption | : 165mA±10mA |
| Dimension(mm) WxHxD | : 200 x 42 x 128 |
| Weight | : Approx. 600g |
Handheld/Bodypack Transmitter
| Frequency Range | : ISM 2,400MHz ~ 2,483MHz |
| Channel Select | : 2.4G SYNC |
| RF Output Power | : 10mW |
| Transmitting Mode | : Frequency hopping |
| Max. Audio Input | : -10dB = microphone capsule sensitivity |
| Battery | : 1.5V x2 AA size batteries |
| Current Consumption | : 195mA±10mA |
| Dimension(mm) Ø x L | : Handheld : Ø 52 x 264 Bodypack : 65 x 97 x 25 |
| Net Weight | : Handheld : 240g Bodypack : 84g |
*The specifications are subject to change without notice.
