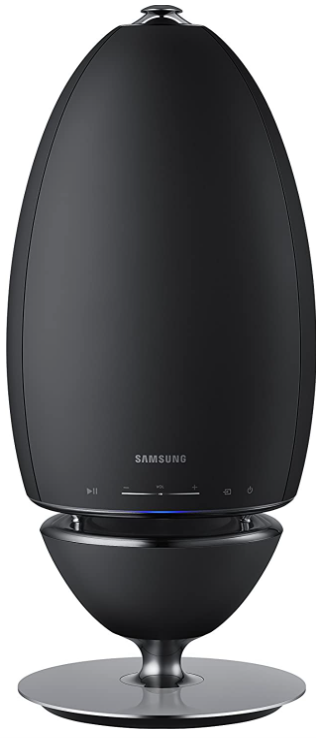

Samsung WAM7500/ZA Radiant360 R7 Wi-Fi/Bluetooth Speaker

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below.
Keep these operating instructions handy for future reference.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including AV receivers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for the replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where it exits the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Safety precautions

Power Supply Precautions

• Do not overload outlets or extension cords.
• This may result in abnormal heat or fire.
• Do not plug in or unplug the power cord with wet hands.
• Do not place the product near heating equipment.
• To clean the power plug blades, remove the plug from the wall outlet and wipe the blades with a dry cloth only.
• Do not bend the power cord or pull it forcefully.
• Do not put heavy objects on the power cord.
• Do not plug the power cord into a loose or damaged outlet.
• Fully insert the power cord’s plug into the wall outlet so that the plug is firmly attached to the outlet.
• If the connection is unstable, there is a risk of fire

Installation Precautions

• Do not install the product near equipment or objects that generate heat or produce fire (candles, mosquito coils, heaters, radiators, etc.). Do not install in direct sunlight.
• When moving the product, turn off the power and disconnect all cords (including the power cord) from the unit.
• A damaged cord may cause a fire and poses a risk of electric shock.
• Installing the product in environments with high heat or humidity, dust, or extreme cold, can lead to quality problems or cause the product to malfunction. Before you install the product in an environment that is outside the norm, please contact a Samsung service center for additional information.
• When placing the product on a shelf, cabinet, or desk, make sure the top panel faces upwards.
• Do not place the product on an unstable surface (e.g. a shaky shelf, a tilted desk, etc.).
• Dropping the product can cause it to malfunction and poses a risk of injury. Severe vibration or impact can also cause the product to malfunction and lead to a fire hazard.
• Install your product with enough space around it for ventilation.
• Leave at least 4 inches (10cm) at the rear of the product and more than 2 inches (5cm) on each side of the product.
• Keep the plastic packing materials out of reach of your children.
• Children playing with plastic packing materials run the risk of suffocation.

Usage Precautions

• Using for an extended time at high volume may cause serious damage to your hearing.
• If you are exposed to sound louder than 85db for an extended time, you may adversely affect your hearing. The louder the sound is, the more seriously damaged your hearing may become. Note that an ordinary conversation is between 50 to 60 db and road noise is approximately 80 db.
• This product contains dangerous high voltage. Do not attempt to disassemble, repair, or modify it yourself.
• Contact a Samsung service center when your product is in need of repair.
• Do not place any container that contains liquid on the product (e.g. a vase, beverages, cosmetics, chemicals, etc.). Do do not allow any metal objects (e.g. coins, hair clips, etc.) or flammable material (e.g. paper, matches, etc.) to enter the product (through the air vents, I/O ports, etc.).
• If any harmful material or liquid enters the product, turn off the product immediately, unplug the power cord, and then contact a Samsung service center.
• Do not drop the product. In case of a mechanical breakdown, disconnect the power cord and contact a Samsung service center.
• There is a risk of fire or electric shock.
• Do not hold or pull the product by the power cord or the signal cable.
• A damaged cable can cause the product to malfunction, cause a fire, and poses a risk of electric shock.
• Do not use or keep flammable materials near the product.
• If the product emits an abnormal sound or a burnt smell or smokes, unplug the power cord immediately and contact a Samsung service center.
• If you smell gas, ventilate the room immediately. Do not touch the power plug of the product. Do not turn the product off or on.
• Do not strike or subject the product to a sudden shock. Do not pierce the product with a sharp object.
• This product can be moved and placed indoors.
• This product is not waterproof or dustproof.
• Be careful when moving the product to avoid dropping it and possibly damaging it.

Cleaning Precautions

• Never use alcohol, solvents, waxes, benzene, thinners, air freshener, or lubricants to clean the product, or spray insecticide on the product.
• Using any of these materials can discolor the exterior coating or cause it to split or peel off, or remove the labeling on the product.
• To clean the product, unplug the power cord, and then wipe the product with a clean, dry, soft cloth (Microfiber, cotton).
• Avoid leaving dust on the product. Dust can scratch its surface.

Additional Information

• About the Network Connection
• Depending on the wireless router used, some network operations may perform differently.
• For detailed information on networking with a wireless router or modem, refer to the router’s or modem’s documentation.
• Select one wireless channel that is not used currently. If the selected channel is used by another communication device nearby, radio interference may result in communication failure.
• In compliance with the newest Wi-Fi certification specifications, the HUB does not support WEP, TKIP, or TKIP-AES (WPA2 Mixed) security encryption in networks running in the 802.11n mode.
• By its nature, wireless LAN may experience radio interference depending on the environmental conditions (such as wireless router performance, distance, obstruction, interference with other wireless devices, etc.)
• WEP encryption does not work with WPS (PBC) / WPS (PIN).

Getting Started

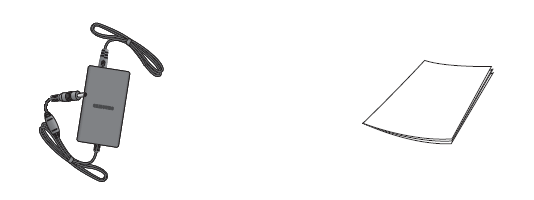

Accessories
Confirm you have the supplied accessories shown below.

• WAM7500/WAM7501
  Quick Setup Guide (AH68-02951W)
• WAM6500/WAM6501
  Power Adapter



  • (WAM6500 : BN44-00799C / WAM6501 : BN44-00799D)
  • Quick Setup Guide (AH68-02951X)

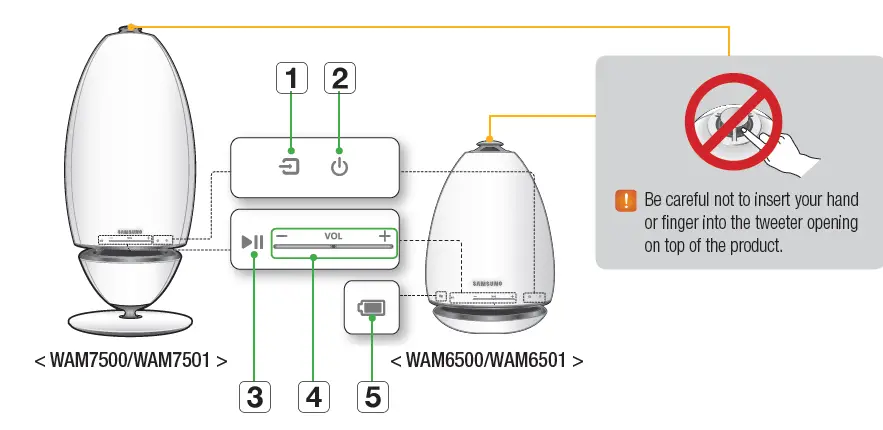

Front Panel

NOTE
Speaker LED indication

• Blue (On): Connection established (Wi-Fi, Bluetooth, TV SoundConnect)
• Blue (Blink): Connection in progress (Wi-Fi, Bluetooth, TV SoundConnect)
• Purple (Blink at 1 sec interval and goes off): Finished updating
• Red: When turning on, or when Wi-Fi connection has failed

NOTES

• + Add Speaker : Touch and hold both buttons simultaneously for 5 seconds to use the Add
• Speaker function.
• 99 + Wi-Fi Setup : Touch and hold both buttons simultaneously for 5 seconds when connecting this
• speaker to your network using the Wi-Fi Setup method.
•  For more details, follow the instructions in the app on your smart device.

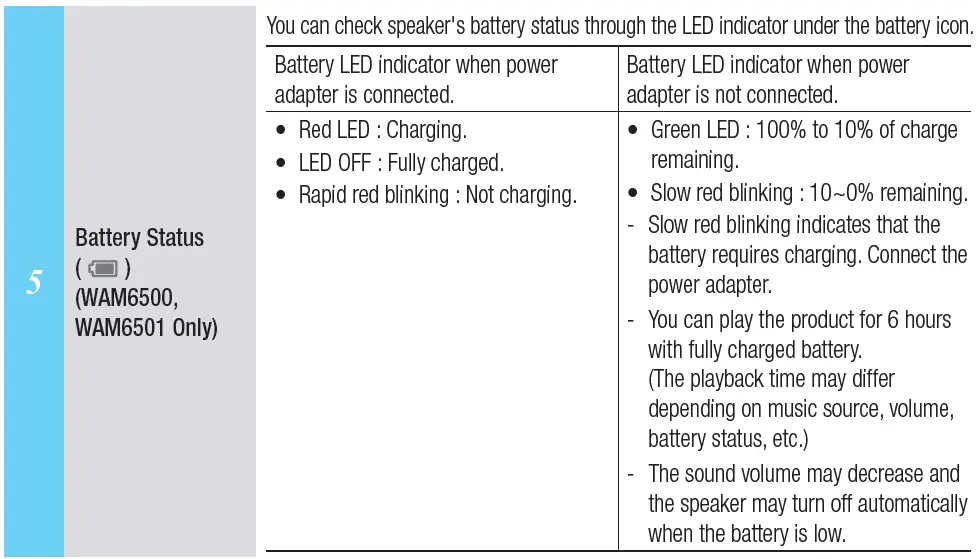

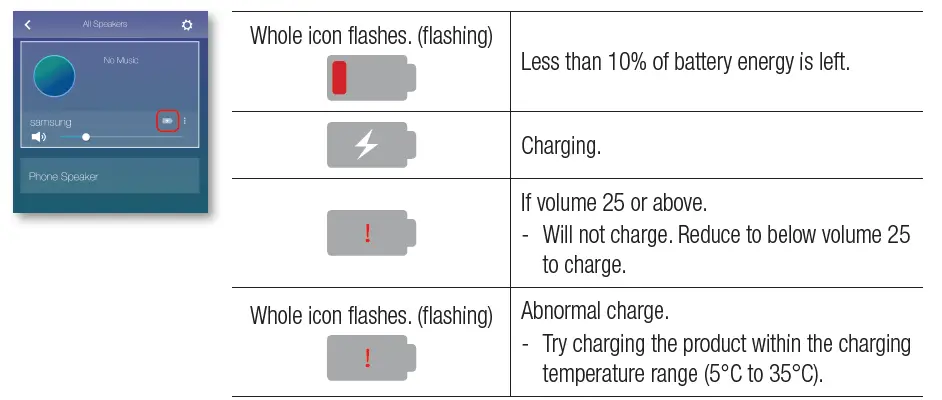

• 99You can check battery status connected to the product in the App. (WAM6500, WAM6501 Only)
• bar represents about 30% of battery life. 3 bars represent the whole battery life. (WAM6500, WAM6501 Only) (Remaining battery display may vary depending on sound source and volume.)

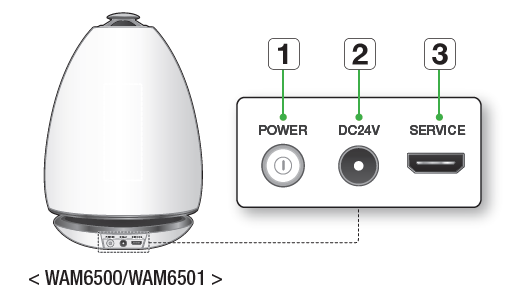

Rear Panel – WAM6500/WAM6501

AAStandby Mode

• In Wi-Fi / Bluetooth / TV SoundConnect mode
• The product switches to Standby mode if there is no operation (music playing, button operation, app use) for 15 minutes.

NOTES

• While playing music in the Wi-Fi, Bluetooth, or TV SoundConnect connection modes, the WAM speaker will not switch to Standby mode.
• The WAM6500 and WAM6501 models use battery power if the power adapter is disconnected and the Standby mode is activated. (You can minimize battery consumption by pressing the POWER DC24V SERVICE

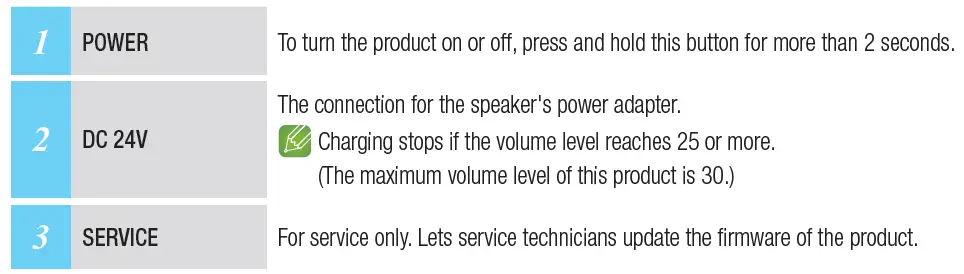

  POWER DC24V SERVICE POWER button on the rear of the speaker and turn the speaker off.)

Connecting to the Wi-Fi network

Connecting to Bluetooth Devices
You can connect the WAM speaker to a Bluetooth device and enjoy the music stored in the device.

1. Turn on the speaker, and then press the Source button on its top panel.
2. Turn on the Bluetooth function of your smart device, and then select Search.
3. Select [Samsung] R7 or [Samsung] R6 Portable.
   The Bluetooth connection between the smart device and the WAM speaker is made.
   NOTES
4. Bluetooth device may cause noise or malfunction, depending on usage, if:
5. Part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the speaker.
6. It is subject to electrical variation from obstructions caused by a wall, corner, or by office partitioning.
7. It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.
8. Pair the speaker with the Bluetooth device while they are close together.
9. The Bluetooth connection will be lost if the distance between the speaker and the Bluetooth device exceeds 32 feet (10 m). Even within range, the sound quality may be degraded by obstacles such as walls or doors.
10. This speaker may cause electric interference during its operation.
11. The speaker supports SBC data (44.1kHz, 48kHz).
12. The AVRCP feature is not supported.
13. Connect only to a Bluetooth device that supports the A2DP (AV) function.
14. You cannot connect to a Bluetooth device that supports only the HF (Hands-Free) function.
15. Only one Bluetooth device can be paired at a time.
16. If you unplug the speaker, the Bluetooth connection is terminated. To re-establish the connection, plug the speaker into an outlet, and then reset the Bluetooth connection.

Connecting TV to the speaker
Connecting to TV via Bluetooth (TV SoundConnect)
TV SoundConnect function allows you to conveniently connect Samsung TV to external speaker(s) wirelessly and enjoy the TV sound.

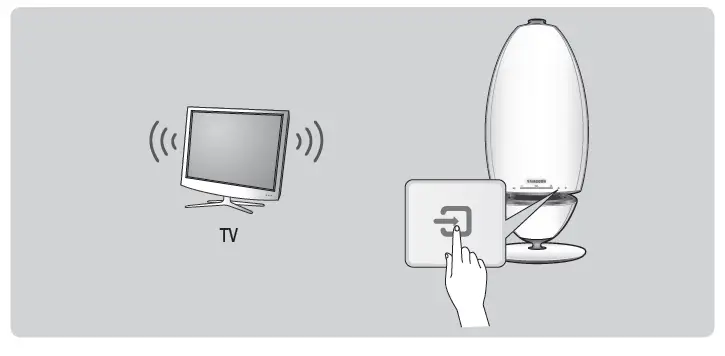

1. Plug the WAM speaker into an outlet, and then touch the Source button on its front panel
2. A message asking whether to proceed with Bluetooth pairing appears.
   NOTE



   • Set Add New Device to On in the TV’s TV SoundConnect Settings menu. (Refer to the TV’s user manual for details.)
3. When a message appears to check whether to establish Bluetooth pairing or not, select Yes. The speaker is paired to the TV.

NOTES

• Press and hold the Source button for more than 5 seconds to reset the TV SoundConnect.
• The optimal pairing distance is 6.5 feet (2 m) or less.
• If you unplug the WAM speaker, the TV SoundConnect connection is terminated. To re-establish the connection, plug the speaker into an outlet, and then reset the TV SoundConnect connection.
• When the speaker is in Standby mode, the TV SoundConnect connection is not terminated.
• The operational range of TV SoundConnect
  • Recommended pairing range: up to 6.5 feet (2 m).
  • Recommended operating range: up to 32 feet (10 m).
  • The connection may be lost or sound may stutter if the distance between the TV and the product exceeds 32 feet (10 m).
• The SoundConnect feature is available on some Samsung TVs released since 2012. Check whether your TV supports the SoundShare or SoundConnect function.
  (For further details, refer to the TV’s user’s manual.)
• Instability in the network environment may cause connection to be lost or sound to stutter.

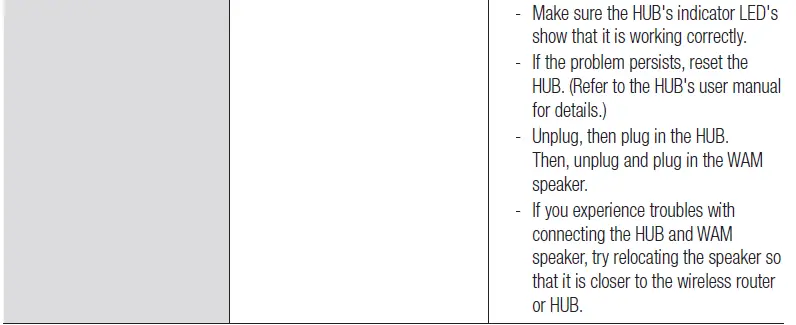

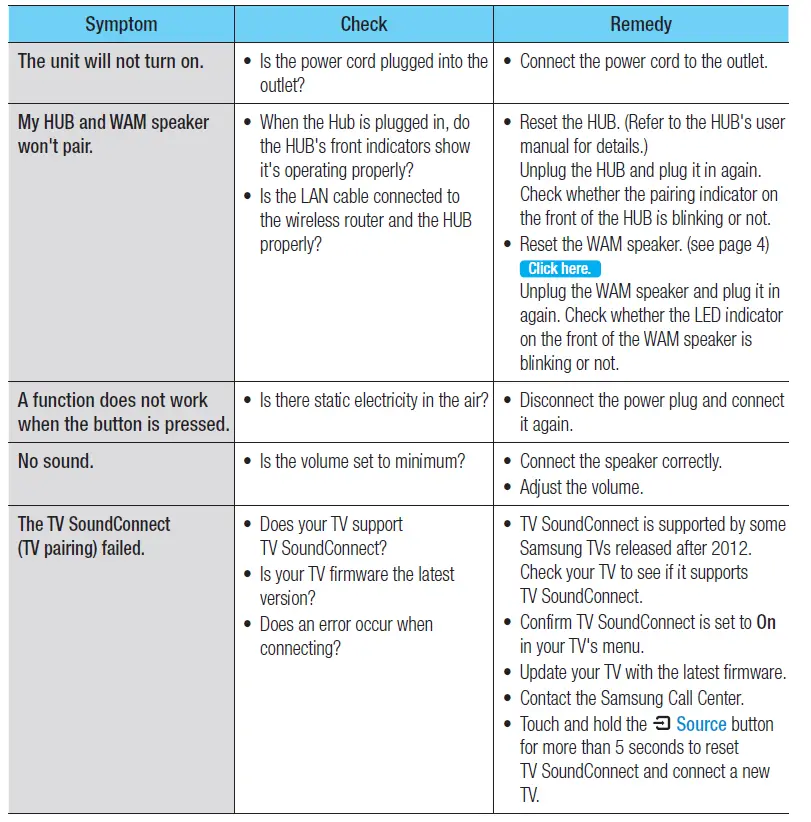

Troubleshooting

Refer to the table below when this product does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect the power cord, and contact Samsung Electronics at 1-800-SAMSUNG (1-800-726-7864).

NOTE

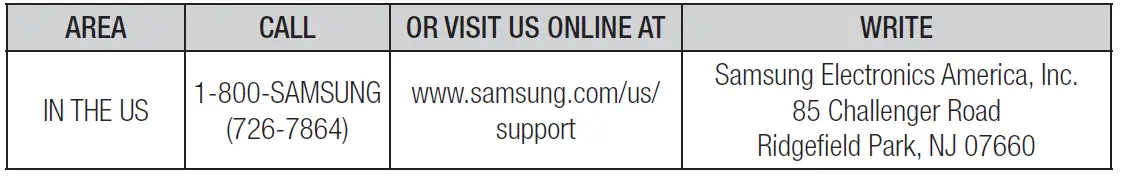

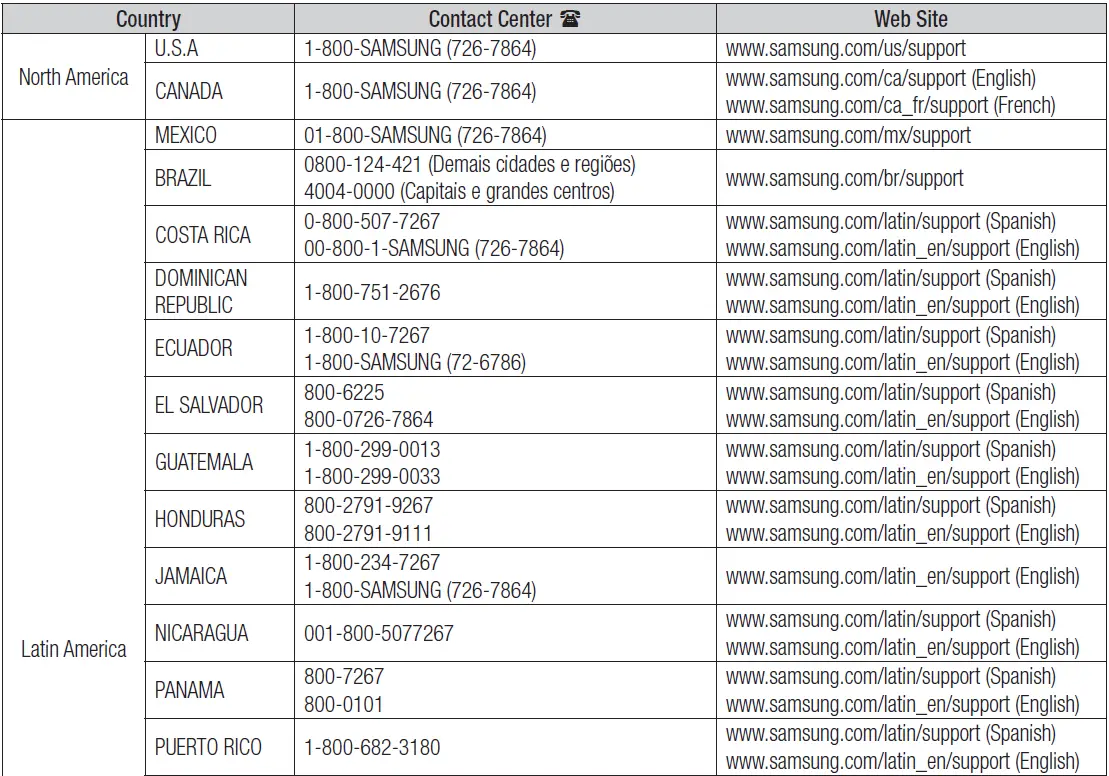

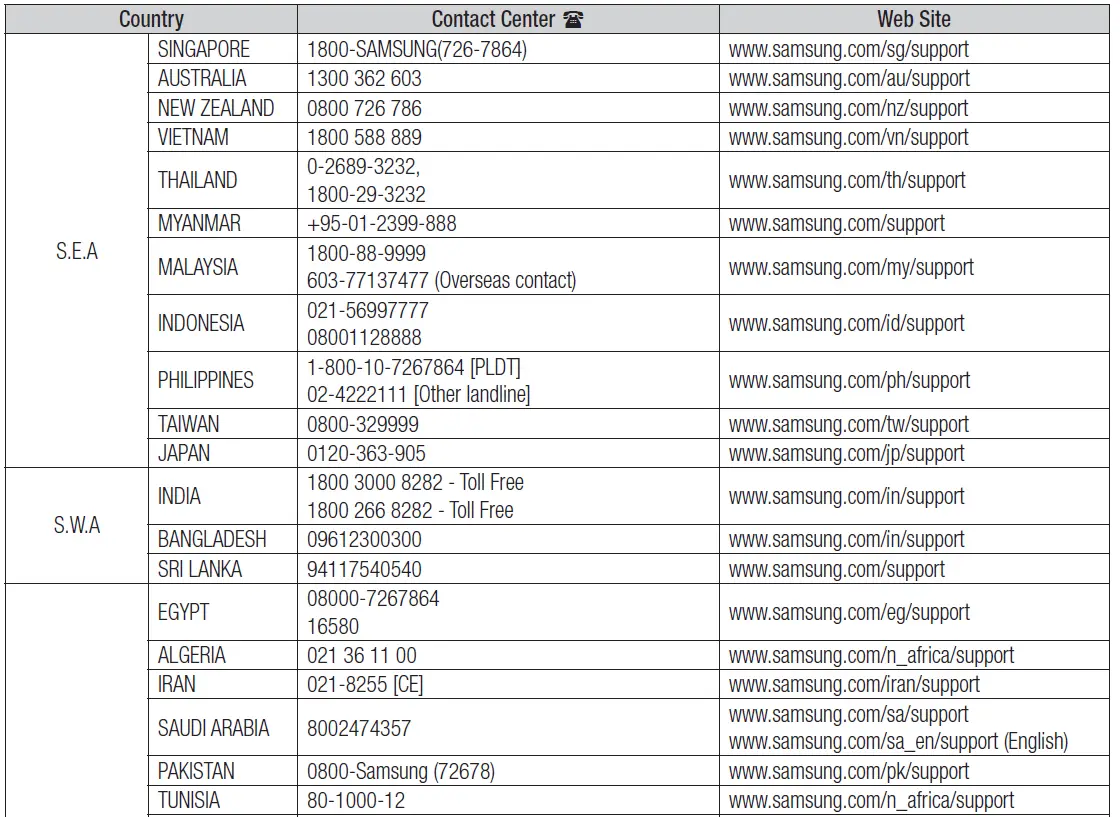

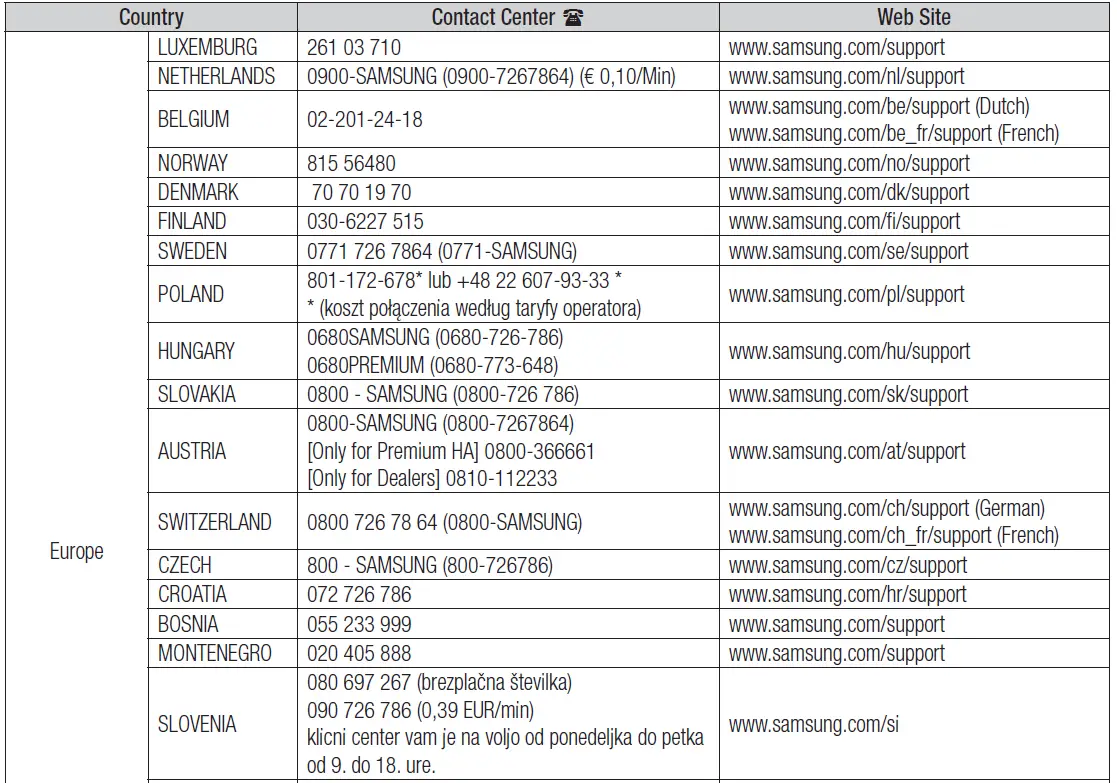

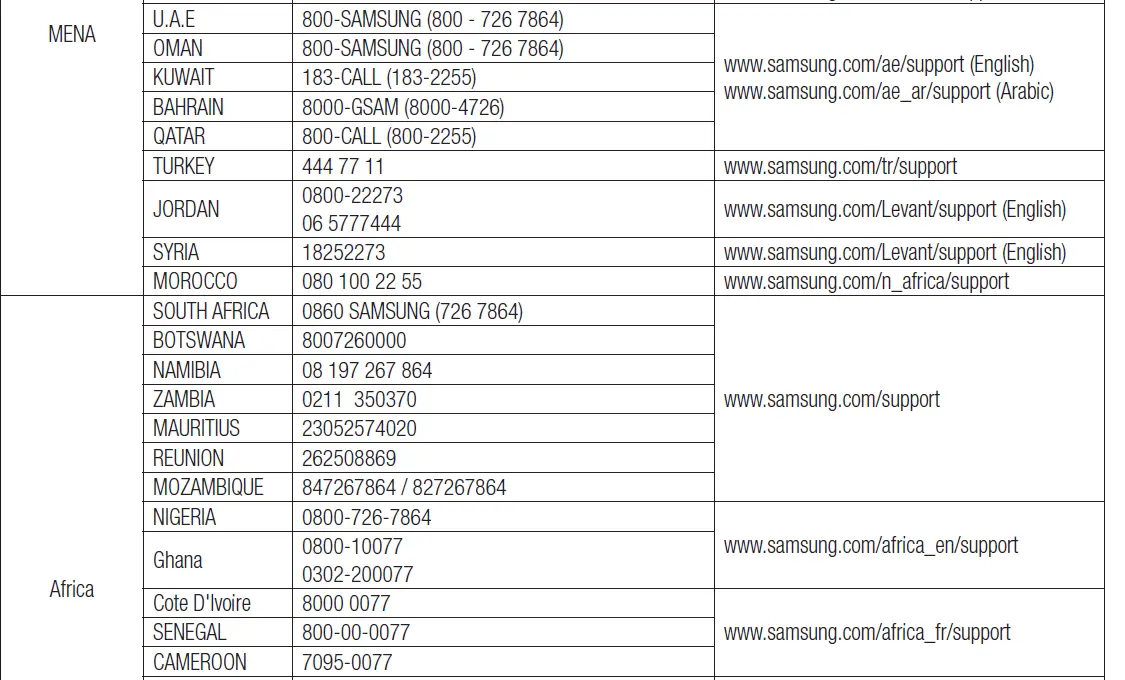

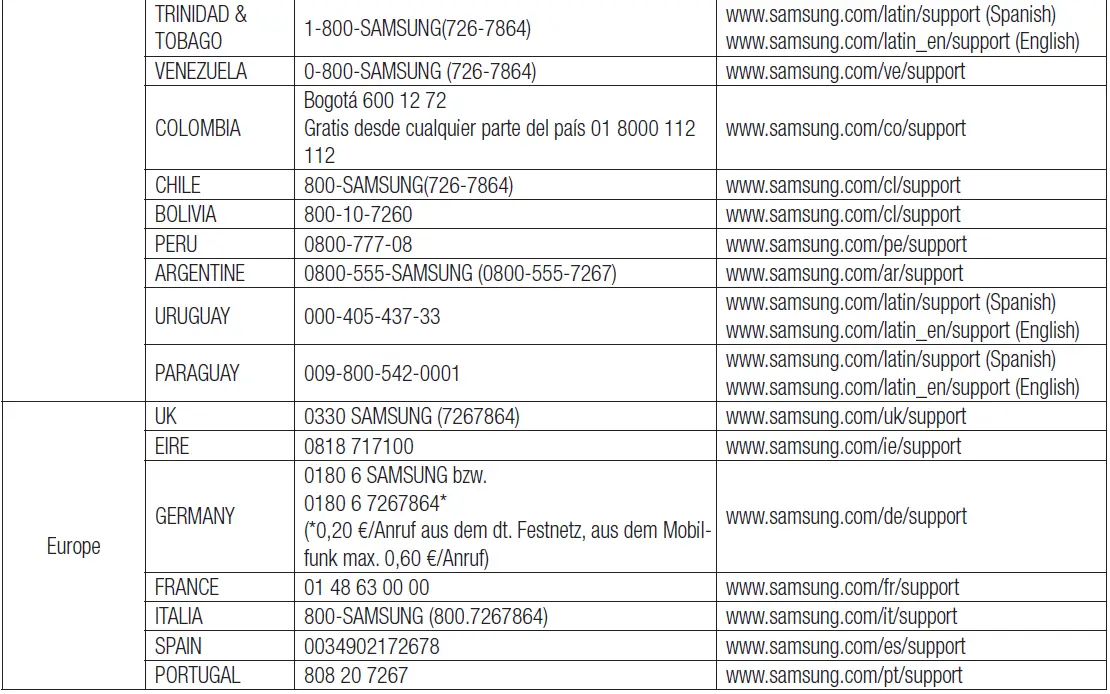

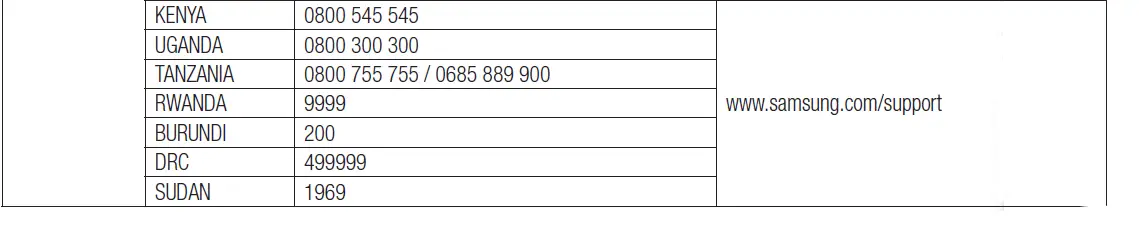

If the problem persists, contact the Samsung Call Center for troubleshooting.

Open Source License Notice

For further information on Open Sources used in this product, please visit the website: http://opensource.samsung.com
Licenses

• The Spotify Software is subject to third-party licenses found here: www.spotify.com/connect/third-party-licenses.
• For more information about Spotify Connect, please visit www.spotify.com/connect

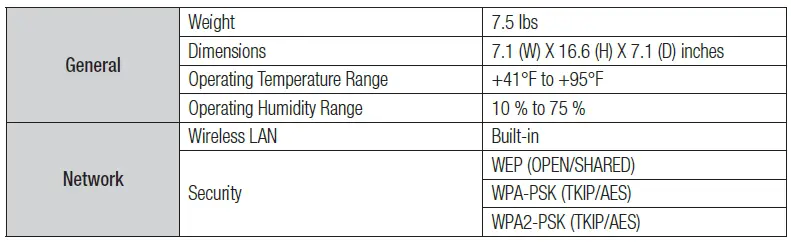

Specifications

WAM7500/WAM7501WAM6500/WAM6501

• Network speeds equal to or below 10Mbps are not supported.
• Design and specifications are subject to change without prior notice.
• For power supply and power consumption information, refer to the label attached to the product.
• See product bottom for important safety information.
• Weight and dimensions are approximate.
• Dispose unwanted electronics through an approved recycler.
  To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect or call, (877) 278 – 0799.
• For further details on using the product, visit www.samsung.com.

Regulatory Compliance Statements

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lighting flash and arrowhead within the triangle is a warning sign alerting you to dangerous voltage inside the product.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The explanation point within the triangle is a warning sign alerting you to important instructions accompanying the product.
Warning

• This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• Do not expose this apparatus to dripping or splashing.
• Do not put objects filled with liquids, such as vases, on the apparatus.
  To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

FCC Statement: (for U.S.A)
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorienting or relocating the receiving antenna.
• Increasing the separation between the equipment and receiver.
• Connecting the equipment to an outlet that is on a different circuit than the radio or TV.
• Consulting the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
For products available in the US and Canadian markets, only channels 1~11 are available. You cannot select other channels.
This device and it’s antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures.
This device operates in the 5.15~5.25GHz frequency range. It is restricted to indoor environments only.
IMPORTANT NOTE
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20cm) between the radiator and your body.
IC Statement: (for Canada)
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device.

For products available in the US and Canadian markets, only channels 1~11 are available. You cannot select other channels.
This device and it’s antennas must not be co-located or operated in conjunction with any other antenna or transmitter except in accordance with IC multi-transmitter product procedures.
This device may automatically discontinue transmission if there is no information to transmit or an operational failure. Note that this is not intended to prohibit the transmission of control or signaling information or the use of repetitive codes where required by the technology.
To reduce the potential for harmful interference to co-channel mobile satellite systems, this device operates in the 5150-5250 MHz band and is for indoor use only.

IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20cm) between the radiator and your body.

Copyright
© 2015 Samsung Electronics Co., Ltd.
All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd.

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:
One (1) Year Parts and Labor*
(*90 Days Parts and Labor for Commercial Use)
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG-authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. Transportation of the product to and from the service center is the responsibility of the purchaser.

SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.
SAMSUNG’s obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in the applicable end-user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an “AS IS” basis.

Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal or reinstallation; reception problems and distortion related to noise, echo, interference or other signal transmission and delivery problems. SAMSUNG does not warrant the uninterrupted or error-free operation of the product.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, THE PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO THE PURCHASER AND THE PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
To obtain warranty service, please contact the SAMSUNG customer care center.
The benefits of this Limited Warranty extend only to the original purchaser of Samsung products from an authorized Samsung reseller.
THIS LIMITED WARRANTY SHALL NOT APPLY TO ANY SAMSUNG PRODUCTS PURCHASED FROM UNAUTHORIZED RESELLERS OR RETAILERS, EXCEPT IN STATES WHERE SUCH RESTRICTION MAY BE PROHIBITED.
For a list of Samsung authorized retailers, please go to: http://www.samsung.com/us/peaceofmind/authorized_resellers.html.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center listed for your country.

QUESTIONS OR COMMENTS?

© 2015 Samsung Electronics Co., Ltd. All rights reserved.

FAQS

Do you have to have a soundbar to have good tv audio or could this work as a stand alone device
