Cecotec Ready Warm 6050 Ceramic Pisa Ceramic Heater Instruction Manual

Cecotec Ready Warm 6050 Ceramic Pisa Ceramic Heater Instruction Manual

cecotec-logo

cecotec Ready Warm 6050 Ceramic Pisa Ceramic Heater

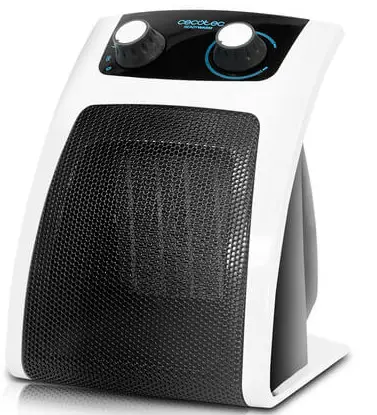

cecotec-Ready-Warm-6050-Ceramic-Pisa-Ceramic-Heater product

This product is not suitable for primary heating purposes. This product is only suitable for well-insulated spaces or occasional use.

SAFETY INSTRUCTIONS

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or for new users.

  • Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
  • This appliance is intended for household use only. Do not use for industrial or commercial purposes.
  • Do not cover the air inlet or outlet openings while the appliance is operating. Keep a minimum distance of 65 cm from the appliance to any object or wall on each side, front and back.
  • Always turn off and unplug the appliance when not in use and before moving it to a new location. Pull from the plug, not the cord, to disconnect it from the outlet.
  • Do not reach for an appliance that has fallen into water, unplug it immediately.
  • Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid, nor expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
  • Place the appliance on a flat and stable surface.
  • Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.
  • Do not operate the device if it does not work properly.
  • Do not place the appliance close to heat sources, flammable substances, wet surfaces where it can fall or be pushed into water or allow it to come into contact with water or other liquids. Do not operate outdoors.
  • The product’s surface might reach high temperatures during operation. Hold the heater only by the handle in order to move it.
  • Do not insert or allow objects to enter any air inlet or outlet, as this may cause an electric shock, fire or damage to the appliance.
  • The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.
  • This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
  • Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.

BEFORE USE

  • Take the product out of the box and remove any packaging materials.
  • Check for any visible damage, if any is observed, contact as soon as possible the Technical Support Service of Cecotec for advice or reparation.
  • Place the heater on a flat and stable surface.
  • Set the power-level knob at “0” and plug the product’s cord into an earthed power supply.

OPERATION

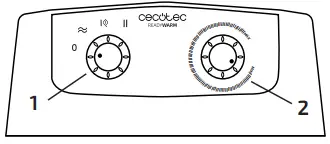

cecotec-Ready-Warm-6050-Ceramic-Pisa-Ceramic-Heater fig1

POWER-LEVEL KNOB (1)



  • : low-power heating (1000 W).
  • : high-power heating (2000 W).

THERMOSTAT (2)

  • MIN: lower room temperature.
  • MAX: higher room temperature.

NOTE: When the desired temperature has been reached, the heater will turn off automatically. In order to increase the desired room temperature, turn the temperature knob clockwise.

FAN MODE

  1. Turn the thermostat (2) clockwise.
  2. Set the power-level knob to.
  3. The device will operate in fan mode, without heat.

SWITCHING OFF

  • Turn the power-level knob anticlockwise to the “0” position.

NOTE: the appliance includes a safety system that automatically turns off the device when it is lifted from the floor.

CLEANING AND MAINTENANCE

  • Always turn off, unplug and allow the appliance to cool down before cleaning.
  • Do not use abrasive scouring pads, powders or cleaners to clean the product.
  • Use a soft, dampened and clean cloth to clean the product’s outer housing.
  • If the heater is not going to be operated for a long period of time, store it in a dry and safe place where it is protected from dust.

TECHNICAL SPECIFICATIONS

  • Model: Ready Warm 9600 Smart Force
  • Product reference: 05308
  • 2000W, 220-240V ~ 50/60 Hz
  • Made in China | Designed in Spain

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed-out “wheeled bin” symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately. Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

TECHNICAL SUPPORT SERVICE AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.
The warranty will not cover the following situations:

  • The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
  • The product has been disassembled, modified, or repaired by persons, not authorized by the official Technical Support Service of Cecotec.
  • Faults deriving from the normal wear and tear of its parts, due to use. The warranty service covers every manufacturing defect of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubts, do not hesitate to contact Cecotec Technical Support Service at +34 963 210 728

Information requirment for the electric local space heaters
Model identifier(s): 05308_Ready Warm 6050 Smart Force
ItemSymbolValueUnitItemUnit
Heat outputType of heat input, for electric storage local space hea-

ters only (select one)





Nominal heat output





Pnom





2.0





kW



manual heat charge control, with integrated ther- mostat





No

Minimum heat output (indicative)Pmin1,0kWmanual heat charge control with room and/or out- door temperature feedbackNo
Maximum continuous

heat output

Pmax,c2,0kWelectronic heat charge control with room and/or

outdoor temperature feedback

No
Auxiliary electricity consumptionfan assisted heat outputNo
At nominal heat outputelmax2,0kWType of heat output/room temperature control (select

one)

At minimum heat outputelmin2,0kWsingle stage heat output and no room temperature

control

No
In standby modeelSBN/AkWTwo or more manual stages, no room temperature

control

No
with mechanic thermostat room temperature

control

No
with electronic room temperature controlYes
electronic room temperature control plus day timerNo
electronic room temperature control plus week

timer

No
Other control options (multiple selections possible)
room temperature control, with presence detectionNo
room temperature control, with open window

detection

No
with distance control optionNo
with adaptive start controlNo
with working time limitationNo
with black bulb sensorNo
Contact details: Grupo Cecotec Innovaciones S.L. · C/de la Pinadeta s/n 46930 Quart de Poblet, Valencia (SPAIN)
