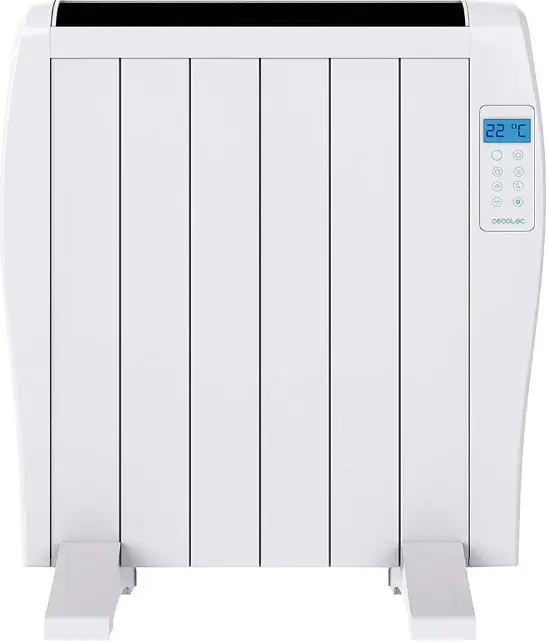

cecotec Ready Warm Thermal

This product is not suitable for primary heating purposes. This product is only suitable for well insulated spaces or occasional use.

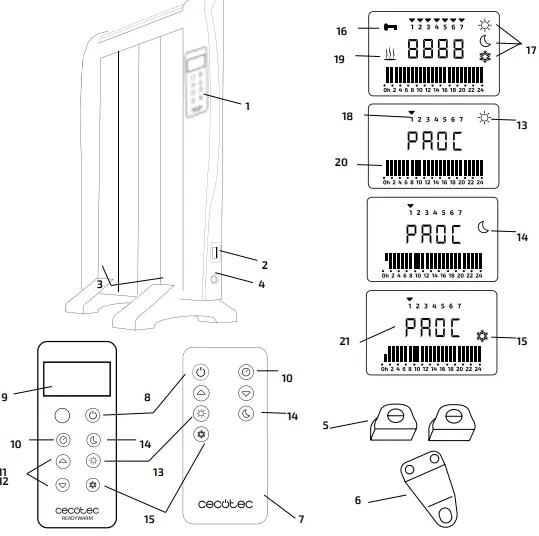

Parts and components

Control panel
Power switch
Stands
Temperature sensor
Wall supports
Wall support accessory
Remote control
ON/OFF
Display
Schedule
Day mode
Night mode
Anti-frost mode
Lock
Mode
Monday to Sunday
Power indicator
Hour – Temp
Hour
Du lundi au dimanche
Indicateur de puissance
Minuterie
Heure

SAFETY INSTRUCTIONS

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
This appliance is intended for household use only. Do not use for industrial or commercial purposes.
Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.
Do not cover the device in order to avoid overheating.
The installation of this appliance on the wall of a bathroom always must be done at a distance where no person in the shower or in the bath may reach it.
Do not use the device directly on the floor without installing the legs.
Do not place the appliance close to heat sources, flammable substances, wet surfaces where it can fall or be pushed into water or allow it to come into contact with water or other liquids. Do not operate outdoors.
Do not place the appliance immediately below a power socket.
Allow the device to operate at maximum temperature for 2- 3 hours in a ventilated place in order for the device to eliminate all manufacturing wastes.
The product’s surface will reach high temperatures during operation. Avoid skin from getting in contact with it and use the handle to move it.
Use it always with the fins in upright position.
Keep the packaging materials out of the reach of children, the could be dangerous.
The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.
This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.

PRODUCT ASSEMBLY

FLOOR ASSEMBLY
Place the stand on the bottom part of the device, each one on one side, and screw them. Make sure they are properly fixed.

WALL ASSEMBLY

Before installing it, make sure the appliance is placed at a minimum safety distance of 20 cm from any obstacle (walls, shelves, floor…).
Drill 2 holes on the wall with a distance of 140 mm between them.
Attach the wall supports (5) to the wall using the studs and screws provided. Make sure the smaller-diameter side of the supports is hung from the wall.
Screw the wall-support accessory (6) onto the 2 holes on the back-bottom part of the device. Make sure the side with just 1 hole is against the wall.
Hang the appliance from the supports.
Once hung on the wall, mark the free hole of the wall-support accessory (6).
Remove the appliance from the wall, drill a hole where the mark is and introduce the corresponding stud.
Finally, hang the appliance on the brackets and screw the mounting plate to the wall.

OPERATION

AUTOMATIC LOCK

The buttons on the device’s control panel will block if during operation no button is pressed for 1 minute.
To unlock it, press (-) for 3 seconds.

THE ELECTRIC RADIATOR CAN BE OPERATED MANUALLY OR PROGRAMMED

MANUAL

3 operating modes
- Day mode : the temperature can be set from 5 to 35 ºC.
- Night mode : the temperature can be set from 5 to 35 ºC.
- Anti-frost mode : the temperature can be set from 5 to 15 ºC.
  WARNING: for the device to be able to operate, the set temperature must always higher than the room one. The room temperature is shown on the display.
  as the temperature shown on the display is the one next to the device and not the real room one, when setting the temperature, select a few more grades than desired ones.
Turning the device on:
- Connect the device to a power supply and turn the power switch on (2). The control panel will flash and the “ºC” symbol, room temperature and power indicator will light up. If this last symbol does not light up, press it.
- Select the desired operating mode by pressing the corresponding button: day night or anti-frost The display will show the selected mode.
- Use the + and – buttons to set the desired temperature for the selected mode. While the temperature is being set, the “ºC” icon will blink.
- Once the desired temperature has been set, the display will show the room temperature again.
- Repeat the before steps to set the temperature for the other modes.
- Use the on/off button to turn the radiator on and off.
Thermostat:
- When the device reaches the set temperature, it will automatically switch off and the icon will turn off.
- When the room temperature falls below the set one, the device will automatically turn back on and the icon will light up again.
  Note:
  The may blink when the device is about to turn on or off.
  the set temperatures will be saved even if the device is disconnected or turned off and on.
Reset:
- To reset the device while it is connected to the power supply and the power switch is on, make sure the device is unlocked or unlock it with the remote control and press the power button (-) for 3 seconds or switch it off from the power switch (2).

PROGRAMMED

3 operating modes:
- Day mode : the temperature can be set from 5 to 35 ºC.
- Night mode : the temperature can be set from 5 to 35 ºC.
- Anti-frost mode : the temperature can be set from 5 to 15 ºC.
- The temperature set manually will be applied to the modes during programmed operations.
Setting current time and day:
- Long press the “PROG” button until the display shows “00:00”.
- The hour digits will blink. Use the + and – buttons to set the desired hour and press “PROG” to save the settings.
- The minutes digits will blink. Use the + and – buttons to set the desired minutes and press “PROG” to save the settings.
- The display will show the week calendar (Monday-Sunday, 1-7). Select the current day by pressing + and -. Press “PROG” to save the settings.
Setting weekly schedule:
- The display will show the first 2 bars for the first period of time (00:00 – 1:00 am) blinking. It will also show 1 as Monday.
- Press the desired mode (day, night or anti-frost) for the selected time interval.
  - If you select night mode, the display will show and the bar on the top part will blink.
  - If you select the anti-frost mode, the display will show and the bar on the lower part will blink.
  - If you select day mode, the display will show and the top and lower bars will blink.
- Once the first period has been scheduled, press “+” and the next time period’s bars will blink.
- Repeat these steps up to 24 hours.
- When all the hours in a day have been scheduled, press “PROG” to end the selected day scheduling and repeat the steps to schedule the 7 days of the week.
- Once the whole week has been scheduled, press “PROG” and the device will automatically save the settings and operate in the set mode.
WARNING: if the device is disconnected from the power supply, the schedule settings will be
saved but the current day and time will be reset.
Resetting the current time and day:
- To unblock the appliance, long-press “PROG” until the display shows “00:00”.
- The hour digits will flash, use the + and – buttons to select the desired hour, press “PROG” to switch to minutes settings and use the + and – buttons again. Press “PROG” to save the settings.
- The display will show the week calendar (1-7). Set the current day using the + and – buttons and press the power switch twice. Then, press “PROG” and the + or – button.
Adjusting temperature under programmed mod:
- During operation, press twice the on button on the remote control and use the + and button to select the desired temperature.
- Once the temperature is set, it will be saved for this mode for future operations, including under manual mode.
  Note: if the appliance is operating under programmed mode, to change it:
- Press the on button on the remote control twice.
- Press “PROG”.
- Select the desired mode and adjust the temperature if necessary, using the + and – buttons.
REMOTE CONTROL
The remote control requires 1 x CR2025 battery (included).
- Remove the protection label from the battery compartment. If necessary, open the battery cover.
- The radiator can also be scheduled from the remote control following the beforementioned steps.

CLEANING AND MAINTENANCE

• Turn off, unplug the appliance from the power supply and allow it to cool down before cleaning or repairing it.
• Use a soft, dry cloth to clean the product’s outside parts.
• Do not use chemical or abrasive cleaning agents or scouring pads, as these may damage the product’s surface.

TECHNICAL SPECIFICATIONS

Model: Ready Warm 800 Thermal
Product reference: 05330 600 W, 220-240 V, 50/60 Hz
Made in China | Designed in Spain
Model: Ready Warm 1200 Thermal
Product reference: 05331 900 W, 220-240 V, 50/60 Hz
Made in China | Designed in Spain
Model: Ready Warm 1800 Thermal
Product reference: 05332 1200 W, 220-240 V, 50/60 Hz
Made in China | Designed in Spain
Model: Ready Warm 2000 Thermal
Product reference: 05333 1500 W, 220-240 V, 50/60 Hz
Made in China | Designed in Spain
Model: Ready Warm 2500 Thermal
Product reference: 05334 1800 W, 220-240 V, 50/60 Hz
Made in China | Designed in Spain

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with
the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain, and reduce the
impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately. Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

TECHNICAL SUPPORT SERVICE AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations

The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any
other fault attributable to the customer.
The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.
Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the
warranty will not apply.
If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at +34 96 321 07 28.

Information requirment for the electric local space heaters
Model identifier(s): 05330_Ready Warm 800 Thermal
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	0.60	kW	Manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin	0.60	kW	Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	0.60	kW	Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				Fan assisted heat output	No
At nominal heat output	elmax	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N/A	kW	Single stage heat output and no room temperature control	No
In standby mode	elSB	0.00094	kW	Two or more manual stages, no room temperature control	No
				With mechanic thermostat room temperature control	No
				With electronic room temperature control	No
				Electronic room temperature control plus day timer	No
				Electronic room temperature control plus week timer	Yes
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	No
				Room temperature control, with open window detection	Yes
				With distance control option	No
				With adaptive start control	No
				With working time limitation	No
				With black bulb sensor	No
Contact details: Grupo Cecotec Innovaciones S.L. · C/de la Pinadeta s/n 46930 Quart de Poblet, Valencia (SPAIN)

Information requirment for the electric local space heaters
Model identifier(s): 05331_Ready Warm 1200 Thermal
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	0.90	kW	Manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin	0.90	kW	Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	0.90	kW	Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				Fan assisted heat output	No
At nominal heat output	elmax	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N/A	kW	Single stage heat output and no room temperature control	No
In standby mode	elSB	0.00094	kW	Two or more manual stages, no room temperature control	No
				With mechanic thermostat room temperature control	No
				With electronic room temperature control	No
				Electronic room temperature control plus day timer	No
				Electronic room temperature control plus week timer	Yes
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	No
				Room temperature control, with open window detection	Yes
				With distance control option	No
				With adaptive start control	No
				With working time limitation	No
				With black bulb sensor	No
Contact details: Grupo Cecotec Innovaciones S.L. · C/de la Pinadeta s/n 46930 Quart de Poblet, Valencia (SPAIN)

Information requirment for the electric local space heaters
Model identifier(s): 05332_Ready Warm 1800 Thermal
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	1.2	kW	Manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin	1.2	kW	Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	1.2	kW	Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				Fan assisted heat output	No
At nominal heat output	elmax	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N/A	kW	Single stage heat output and no room temperature control	No
In standby mode	elSB	0.00094	kW	Two or more manual stages, no room temperature control	No
				With mechanic thermostat room temperature control	No
				With electronic room temperature control	No
				Electronic room temperature control plus day timer	No
				Electronic room temperature control plus week timer	Yes
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	No
				Room temperature control, with open window detection	Yes
				With distance control option	No
				With adaptive start control	No
				With working time limitation	No
				With black bulb sensor	No
Contact details: Grupo Cecotec Innovaciones S.L. · C/de la Pinadeta s/n 46930 Quart de Poblet, Valencia (SPAIN)

Information requirment for the electric local space heaters
Model identifier(s): 05333_Ready Warm 2000 Thermal
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	1.5	kW	Manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin	1.5	kW	Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	1.5	kW	Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				Fan assisted heat output	No
At nominal heat output	elmax	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N/A	kW	Single stage heat output and no room temperature control	No
In standby mode	elSB	0.00094	kW	Two or more manual stages, no room temperature control	No
				With mechanic thermostat room temperature control	No
				With electronic room temperature control	No
				Electronic room temperature control plus day timer	No
				Electronic room temperature control plus week timer	Yes
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	No
				Room temperature control, with open window detection	Yes
				With distance control option	No
				With adaptive start control	No
				With working time limitation	No
				With black bulb sensor	No
Contact details: Grupo Cecotec Innovaciones S.L. · C/de la Pinadeta s/n 46930 Quart de Poblet, Valencia (SPAIN)

Information requirment for the electric local space heaters
Model identifier(s): 05334_Ready Warm 2500 Thermal
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	1.8	kW	Manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin	1.8	kW	Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	1.8	kW	Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				Fan assisted heat output	No
At nominal heat output	elmax	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N/A	kW	Single stage heat output and no room temperature control	No
In standby mode	elSB	0.00094	kW	Two or more manual stages, no room temperature control	No
				With mechanic thermostat room temperature control	No
				With electronic room temperature control	No
				Electronic room temperature control plus day timer	No
				Electronic room temperature control plus week timer	Yes
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	No
				Room temperature control, with open window detection	Yes
				With distance control option	No
				With adaptive start control	No
				With working time limitation	No
				With black bulb sensor	No
Contact details: Grupo Cecotec Innovaciones S.L. · C/de la Pinadeta s/n 46930 Quart de Poblet, Valencia (SPAIN)
