Led World Lt-932-oled 32 Channel Dmx/rdm Led Color Decoder Instruction Manual

lED World LT-932-OLED 32 Channel DMX/RDM LED Color Decoder

• Before you begin, read all warnings and installation instructions and save for future use.

SAFETY

WARNINGS

• This product is intended to be installed and serviced by a qualified licensed electrician.
• Install in accordance with the National Electric Code, and local regulations. Disconnect power before installing or servicing. Only power with a regulated (listed) constant voltage Class 2 power
  supply (12-24V DC).
• Ensure applicable wire is installed between driver, fixture, and any controls in between.
• When choosing wire, factor in voltage drop, amperage rating and type (in-wall rated, wet location rated, etc.). Inadequate wire installation could overheat wires and cause fire.
• This product is rated for indoor installation and only for dry locations. Avoid direct sun light.
• Do not modify this product beyond the instructions in this guide or the warranty will be voided
• Wiring diagrams in this installation guide for basic installations. Please carefully review your installation before proceeding.

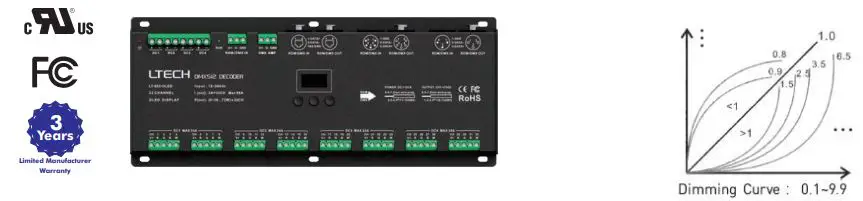

PRODUCT FEATURES

• Designed for hi-power multiple channels application
• 32 channels output, Max. 3A current per channel and up to 2304W output power.
• Easy address setting with OLED screen and the button control.
• 4 control modes: single color, CCT, RGB and RGBW
• Support 4 kinds of DMX ports with signal isolation function: XLR-3, XLR-5, RJ45 and green terminal (with signal amplifier function).
• DM remote management protocol for parameters browsing & setting, DMX address setting, equipment recognition operations.
• 16bit/8bit resolution and optional multiple dimming curves

PRODUCT PARAMETER

COMPONENT DESCRIPTION

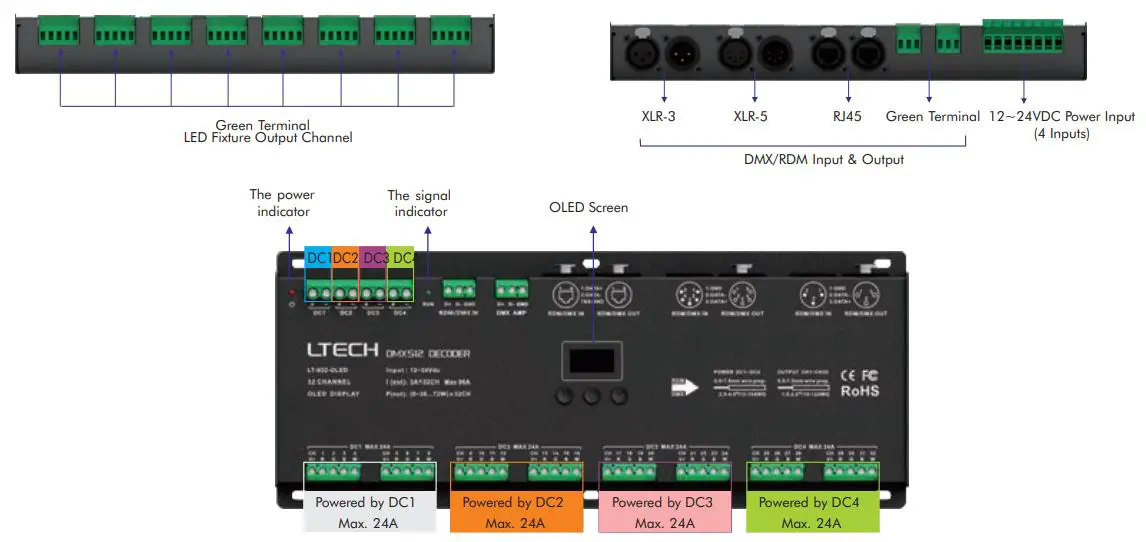

OLED SCREEN INTERFACE INSTRUCTIONS

Main Screen

• Press the “M” key and switch entries.
• Press the “∧” or “∨” key, parameter adjustment.
• Long press the “M” key, back to the main screen
• Exit: back to the previous screen.

1. DMX Address Setting
   • Press the “∨” or “∧” key to set the DMX address
   • Range: 1~512
2. PWM Frequency
   • Press “v” ∧or key to switch frequency Frequency Set Options: High Std (standard)
3. Mode
   • Press the “v” or “∧” keys to switch mode
   • Mode Set Options : Dim СТ RGB RGBW
4. Resolution
   • Press the “v” or ∧”key to switch the resolution
   • Resolution set Options 8bit 16bit
5. Dimming Curve
   • Press “v” or ∧ key to switch the dimming curve
   • Binding Curve set Options: Linear 0.1~9.9
6. Tool
   • Press the “∧” or “∨” key to enter a submenu
   • EXIT (Press “∨” key)
7. Test
   • Press the”∧” or “∨” key to enter submenu
   • Brightness setting Range: 0~255
   • Next Page (Press “∧” or “∨” key ) EXIT (Press ”∨” key)

ADDRESS SETTING TABLE

LOW VOLTAGE INPUT:

• Input power to the DC+ and DC- with Class 2 regulated (low voltage) power source. Verify that the power supply is a listed, regulated Class 2 power supply.
• If attaching RGB Flex Strip to LT-932-OLED DMX512, correct polarity is imperative; Black (may be White) wire is positive (+) and goes to “V+” terminal. The common format is to insert the Red wire to Ch 1, Green wire to Ch2 and Blue wire to Ch3, so and so forth. If unit is set to DMX Channell, the unit will automatically occupy channels 1,2,3 on the master DMX console.

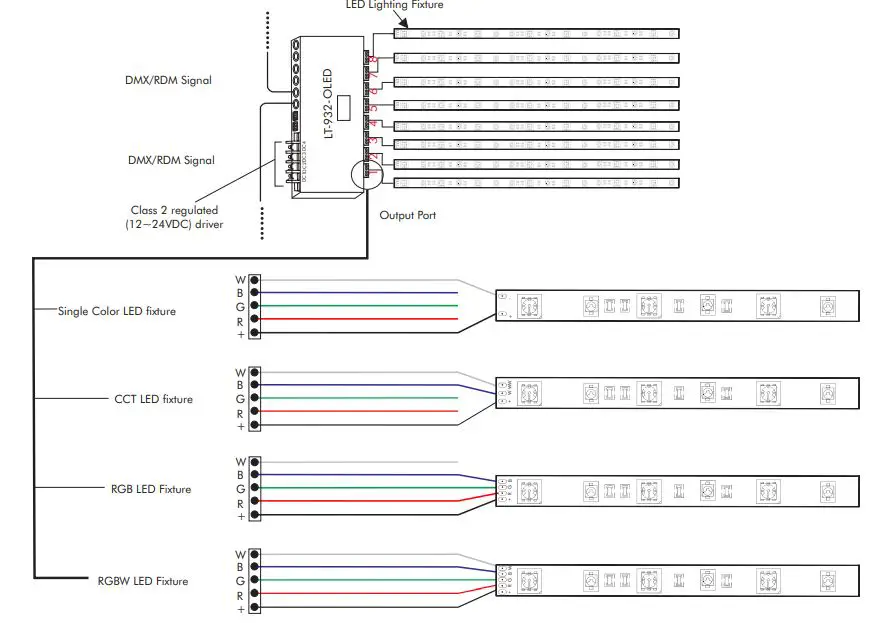

LED FIXTURE CONNECTION DIAGRAM

• Warning: Input voltage must be identical to output voltage of the LED Fixture!
• WIRE 6-8 MM (0.25-0.30″)
• The exposed wire should not be more than 6- 8 mm long & solder tip (tinned). Do not allow Wires to cross and insure all exposed wire is fully inserted into the screw terminals. Hand-tighten screw terminals.
• DC1~DC4 Power Input: Use 13~ 10 AWG wire
• Output Terminals: Use 16~12 AWG wire

WIRING WITH MASTER CONTROLLER

Option 1:

Option 2:

DMX/RDM TERMINAL CONNECTION OPTIONS

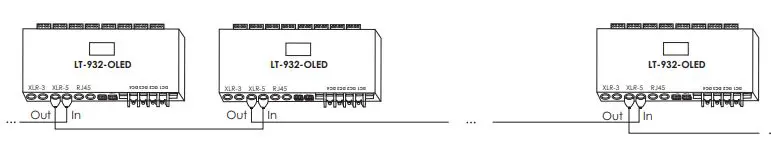

1. XLR-5 parallel connection
2. XLR-3 parallel connection
3. Green Terminal (AMP signal amplifier terminal) connection
   • Note: AMP interface can be used for signal amplication when there are many DMX decoders connected or the signal line is too long. Signal application
     should not be more than 5 times continuously.

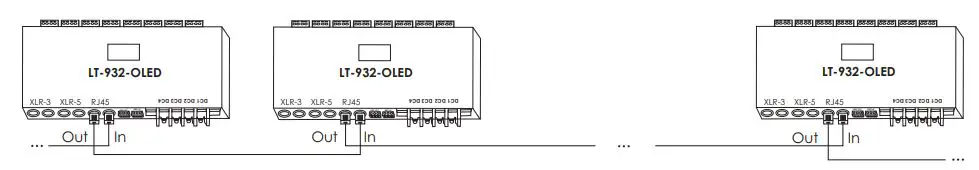

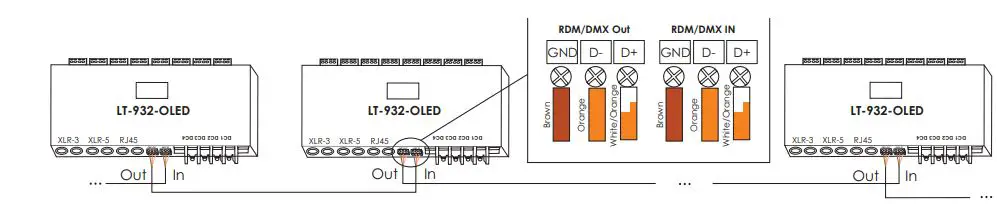

4. RJ45 parrallel connection

WARRANTY

• This product comes with 3 years It warranty, lifelong technical maintenance. The warranty excludes improper connection to power supply, power overload, manual damages and improper use.
• Repair or replacement as provided under this warranty is exclusive remedy of the customer. We shall not be liable for any incidental or consequential damages for bench of any stipulation in this warranty.
• LED World Inc. | # 130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 1.1 12/22/22
• Copyright @ 2022 LED WORLD INC*. All Rights Reserved. We are not responsible for errors or omissions. Product and specifications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
