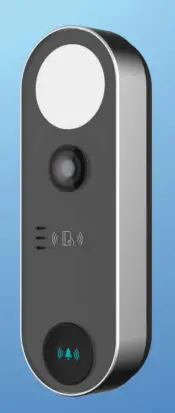

Video Doorbell
Instructions
- Max. resolution: 2MP (1920×1080)
- Wide field of view achieving doorway security monitoring
- Access control function
- Noise suppression and echo cancellation
- Visual intercom function: two-way remote communication between the doorbell and indoor station/NVMS/mobile APP
- Support door opening by swiping the card, indoor station, NVMS, or mobile APP
- Support IR and white LED lights
- Support tampering alarm and door contact alarm
- 2.4G Wi-Fi
- Built-in micro SD card slot, up to 256GB
- Intelligent Analysis: video exception detection, face detection, face capture, etc.
Specifications
| Model | TD-E3110-IC/PE/WF |
| Camera | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Image Size | 1920×1080 |
| Electronic Shutter | 1/2s ~ 1/100000s |
| IRIS Type | Fixed IRIS |
| MIN. Illumination | 0 lux (white LED ON) |
| Lens | 2.3mm @F2.2; Vertical FOV:74°， Horizontal FOV: 139°, Diagonal FOV: 170° |
| Lens Mount | M8 |
| WDR | 80dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| DNR | 2D/3D NR |
| Image | |
| Video Compression | H.265+/H.265/ H.264+/H.264/MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Bit rate Type | VBR/CBR |
| Bit Rate | 128Kbps ~ 6Mbps |
| Resolution | 1080P(1920×1080), 720P(1280×720), D1, CIF, 480×240 |
| Main Stream | 60Hz: 1920×1080/1280×720(1~30fps); 50Hz:1920×1080/1280×720(1~25fps) |
| Sub Stream | 60Hz: 720P/D1/CIF(1~30fps); 50Hz: 720P/D1/CIF(1~25fps) |
| Third Stream | 60Hz: D1/CIF/480×240(1~30fps); 50Hz: D1/CIF/480×240(1~25fps) |
| Image Setting | Saturation, hue, brightness, contrast, wide dynamic range, sharpness, NR, etc., adjustable through client or web browser |
| Audio Compression | G711A/U |
| Card | |
| Card Type | Mifare card /Desfire card/FM1208 Card/Gicard |
| Card Reading Protocol | ISO14443A/B |
| Card Reading Frequency | 13.56MHz |
| Card Reading Duration | <1s |
| Card Reading Distance | 0~3cm |
| Interfaces | |
| Network | 100M RJ45 |
| Audio | Built-in MIC×1, built-in speaker×1 |
| RS485 | Yes |
| Alarm | 1CH alarm input |
| Door Lock Output | 1CH |
| Exit Button | 1 CH |
| Door Contact Input | 1 CH |
| Anti-Tamper Interface | 1 CH |
| Reset Button | 1 |
| Storage | 1CH built-in micro SD card slot, up to 256GB |
| Wiegand Interface | Yes (Wiegand input or output configurable) |
| WiFi | Supports 2.4G WiFi function |
| Doorbell Button | Yes |
| Indicator | Yes |
| Function | |
| Remote Monitoring | Web client/CMS remote control |
| Online Connection | Supports simultaneous monitoring for up to 3 users Supports multi-stream real-time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, UPnP, HTTPS, HTTP |
| Interface Protocol | ONVIF |
| Storage | Cloud storage (need to pay), Network remote storage, micro SD card storage |
| Intelligent Analytics | Face detection, face capture, scene change detection, video blur detection, video cast detection |
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login, image distortion correction |
| Door Opening Mode | Swiping card or APP remote control |
| White Light Distance | 0.3-0.5m soft light |
| IR Light Distance | 0.3-1m |
| Ingress Protection | IP54 |
| Face | |
| Face Detection | A pupil distance of a facial image over 20 pixels can be detected |
| Face Capture | Outputting the optimal face image by precise detecting, tracing, capturing, scoring and screening the moving faces |
| Original Image Capturing | Supports original image capturing and self-defined overlaid information (like device ID, time, etc.) |
| Intelligent Light Compensation | Built-in high efficient white light LEDs |
| Others | |
| Power | DC12V/0.5A |
| PoE Power Supply | Yes |
| Power Consumption | < 6W |
| Environmental Protection | RoHS 2.0 REACH WEEE， directive94/62/EC |
| Working Environment | -20℃~50℃, Humidity: less than 95% (non-condensing) |
| Dimensions(mm) | 150mm × 50mm × 29.8mm |
| Weight (net) | Approx. |
| Installation | Wall mounting |
Available Model
| Available Model | TD-E3110-IC/PE/WF | Video Doorbell |

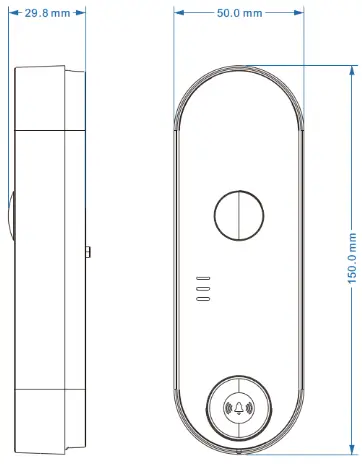

Dimensions
Accessories

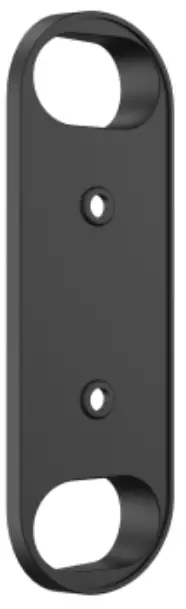

Optional:
TD-YZJ1007
FCC Caution.
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device st accepts any interference received, including interference that may cause undesired operation.
§ 15.21 Information to the user.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed nd used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
RF warning for Mobile devices:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance 20cm between the radiator & your body.
Shenzhen TVT Digital Technology Co., LTD.
Address: 23 Floor, Block B4, Building NO.9, Shenzhen Bay Eco-Technology Park, Nanshan District, Shenzhen,
Guangdong Province, P.R. China
Tel: +86-755-36995888
Website: http://en.tvt.net.cn
Fax: +86-755-33104777
E-mail: [email protected]
