WOSV230_N Oven, 30 Inch 10 Function, Selfcleaning
User Guide
Series 7 | Professional
Stainless Steel

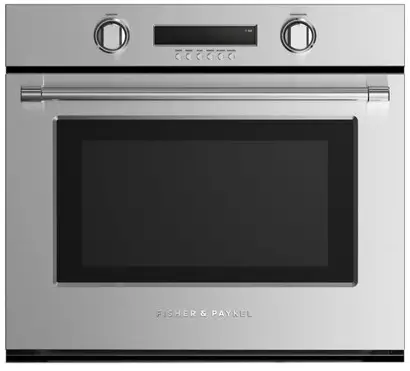

WOSV230_N Oven, 30 Inch 10 Function, Selfcleaning
A highlight of the Fisher & Paykel range, this Series 7 oven ensuresthat every dish you create is cooked to perfection.
- 4.1 cu ft total capacity
- 10 oven functions including Aero™ Pastry and Roast
- High-temperature self-cleaning function breaks down food residue for an easy clean
- Non-tip, full-extension shelves for safe removal of hot dishes

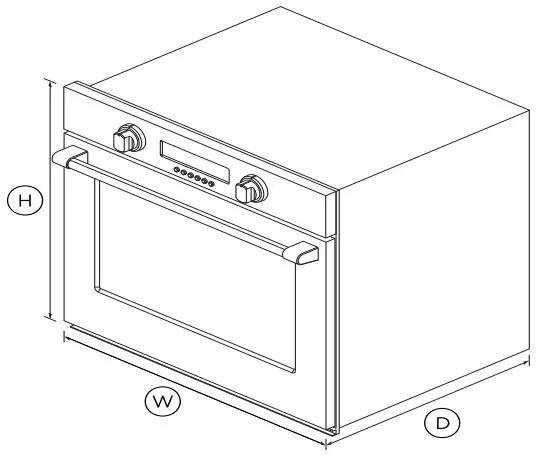

DIMENSIONS
| Height | 27 1/8″ |
| Width | 29 3/4″ |
| Depth | 23 15/16″ |
FEATURES & BENEFITS
COOKING FLEXIBILITY
This built-in oven has 10 functions with pre-set temperatures, including Roast, Pasty Bake and Maxi Broil allowing you to use a variety of cooking styles.
EVEN COOKING
A digital microprocessor monitors the temperature to ensure precise heat and a four-way convection system creates even heat distribution throughout the oven, ideal for multi-shelf cooking.
SIZED TO SUIT
Designed for multi-shelf cooking, this built-in oven provides 4.1 cu.ft of total capacity allowing you to cook the family roast and a pie for dessert.
SELF CLEANING
The self-clean function breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth. For best results, wipe down the inside of your oven door before you use the self-clean function.
INFORMATION AT A GLANCE
Halo illuminated dials provide information at a glance. White – heating up; orange – temperature is reached; red – self-cleaning mode. Three halogen lights and the large oven window creates excellent visibility of what’s cooking.
SAFE AND SOUND
The CoolTouch door with triple glazing and cooling system is safe to touch from the outside, protecting your hands and the surrounding cabinetry.
SPECIFICATIONS
| Accessories | |
| Full extension sliding shelves | 3 sets |
| Roast dish, splatter guard and | 1 |
| Temperature probe (included) | 1 |
| Capacity | |
| Shelf positions | 8 |
| Total capacity | 4.1cu ft |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable shelf runners | • |
| Controls | |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Delay start | • |
| Electronic clock | • |
| Electronic oven control | • |
| Halogen lights | • |
| LED display | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Turned stainless steel dials | • |
| Functions | |
| Bake | • |
| Broil | • |
| Convection Broil | • |
| Convection bake | • |
| Convection pastry | • |
| Maxi Broil | • |
| Number of functions | 10 |
| Pastry Bake | • |
| Roast | • |
| Self-clean | • |
| True convection | • |
| Warm | • |
| Performance | |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Broil power | 4400W |
| Broil width | 20″ |
| Power requirements | |
| Amperage | 16.7 – 19.4A |
| Supply frequency | 60Hz |
| Supply voltage | 208 – 240V |
| Product dimensions | |
| Depth | 23 15/16″ |
| Height | 27 1/8″ |
| Width | 29 3/4″ |
| Safety | |
| ADA compliant | • |
| Control panel key lock | • |
| CoolTouch door | • |
| Full extension sliding shelves | • |
| Non-tip shelves | • |
| Safety thermostat | • |
| Warranty | |
| Parts and labor | 2 years |
| SKU | 81832 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
