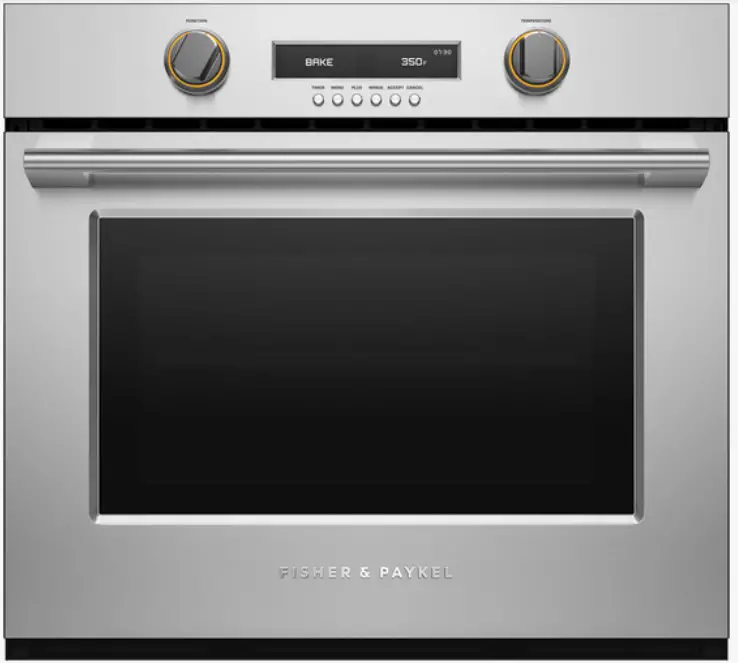

FISHER PAYKEL WOSV3-30 Oven, 30 Inch 10 Function Selfcleaning User Guide
A highlight of the Fisher & Paykel range, this Series 7 oven ensures that every dish you create is cooked to perfection
- 4.1 cu ft total capacity
- 10 oven functions including Aero™ Pastry and Roast
- High-temperature self-cleaning function breaks down food residue for an easy clean
- Non-tip, full-extension shelves for safe removal of hot dishes

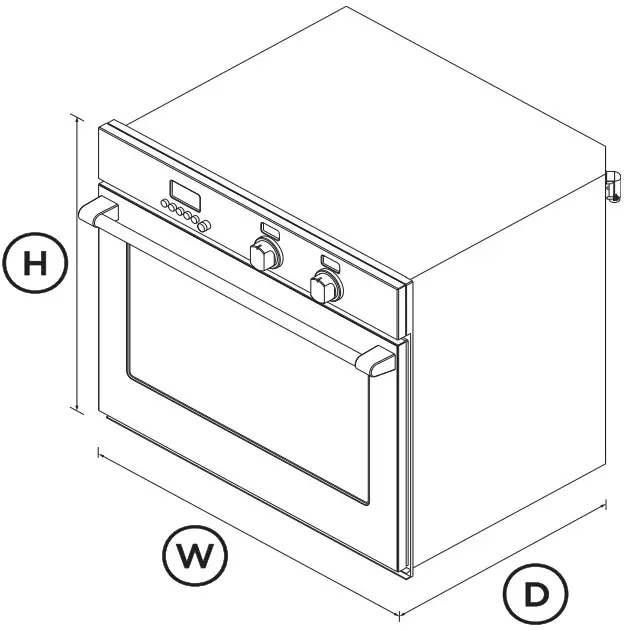

DIMENSIONS
- Height: 27 1/8″
- Width: 29 3/4″
- Depth: 23 15/16″
SPECIFICATIONS
Accessories
- Food probe: 1
- Full extension sliding shelves: 3 sets
- Roast dish, splatter guard and: 1
- Temperature probe (included): 1
Capacity
- Shelf positions: 8
- Total capacity: 4.1cu ft
- Usable capacity: 3.6cu ft
Cleaning
- Acid resistant graphite enamel: •
- Pyrolytic self-clean: •
- Removable oven door: •
- Removable shelf runners: •
Controls
- Automatic cooking/minute: •
- Automatic pre-set: •
- Celsius/Fahrenheit: •
- Concealed element •
- Delay start: •
- Electric circuit: 4 wire
- Electronic clock: •
- Electronic oven control: •
- Halogen lights: •
- LED display: •
- Precise electronic temperature: •
- Sabbath mode: •
- True convection oven: •
- Turbo plus fan controlled: •
- Turned stainless steel dials: •
Functions
- Bake: •
- Broil: •
- Convection Broil: •
- Convection bake: •
- Convection pastry •
- Maxi Broil •
- Number of functions: 10
- Pastry Bake: •
- Roast: •
- Self-clean; •
- True convection: •
- Warm: •
Performance
- AeroTech™ technology: •
- Automatic rapid pre-heat: •
- Broil power: 4400W
- Broil width: 20″
- Convection power: 2500W
Power requirements
- Rated current: 30A
- Supply frequency: 60Hz
- Supply voltage: 120 – 240V
Product dimensions
- Depth: 23 15/16″
- Height: 27 1/8″
- Width: 29 3/4″
Safety
- ADA compliant: •
- Control panel key lock: •
- CoolTouch door: •
- Full extension sliding shelves: •
- Non-tip shelves: •
- Safety thermostat: •
Warranty
- Parts and labor: Limited 2 years
- SKU: 82947
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
