QUICK REFERENCE GUIDE > OB30SDPTDX1
Oven, 30″, 17 Function, Selfcleaning
Series 9 | Contemporary Stainless Steel

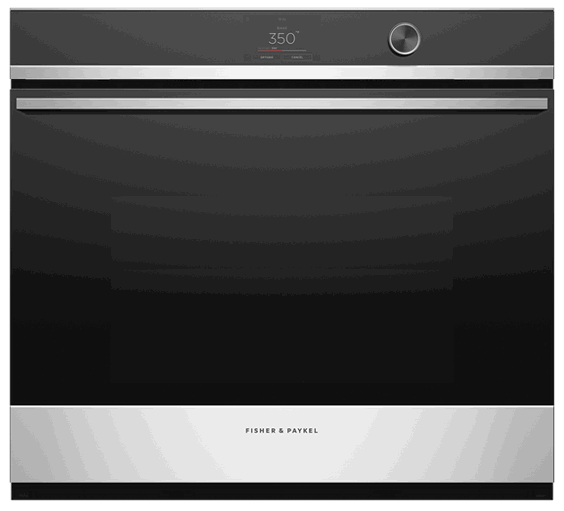

OB30SDPTDX1 30 Inch Oven 17 Function Selfcleaning
With contemporary styling, advanced cook functions and touchscreen, this large capacity oven is a highlight of our collection.
- Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.
- 4.1 cu ft total capacity, with 17 oven functions including AeroTM Pastry and Roast, Air Fry and Dehydrate
- Non-tip, full extension sliding shelves for safe removal of hot dishes
- Accessories include food probe, smokeless grill tray, and more

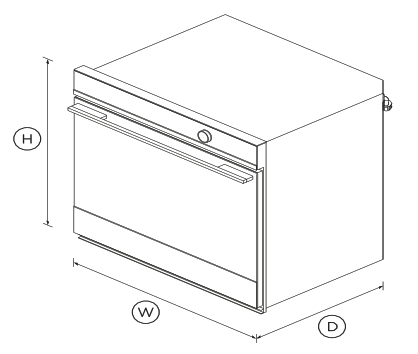

DIMENSIONS
| Height | 27 3/16″ |
| Width | 29 15/16″ |
| Depth | 23 15/16″ |
FEATURES & BENEFITS
Cook with confidence
Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe.
Generous capacity
With its 4.1 cu ft total capacity, you can create several perfectly cooked dishes at once using multiple shelves.
Multi-function flexibility
The cooking functions have each been tailored, tested, tweaked and perfected to ensure that no matter what you’re cooking, you’ve got the right heat to match. A food probe precisely monitors cooking in real time, giving you complete control.
Exceptional performance
AeroTech circulates heat evenly for a consistent temperature throughout the cavity, helping you ensure perfect results even when cooking on multiple shelves.
Self-cleaning
Our self-clean technology breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth. The enamel coated side racks don’t need to be removed when using this function.
Design freedom
Available in an elegant black or a stylish black with stainless steel, this oven is designed to fit seamlessly into your kitchen. Premium materials and detailing to support a cohesive, considered kitchen design.
SPECIFICATIONS
| Accessories | |
| Broil rack | 1 set |
| Food probe | 1 |
| Full extension sliding shelves | 3 sets |
| Full extension telescopic | • |
| Roasting pan | 1 |
| Self cleaning side runners | 1 set |
| Smokeless broil tray | 1 |
| Capacity | |
| Shelf positions | 8 |
| Total capacity | 4.1cu ft |
| Usable capacity | 3.6cu ft |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Removable oven door | • |
| Removable shelf runners | • |
| Self cleaning side runners | • |
| Controls | |
| Adjustable audio and display | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Dial with illuminated halo | • |
| Electronic clock | • |
| Electronic oven control | • |
| Food probe | • |
| Guided cooking by food type | • |
| Intuitive touchscreen display | • |
| Multi-language display | UK English, US English, |
| Precise electronic temperature | • |
| Sabbath mode with Star K | • |
| Wi-Fi connectivity | • |
| Functions | |
| Aero Bake | • |
| Aero Broil | • |
| Air fry | • |
| Bake | • |
| Broil | • |
| Classic bake | • |
| Dehydrate | • |
| Maxi Broil | • |
| Number of functions | 17 |
| Pastry Bake | • |
| Pizza bake | • |
| Rapid proof | • |
| Roast | • |
| Self-clean | • |
| Slow cook | • |
| True Aero | • |
| Vent bake | • |
| Warm | • |
| Performance | |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Broil power | 4400W |
| Broil width | 20″ |
| Number of passes on Maxi | 12 |
| Number of passes on broil | 10 |
| Power requirements | |
| Amperage | 16.7 – 19.4A |
| Supply voltage | 208 – 240V |
| Product dimensions | |
| Depth | 23 15/16″ |
| Height | 27 3/16″ |
| Width | 29 15/16″ |
| Safety | |
| ADA compliant | • |
| Advanced cooling system | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Control panel key lock | • |
| CoolTouch door | • |
| Full extension sliding shelves | • |
| Non-tip shelves | • |
| SKU | 82263 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
