LED PIR OUTDOOR SENSOR • 54893
INSTALL INSTRUCTIONS
PLEASE FIND A QUALIFIED ELECTRICIAN FOR INSTALLATION. Please read the instructions before you install the sensor and use the luminaire.
GENERAL: ALL ELECTRICAL CONNECTIONS MUST BE IN ACCORDANCE WITH LOCAL AND NATIONAL ELECTRICAL CODES (N.E.C.) STANDARDS. IF YOU ARE
UNFAMILIAR WITH PROPER ELECTRICAL WIRING CONNECTIONS OBTAIN THE SERVICES OF A QUALIFIED ELECTRICIAN. REMOVE FROM THE BOX AND MAKE SURE THAT NO PARTS ARE MISSING.
WARNING – Risk of fire or electric shock. Sensor installation requires knowledge of luminaire electrical systems. If not qualified, do not attempt installation.
Contact a qualified electrician.
WARNING – Risk of fire or electric shock. Install this sensor only in luminaires that have the construction features and dimensions shown in the photographs
and/or drawings and where the input rating of the sensor does not exceed the input rating of the luminaire.
WARNING – To prevent wiring damage or abrasion, do not expose wiring to the edges of sheet metal or other sharp objects. Risk of Electric Shock: Disconnect power or circuit breaker before installing or servicing. Do not make or alter any open holes in an enclosure of wiring or electrical components during installation.
WARNING
NOTE: Warm-up time is 40 seconds. After the sensor connects to input power for the first time, the light will stay on for 40 seconds, then operate per sensor settings.
NOTE: Once powering up the device, the sensor will use the factory default settings to operate. Factory Default Settings: Sensitivity set to 100%. Hold on time 5 min. Daylight sensor at.
Dimming level at 30%. Dimming time at 60 minutes.
NOTE: RC-100 remote (sold separately) required to make adjustments to any sensor settings. The LED light will turn on/off as confirmation of the change.
WARNING DISCONNECT POWER BEFORE INSTALLING OR SERVICING.
SENSOR SPECIFICATIONS
| Power Supply | 100-347V – Single Phase – 60Hz 208/230/480V – Phase-to-Phase – 60Hz |
| Maximum Load | 100-120V – 800W Tungsten 100-120V – 800W Electronic Ballast/ LED Driver 230-240V – 300W Electronic Ballast/ LED Driver 277V -1200W Electronic Ballast/ LED Driver 347V -1200W Electronic Ballast/ LED Driver 480V – 480W Electronic Ballast/ LED Driver |
| HF System | 5,8GHz CW |
| Dim Control Output | 0-10VDC 50mA |
| Detection Radius | Max, 26ft / 8 Meters – 360° |
| Mounting Height | Max 40ft /12 Meters |
| Remote Range (optional) | 50ft / 15 Meters Indoor, No Backlight |
| Time Setting | 10 sec, – 60 min. (Adjustable) |
| Light Control | 10-500 LUX (Adjustable) |
| Temperature | -40° ∼ 158°F (-40° ∼70°C) |

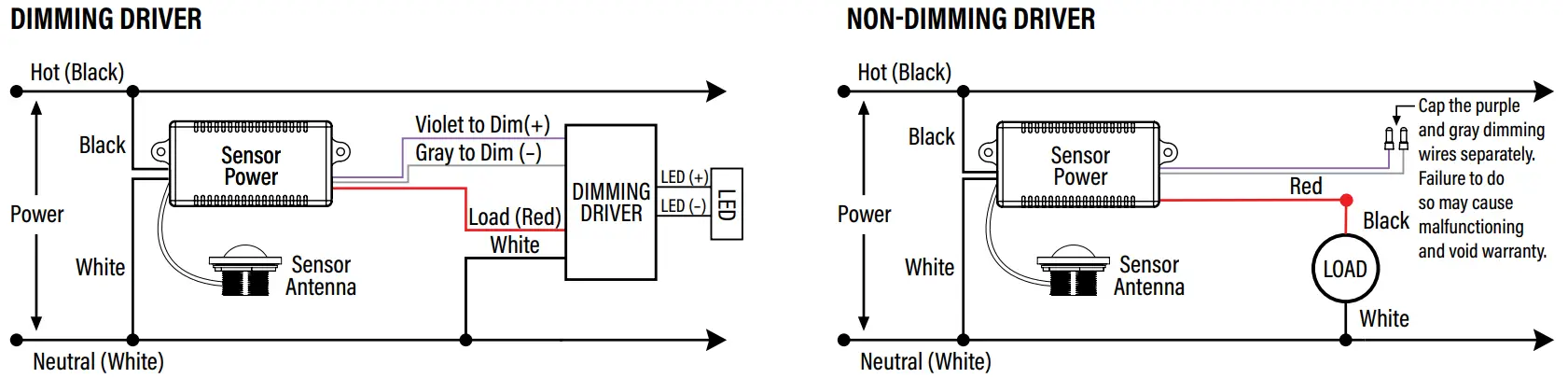

WIRING DIAGRAM

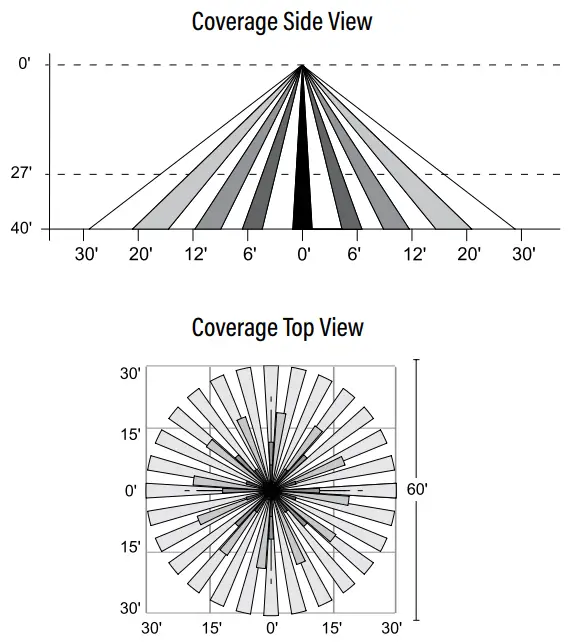

SENSOR COVERAGE
PREMIUM QUALITY LIGHTING®
• www.PQLighting.com
© P.Q.L., Inc. • 2285 Ward Avenue
• Simi Valley, CA 93065 • 800-323-8107
Specifications subject to change without notice. Photos and line drawings may not be to scale and are for general reference only.
