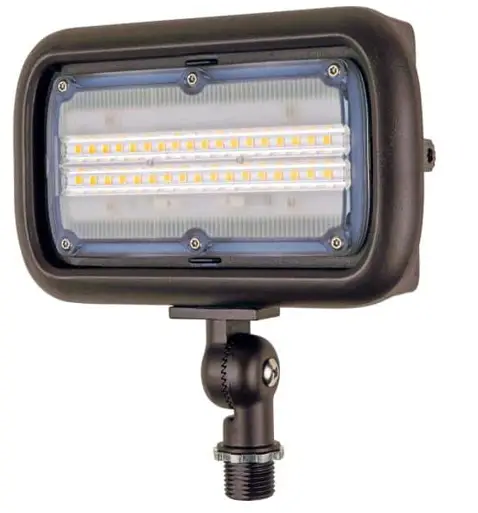

Life PQL-84052 LED Stealth Fixtures Light
Instruction Manual
LED STEALTHTM FIXTURES
INSTALL INSTRUCTIONS
PLEASE FIND A QUALIFIED ELECTRICIAN FOR INSTALLATION. Please read the instructions before you install and use the luminaire.
WARNING, CAUTIONS, AND OPERATING INSTRUCTIONS
- To reduce the risk of death, personal injury or property damage from fire, electric shock, falling parts, cuts/abrasions, and other hazards read all warnings and instructions included with and on the fixture box and all fixture labels.
- Before installing, servicing, or performing routine maintenance on this equipment, follow these general precautions.
- Commercial installation, service, and maintenance of luminaires should be performed by a qualified licensed electrician.
- For The installation: If you are unsure about the installation or maintenance of the luminaires, consult a qualified licensed electrician and check your local electrical code.
- To prevent wiring damage or abrasion, do not expose wiring to the edges of sheet metal or other sharp objects.
- Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.
WARNING: RISK OF FIRE OR ELECTRICAL SHOCK
- Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply.
- Turn off the power when you perform any maintenance.
- Verify that the supply voltage is correct by comparing it with the luminaire label information.
- Make all electrical and grounded connections in accordance with the National Electrical Code and any applicable local code requirements.
- All wiring connections should be capped with UL-approved wire connectors.
CAUTION: RISK OF INJURY
- Avoid direct eye exposure to the light source while it is on.
- Account for small parts and destroy packing material, as these may be hazardous to children.
- Suitable for Wet locations.
- Do not cover any part of the fixture; this can cause overheating.
WARNING DISCONNECT POWER BEFORE INSTALLING OR SERVICING.
The product requires a top-mounted shorting cap or an optional twist-lock photocell installed to operate.

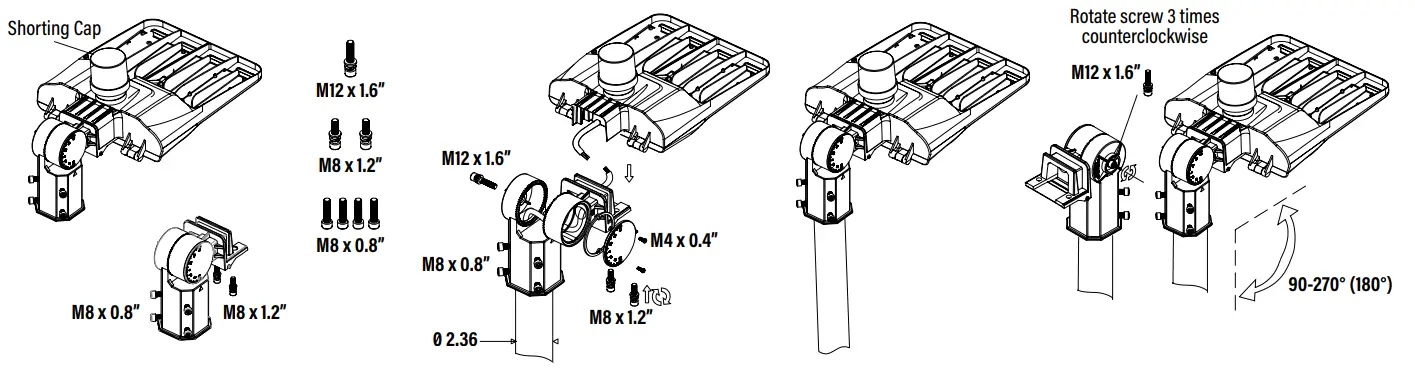

TRUNNION MOUNTING (POLE)

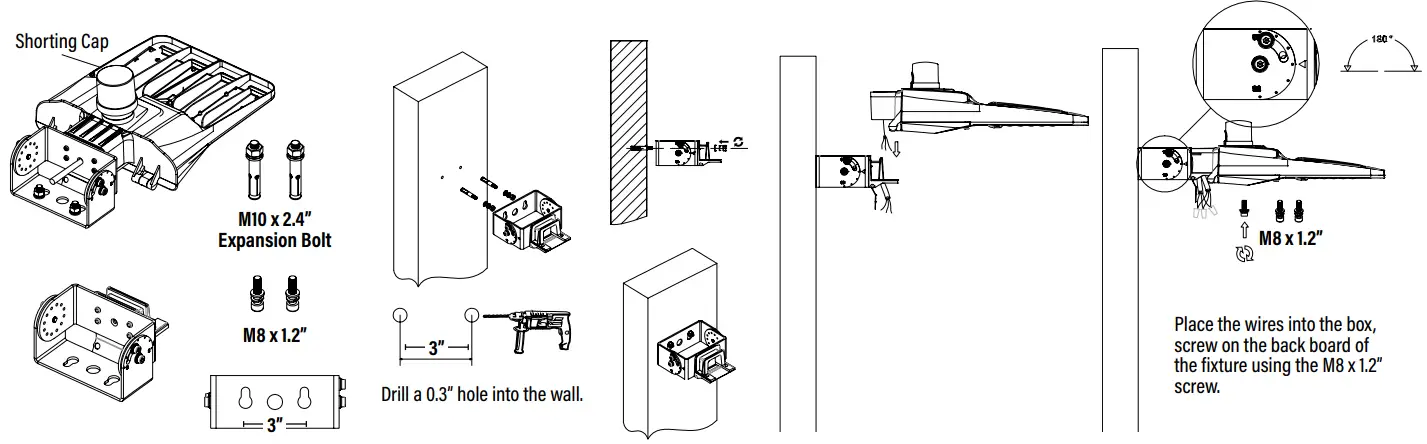

TRUNNION MOUNTING (WALL)
The product requires a top-mounted shorting cap or optional twist-lock photocell installed to operate.

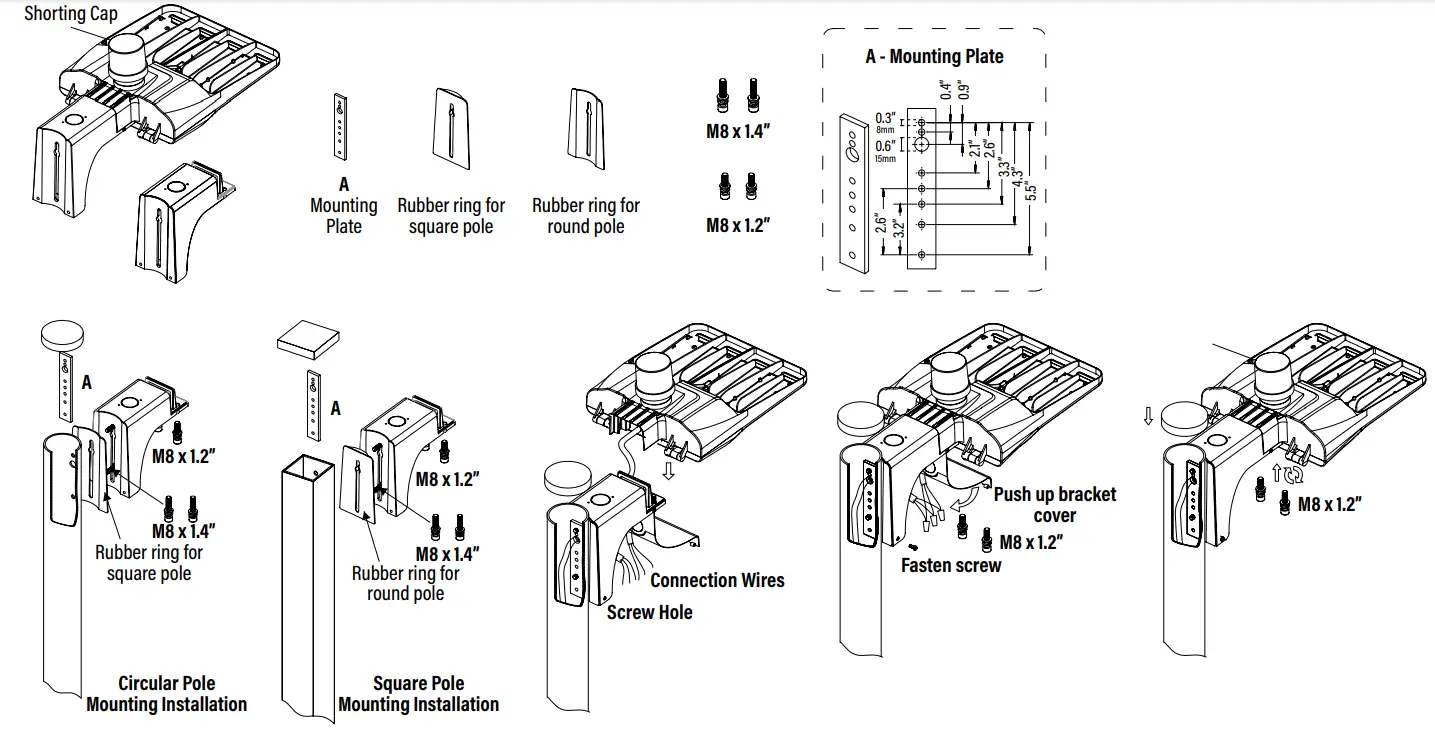

SLIP FITTER MOUNTING
POLE MOUNTING

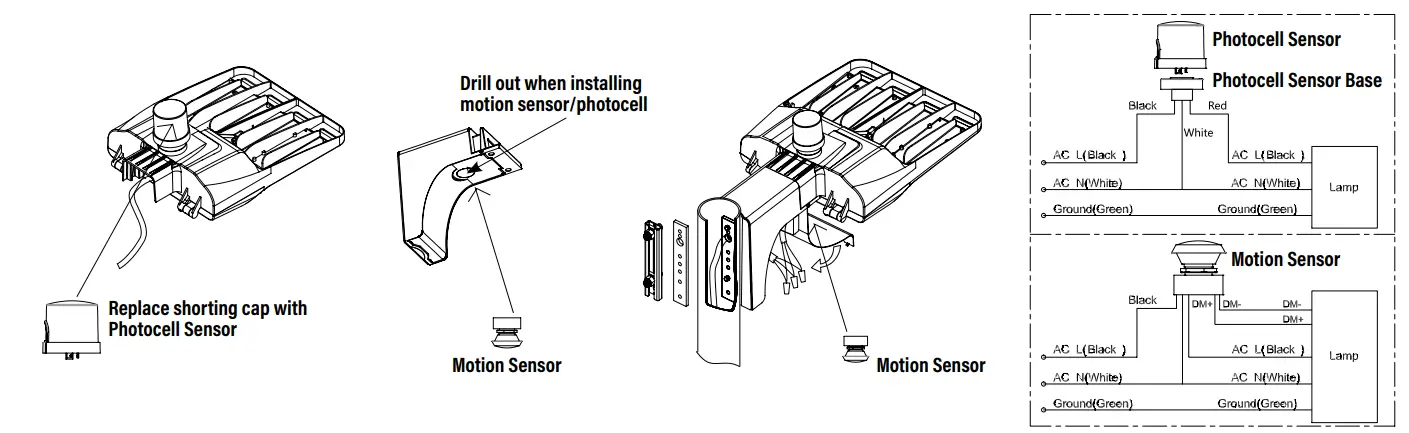

SENSOR INSTALLATION FOR POLE BRACKET
PREMIUM QUALITY LIGHTING®
www.PQLighting.com
© P.Q.L., Inc.
2285 Ward Avenue
Simi Valley, CA 93065
800-323-8107
Specifications are subject to change without notice.
Photos and line drawings may not be to scale and are for general reference only.
