Hy09bw Smart Wi-fi Homcloud Chronothermostat User Manual (+ PDF)

Hereby, Life365 Italy S.p.A., declares that this wireless device complies with the essential
requirements and other related provisions of Directive 2014/53/EU of the European Parliament
and of the Council. The declaration can be consulted on the website www.homcloud.com/doc.
“Homcloud” is a registered trademark of Life365 Italy S.p.A.

INTEGRATION WITH ALEXA AND GOOGLE

Download and install Google Home or Amazon Alexa App and control your devices with your
voice with Smart Speakers or directly with your smartphone.

Important: If you want to link Homcloud App to Google Home or Alexa App you need to select “Smart Life” App between the list of Google Home partners or Alexa skills. (after that
passage the user will be automatically direct to Homcloud App). NO NEED TO DOWNLOAD SMART LIFE APP. JUST HOMCLOUD APP IS OK.

Please visit www.homcloud.com/config for support.

ICONS

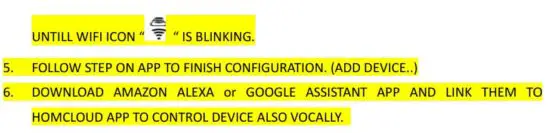

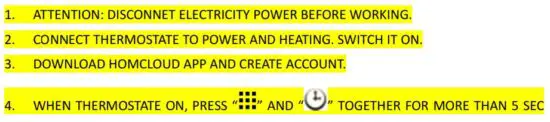

EXPRESS INSTALLATION AND CONFIGURATION GUIDE (EXPERT)

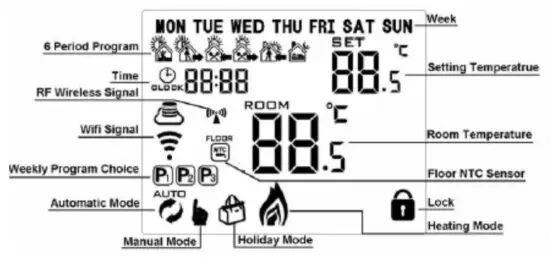

HOME SCREEN

BEFORE WIRING AND INSTALLING…

Keep out of the reach of children and away from water, dump or a wet environment.
Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous condition.
Check the ratings given in the instructions and on the product to make sure the produce is suitable for your application.
Installer must be a trained experienced service technician or electrician.
After installation is complete, check out produce operation as provided in these instructions.

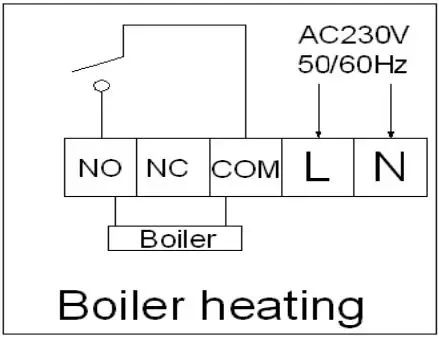

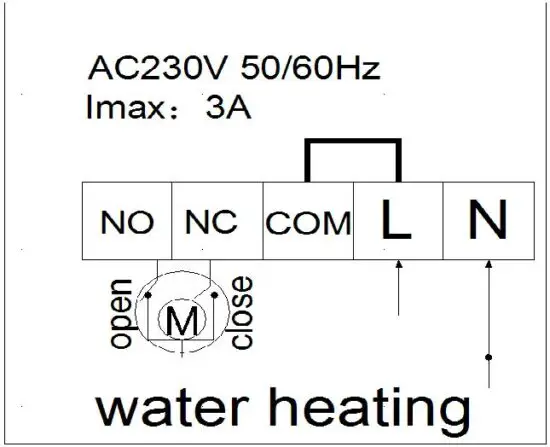

WIRING DIAGRAMS

CAUTION
Please arrange professional technician to install the product according to drawings and instructions. Disconnect power supply before making any connection. Contact with components carrying hazardous voltage can cause electrical shock.

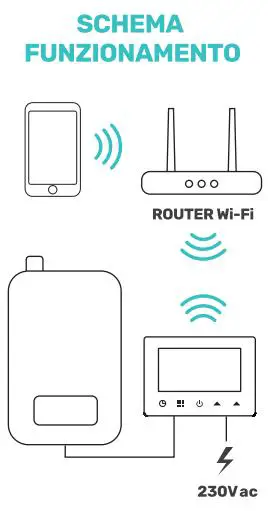

INSTALLATION AND WI-FI SCHEME

(if you have got already Homcloud App on your mobile and an Account go to Configuration).

a. Download Homcloud App from App Store or Google Play or scan QR code below.

b. Enter the register/login interface and register with your country area code and phone
number/email address.
c. Wait a few minutes for verification code (by email or text message) and enter it where required
along with a password. (between 6 and 20 numbers and letters).

CONFIGURATION

Our App only support 2.4GHz Wi-Fi networks IEEE 802.11 b/g/n. For configuration both device and smartphone need to be connected at the same Wi-Fi network. If you can, it is better to switch off temporary 5GHz networks just during configuration.

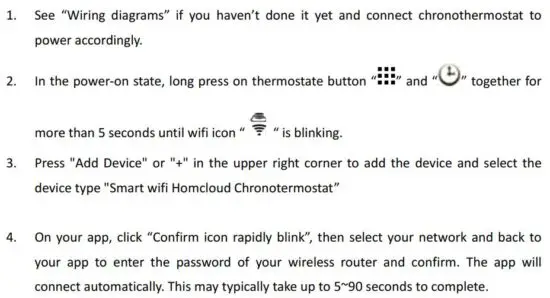

STANDARD – EZ MODE

5. Your room name could be edited when the device is connected and you can choose the
corresponding room location.

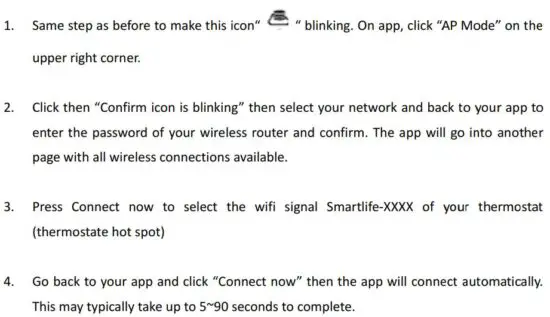

OPTION B – AP MODE (MANUAL) – (ONLY IF STANDARD EZ MODE FAILED)

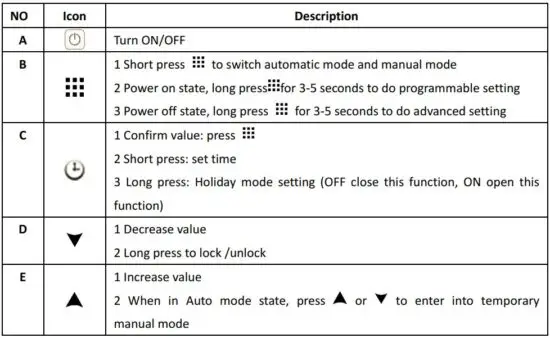

QUICK OPERATIONS – BASIC OPTIONS

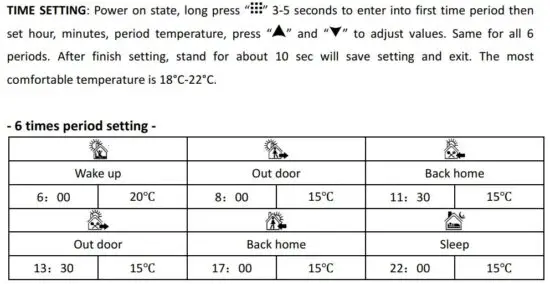

PROGRAMMABLE MODE SETTING

6 times period setting and weekly programmable mode setting: 5+2 days (factory default), 6+1
days, 7 days

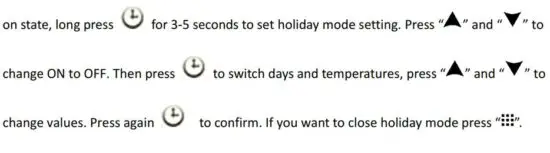

HOLIDAY MODE SETTING

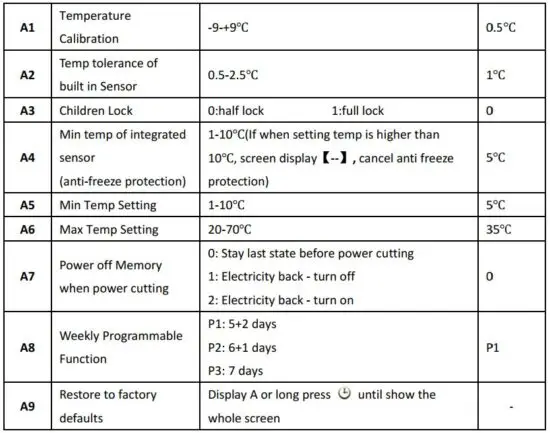

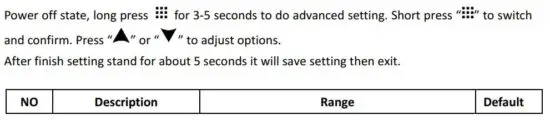

ADVANCED OPTIONS

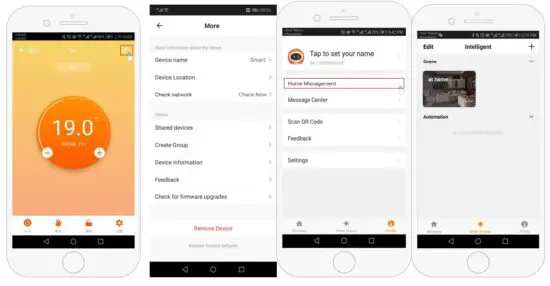

MAIN FEAUTURES ON APP

Power on/off button
Mode key: Manual mode, Auto mode, Holiday mode.
Child lock: If turned on, thermostate on wall cannot be operated.
Set key: After clicking on, you can select the programmed mode (5+2, 6+1, 7
days) and set the temp and time for 6 periods of the weekdays and weekend.
Settings:

Device location: it is important to set a location if you want to use device with geolocalization
Share device: Share the device to the mobile phone or email account of the registered family member
Create Group: Add all the devices which need to operate at the same time to the created group for convenient operation.
Device information；Contains virtual ID；IP address；Mac address；Device time zone
Remove device: After deleting the device, you need to reconnect the network if you want to use it.
Third-party controls supported: amazon alexa/google assistant/IFTTT, click to enter, you will see the steps
