Mirka ® Modular Trolley

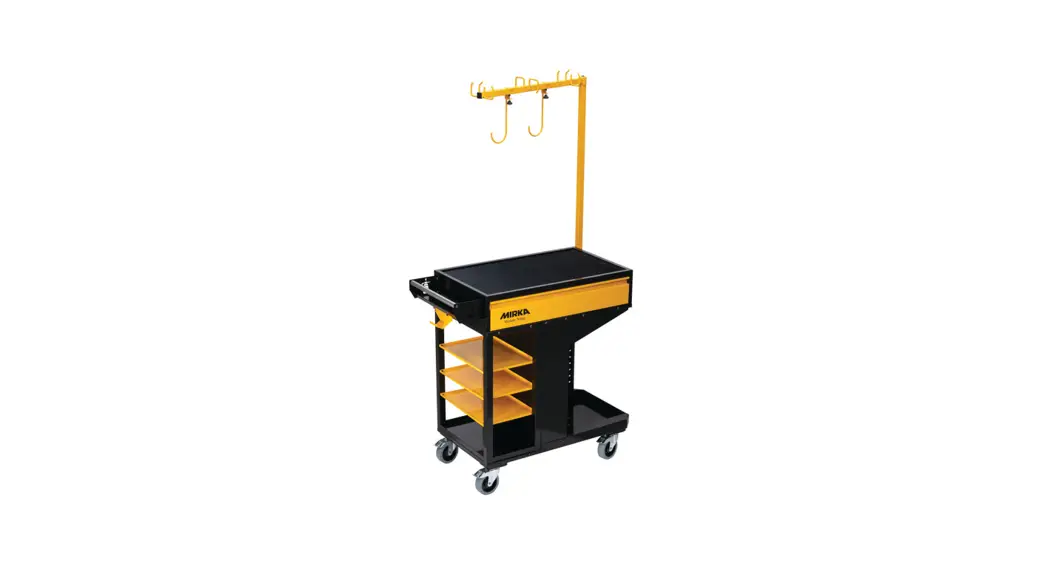

Mirka Modular Trolley

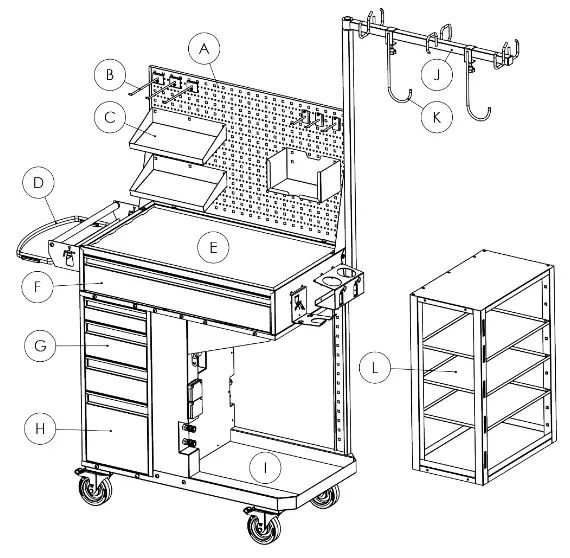

Figure 1
| Part | Part name | Max capacity |
| A | Tool wall with square and round holes | 5kg, if evenly distributed 10kg. |
| B | Tool wall hooks | 2kg |
| C | Tool wall shelves | 2kg |
| D | Waste rack | 10kg |
| E | Tabletop | 50kg |
| F | Top drawer | 30kg |
| G | Middle drawers | 15kg |
| H | Bottom drawer | 30kg |
| I | Bottom shelf | 50kg |
| J | Hose arm | 20kg |
| K | Machine hooks | 5kg |
| L | Shelves | 15kg |

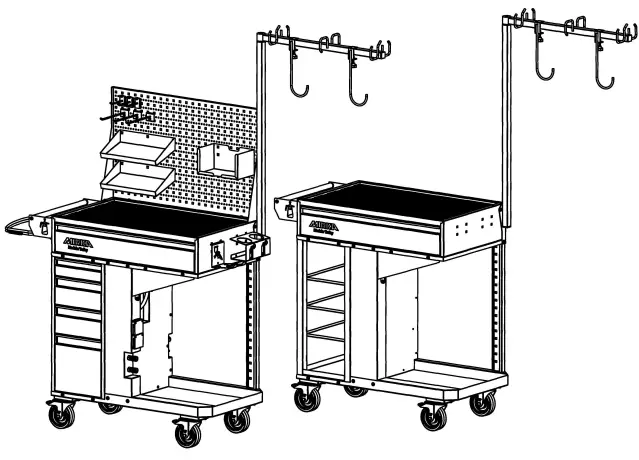

Exploded view
Modular trolley
Parts list – Modular trolley kits
Parts list – Modular trolley kits| Mirka code | Item | Description | Kit | Quantity |
| 9194000011 | Base Module | |||
| Installation Screw Bag | 1 | |||
| 7 | Cable Hook | 1 | ||
| 8 | Push Handle | 1 | ||
| 9 | Rubber Mat | 1 | ||
| 10 | Frame and Top Drawer | 1 | ||
| 11 | Tool Hook for Hose Arm | Base | 2 | |
| 12 | Hose Arm | 1 | ||
| 18 | Sliding Rails | 4 | ||
| 22 | Support Bracket | 1 | ||
| 23 | Support with square holes | 1 | ||
| 27 | Bottom Plate | 1 | ||
| 28 | Castor Wheel 125mm Brake, Grey | 4 | ||
| 9194021711 | Drawer Module | |||
| 17 | Drawer Large | 1 | ||
| 18 | Sliding Rails | A | 10 | |
| 19 | Frame for Drawers | 1 | ||
| 20 | Drawer Medium | 2 | ||
| 21 | Drawer Small | 1 | ||
| 9194021511 | Shelf Module | |||
| 15 | Frame for Shelves | B | 1 | |
| 16 | Shelf | 3 | ||
| 9194021011 | Top with Drawer and Rubber Mat | |||
| 9 | Rubber Mat | C | 1 | |
| 10 | Frame and Top Drawer | 1 | ||
| 18 | Sliding Rails | 4 | ||
| 9194023011 | Air Filter Regulator kit | |||
| 30 | Air Filter Regulator | 1 | ||
| 31 | Air Fitting Plug 3/8″ | D | 1 | |
| 32 | Air Fitting Safety Connector 3/8″ | 1 | ||
| 33 | Installation Screw kit | 1 |
Repairs done by a non-authorized repairer will breach the Mirka warranty.
Electrical equipment must be serviced by a qualified repair person and in accordance with national requirements.
Parts list – Modular trolley spare parts & accessories
| Mirka code | Item | Description | Kit | Quantity |
| 9194010111 | 1 | Tool Wall | Opt. | |
| 9194010211 | 2 | Shelf for Tool Wall, abrasives | Opt. | |
| 9194010311 | 3 | Hook, Square holes long, Yellow 3/pack | Opt. | |
| 9194010411 | 4 | Hook, Round holes short, Yellow 3/pack | Opt. | |
| 9194010511 | 5 | Shelf for Tool Wall, Mirlon Total | Opt. | |
| 9194010611 | 6 | Waste Bag Holder | Opt. | |
| 9194010711 | 7 | Cable Hook | Base | 1 |
| 9194010811 | 8 | Push Handle | Base | 1 |
| 9194010911 | 9 | Rubber Mat | Base, C | 1 |
| 9194011011 | 10 | Frame and Top Drawer | Base, C | |
| 9194011111 | 11 | Tool Hook for Hose Arm | Base | 2 |
| 9194011211 | 12 | Hose Arm | Base | 1 |
| 9194011311 | 13 | Aerosol Holder | Opt. | |
| 9194011411 | 14 | Spray Gun Holder | Opt. | |
| 9194011511 | 15 | Frame for Shelves | B | 1 |
| 9194011611 | 16 | Shelf 3/pack | B | 3 |
| 9194011711 | 17 | Drawer Large | A | 1 |
| 9194011811 | 18 | Sliding Rails 2/pack | Base,A, C | 2 |
| 9194011911 | 19 | Frame for Drawers | A | 1 |
| 9194012011 | 20 | Drawer Medium | A | 2 |
| 9194012111 | 21 | Drawer Small | A | 1 |
| 9194012211 | 22 | Support Bracket | Base | 1 |
| 9194012311 | 23 | Support with square holes | Base | 1 |
| 9194012411 | 24 | Midsection Plain | Opt. | |
| 9194012511 | 25 | Midsection with Elec | Opt. | |
| 9194012611 | 26 | Midsection with Pneu and Elec | Opt. | |
| 9194012711 | 27 | Bottom Plate | Base | 1 |
| 9190199001 | 28 | Castor Wheel 125mm Brake, Grey | Base | 4 |
| 9194012911 | 29 | Screw kit – Modular Trolley | Opt. | |
| 9193011611 | 30 | Air Filter Regulator | D | Opt. |
| 9193011911 | 31 | Air Fitting Plug 3/8″ | D | Opt. |
| 9193012011 | 32 | Air Fitting Safety Connector 3/8″ | D | Opt. |
| 33 | Installation Screw kit – Air Filter Regulator | D | Opt. | |
| 9194013411 | 34 | Socket EU 2-piece | Opt. | |
| 9194013511 | 35 | Socket EU 1-piece | Opt. | |
| 9194013611 | 36 | Mains Cable 11m EU | Opt. |
A marking plate can be found on the midsection.
Declaration of conformity
| Mirka Ltd, 66850 Jeppo, Finland declare under our sole responsibility that the Mirka® products (listed below and see “Technical data” table for particular model) to which this declaration relates are in conformity with the following standards or other normative documents: EN 60204-1:2018 in accordance with the regulations 2014/35/EU. | ||||
| Products: Mirka® Modular Trolley | ||||
| Jeppo 20.09.2021 Place and date of issue | Company |  Stefan Sjöberg, CEO | Manufacturer / Supplier Mirka Ltd 66850 Jeppo, Finland Tel. +358 20 760 2111 Fax +358 20 760 2290 www.mirka.com |
|
Original instructions. We reserve the right to make changes to this manual without prior notice.
Important
Read these safety and operating instructions carefully before installing, operating, or maintaining this tool. Keep these instructions in a safe and accessible place. Read and comply with state and local regulations.
General Safety Instructions
- The Mirka® Modular Trolley must not be used in potentially explosive atmospheres.
- Ensure that the parking brakes are locked before using the Mirka®Modular Trolley.
- The cart may only be set up and operated on a flat surface.
- The operation may only be performed by trained personnel. Maintenance and repair of the pneumatic and electrical equipment may only be carried out by qualified personnel.
- Before cleaning, maintenance, and repair work, the main plug must always be unplugged from the socket.
- To avoid the risk of tipping, do not exceed the maximum load capacity when loading the cart.
- Do not use it as a climbing aid or to transport people! The cart must not be towed by a motorized vehicle.
- Be aware of the rotating hose arm.
- Use the Mirka® Modular Trolley in dry conditions.
- Do not move the product prior to closing all the drawers.
- Be careful when closing the drawer.
- Do not use a damaged cord or plug. To unplug, grasp the plug, not the cord. Do not handle the plug with wet hands.
- Do not exceed the maximum product weight, including contents. Do not exceed the maximum weight for each drawer.
See the “Technical data” chapter.
Technical data
| Modular Trolley | Plain | Electrical | Electrical and Pneumatic |
| Description | Workshop cart | Workshop cart | Workshop cart |
| Empty weight | Min: 70 kg (154.5 lbs) Max: 110 kg (242.8 lbs) | Min: 70 kg (154.5 lbs) Max: 110 kg (242.8 lbs) | Min: 70 kg (154.5 lbs) Max: 110 kg (242.8 lbs) |
| Carrying capacity | 100 kg (220.8 lbs) | 100 kg (220.8 lbs) | 100 kg (220.8 lbs) |
| Max. power | 3000 W | 3000 W | |
| Operating voltage | 220 240 VAC | 220 240 VAC | |
| Max. pressure | 10 bar |
Proper use of the tool
The workshop cart Mirka® A modular Trolley is mainly used for the storage of tools and consumables. The cart may only be set up on level surfaces. Occasionally it may be necessary to drive on slightly inclined surfaces, in which case the inclination should not exceed 2%. The cart is primarily intended for use inside workshops. Other applications should be agreed upon with the manufacturer.
Electrical
It is equipped with a permanently installed 230 V mains connection with triple sockets.
Electrical and pneumatic
It is equipped with a permanently installed 230 V mains connection with triple sockets as well as an integrated compressed air connection equipped with 3 locking couplings.
Operating instructions
Assembly instructions
Please find the separate assembly instructions with the product.
Electrical connection
Connect the power cable of the Mirka® Modular Trolley to the main supply. The total power consumption of appliances connected to the triple socket at the same time must not exceed 3,000 W.

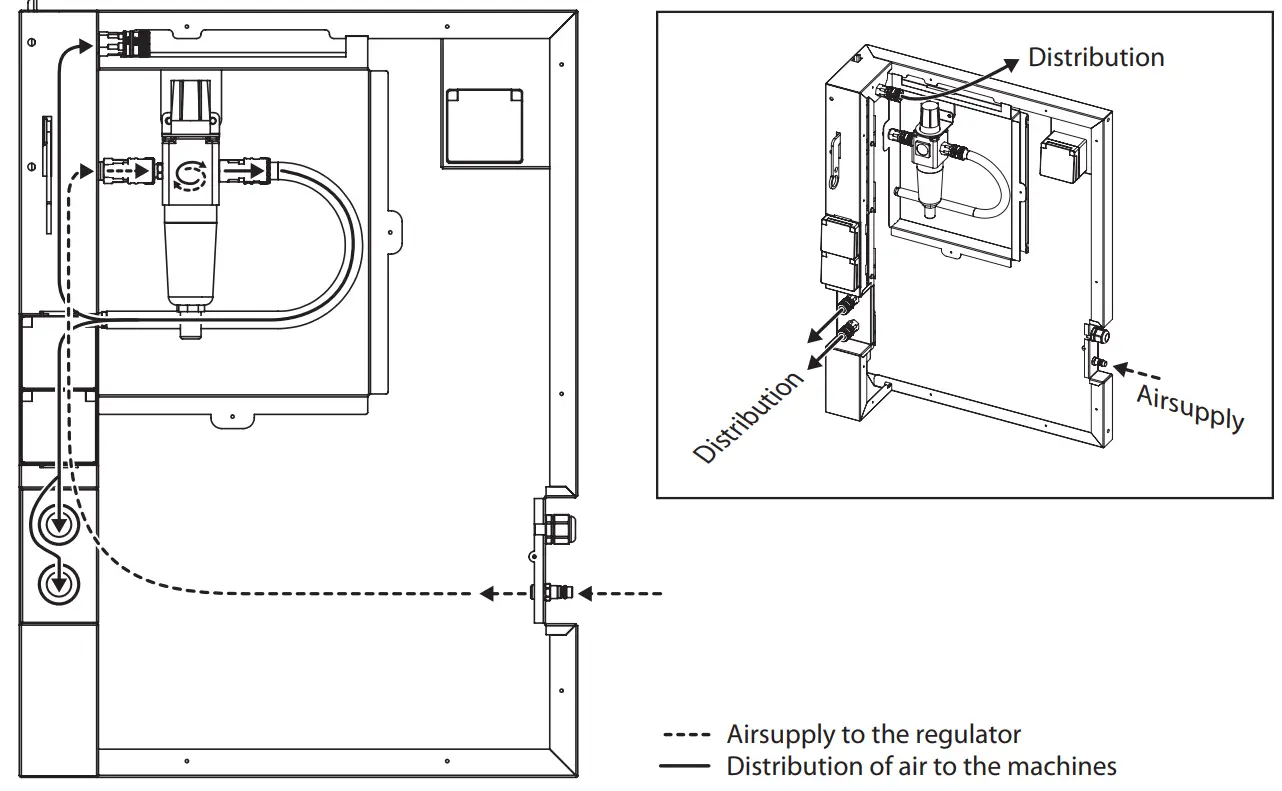

Pneumatic connection
Connect the workshop compressed air line to the designated compressed air connection at the back of the machine.
Compressed air devices can now be operated directly from the cart. Alternatively, the compressed air supply can also be connected to a pneumatic box on the industrial vacuum cleaner (e.g. for operating orbital sanders). To do this, use the preassembled hose section on the maintenance unit. The compressed air connection to the Mirka® modular Trolley must not exceed 10 bar. It is possible to adjust the air pressure according to user needs.
Locking mechanism
Important: The drawers must be fully closed before locking / unlocking the unit.
Requirement: padlock
- Close all drawers.
- Push up the locking mechanism.
- Add padlock
Maintenance
NOTE! Maintenance and repair work, especially on the electrical and pneumatic equipment may only be carried out by qualified personnel.
The condition of the cart and its components must be regularly checked for function and safety. The necessary maintenance work should be carried out as soon as possible, especially if signs of wear or dirt are visible. If problems arise during maintenance work that can not be remedied by your own means, a specialist in compressed air or electrics should be consulted.
- Electric and pneumatic equipment must be serviced regularly.
- Disconnect mains plug and disconnect compressed air connection before carrying out any maintenance, servicing, and maintenance work.
- To clean the cart, use only a damp cloth and then dry it.
Disposal Information
DANGER
Render redundant tools unusable by removing the power cord.
Observe applicable country-specific regulations regarding disposal and recycling of disused machines, packaging, and accessories.
EU only: Do not dispose of tools in household waste. According to European Directives on waste electrical and electronic equipment and its implementation under national law, electric tools that have reached the end of their life must be collected separately and taken to an environmentally compatible recycling facility.
For more information regarding REACH, RoHS and our corporate social responsibility visit www.mirka.com
Declaration of conformity
| Mirka Ltd, 66850 Jeppo, Finland declare under our sole responsibility that the Mirka® products (listed below and see “Technical data” table for particular model) to which this declaration relates are in conformity with the following standards or other normative documents: BS EN 60204-1:2018 in accordance with the regulations The Electrical Equipment (Safety) Regulations 2016 | ||
| Products: Mirka® Modular Trolley | ||
| Jeppo 20.09.2021 Place and date of issue |
| Stefan Sjöberg, CEO |
| Manufacturer / Supplier Mirka Ltd | Importer Information Mirka (UK) Ltd Saxon House Shirwell Crescent Furzton Lake Milton Keynes MK4 1GATel. +44 (0)1908 866100 |  |
This chapter is an addition to the English language chapter of the manual in order to fulfill the UKCA regulation requirements. Please refer to the English language chapter for more information about your product.
