IMOU IPC-S22FP Cruiser Security Camera

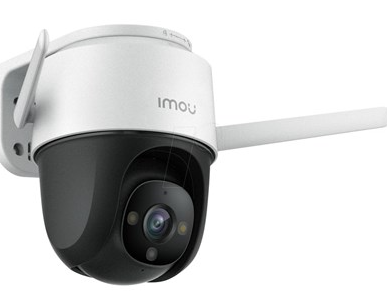

IMOU -IPC-S22FP-Cruiser-Security-Camera-product-image

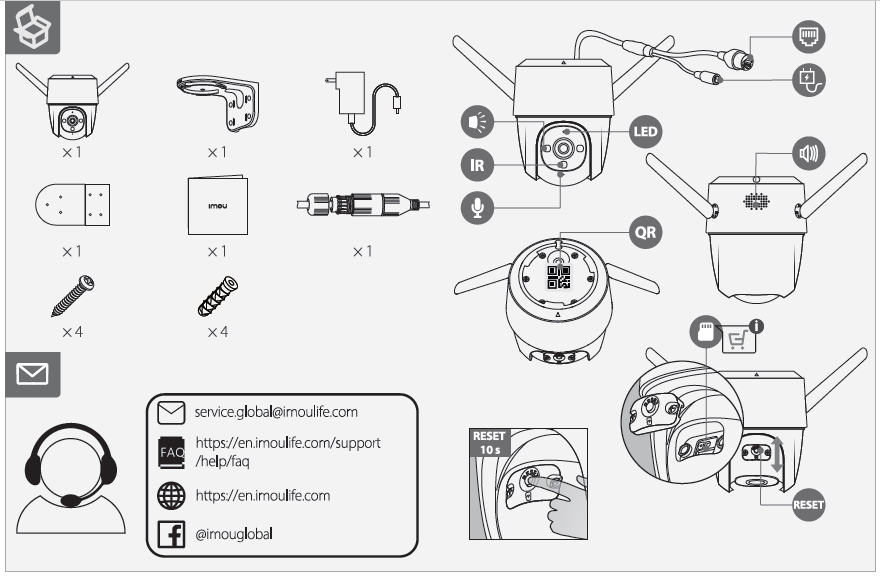

Product Parts

IMOU -IPC-S22FP-Cruiser-Security-Camera-1

Product Assembly

IMOU -IPC-S22FP-Cruiser-Security-Camera-2

IMOU -IPC-S22FP-Cruiser-Security-Camera-3

IMOU -IPC-S22FP-Cruiser-Security-Camera-4

IMOU -IPC-S22FP-Cruiser-Security-Camera-5

Power On the Camera

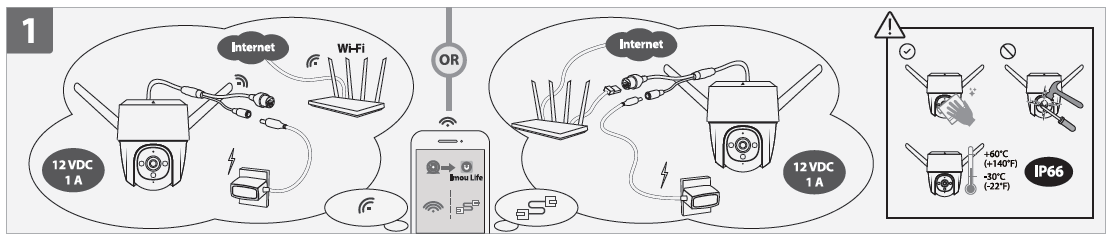

Connect the camera to power. You can choose wireless or wired network connection (see part 1).

Get the Imou Life App
Scan the QR code on part 2 or search for “Imou Life” to download and install the app. Create an account and log in.

Set Up the Camera
Scan the QR code on the body of the device or on the cover of this guide with the app, and then follow on-screen instructions to complete the setup (see part 3).

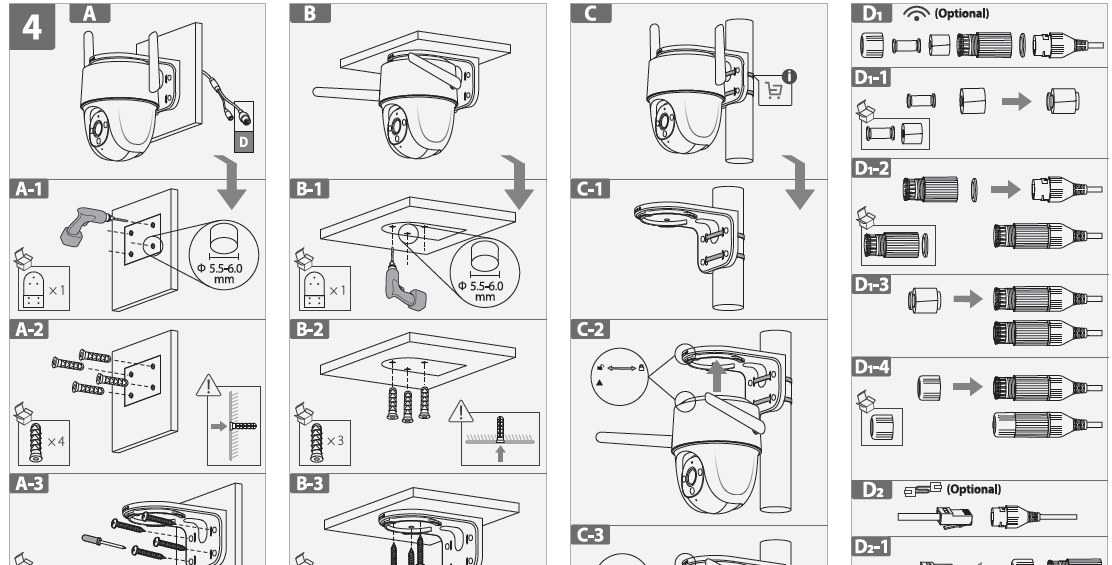

Install the Camera
Make sure the mounting surface is strong enough to hold three times the weight of the camera. For detailed installation process, please see part 4.

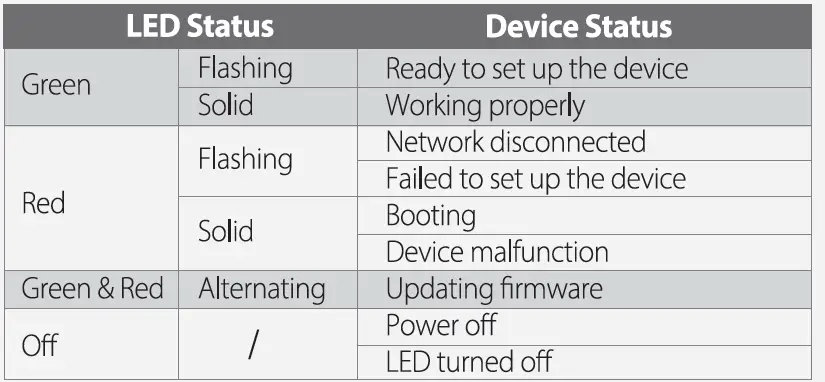

If you need to reset the camera, press and hold the reset button for 10s. The LED turns solid red when the camera is booting.

[email protected]
https://en.imoulife.com/support/help/faq
https://en.imoulife.com

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
