Quick Start Guide
V1.0.0

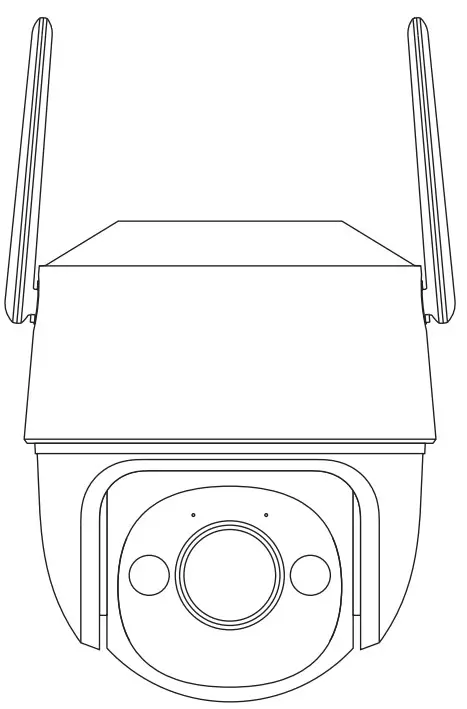

IPC-S41FP Cruiser SE Wireless IP PTZ Camera
[email protected]
https://en.imoulife.com/support/heip
https://en.imoulife.com
@imouglobal
http://mobile.easy4ipcloud.com/imou/detect.html

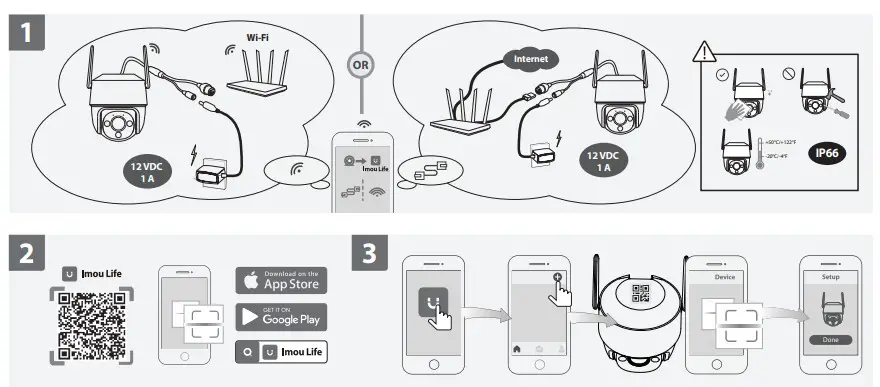

Power On the Camera
Connect the camera to power. You can choose wireless or wired network connection (see part 1).
Get the Imou Life App
Scan the QR code on part 2 or search for “Imou Life” to download and install the app. Create an account and log in.
Set Up the Camera
Scan the QR code on the body of the device or on the cover of this guide with the app, and then follow on-screen instructions to complete the setup (see part 3).

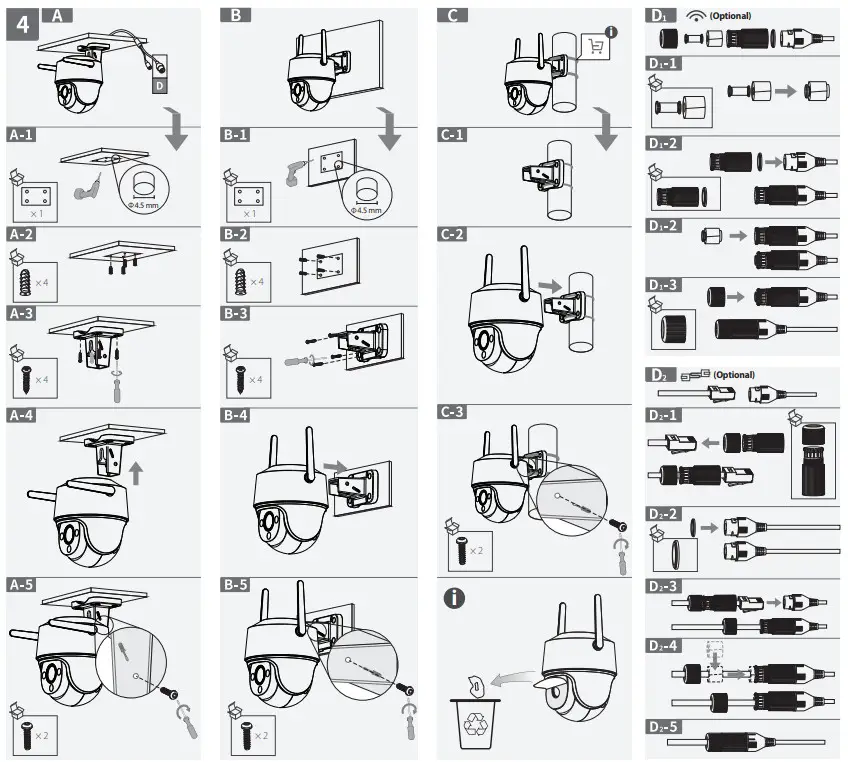

Install the Camera
Make sure the mounting surface is strong enough to hold three times the weight of the camera. For detailed installation process, please see part 4.
| LED Status | Device Status |
| Off | • Power off • LED turned off |
| Solid red | • Booting • Device malfunction |
| Flashing red | • Network disconnected • Failed to set up the device |
| Flashing green | Ready to set up the device |
| Solid green | Operating correctly |
| Flashing green and red | Updating firmware |

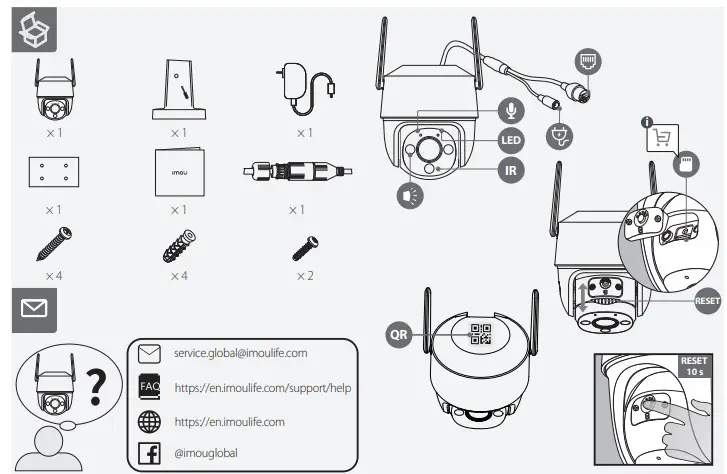

In case you need to reset the camera, press and hold the reset button for 10 s until the LED turns solid red.
Imou | Enjoy Smart Life
