LevelOne POR-1322 Industrial IP67 PoE BT Extender-Repeater
Product Information

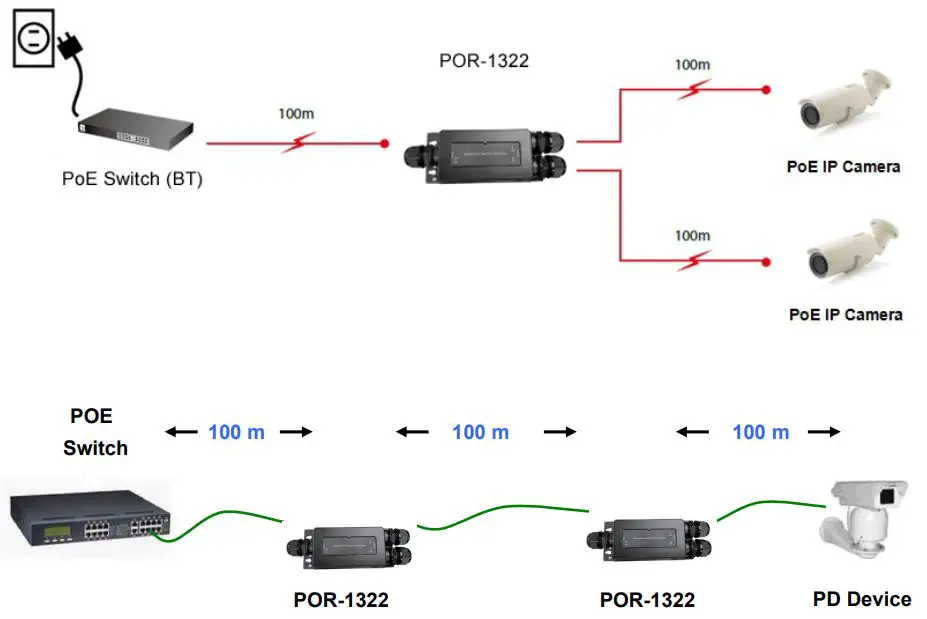

The POR-1322 is an industrial IP67-rated extender that can be used as a standalone PD/PSE PoE injector or to extend PoE distance. It is equipped with 1 port 802.3bt input to power up 1-port Giga 802.3bt PSE output and 1-port 802.3at output.
Installation Package

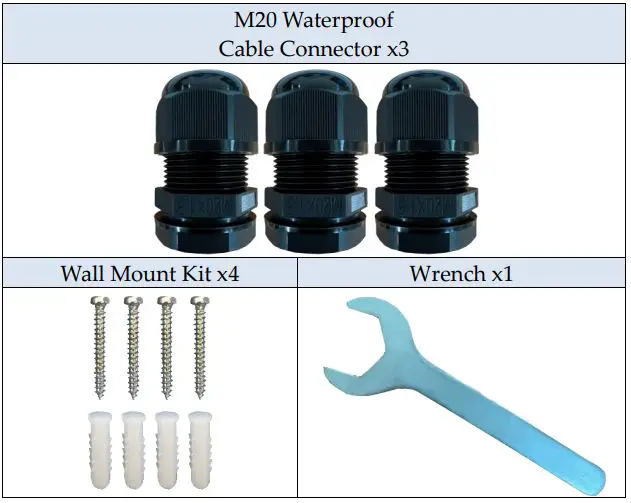

The installation package includes:
- M20 Waterproof Cable Connector x3
- Wall Mount Kit x4
- Wrench x1
LED Indicator

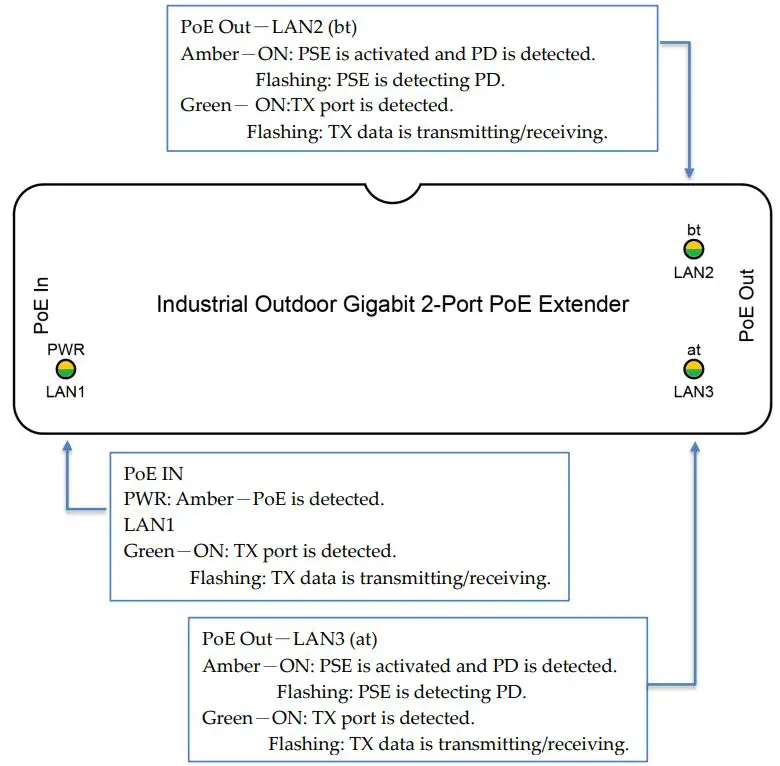

The POR-1322 has LED indicators for PoE OutLAN2 (bt), PoE IN,and PoE OutLAN3 (at). The indicators show the status of PSE activation, PD detection, and TX data transmission/receiving.
Specification
- IEEE Standard: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3ab 1000Base-T Gigabit Ethernet, IEEE 802.3x Flow Control and Back Pressure, IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3bt PoE++
- Switch Architecture: Back-plane (Switching Fabric): 6Gbps, Store and forward
- Data Processing: IEEE 802.3x Flow Control and Back Pressure, Jumbo Frame: 9KB
- MAC Address Table Size: 2K, Packet Buffer Size: 1Mbit
- Network Connector: 3 x RJ-45 10/100/1000M auto negotiation, 1 x RJ-45 10/100/1000M with 802.3bt in, 1 x RJ-45 10/100/1000M with 802.3bt out, 1 x RJ-45 10/100/1000M with 802.3at out
- Network Cable Protocol: Auto MDI/MDI-X function, Full duplex UTP/STP Cat.5e or above Cable EIA/TIA-568 (100m), CSMA/CD
- PoE In LED: AmberPoE is detected. LAN1 GreenON: TX port is detected. Flashing: TX data is transmitting/receiving.
- PoE Out LED: LAN2(bt) AmberON: PSE is activated and PD is detected. Flashing: PSE is detecting PD. Green ON:TX port is detected. Flashing: TX data is transmitting/receiving. LAN3(at) AmberON: PSE is activated and PD is detected. Flashing: PSE is detecting PD. Green ON:TX port is detected. Flashing: TX data is transmitting/receiving.
- Overload Current Protection, PD Power Input, PoE Power:
Present, Maximum 90W, Maximum total PSE power output 60W - RJ45 Pin Assignment
- Operating Temperature: -40°C to 75°C (-40°F to 167°F)
- Operating Humidity: 5% to 95% non-condensing
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- MTBF (Mean time between failure): Housing Case Dimension (LxWxH):
Product Usage Instructions
To use the POR-1322:
- Mount the POR-1322 using the wall mount kit and lock/unlock the M20 connectors using the wrench provided in the installation package.
- Connect the network cables to the RJ-45 ports according to the RJ45 Pin Assignment.
- Connect the power source to the PoE In port, and connect the PoE devices to the PoE Out ports.
- The LED indicators will show the status of PSE activation, PD detection, and TX data transmission/receiving.
- Please refer to the product user manual for more detailed information and troubleshooting steps.
Quick Installation Guide
Installation diagram
User Manual
POR-1322
Outdoor Industrial IP67 gigabit PoE Extender
FCC MARKING
This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation.
Introduction
POR-1322 is an industrial IP67-rated extender. Is equipped with 1 port 802.3bt input to power up 1-port Giga 802.3bt PSE output and 1-port 802.3at output. It can be used as a standalone PD/PSE PoE injector or to extend PoE distance.
Installation package
This product can be installed by the wall mount kit, and the wrench is for your convenient to lock/unlock the M20 connectors.
LED indicator
Specification
|
IEEE Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.3af PoE IEEE 802.3at PoE+ IEEE 802.3bt PoE++ | |
| Switch Architecture | Back-plane (Switching Fabric): 6Gbps | |
| Data Processing | Store and forward | |
| Flow Control | IEEE 802.3x Flow Control and Back Pressure | |
| Jumbo Frame | 9KB | |
| MAC Address Table Size | 2K | |
| Packet Buffer Size | 1Mbit | |
|
Network Connector | 3 x RJ-45 10/100/1000M auto negotiation 1 x RJ-45 10/100/1000M with 802.3bt in 1 x RJ-45 10/100/1000M with 802.3bt out 1 x RJ-45 10/100/1000M with 802.3at out Auto MDI/MDI-X function, Full duplex | |
| Network Cable | UTP/STP Cat.5e or above Cable | |
| EIA/TIA-568 (100m) | ||
| Protocol | CSMA/CD | |
|
LED |
PoE In | PWR Amber－PoE is detected. LAN1 Green－ON: TX port is detected. Flashing: TX port data is transmitting/receiving |
|
PoE Out | LAN2(bt) Amber－ON: PSE is activated, and PD is detected. Flashing: PSE is detecting PD. Green－ON: TX port is detected. Flashing: TX port data is transmitting/receiving | |
| LAN3(at) Amber－ON: PSE is activated, and PD is detected. Flashing: PSE is detecting PD. Green－ON: TX port is detected. Flashing: TX port data is transmitting/receiving | ||
| Overload Current Protection | Present | |
| PD Power Input | Maximum 90W | |
| PoE Power | Maximum total PSE power output 60W | |
|
RJ45 Pin Assignment | RJ45 Pin | LAN1 | LAN2 | LAN3 | |||
| Data | PoE IN | Data | PoE Out | Data | PoE Out | ||
| Pin 1 | BI_DA+ | V- | BI_DA+ | V- | BI_DA+ | V- | |
| Pin 2 | BI_DA- | V- | BI_DA- | V- | BI_DA- | V- | |
| Pin 3 | BI_DB+ | V+ | BI_DB+ | V+ | BI_DB+ | V+ | |
| Pin 4 | BI_DC+ | V+ | BI_DC+ | V+ | BI_DC+ | ||
| Pin 5 | BI_DC- | V+ | BI_DC- | V+ | BI_DC- | ||
| Pin 6 | BI_DB- | V+ | BI_DB- | V+ | BI_DB- | V+ | |
| Pin 7 | BI_DD+ | V- | BI_DD+ | V- | BI_DD+ | ||
| Pin 8 | BI_DD- | V- | BI_DD- | V- | BI_DD- | ||
| Operating Temperature | -40°C to 75°C | ||||||
| Operating Humidity | 5% to 95% (non-condensing) | ||||||
| Storage Temperature | -40°C to 85°C | ||||||
| MTBF (Mean time between failure) | 522,126 hrs (Telcordia (Bellcore), GB) at 50°C | ||||||
| Housing | Rugged Aluminum, IP67 Protection | ||||||
| Case Dimension (LxWxH) | 166.5×73.45×44.3mm | ||||||
| Installation | Wall Mount | ||||||
| Certifications | |||||||
| Safety | LVD (EN 62368-1) | ||||||
| EMC | CE, FCC | ||||||
| EMI | CISPR 32, FCC Part 15B Class A | ||||||
| EMS | IEC 61000-4-2 ESD: Contact: 6KV; Air: 8KV IEC 61000-4-4 EFT: Power: 2KV; Signal: 2KV IEC 61000-4-5 Surge: Power: 4KV; Signal: 2KV | ||||||
| Vibration | EN 60068-2-6 | ||||||
| Shock | EN 60068-2-27 | ||||||
| Free Fall | EN 60068-2-32 | ||||||

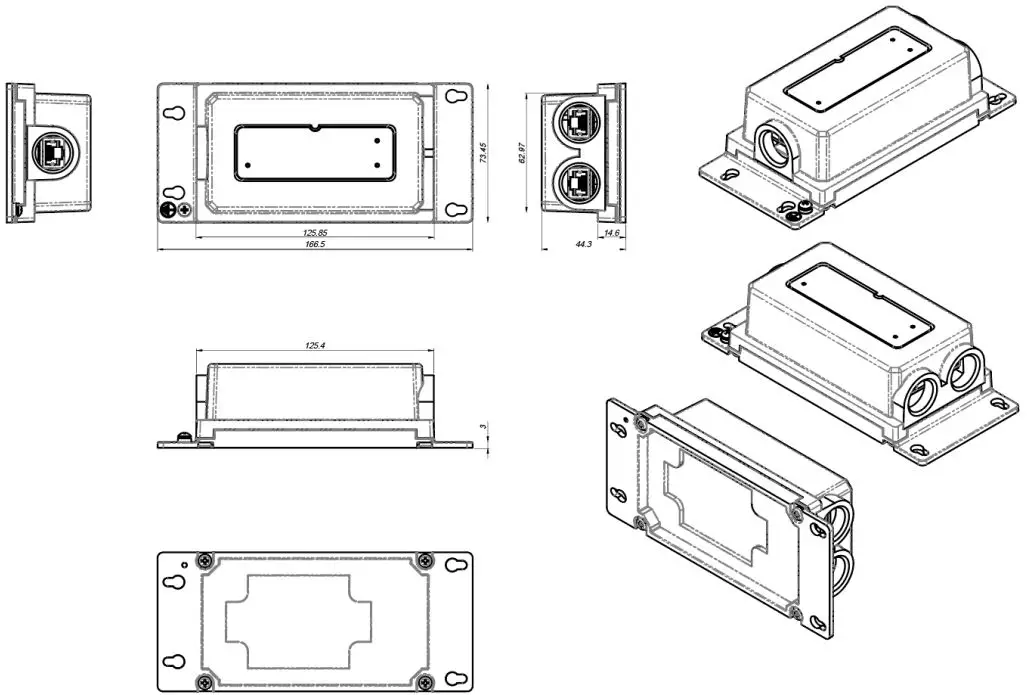

Housing Dimension (mm)
