Dams Welcome Reception Desk Instruction Manual

dams Welcome Reception Desk Instruction Manual

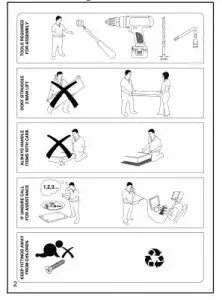

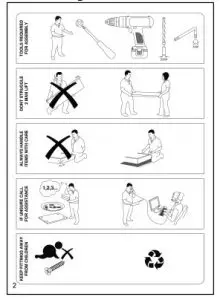

Tools Required for Assembly

Don’t Structure 2 Man Lift

Always Handle Items with Care

 If Unsure Call for Assistance

Keep Fittings Away from Children

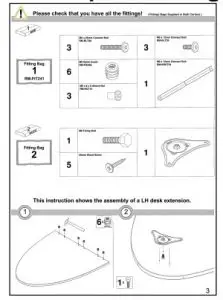

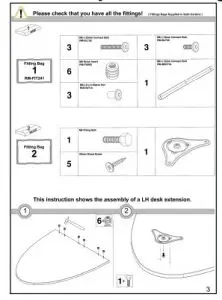

Please check that you have all the fittings!

• 2 x Fittings Bags Supplied
• 1 in Carton 3 – WD14/16DT
• 1 in Carton 4 – WDLP

Fitting Bag 1
RM-FIT254

1. M6x16mm Connect Bolt
   RM-SY0622

2. 3/4 x 14mm Screw
   RM-SCR04

3. M8 Gesipa Insert
   RM-PAR03


Fitting Bag 2
RM-FIT240

1. 15mm Cam
   RM-CAM03

2. 34mm Minifix Bolt
   RM-BLT07

3. M8 Gesipa Insert
   RM-NUT04

4. M6 Nylon Insert 25mm Adjustable Foot
   RM-PAR05

5. 17mm Adhesive Cover Cap
   RM-CAP07

6. 25mm Adjustable Foot
   RM-FRL19

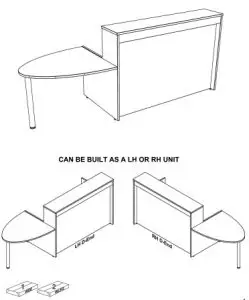

If you are assembling this unit with a D-End extension table please refer to the WDET assembly instruction before proceeding with step 1

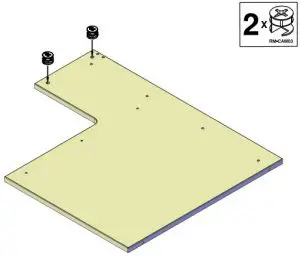

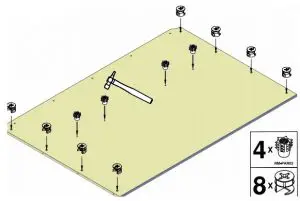

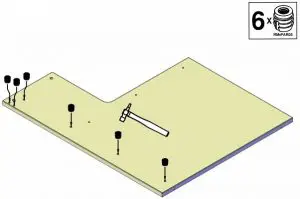

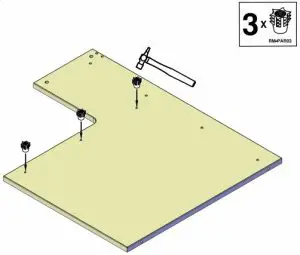

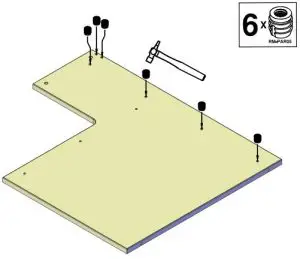

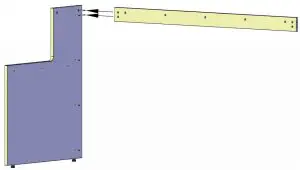

Prepare the panels by inserting the listed fittings into the corresponding holes.

1.
2.

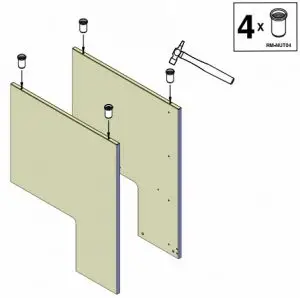

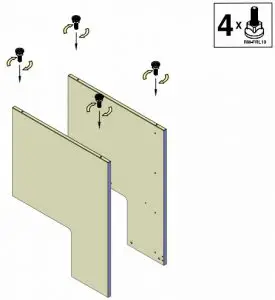

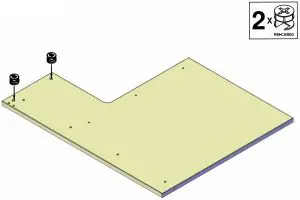

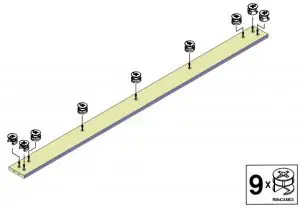

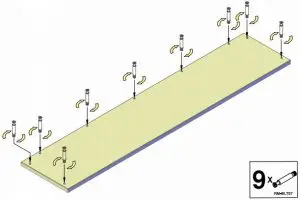

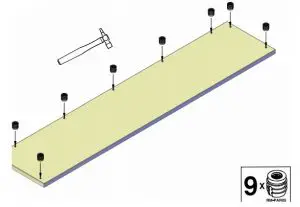

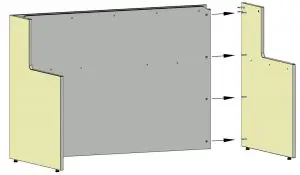

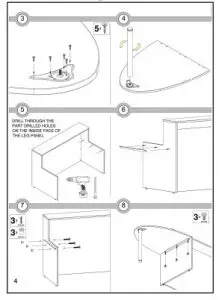

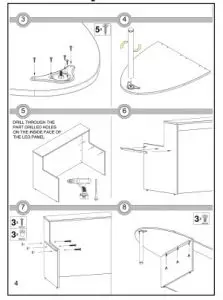

   Prepare the panels by inserting the listed fittings into the corresponding holes.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.

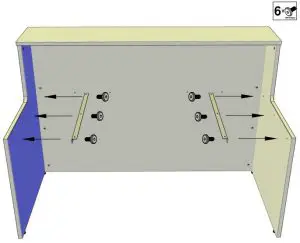

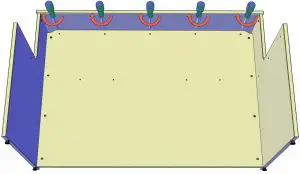

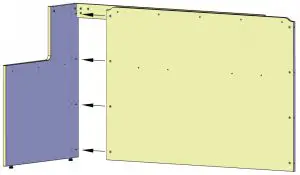

    Join the panels together and tighten all cam fittings.

13.

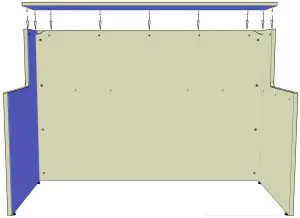

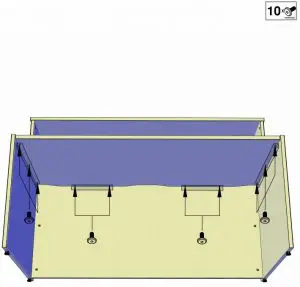

    Join the panels together and tighten all cam fittings


15.

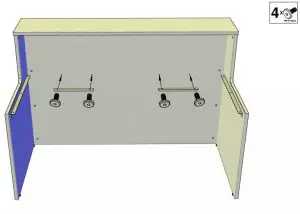

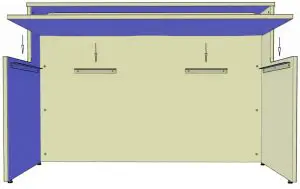

    Join the panels together and tighten all cam fittings.


16.
    If you are assembling this unit with a D-End extension table please refer to the WDET assembly instruction before proceeding with step 18.




17.

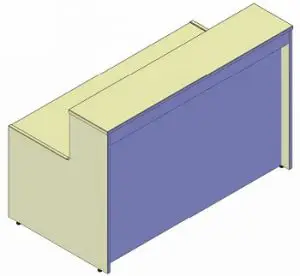

18.
19.
20.
