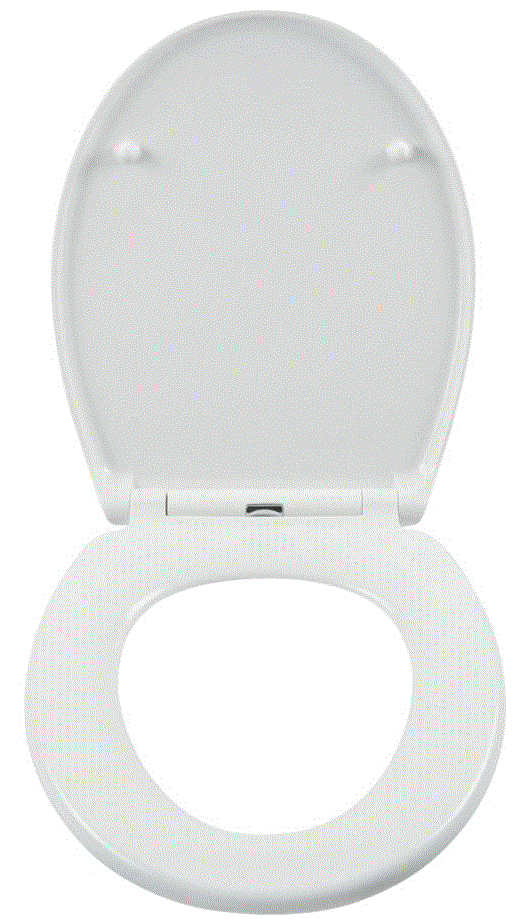

SCREWFIX Duroplast Toilet Standard Hinge
Product Information
The Duroplast toilet standard hinge comes with all the necessary parts for assembly. The package includes a toilet seat cover, two round hinges, two conical gaskets, two no teeth nuts, two round washers, and a spanner. The product is manufactured by Kingfisher International Products Limited in the UK and Kingfisher International Products B.V. in the Netherlands.
Product Usage Instructions
- Align both holes of the seat and cover near the hinge area.
- Plug the hinges B into those align holes as per illustration 1.
- Put the round gasket C under the hinges B, then turning the hinges around to matching 2 holes on the ceramic, and plug in.
- Install parts D, E, F, and G on the screws in turn as per illustration 3.
- Use spanner H to tighten the nut G until the fixture is secure.
After assembly, please ensure proper care and maintenance of the product. The manufacturer’s details are provided for any queries or concerns.

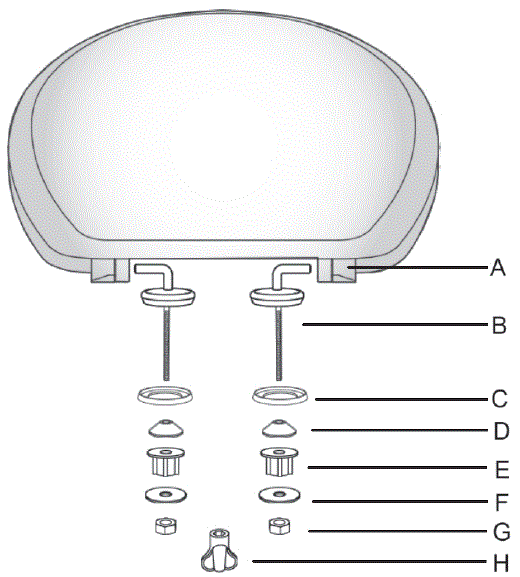

Parts Supplied
| ITEM | DESCRIPTION | QTY |
| A | toilet seat cover | 1 |
| B | hinge | 2 |
| C | round gasket | 2 |
| D | conical gasket | 2 |
| E | no teeth nut | 2 |
| F | round washer | 2 |
| G | nut | 2 |
| H | spanner | 1 |

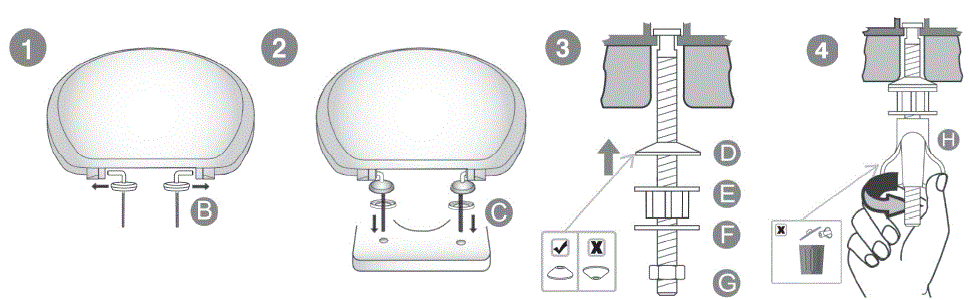

Assembly
- Align both holes of the seat and cover near the hinge area, plug the hinges B into those align holes as per illustration 1.
- Put the round gasket C under the hinges B, then turning the hinges around to matching 2 holes on the ceramic, and plug in.
- Install parts D, E, F and G on the screws in turn as per illustration 3.
- Use spanner H tighten the nut G until the fixture is secure.
After Care
- Clean all surfaces using water and mild soap. Dry with a soft cloth.
- Never use rough sponges, abrasives or chemical cleaners.
- Never use any solvents, scourers, abrasives, bleach, acids, strong detergents, aggressive chemical cleaners or solvent-type cleaning solutions on the product.
More Information
SFX Ltd BA22 8RT, UK
- UK Manufacturer: Kingfisher International Products Limited, 1 Paddington Square, LONDON, W2 1GG, United Kingdom www.screwfix.com
- EU Manufacturer: Kingfisher International Products B.V., Rapenburgerstraat 175E, 1011 VM Amsterdam, The Netherlands www.screwfix.ie
