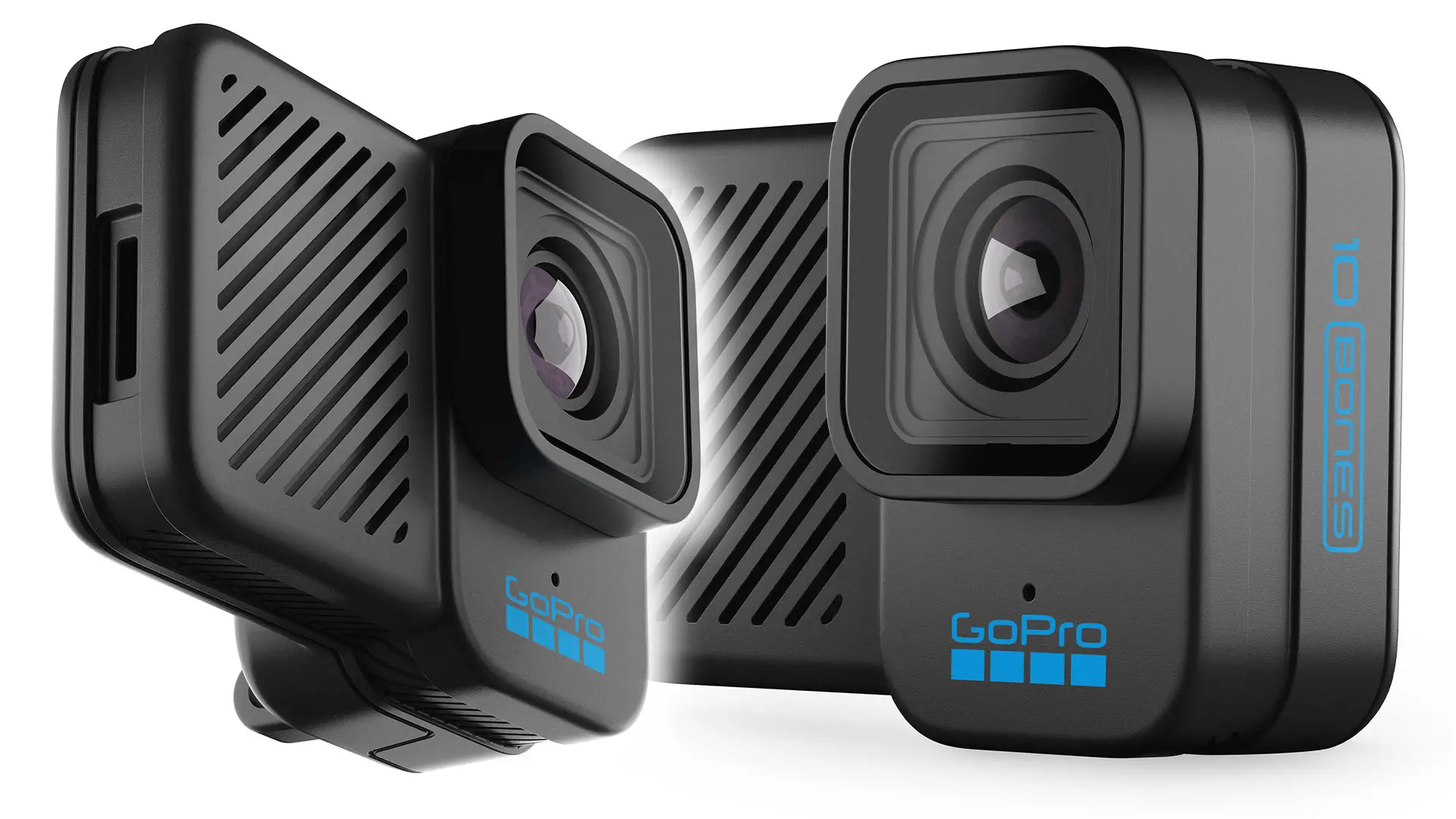

GEPRC GOPRO10 Naked GoPro Hero10 Black Bones

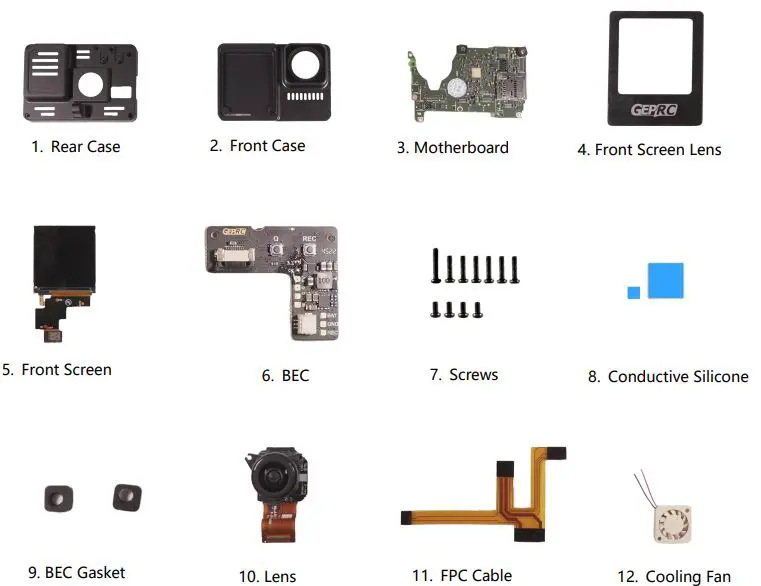

OVERVIEW

1. GOPRO10 Naked Rear Case x1
2. GOPRO10 Naked Front Case x1
3. Motherboard x1
4. Front Screen Lens x1
5. Front Screen x1
6. BEC x1
7. Screws
   1.4*6mm x6
   1.4*3mm x4
   1.4*8mm x1
8. Thermally Conductive Silicone x2
9. BEC Gasket x2
10. Lens x1
11. FPC Cable x1
12. Cooling Fan x1

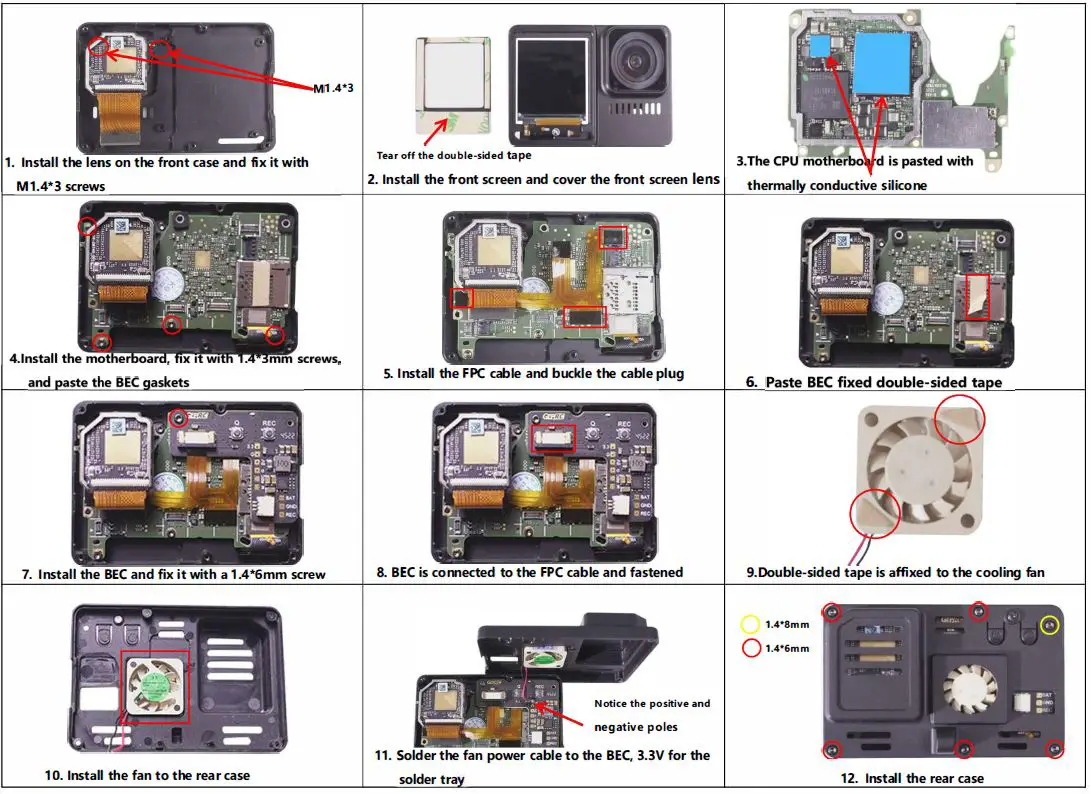

INSTALLATION
