BEHA STEEL AND GLASS PANEL HEATERS PB, LB, PGB og LGB

Bluetooth App-control.

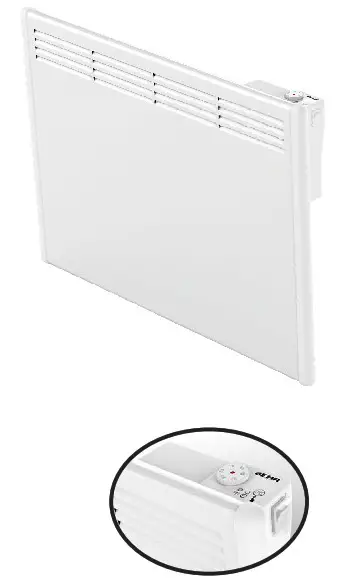

PB Series Steel and Glass Panel Heaters

Please read the manual carefully before use of the heaters, and save it for later reference.
This manual is also available at http://beha.no/brukermanualer
IMPORTANT!
When initially connecting heather to a power source make sure to leave the heater switch on and connected for at least 15 minutes. Do not open the Bluetooth app during  the this period, the heater will create the correct temperature profile based on the wattage of the heater. The white light will be blinking until the heater is ready.

SAFETY

Safety information
When using any electrical appliance, basic precautions should always be followed to reduce the risk of fire and injuries. Please read the entire user manual before using heater.

• Before use, remove all packaging.
• Turn the switch to OFF and remove the plug from the wall ocket when the heater is not in use and when scleaning.

CAUTION! Parts of this product will become hot and may cause burns. Pay especially attention where children and vulnerable people are present.

• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
  Warning: In order to avoid overheating, do not cover the heater.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.
• Furthermore, do not use the heater in areas where gasoline, paint, or flammable liquids are used or stored.
• The wall socket in which the heater is connected to should be visible and accessible.
• The heater must not be located immediately below a wall socket.
• Do not operate any heater with a damaged cord or plug. The cable must not come into contact with hot surfaces of the heater during operation.
• Do not cover the cord with carpets. Do not step on the cable.
• Ensure that no foreign objects are placed in the heater’s air outlets as it can cause electrical failure or fire.
• The heater should not be repaired, dismantled or modified.

Electrical connection and use

Before connecting, please ensure that the voltage is 220-240V ~ 50 Hz. The heater should be connected to a -60 socket in the room it is intended to be used. Do not connect the heater to sockets in adjacent rooms using an extension cable.
Distance
The heater should be located away from furniture, curtains or other ammable objects. Mounting distances are flastated on page .8

Care and Maintenance

• Remove power connection and make sure the heater is cooled downbefore cleaning.
• Clean the outside with a damp cloth.
• Never use abrasive cleaners or submerse the heater in water or other liquids.
• When cleaning or relocating the heater should be turned off and the cord unplugged. In that order. Do not remove the plug from the socket by pulling the cord. Remove the plug from the socket by gripping the plug and gently pull it out of the wall socket.
• Do not touch the heater with wet hands.

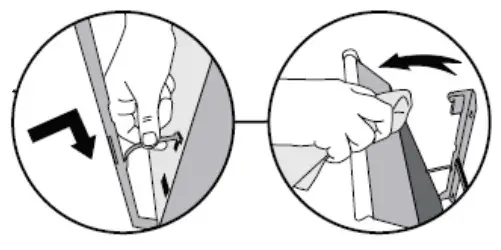

Easy cleaning:
The heater tilts forward on the axing bracket for the ease of cleaning behind.

INSTALLATION

Recommended installed wattage is 100W /m².
Removing wall bracket:
Remove wall bracket from heater by pressing lip 1 and push lightly downwards on lip 2. Pull the bracket out gently.

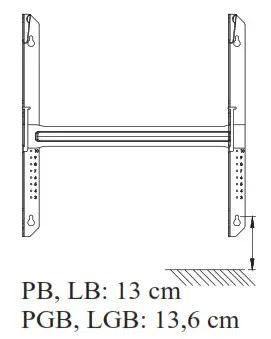

Fixing the wall bracket:
Insert a screw in the lower key hole approx. 13 cm above the floor. Level the bracket and insert the other 3 screws. When the heater is installed the distance below should be approx. 10 cm.

Recommended distance to floor: 10 cm

At the bottom of the back plate there are two small triangle tracks. Place the heater onto the tracks and push the heater towards the lips on top of the bracket in an upright position.

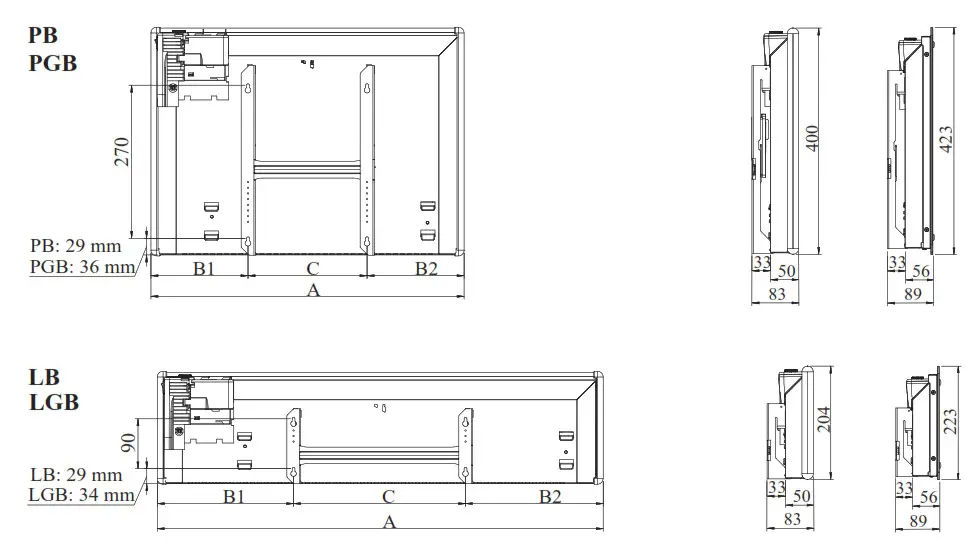

HEATER SIZES

USE OF THE HEATER

After the heater is installed and plugged in to the wall power outlet, switch on the on/off switch and leave it on for at least 15 minutes without opening the Bluetooth app. The electronic thermostat will go into auto calibration mode and create a temperature profile based on the wattage of the heater. The white light will be blinking until the heater is ready.
The light in the thermostat wheel will be lit when the heater element is connected. When the set temperature is reached the light will be turned off.
The temperature range is 5 °C to 30 °C.

TECHNICAL INFORMATION

By power outage:
Without app:
The heater returns to chosen temperature.
Cold draft/Open window function:
When opening a window and the temperature drops more than 5°C within 40 sec the cold draft function is activated. The heater changes between chosen temperature for 10 seconds, and 5 degrees for 30 seconds. The function is active for max. 15 minutes.
BEHA heaters P and L are IP24 tested and approved for installation in bathrooms and utility rooms.
This apparatus is in compliance with the following EU directive:
2014/30/EU (EMC) electromagnetic noise
2014/35/EU (LVD)
2011/65/EU (ROHS) use of dangerous substances
The product must be treated in compliance with EU directive 2012/19/EU. The apparatus must not be disposed of together with regular house waste but be handled to an
approved waste dump for separation and recovery station.
A defect product must be treated correctly, in order to prevent health or environment risks.
Information about energy consumption:
The product complies with the EU regulations on the Ecodesign Directive (2009/125/EC) for energy-related products (ErP).
The symbol on the product or on the documents accompanying the product, indicates that this product may not be treated as household waste. Handing it over to a authorized for the recycling of electrical and electronic equipment. Pick must be in accordance. he local waste regulations. For further information treatment, recovery and recycling of this product, contact your local council, waste disposal service or the shop where you purchased it.

BEHA ELEKTRO AS, 3940 PORSGRUNN
Tlf:. 35 51 62 50 Ordre: 35 51 62 70
e-post: [email protected]
www.beha.no
