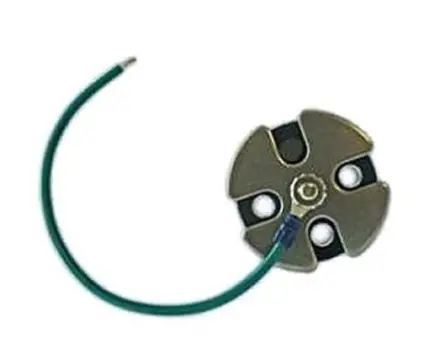

CORD SEALS

Provides strain relief and a liquid-tight seal.

• Seals 1-4 cables in 2” terminal adapters
• Seals 1-6 cables in 2½” terminal adapters
• PVC plugs included (for unused cable positions)
• Ground wire


SEAL: neoprene
WASHERS: stainless steel
NUT AND BOLT: stainless steel
WIRE/CABLE ACCOMMODATED: SJOW, SJTW, 18/2, 18/3, 16/2,16/3,14/2 and 14/3

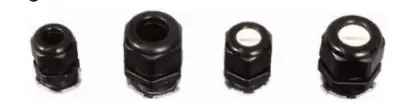

CABLE CONNECTORS

Provides strain relief and a liquid-tight seal

• Round and Flat UF cable specifications on back side

HUB ASSEMBLY

Provides liquid-tight conduit attachment location.

• Available in 3/4, 1, 1.5, 2 and 2.5 inch sizes.
• UL Listed and CSA Certified terminal adapter
  TERMINAL ADAPTER (HUB): PVC
  GASKET: neoprene
  LOCK NUT: metal

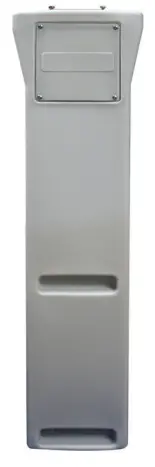

PANEL MOUNTING POST

Provides easy installation of control panels.

• Removable front access door for easy wiring
• Can be mounted directly into ground, over a 4×4 post, or conduit for a quick, clean, easy installation
• Includes 2 stainless steel mounting bolts
• Includes drilling template
• Accommodates enclosures up to 14 x 12 x 6 inches
  (35.6 x 30.5 x 15.2 cm)
  POST: Polyethylene (34 x 7 x 6 inches)
  BOLTS: 4X rated stainless steel with gaskets

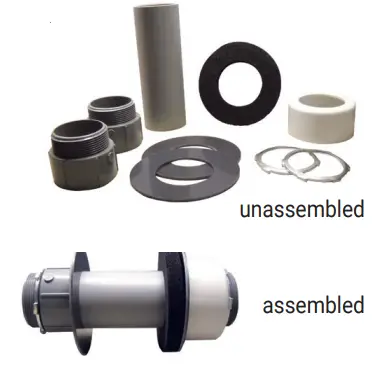

RISER MOUNTING KIT

Secures panel mounting post to tank riser.

• Includes:
• (2) hub assemblies
• PVC pipe and connecting hardware
• Conduit for routing pump and float from tank riser to post

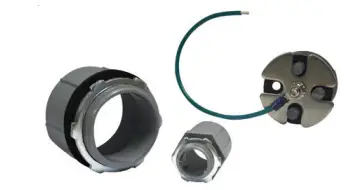

SIMPLEX INSTALLATION KIT

Provides easy weather-proof wire installation

for simplex control panels. Includes:

• 2” hub assembly
• 2” cord seal (seals 1-4 cables)
• 3/4” hub assembly

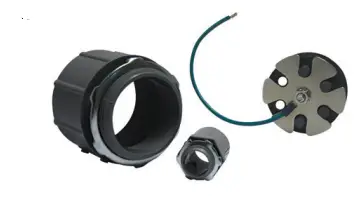

DUPLEX INSTALLATION KIT

Provides easy weather-proof wire installation for duplex control panels. Includes:

• 2.5” hub assembly
• 2.5” cord seal (seals 1-6 cables)
• 3/4” hub assembly

C-LEVEL™ SIMULATOR

Easy-to-use, hand-held test instrument designed to generate an adjustable C-Level™
simulation signal.

4-20mA SIMULATOR

Easy-to-use, hand-held test instrument designed to generate an adjustable 4-20mA signal from loop power

SUB-X™ TRANSMITTER

Submersible level transmitter with 4-20mA output.

• Available in 7.25 PSI (16.7 ftWC) and 14.5 PSI (33.4 ftWC) ranges
• Includes mounting bracket

CONTROL PANEL ACCESSORIES

– Cord Seals, Hub Assembly, Simplex Installation Kit, Duplex Installation Kit, Cable Connectors, Panel Mounting Post, Riser Mounting Kit, C-Level™ Sensor Simulator, and 4-20mA Simulator

SUB-X™ TRANSMITTER – Submersible level transmitter with 4-20mA output.

ROUND CABLE SPECIFICATIONS

MATERIAL: polymid flame-resisting, self-extinguishing plastic
O RING: neoprene plastic
HOLE REQUIREMENT: NPT threaded OR clearance holes (jam nut included)

RCC-8

NPT Hub: .5 inch (1.27cm)
Maximum Diameter: .480 inch (1.22 cm)
Minimum Diameter: .270 inch (.68 cm)
Wire/Cable (AWG) Accommodated: 18/2, 18/3, 18/4, 16/2, 16/3, 16/4, 14/2, and 14/3

RCC-12

NPT Hub: .75 inch (1.90 cm)
Maximum Diameter: .709 inch (1.80 cm)
Minimum Diameter: .545 inch (1.38 cm)
Wire/Cable (AWG) Accommodated: 14/2, 14/3, 14/4, 12/2, 12/3, 12/4, 10/2, and 10/3

RCC-16

NPT Hub: 1.0 inch (2.54 cm)
Maximum Diameter: .98 inch (2.49 cm)
Minimum Diameter: .71 inch (1.80 cm)
Wire/Cable (AWG) Accommodated: Round cable with outside

FLAT UF CABLE SPECIFICATIONS

MATERIAL: weather-stabilized thermo plastic
O RING: neoprene plastic
HOLE REQUIREMENT: NPT threaded OR clearance holes (jam nut included)

UFCC-8

NPT Hub: .50 inch (1.27 cm)
Maximum: .26 x .56 inch (.66 – 1.42 cm) slot
Wire/Cable (AWG) Accommodated: 14/2, 12/2, 10/2

UFCC-12

NPT Hub: .75 inch (1.90 cm)
Maximum: .26 x .60 inch (.66 – 1.52 cm) slot
Wire/Cable (AWG) Accommodated: 14/3, 12/3
