Lampara Prios 5044009 1x Gu10 Max. 8w Led Instruction Manual

Revision 2.1

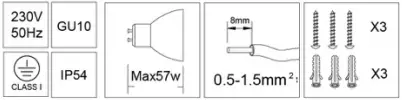

5044009

1x GU10 max. 8W LED
230V ~ 50Hz

Intended use

Provided for stationary outdoor use on trails / flower beds

Safety Precautions

Package contents

1 Street and path light
Installation hardware

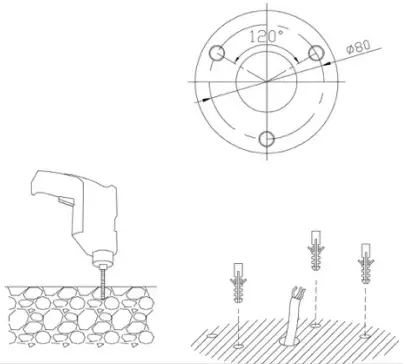

Mounting instructions

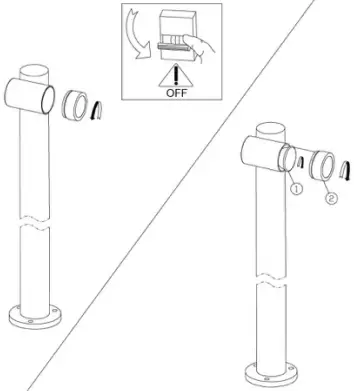

OFF

1

2

3

4

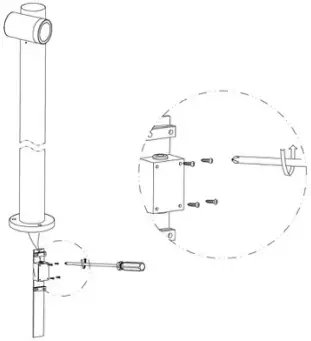

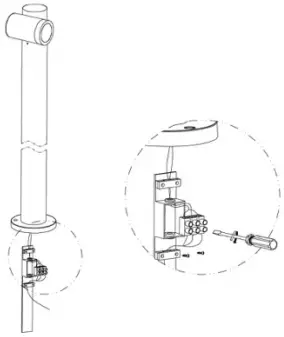

A: INCOMING SUPPLY
B: TO FITTING

1. LIVE (Brown or Red)
2. LIVE
3. EARTH (Green & Yellow)
4. EARTH
5. NEUTRAL (Blue or Black)
6. NEUTRAL

5

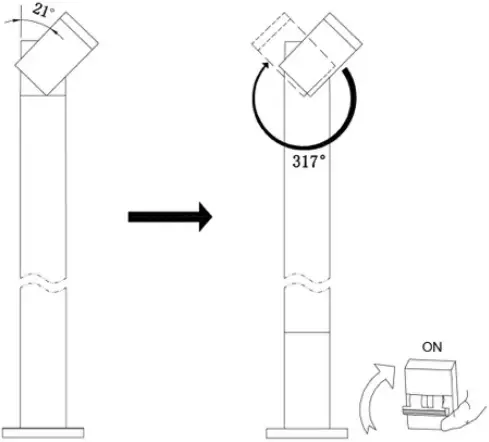

ON

L	Live conductor
	Earth conductor
N	Neutral conductor
