Product Instructions
ABI Force Z-23
Edger Attachment

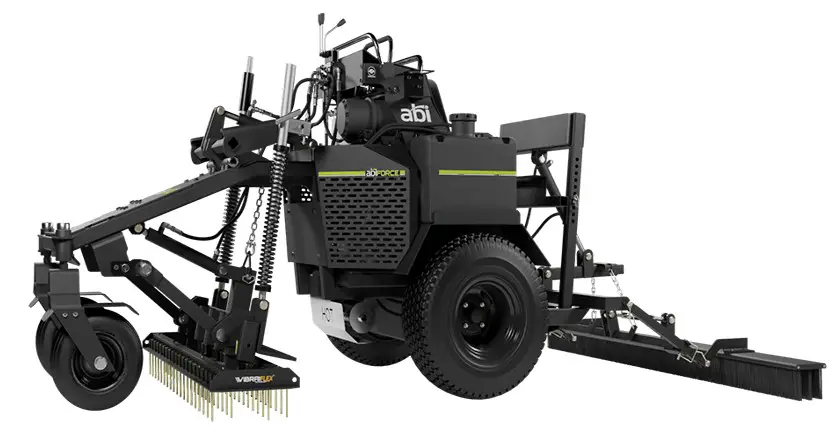

ABI Force Z-23 Edger Attachment

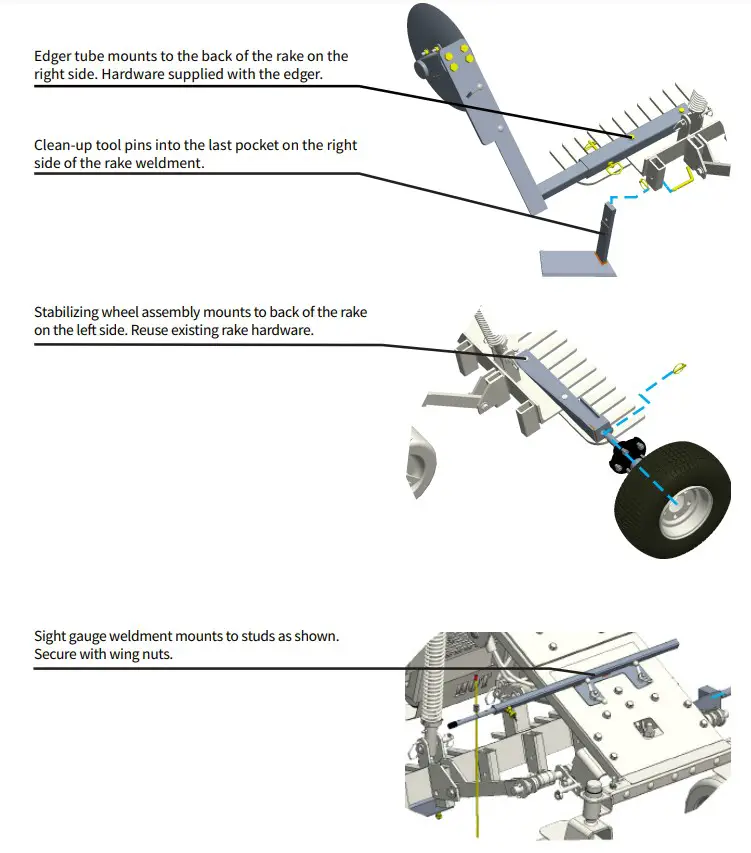

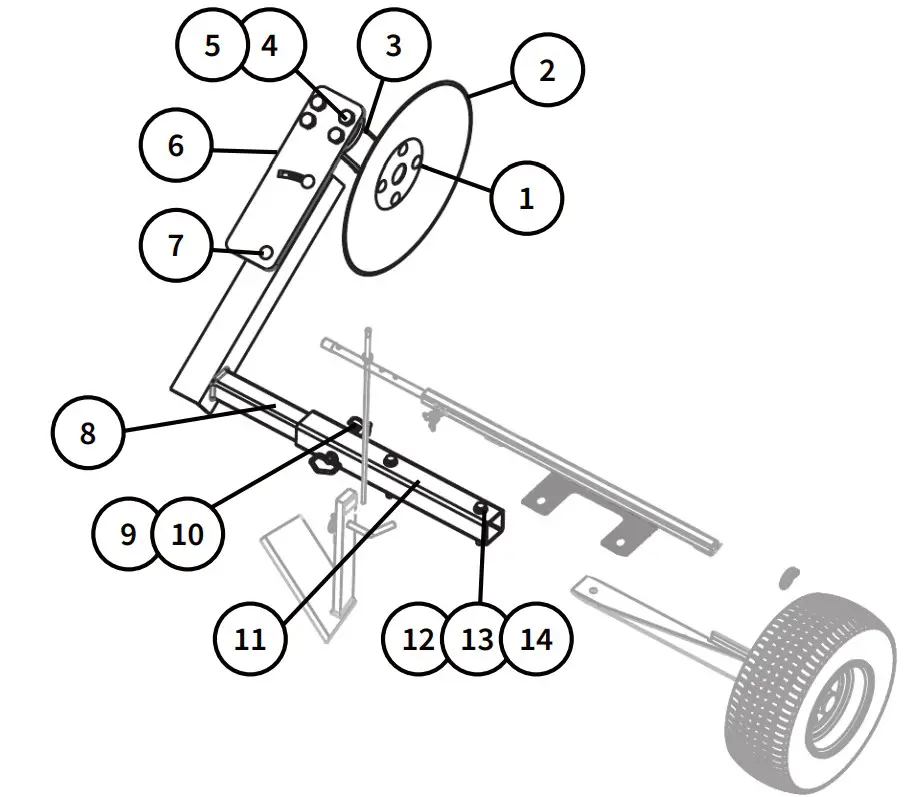

| ITEM | PART # | DESCRIPTION | QTY |
| 1 | 10-20188 | CARR BOLT:1/2-13 1.5″:ZINC GR5 | 4 |
| 2 | 10-10349 | DISK:18″ CONCAVE:4 ON 5 BOLTS | 1 |
| 3 | 10-10350 | ARM:DISK MNT WITH BRNG:11″ | 1 |
| 4 | 10-20070 | HX HD BOLT:3/4-10 2.25″:ZINC GR5 | 4 |
| 5 | 10-20206 | NYLOCK NUT:3/4-10:ZINC YEL GR 8 | 4 |
| 6 | 10-30624 | PLATE:BLADE MOUNT:FORCE EDGER | 1 |
| 7 | 10-20187 | CARR BOLT:1/2-13 2″:ZINC GR5 | 2 |
| 8 | 10-40172 | WLDMT:BLADE MNT:FORCE EDGER | 1 |
| 9 | 10-20232 | LYNCH PIN:1/4″X1.25″:ZINC | 2 |
| 10 | 10-20230 | HITCH PIN:1/2″ X 5″:ZINC | 1 |
| 11 | 10-30631 | TUBE:BLADE MNT:FORCE EDGER | 1 |
| 12 | 10-20141 | HX HD BOLT:1/2-13 4″:ZINC GR5 | 2 |
| 13 | 10-20194 | FLT WSHR:1/2 SAE: CL ZINC | 10 |
| 14 | 10-20201 | NYLOCK NUT:1/2-13:ZINC GR 5 | 8 |

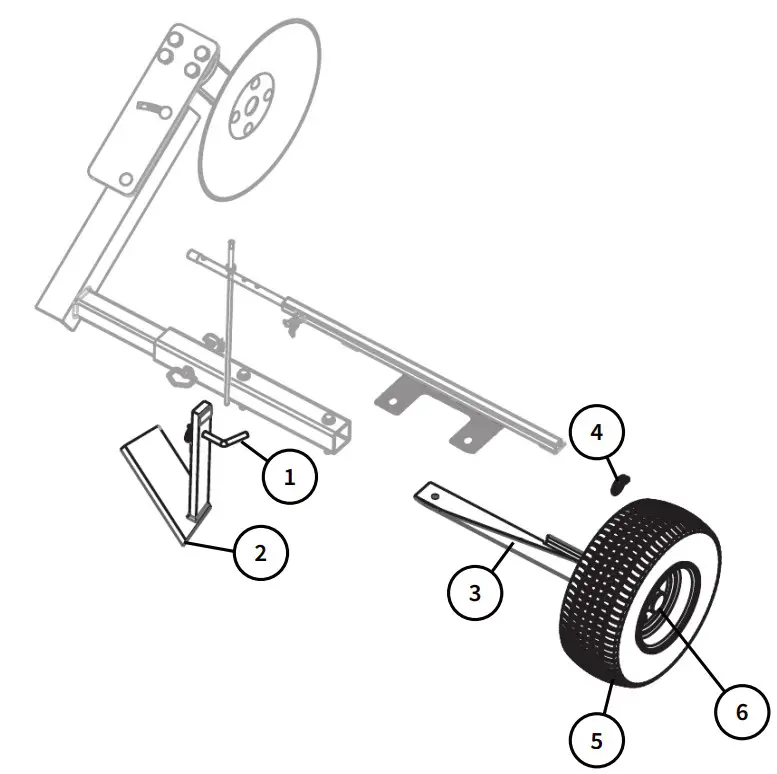

| ITEM | PART # | DESCRIPTION | QTY |
| 1 | 10-20221 | BENT PIN:1/2″X3.5″:ZINC | 1 |
| 2 | 10-40245 | WLDMT: EDGER CLEAN UP | 1 |
| 3 | 10-40311 | WLDMT: TIRE MOUNT: EDGER | 1 |
| 4 | 10-20231 | LYNCH PIN:3/8″X1.5″:ZINC | 1 |
| 5 | 10-60006 | TIRE:16.5×6.50×8 TURF:5 ON 4.5 WH OFFSET RIM | 1 |
| 6 | 10-60058 | HUB ASM:5 ON 4.5″:1″ ID BRNG | 1 |

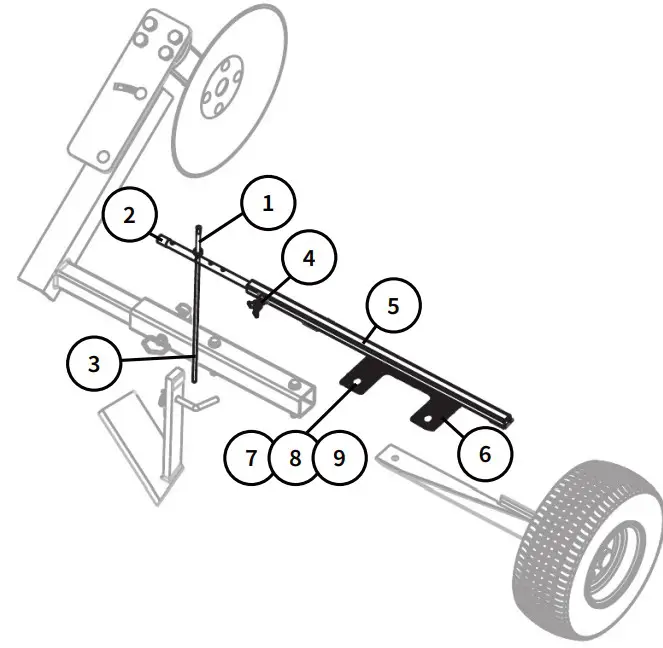

| ITEM | PART # | DESCRIPTION | QTY |
| 1 | 10-20257 | FLT WSHR: 5/16″ X 3/4″ X 1/16″:NEOPRENE RUBBER | 2 |
| 2 | 10-10351 | CAP:3/8 PIPE:VINYL BLACK | 1 |
| 3 | 10-10352 | MARKER:5/16″ FIBERGLASS | 1 |
| 4 | 10-20256 | WING BOLT:1/2″-13 X 1.5:ZINC GR5 | 1 |
| 5 | 10-40463 | WLDMT: EDGER SIGHT GAGE MNT: FORCE V2 | 1 |
| 6 | 10-30637 | TUBE:ADJUSTABLE:FORCE SIGHT GAGE | 1 |
| 7 | 10-20055 | NYLOCK NUT:3/8-16:ZINC GR5 | 2 |
| 8 | 10-20065 | HX HD BOLT:3/8-16 3 ZINC GR5 | 2 |
| 9 | 10-20195 | FLT WSHR:3/8 SAE:CL ZINC | 4 |
