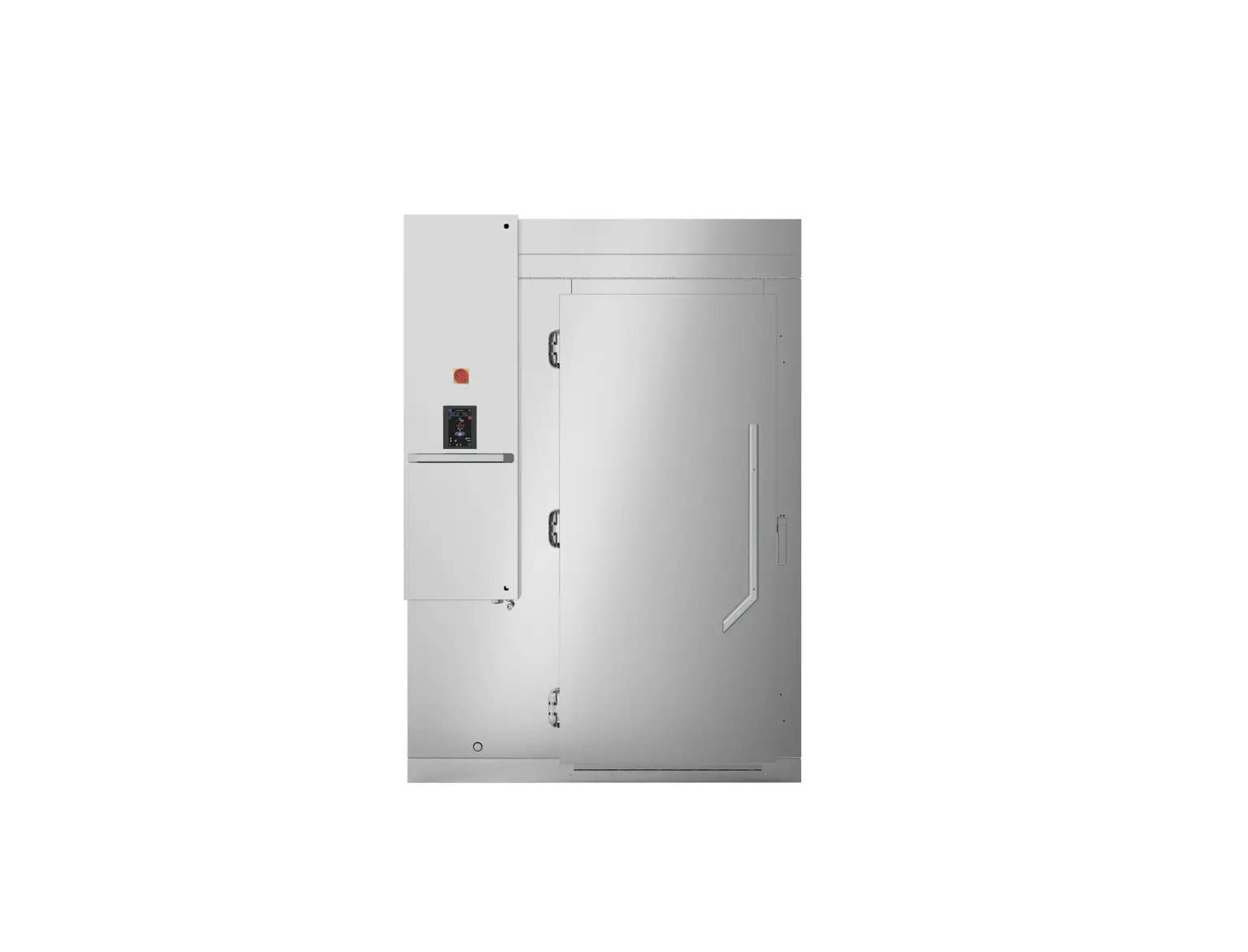

Nordcap N150t1 Industry With External Unit Instructions

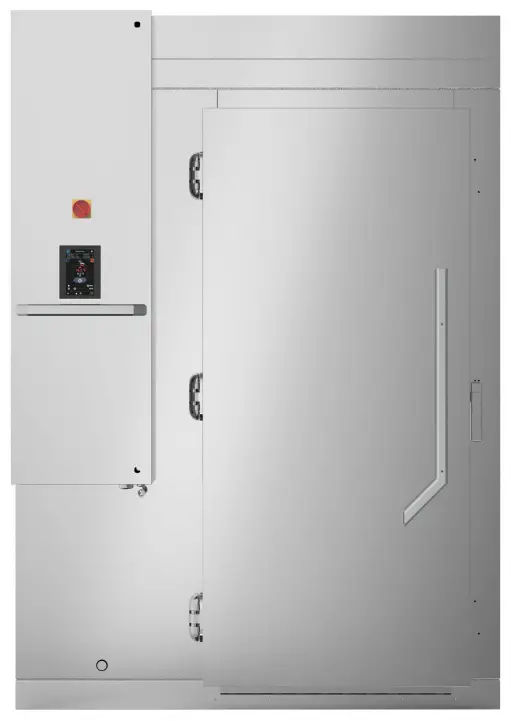

NordCap N150T1 Industry With External Unit

ROLL-INS BLAST CHILLER ASSEMBLY INSTRUCTION

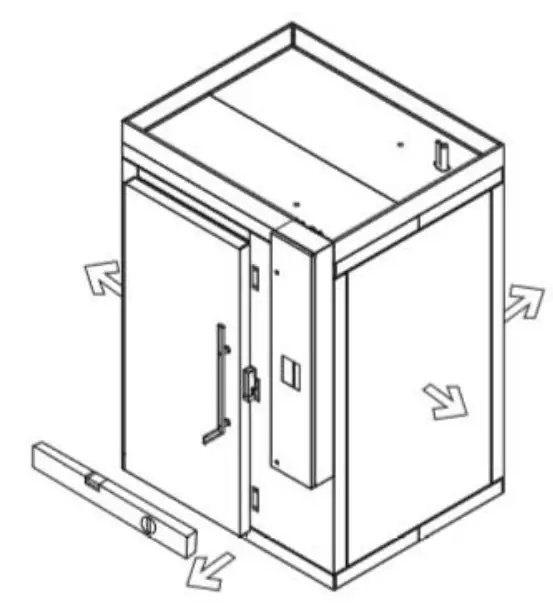

• VERIFY THAT THE FLOOR, WHERE THE BLAST CHILLER WILL BE INSTALLED, IS LEVELED

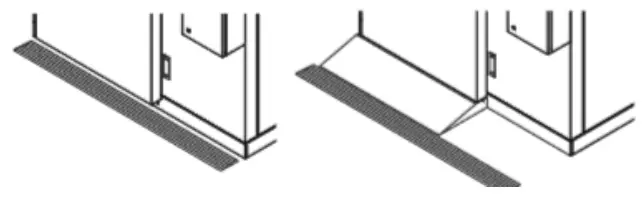

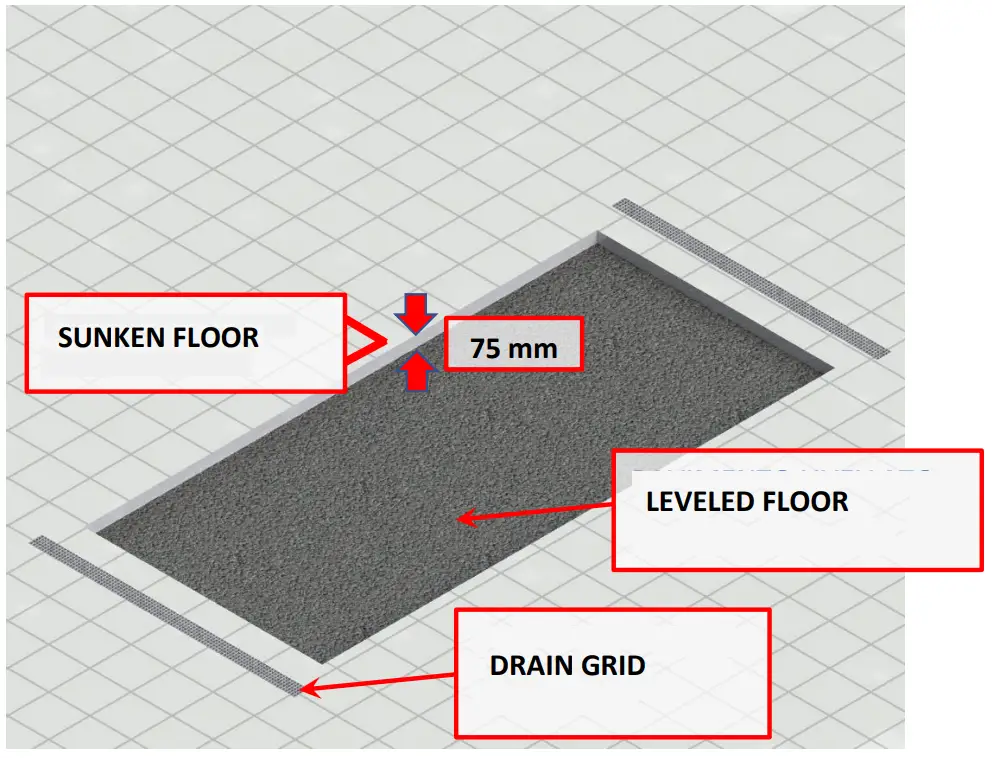

• IN CASE OF SUNKEN FLOOR INSTALLATION , MAKE THE HOLE IN THE FLOOR OF THE BUILDING FOLLOWING THE DIMENSION ON THE DATA SHEET. IT IS ADVISABLE TO MAKE A DEEPER CUTTING LIKE 80/90 mm AND THAN USE A SELF-LEVELING CEMENT IN ORDER TO ACHIEVE THE RIGHT QUOTE OF 75 mm

• PREPARE A DRAINAGE DUCT NEAR THE DOOR AND CONVEY THE CONDENSATE DRAIN PIPE INTO THE WASTEWATER NETWORK.

• THE MACHINE MUST BE INSTALLED ON A FLAT, HORIZONTAL SURFACE BOTH TO AVOID PROBLEMS RELATED TO THE STABILITY OF THE MACHINE AND FOR THE APPROPRIATE SLOPE FOR DRAINING THE CONDENSATE.

• EACH PANELS IS NUMBERED, PLEASE FOLLOW THE NUMBERS TO INSTALL IN THE CORRECT WAY THE PANELS.

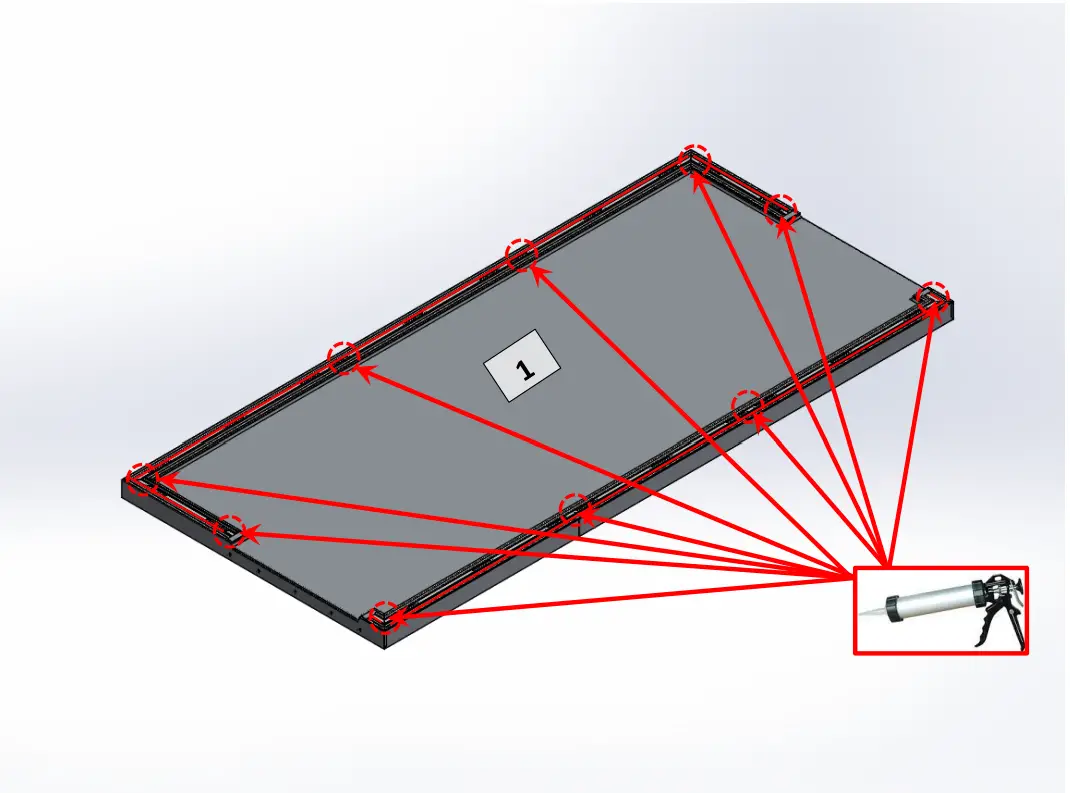

• PUT SILICON IN THE POINTS INDICATED AND ALONG THE PERIMETER AS HIGHLIGHTED WITH THE RED LINE

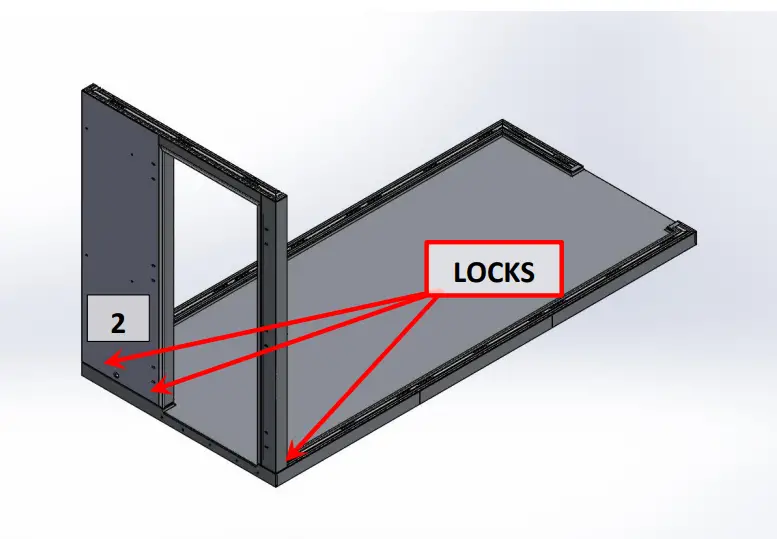

• INSTALL THE PANEL N.2 AND CLOSE THE BOTTOM LOCKS

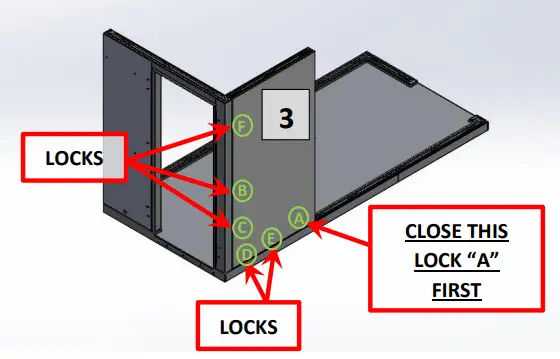

• INSTALL THE PANEL N.3 AND CLOSE THE “A” LOCK, THAN CLOSE THE OTHERS 5 LOCKS BY FOLLOWING THE SEQUENCE (A, B, C, D…..)

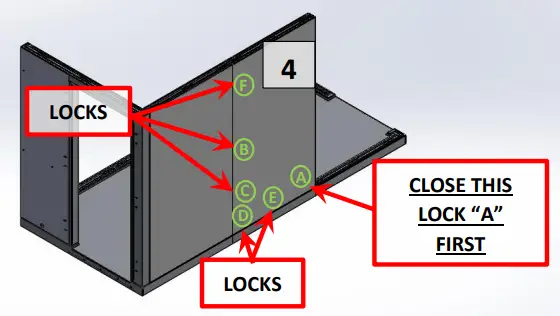

• INSTALL THE PANEL N.4 AND CLOSE THE “A” LOCK, THAN CLOSE THE OTHERS 5 LOCKS BY FOLLOWING THE SEQUENCE (A, B, C, D…..)

• INSTALL THE PANEL N.5 AND CLOSE THE “A” LOCK, THAN CLOSE THE OTHERS 5 LOCKS BY FOLLOWING THE SEQUENCE (A, B, C, D…..)

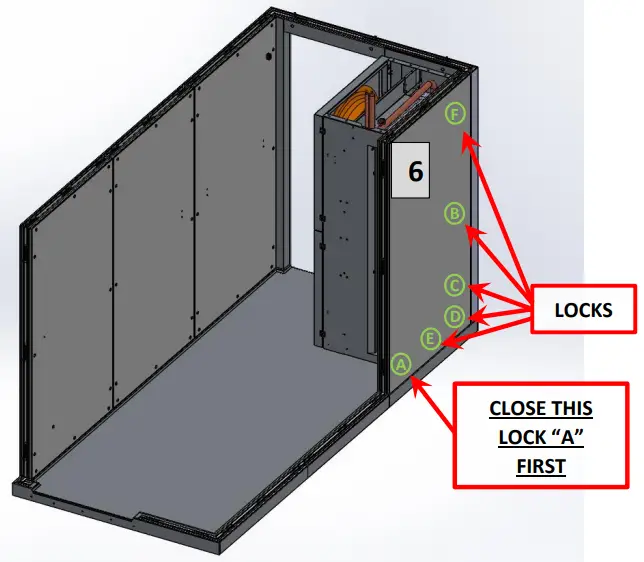

• INSTALL THE PANEL N.6 AND CLOSE THE “A” LOCK, THAN CLOSE THE OTHERS 5 LOCKS BY FOLLOWING THE SEQUENCE (A, B, C, D…..)

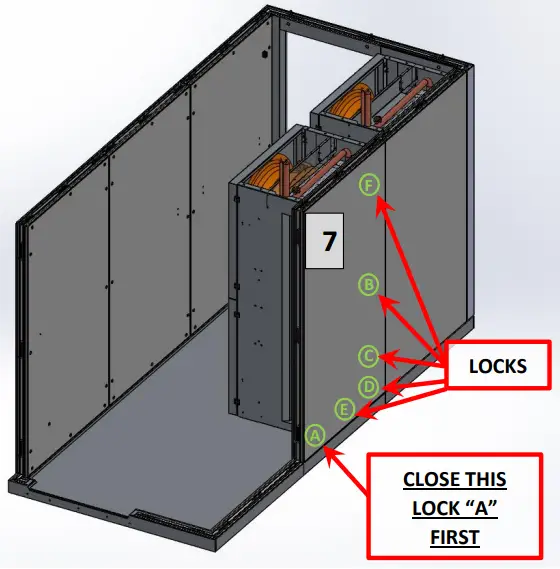

• INSTALL THE PANEL N.7 AND CLOSE THE “A” LOCK, THAN CLOSE THE OTHERS 5 LOCKS BY FOLLOWING THE SEQUENCE (A, B, C, D…..)

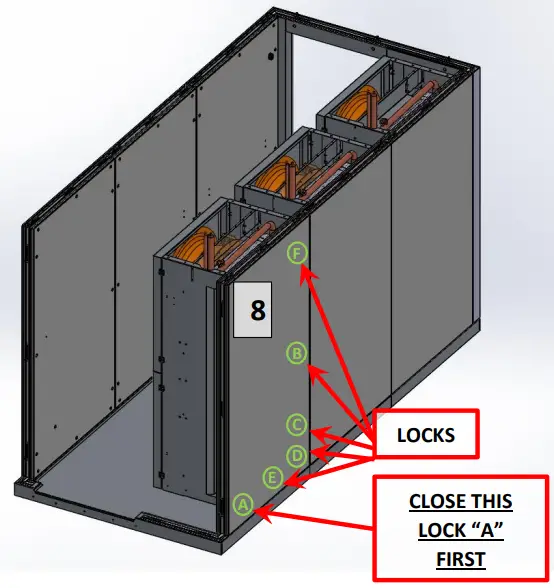

• INSTALL THE PANEL N.8 AND CLOSE THE “A” LOCK, THAN CLOSE THE OTHERS 5 LOCKS BY FOLLOWING THE SEQUENCE (A, B, C, D…..)

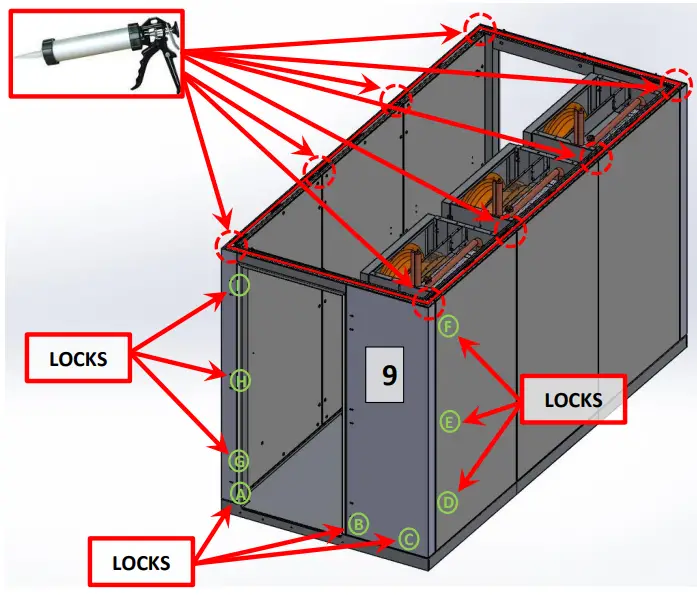

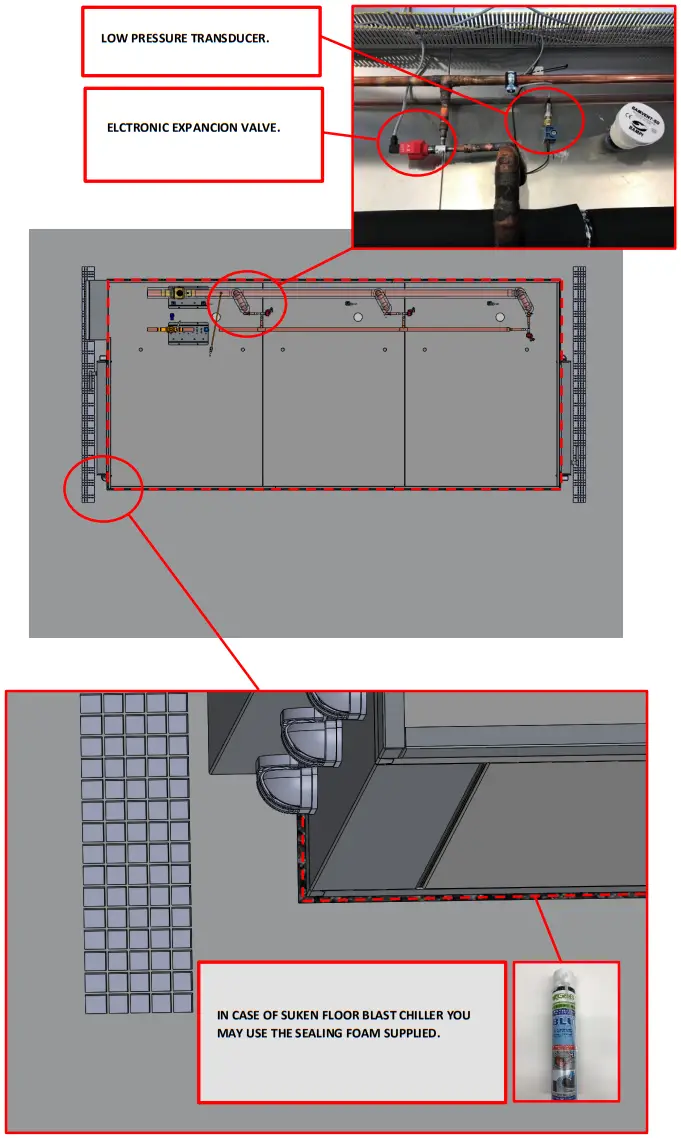

• INSTALL THE PANEL N.9 AND CLOSE THE LOCKS. PUT SILICON IN THE POINTS INDICATED AND ALONG THE PERIMETER AS HIGHLIGHTED WITH THE RED LINE.

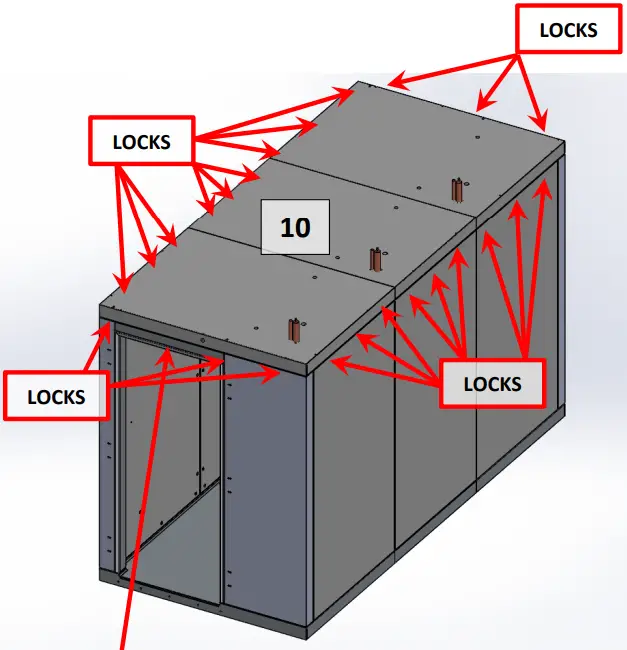

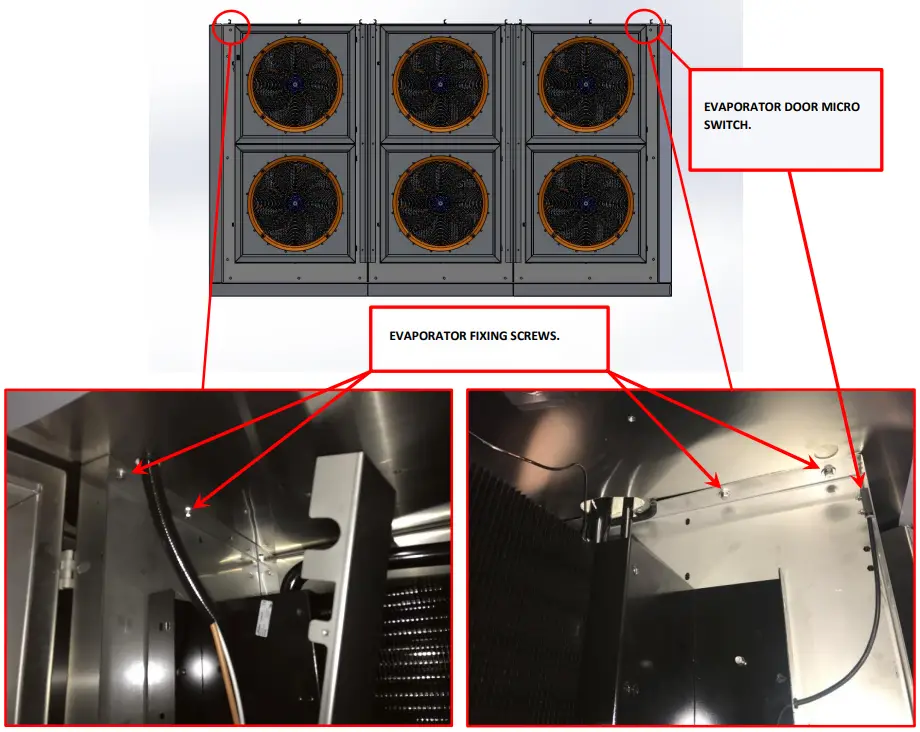

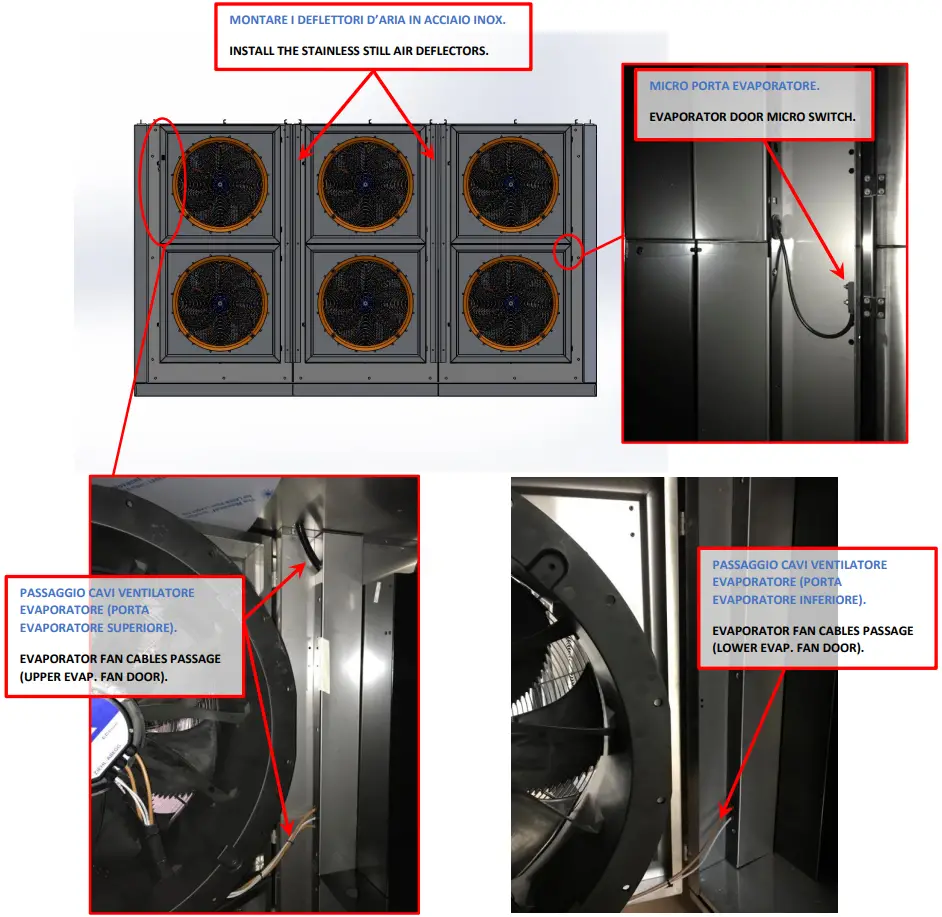

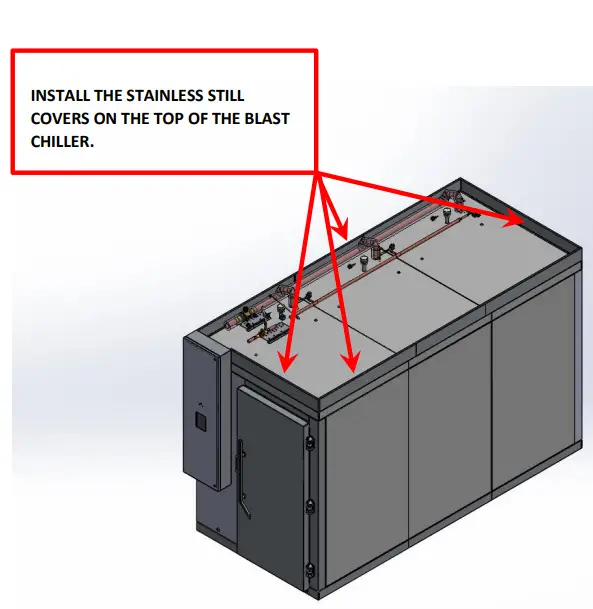

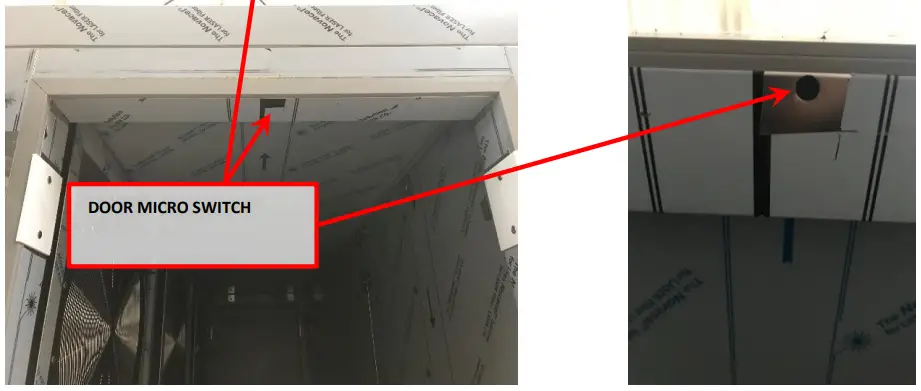

• INSTALL THE PANEL N.10 AND CLOSE THE LOCKS.
