Outdoor Camera SE
Quick Start Guide
For the best experience
Charge your camera before setup
To charge the camera: First, plug your base station into power. Using the base station’s USB port, connect the charging cable to the micro USB port on the back of your camera.

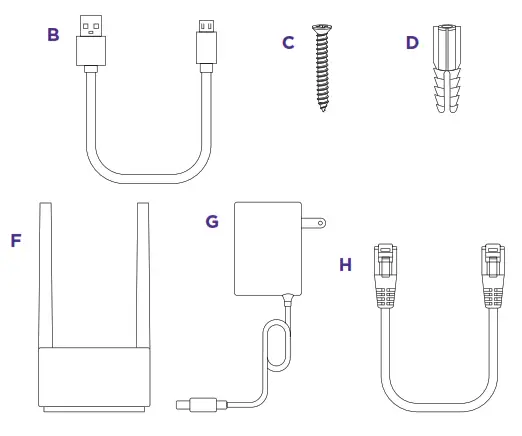

What’s included

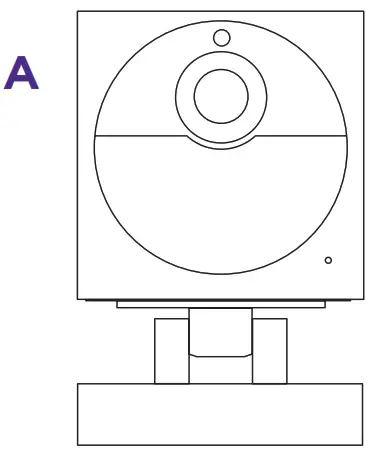

A Roku Outdoor Camera SE
B Camera charging USB cable
C 24mm M3 screws (x2)
D Drywall anchors (x2)
E Removable magnetic mounting base
F Base station
G Base station power adaptor
H Base station ethernet cable
What you’ll need
- Phillips screwdriver
- Your smartphone
 |  |

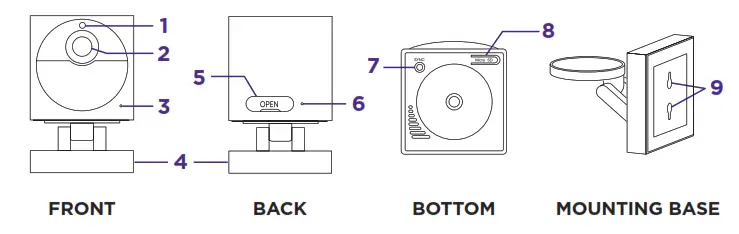

| 1 Light sensor 2 Lens 3 Microphone 4 Removable magnetic mounting base 5 On/off switch & USB charging port | 6 Status light 7 Sync button 8 MicroSD slot (Card sold separately) 9 Mounting holes |
Let’s get started
STEP 1: Download the Roku Smart Home app Scan the QR code below to download the Roku Smart Home app on your smartphone. Sign in with your Roku account or create one.

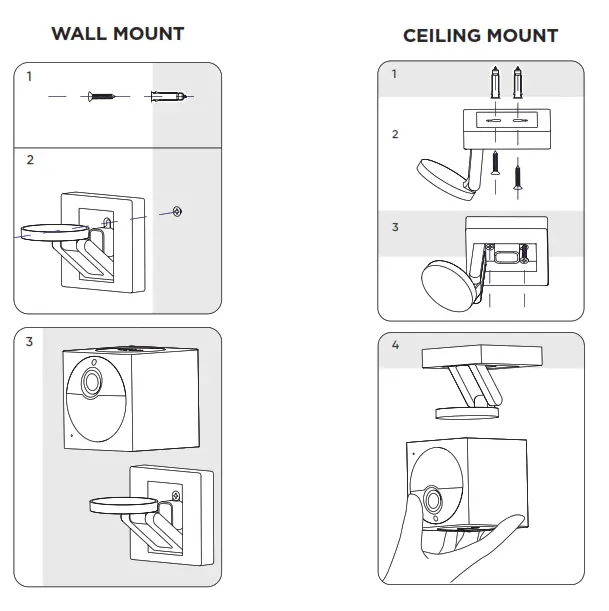

STEP 2: Install your camera
In the Roku Smart Home app, tap the “+” button, then “Add Device” to find “Outdoor Camera.” Follow the instructions to finish setup.
What’s that light mean?
| Status Light | Status |
| YELLOW – Solid | Powered on and beginning setup |
| YELLOW and BLUE – Flashing | Pairing to base station |
| BLUE – Flashing | Connecting to Wi-Fi® |
| BLUE – Solid | Connected and working |
| RED – Flashing | Charging |
| RED – Solid | Fully charged |
| NO LIGHT | Powered off or sleeping |
Status lights are located on the camera and base station.
More features are waiting
Unlock the full potential of your camera with a Roku Smart Home Subscription.
Learn more at go.roku.com/rokusmarthome
PRECAUTIONS
- Prolonged direct sunlight can heat the inside of your camera past its maximum operating temperature of 122°F (50°C). Avoid direct sunlight where possible and only use your camera in environments within its operating temperature range: -4° to 122°F (-20° to 50°C).
- To charge your camera, plug the included micro USB cable into the USB port on your base station and connect it to your camera. Or use a power adapter and cable that will provide 5V/2A power.
FCC WARNING
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC RADIATION EXPOSURE STATEMENT
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance 20 cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
CONTAINS A LITHIUM-ION BATTERY
Always dispose of batteries following local recycling guidelines. Do not dispose of batteries in household waste or open fire. For more information about recycling and the battery included, see: https://support.roku.com/article/208755678
Need help?
Visit go.roku.com/cameras
© 2022 Roku, Inc. All rights reserved. Roku, the Roku logo, Roku
Smart Home, and the Roku Smart Home logo are the trademarks or registered trademarks of Roku, Inc.
4100000864_02
