QUICK REFERENCE GUIDE > OB30DTEPX3_N
Double Oven, 30″, 11 Function,Self-cleaning
Series 7 | Contemporary
Stainless Steel
Choose maximum capacity, combining two independent ovens so you can cook multiple dishes simultaneously.
- 4.1 + 4.1 cu ft total capacity across two oven cavities
- 11 oven functions including Roast and Aero™ Pastry
- High-temperature self-cleaning function breaks down food residue for an easy clean
- Non-tip, full-extension shelves for safe removal of hot dishes

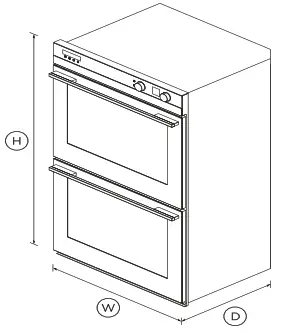

DIMENSIONS
| Height | 48 7/16″ |
| Width | 29 29/32″ |
| Depth | 23 29/32″ |
FEATURES & BENEFITS
Even cooking
Our built-in ovens feature AeroTech™ – a technology that circulates heat evenly, ideal for multi-shelf cooking.
Self-cleaning
The self-clean function breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth. For best results, wipe down the inside of your oven door before you use the self-clean function.
Sized to suit
Designed for multi-shelf cooking, this is one of the largest built-in ovens on the market providing two cavities with 4.1 cu. ft of total capacity. The higher internal cavities allow you to fit a large casserole dish, the family roast, and a pie for dessert.
Safe and sound
The CoolTouch door with triple glazing and cooling system is safe to touch from the outside, protecting your hands and the surrounding cabinetry. Getting large dishes in and out of the oven is a breeze with full telescopic sliding shelves that stay perfectly steady – even when pulled all the way out.
Complementary design
With their premium handle styling and stainless steel finish, our built-in ovens are designed to match the rest of Fisher & Paykel’s kitchen appliance family.
Cooking flexibility
This built-in oven has 11 functions with pre-set temperatures, including Roast, Bake, and Aero™ Bake allowing you to use a variety of cooking styles.
SPECIFICATIONS
Accessories
| Contemporary round handle | Part number 81673 |
| Food probe | 1 |
| Full extension telescopic | 5 Sets (Additional sets |
Capacity
| Shelf positions | 8 |
| Total capacity | 8.2cu ft |
| Total gross capacity (bottom | 4.1cu ft |
| Total gross capacity (top | 4.1cu ft |
| Usable gross capacity (bottom | 3.6cu ft |
| Usable gross capacity (top | 3.6cu ft |
Cleaning
| Acid-resistant graphite enamel | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable shelf runners | • |
Controls
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Dial with an illuminated halo | • |
| Door and cavity cooling | • |
| Electronic capacitive touch | • |
| Electronic clock | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
Functions
| Aero Bake | • |
| Aero Broil | • |
| Aero Pastry | • |
| Bake | • |
| Broil | • |
| Classic bake | • |
| Grill | • |
| Maxi Broil | • |
| Number of functions | 11 |
| Roast | • |
| True Aero | • |
| Warm | • |
| Warm | • |
Performance
| Automatic rapid pre-heat | • |
| Broil power | 4400W |
Power requirements
| Supply frequency | 60Hz |
| Supply voltage | 120 – 240V |
Product dimensions
| Depth | 23 29/32″ |
| Height | 48 7/16″ |
| Width | 29 29/32″ |
Safety
| Advanced cooling system | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Control panel key lock | • |
| CoolTouch door | • |
| Non-tip shelves | • |
| SKU | 81516 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
Quick Start GuideUser GuideInstallation GuideData Sheet Double Oven
