QUICK REFERENCE GUIDE > WODV230_N

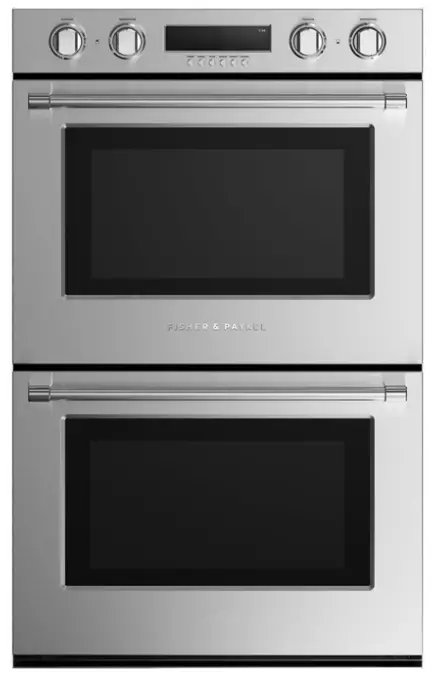

Double Oven, 30″, 10 Function, Self-cleaning
Series 9 / Professional /Stainless Steel
Choose maximum capacity, combining two independent ovens so you can cook multiple dishes simultaneously.
- 4.1 + 4.1 cu ft total capacity across two oven cavities
- 10 functions in each oven including Roast and AeroTM Pastry
- High-temperature self-cleaning function breaks down food residue for an easy clean
- Non-tip, full-extension shelves for safe removal of hot dishes

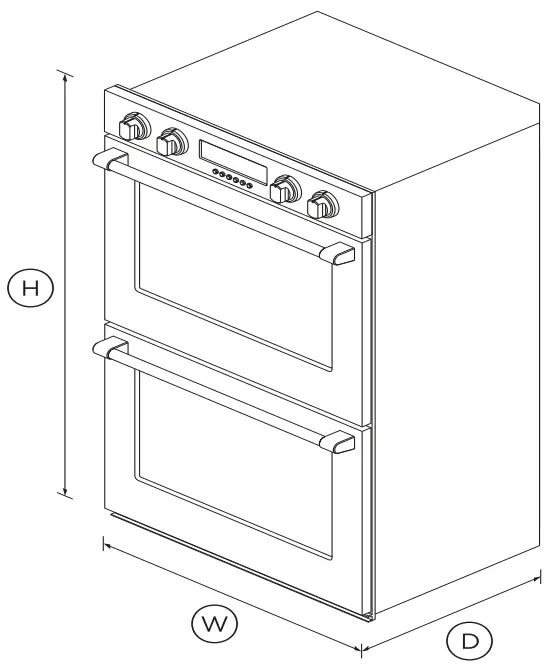

DIMENSIONS
| Height | 48 1/2″ |
| Width | 29 3/4″ |
| Depth | 23 5/16″ |
FEATURES & BENEFITS
Cooking flexibility
This built-in oven has 10 functions with pre-set temperatures, including Roast, Pastry Bake, and Maxi Broil allowing you to use a variety of cooking styles.
Even cooking
A digital microprocessor monitors the temperature to ensure precise heat and a four-way convection system creates even heat distribution throughout the oven, ideal for multi-shelf cooking.
Sized to suit
This is one of the largest built-in ovens on the market providing 8.2 cu ft total capacity across two oven cavities allowing you to fit a large casserole dish, the family roast, and a pie for dessert.
Self-cleaning
The self-clean function breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth. For best results, wipe down the inside of your oven door before you use the self-clean function.
Information at a glance
Halo illuminated dials provide information at a glance. White heating up; orange temperature is reached; red self-cleaning mode. Three halogen lights and the large oven window create excellent visibility of what’s cooking.
Safe and sound
The CoolTouch door with triple glazing and cooling system is safe to touch from the outside, protecting your hands and the surrounding cabinetry.
SPECIFICATIONS
Accessories
| Full extension sliding shelves | 5 sets |
| Roast dish, splatter guard and | 1 |
Capacity
| Shelf positions | 8 |
| Usable gross capacity (top | 3.6cu ft |
Cleaning
| Self-clean | • |
Controls
| Concealed element | • |
| Electric circuit | 4 wire |
| Halogen lights | • |
| Sabbath mode | • |
| True convection oven | • |
Functions
| Bake | • |
| Broil | • |
| Convection Broil | • |
| Convection bake | • |
| Convection pastry | • |
| Maxi Broil | • |
| Maxi Grill | • |
| Number of functions | 10 |
| Pastry Bake | • |
| Pastry Bake with Pizza mode | • |
| Roast | • |
| Self-clean function | • |
| True convection | • |
| Warm | • |
Performance
| Broil power | 4400W |
| Convection power | 2500W |
Power requirements
| Rated current | 50A |
| Supply frequency | 60Hz |
| Supply voltage | 120 – 240V |
Product dimensions
| Depth | 23 5/16″ |
| Height | 48 1/2″ |
| Width | 29 3/4″ |
Safety
| Full extension sliding shelves | • |
| SKU | 81831 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
