Date: 02.03.2023 >

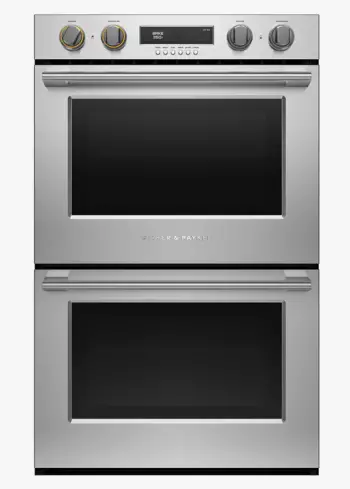

QUICK REFERENCE GUIDE > WODV3-30
Double Oven, 30″, 10 Function, Self-cleaning
Series 7 | Professional
Stainless Steel
Choose maximum capacity, combining two independent ovens so you can cook multiple dishes simultaneously.
- 4.1 + 4.1 cu ft total capacity across two oven cavities
- 10 functions in each oven including Roast and Aero™ Pastry
- High-temperature self-cleaning function breaks down food residue for an easy clean
- Non-tip, full-extension shelves for safe removal of hot dishes

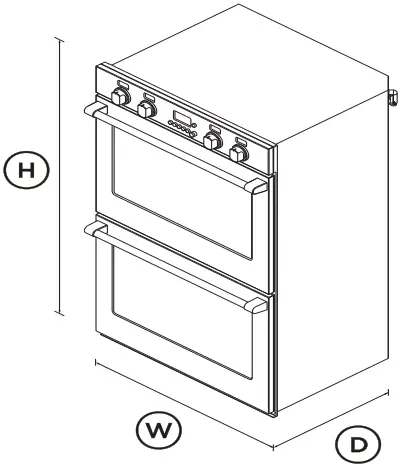

DIMENSIONS
Height 48 1/2″
Width 29 3/4″
Depth 23 5/16″
SPECIFICATIONS
Accessories
Food probe 1
Full extension sliding shelves 5 sets
Roast dish, splatter guard and 1
Capacity
Shelf positions 8
Total capacity 8.2cu ft
Total gross capacity (bottom 4.1cu ft
Total gross capacity (top 4.1cu ft
Usable capacity 7.2cu ft
Usable gross capacity (bottom 3.6cu ft
Usable gross capacity (top 3.6cu ft
Cleaning
Acid resistant graphite enamel •
Pyrolytic self-clean •
Removable oven door •
Removable shelf runners •
Controls
Audio feedback •
Automatic cooking/minute •
Automatic pre-set •
Celsius/Fahrenheit •
Concealed element •
Delay start •
Electric circuit 4 wire
Electronic clock •
Electronic oven control •
Halogen lights •
LED display •
Multi-language interface •
Precise electronic temperature •
Sabbath mode •
True convection oven •
Turned stainless capacitive •
Functions
Bake •
Broil •
Convection Broil •
Convection bake •
Convection pastry •
Maxi Broil •
Number of functions 10
Pastry Bake •
Pastry Bake with Pizza mode •
Roast •
Self-clean function •
True convection •
Warm •
Performance
AeroTech™ technology •
Automatic rapid pre-heat •
Broil power 4400W
Convection power 2500W
Power requirements
Rated current 50A
Supply frequency 60Hz
Supply voltage 120 – 240V
Product dimensions
Depth 23 5/16″
Height 48 1/2″
Width 29 3/4″
Safety
ADA compliant •
Control panel key lock •
CoolTouch door •
Full extension sliding shelves •
Non-tip shelves •
Safety thermostat •
Warranty
Parts and labour Limited 2 years
SKU 82946
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
