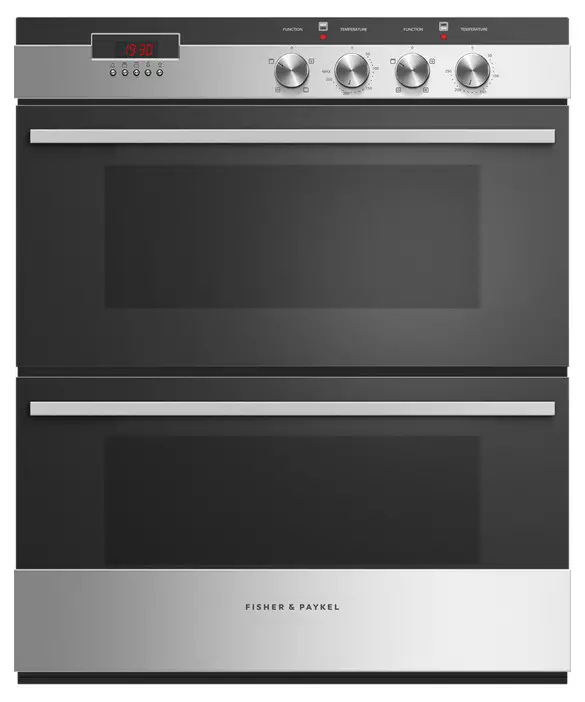

OB60HDEX4 4 Function Double Oven
User Guide
Perfect for smaller kitchens thanks to a more compact height, you’ll still have plenty of room across your two independent ovens.
- 42L + 62L total capacity across two ovens
- Four oven functions, including defrosting

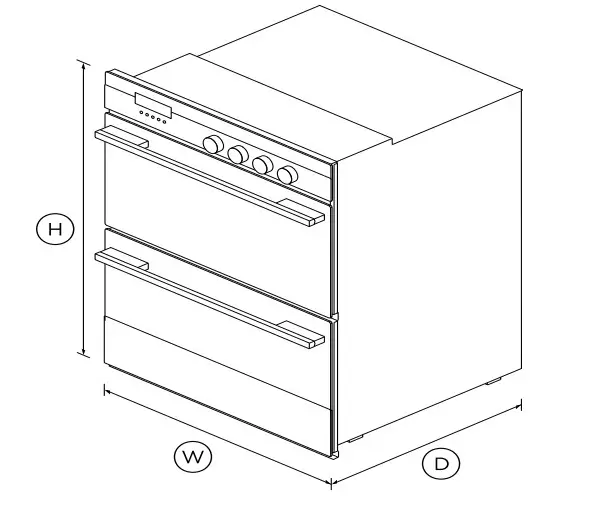

DIMENSIONS
| Height | 718mm |
| Width | 595mm |
| Depth | 564mm |
FEATURES & BENEFITS
Cooking flexibility
This built-in oven has four functions with pre-set temperatures, including Bake, Fan Forced and Fan Grill, allowing you to use a variety of cooking styles.
Sized to suit
This built-in oven provides a generous 62L + 42L of total capacity across two cavities providing enough space for a large family roast with room to spare.
Easy cleaning
This built-in oven has catalytic liners that break down oil and fat splashes during cooking so you don’t have to spend hours cleaning.
Safe and sound
The CoolTouch door with triple glazing and cooling system is safe to touch from the outside, protecting your hands and the surrounding cabinetry.
Accessories
This built-in oven comes with a number of handy accessories including a fat filter, grill pan and a grill rack.
Complementary design
With their premium handle styling and stainless steel finish, our built-in ovens are designed to match the rest of Fisher & Paykel’s kitchen appliance family.
SPECIFICATIONS
| Accessories | |
| Catalytic panels | • |
| Grill pan handles | 1 set |
| Grill rack | 2 sets |
| Removable side racks | 1 |
| Step down wire shelf | 1 |
| Telescopic sliding runners | 1 set |
| Capacity | |
| Gross capacity (bottom oven) | 2L |
| Gross capacity (top oven) | 42L |
| Shelf positions | 8 |
| Total gross | 104L |
| Total usable capacity (bottom | 51L |
| Total usable capacity (top | 36L |
| Cleaning | |
| Acid-resistant graphite enamel | • |
| Fat filter | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Self-cleaning catalytic liners | Sides and rear (bottom oven) |
| Self-cleaning catalytic panels | Sides and rear (bottom oven) |
| Controls | |
| Automatic cooking/minute | • |
| Door and cavity cooling | • |
| Electronic clock | • |
| Rear light | Yes |
| Functions | |
| Bake | • |
| Defrost | • |
| Fan Maxi Grill | • |
| Fan forced | • |
| Fan grill | • |
| Number of functions | 3 |
| Slow cook | • |
| Performance | |
| Grill power | 2000W |
| Grilling power (bottom oven) | 2000W |
| Grilling power (top oven) | 2000W |
| Power requirements | |
| Amperage | 17.65A |
| Supply frequency | 50Hz |
| Product dimensions | |
| Depth | 564mm |
| Height | 718mm |
| Width | 595mm |
| Safety | |
| CoolTouch door | • |
| Non-tip shelves | • |
| Warranty | |
| Parts and labour | 5 years |
| SKU | 81954 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
