Manual Powder Coating Systems
Instruction Manual
Manual Powder Coating Systems
| Description | P/N |
| Sprint Air fluid XE – Box Feed | 2355402 |

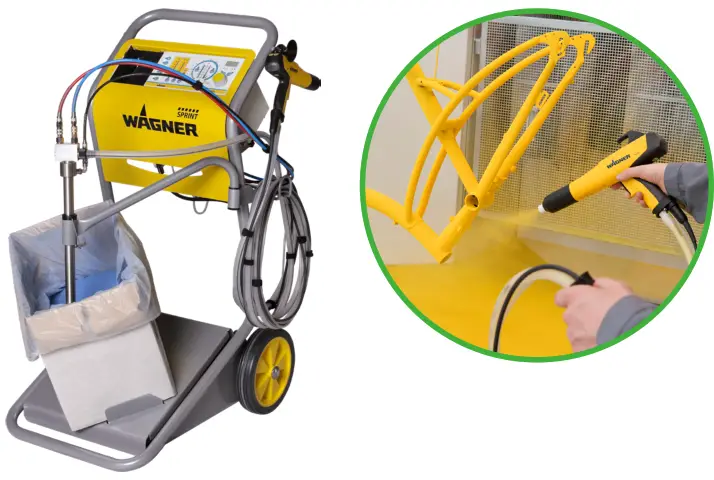

Sprint Air fluid XE – Box Feed
- The fixation of the suction tube allows for a quick and easy color change
- By mounting the small wheels, the manual system can be used and positioned in small places
- 50 coating recipes can be saved making it ideal for many color and object changes
- The unique Cascade characteristic line setting and the TRIBO compatibility offer a high level of flexibility for any powder
| Description | P/N |
| Sprint XE Unit – Hopper Feed | 2355404 |
| 60 L Hopper | 264268 |
| 25 L Hopper | 264224 |
| 3 L Hopper | HOP-0503 |

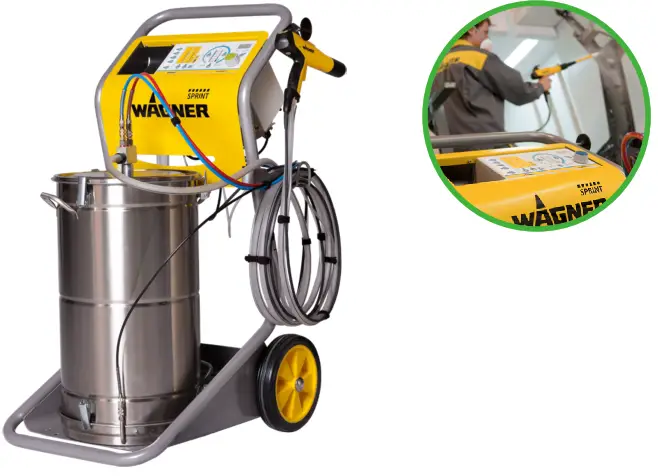

Sprint Airfluid XE – Hopper Feed
- The fixation of the suction tube allows for a quick and easy color change
- By mounting the small wheels, the manual system can be used and positioned in small places
- 3 L, 25 L and 60 L powder hoppers are available for use with these unit – hoppers purchased separately
- The unique Cascade characteristic line setting and the TRIBO compatibility offer a high level of flexibility for any powder

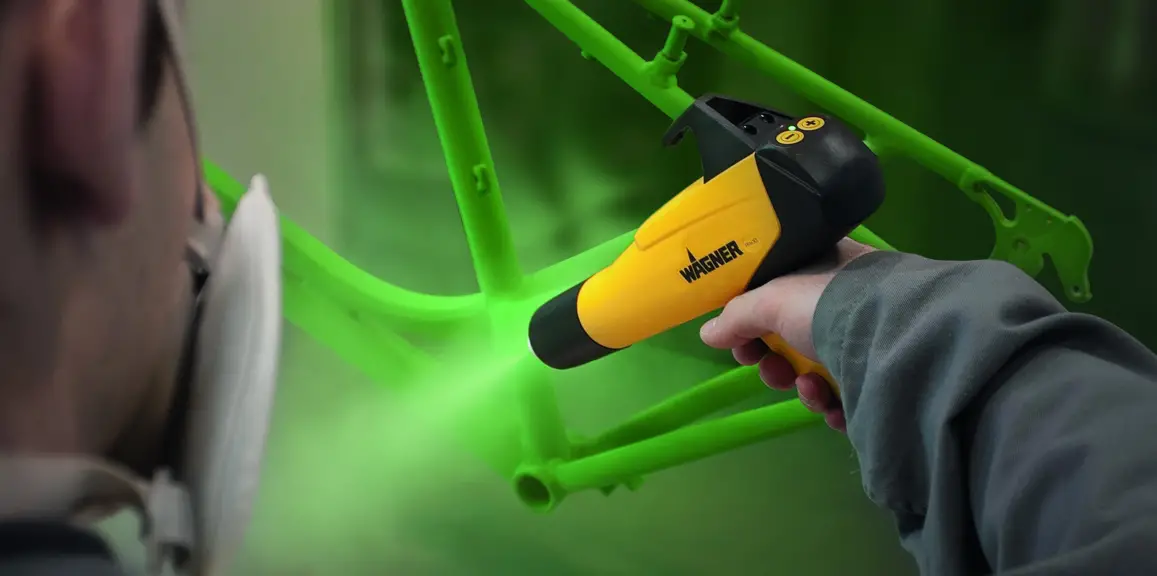

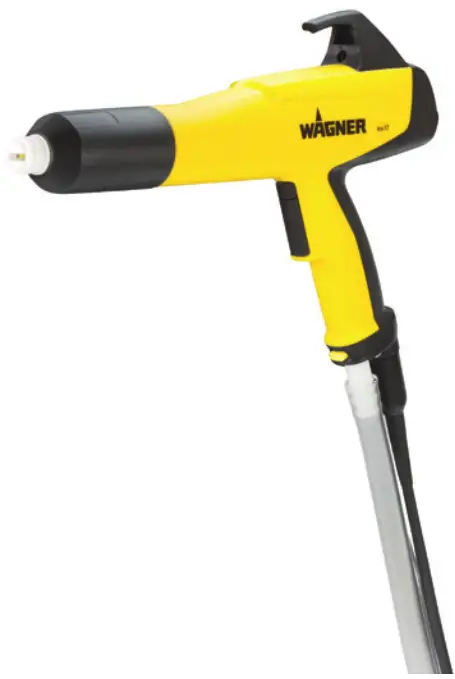

PEM-X1
- Continuous powder flow for best results
- Ideal ergonomics for ease of work
- Lightweight with only 490 g
- Integrated remote control for quick adjustment of the powder amount
- New nozzle concept with a sliding ring for perfect adjustable powder spray pattern
- Easy operation
- Optimal powder supply
- Finest spray with minimal air consumption
| Description | P/N |
| PEM-X1 Spray Gun | 2322587 |

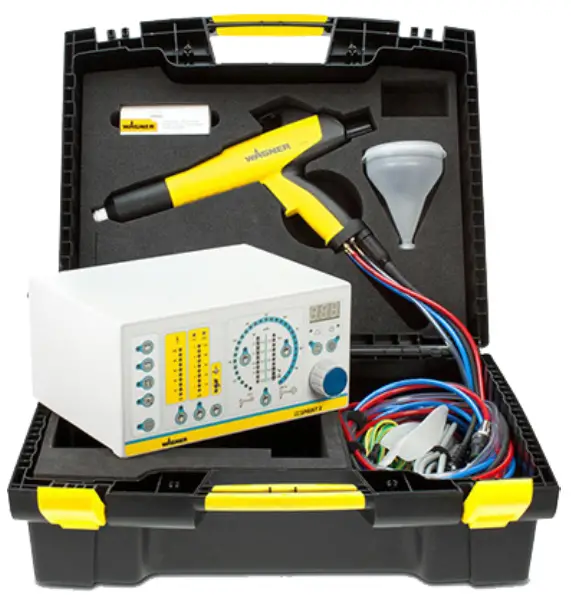

PEM-X1 CG
- Time-saving color change in 15 seconds.
- Continuous powder flow for best results.
- Ideal ergonomics for ease of work.
- Complete set including accessories in a carrying case.
- Integrated remote control for quick adjustment of the powder amount.
- Easy operation.
- Optimal powder supply.
- Finest spray with minimal air consumption.
| Description | P/N |
| PEM-X1 CG (Cup Gun Kit) | 2356873 |
Sprint XE & PEM-X1 Components
 | |||
| Description | P/N | Description | P/N |

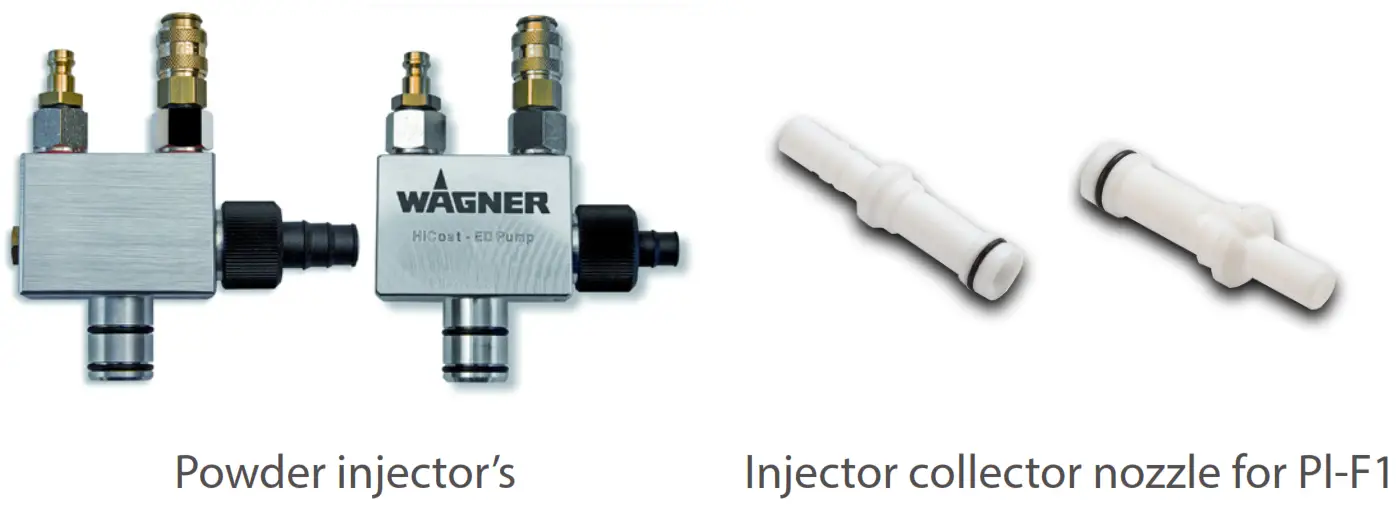

| Powder Injector, P1-F1 | 241622 | Venturi Nozzle | 241225 |
| Hi Coat-ED Injector F | 241624 | Venturi Nozzle HICOAT-ED | 241229 |
 | |||
| Description | P/N | Description | P/N |
| Electrode Holder X1F | 2322529 | Flat Spray Nozzle X1 | 2321976 |
| Electrode Holder X1 R SP | 2322490 | Round Spray Retrofit Package | 2322493 |
 | |||
| Description | P/N | Description | P/N |

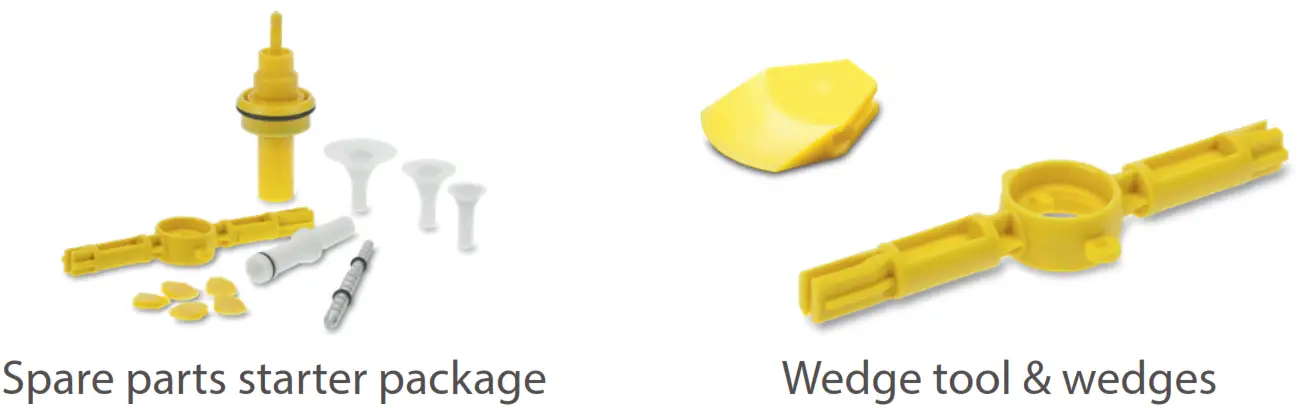

| Spare Parts Starter Pkg. X1 Ext. | 2331976 | Wedge Tool, X1 + 20 Wedges | 2324124 |
 | |||
| Description | P/N | Description | P/N |

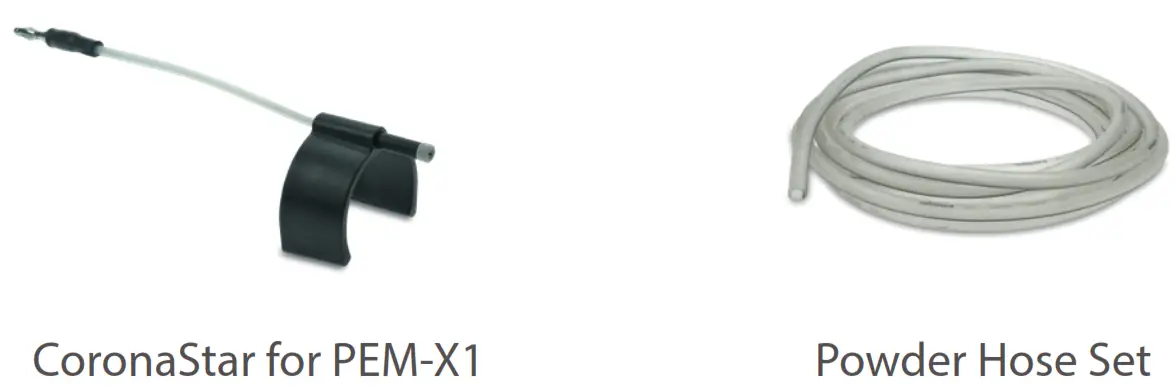

| Corona Star for PEM-X1 Complete | 2322868 | Powder Hose Set D11 – 5M | 265266 |
| Powder Hose D11 | 2307502 | ||
