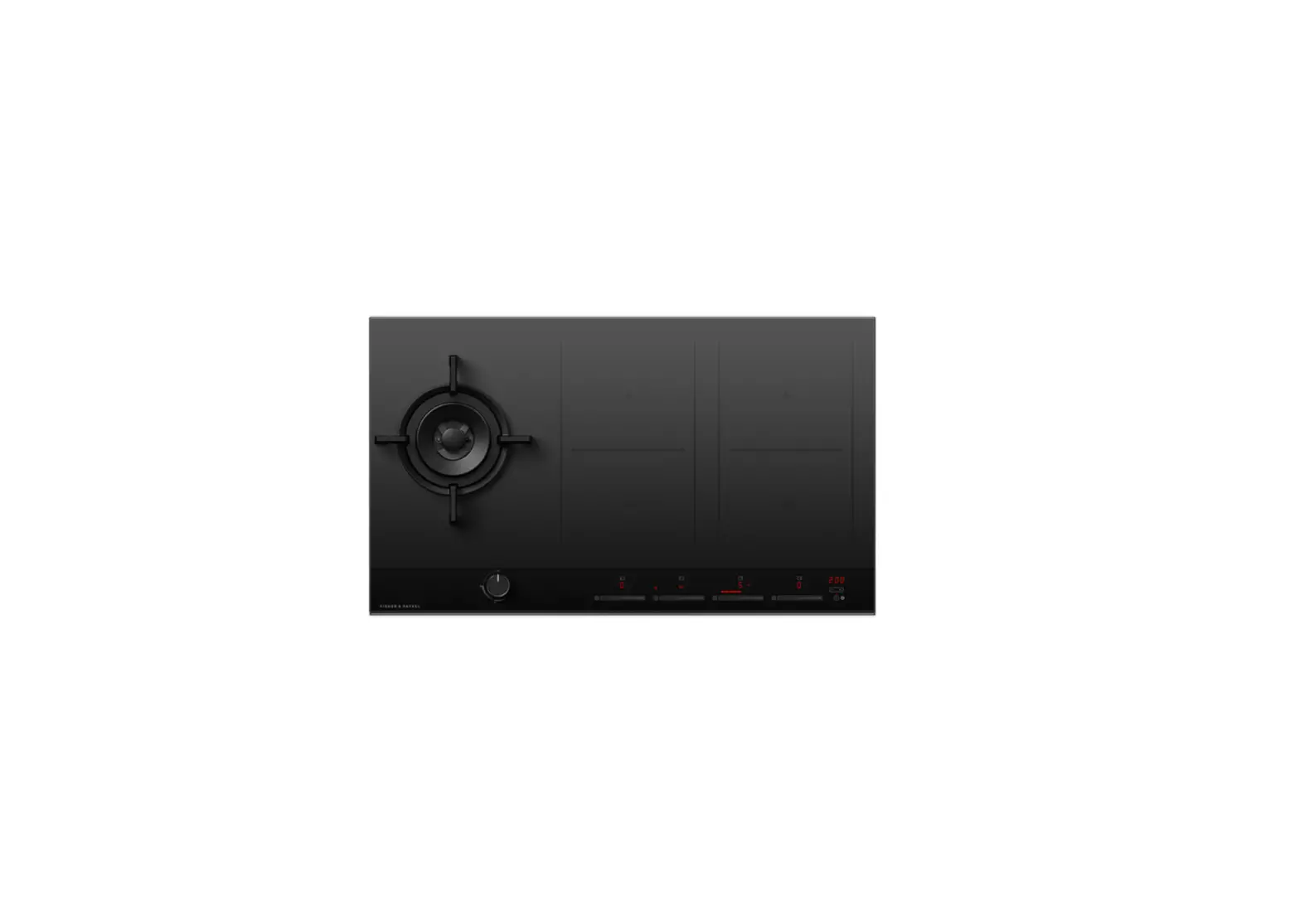

FISHER PAYKEL CGI905DLPTB4 Gas + Induction Cooktop
INTRODUCTION
| BRAND | VOLTAGE | MODEL | PRODUCT CODE | |||
| Fisher & Paykel | 220-240V 50Hz | CGI905LPTB4 FP AA | 82004-A |
MODELS
- The models covered by this manual are listed on the front cover.
- The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions.
KIT PARTS
Where a part number is shown against the descriptions for kit components, they are also available as separate items. In addition, some parts may be supplied with these kits that are not available as separate items, and are therefore either not listed, or a part number is not shown against the part description in this manual.
PARTS LIST KEY
| NI | As a part reference, indicates the part is not illustrated on the diagram. |
| NOT USED | As a part number, indicates the diagram part reference is not used in this manual. |
| NS | As a part number, indicates the part is not servicable. |

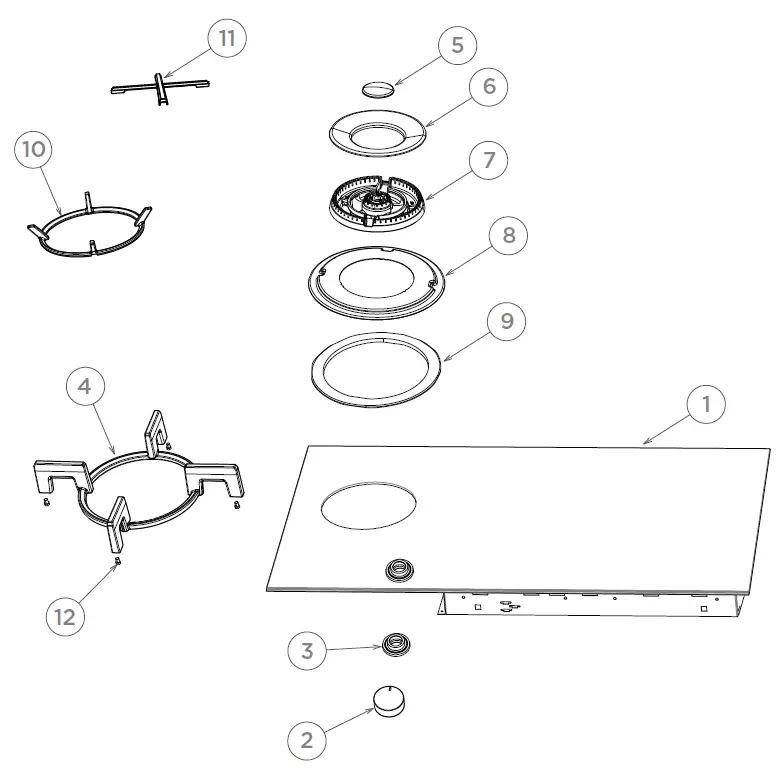

GAS HOBTOP COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 537148P | GLASS BKT ASSY CGI900 SP | ||
| Includes | GLASS CERAMIC HYBRID 900 | |||
| Includes | TRIM BLACK 900 | |||
| Includes | BEZEL TAPE ASSY VBL BLACK | |||
| 2 | 536566 | DIAL ASS CT VBL18 BK | ||
| 3 | 536841 | BEZEL TAPE ASSY VBL BLACK CT | ||
| 4 | 533909 | WOK TRIVET ASSY GF | ||
| Includes | FOOT BRASS TRIVET X 4 | |||
| 5 | 533890 | CAP INNER BURNER DUAL WOK | ||
| 6 | 533889 | CAP OUTER BURNER DUAL WOK | ||
| NI | 534139P | SCREW MC M4X8 PAN PH SS (10PKT | ||
| NI | 211373P | WASHER FLT SS #10 .430 (10PK) | ||
| 7 | 536790 | SPREADER BURNER DUAL WOK BLK | ||
| 8 | 533857 | SKIRT ENAMEL DUAL WOK GF | ||
| 9 | 533916 | GASKET DUAL WOK GF | ||
| 10 | 533604 | WOK SUPPORT DUAL WOK GF | ||
| 11 | 533981 | SMALL POT SUPP DUAL WOK GF | ||
| 12 | NS | FOOT BRASS TRIVET |

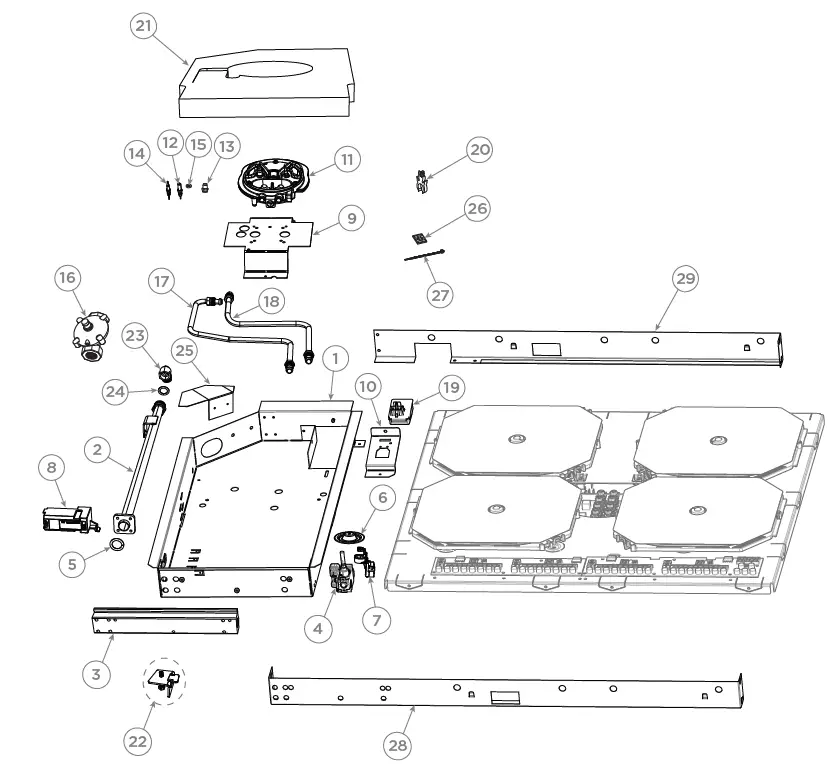

BASEPAN & GAS COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 537151 | 301 BASEPAN | ||
| 2 | 533884 | INLET GAS MANIFOLD GF | ||
| 3 | 535446 | MANIFOLD EXTRUDED ALUM 301 | ||
| 4 | 533670 | GAS VALVE AL DUAL SABAF | ||
| 5 | 532236P | O RING 14X3 VITON (PKT 2) | ||
| NI | 534027P | SCREW M4X25 BUTTON HEX PKT10 | ||
| 6 | 534165 | SEAL GAS VALVE CT | ||
| 7 | 534306 | HARNESS VALVE MICROSW GF 451 | ||
| 8 | 533993 | IGNITION BOX ITW B2000 4-WAY L | ||
| 9 | 533809 | MOUNT BURNER BOWL WOK GF | ||
| 10 | 534043 | MOUNT FLEX TERMINAL GF | ||
| NI | 556003P | SCREW ST 6X3/8 T25 PAN PH PKT10 | ||
| NI | 556009P | SCREW ST 8X3/8 TAB MSH PHPKT10 | ||
| NI | 542805P | SCREW MC M4X20 HEX PH MS NP PKT 10 | ||
| 11 | 535614 | BURNER BOWL DUAL WOK BF | ||
| NI | 534084 | JET DEFENDI LP 050 | ||
| NI | 537252 | JET DEFENDI TYPE 2 – 0.81MM | ||
| NI | 533897 | SPRING IGNITER | ||
| 12 | 534022 | IGNITER DUAL WOK 300 GF | ||
| 13 | 533896 | NUT IGNITER | ||
| 14 | 533886 | THERMOCOUPLE DUAL WOK GF | ||
| 15 | 533954 | NUT THERMOCOUPLE WOK | ||
| 16 | 530057 | REGULATOR NG 6160595 | ||
| NI | 556083P | SCREW TAPTITE M3.5X6 PH NP PKT10 | ||
| 17 | 535454 | TUBE ASSY D WOK INNER 301 | ||
| 18 | 535455 | TUBE ASSY D WOK OUTER 301 | ||
| 19 | 534905 | TRMNL BLOCK-FLEX ASSY HI TEMP NZ AU | ||
| 20 | 531715P | SUPPORT IGNITER WIRE PKT10 | ||
| NI | 534005 | HARNESS IGNITER NEUTRAL | ||
| NI | 534006 | HARNESS IGNITER EARTH | ||
| 21 | 535453 | INSULATION 301 GF | ||
| 22 | 534142 | KIT BRACKET INSTALL GF | ||
| Includes 534167 | BRACKET CLAMPING COOKTOP X 4 | |||
| Includes 542805 | SCREW 8X1 TAB PAN PH X 4 |
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 23 | 530710 | KIT GC ELBOW & WASHER | ||
| 24 | 530132P | WASHER BLUE 1/2 GAS SEAL PKT10 | ||
| 25 | 534421 | BRACKET REAR WALL 302 GF | ||
| 26 | 220922 | CABLE TIE MOUNT PLATE – NYLON 2 | ||
| 27 | 546309 | TIE CABLE 100MM | ||
| 28 | 516880 | BKT FRONT 900 BRACE | ||
| 29 | 516879 | BKT REAR 900 BRACE | ||
| NI | 516435 | BK UG CGI60 90 AA | ||
| NI | 866343 | BK IG CGI 60 90 NZAU |

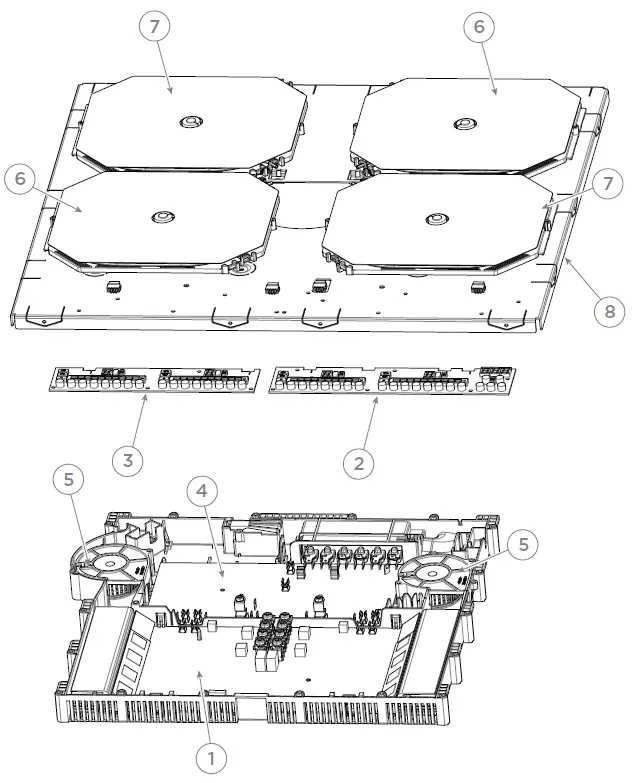

INDUCTION COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 534842 | POWER BOARD 4 ZONE CI604 | ||
| 2 | 537088P | PCB/MASK ASSY 604 MASTER RED | ||
| Includes | PCB_INTERFACE_604_MASTER_RED | |||
| Includes | MASK PRO MASTER CI LIGHT SCRN | |||
| 3 | 537089P | BOARD/MASK ASY SLAVE CNTRL 604 | ||
| Includes | PCB_INTERFACE_604_SLAVE_RED | |||
| Includes | MASK PRO SLAVE CI | |||
| 4 | 534845 | FILTER BOARD | ||
| 5 | 534839 | FAN | ||
| 6 | 534840 | INDUCTOR COIL SMART ZONE 1 | ||
| 7 | 534841 | INDUCTOR COIL SMART ZONE 2 | ||
| 8 | NS | PANEL ELEMENT SUPPORT |
