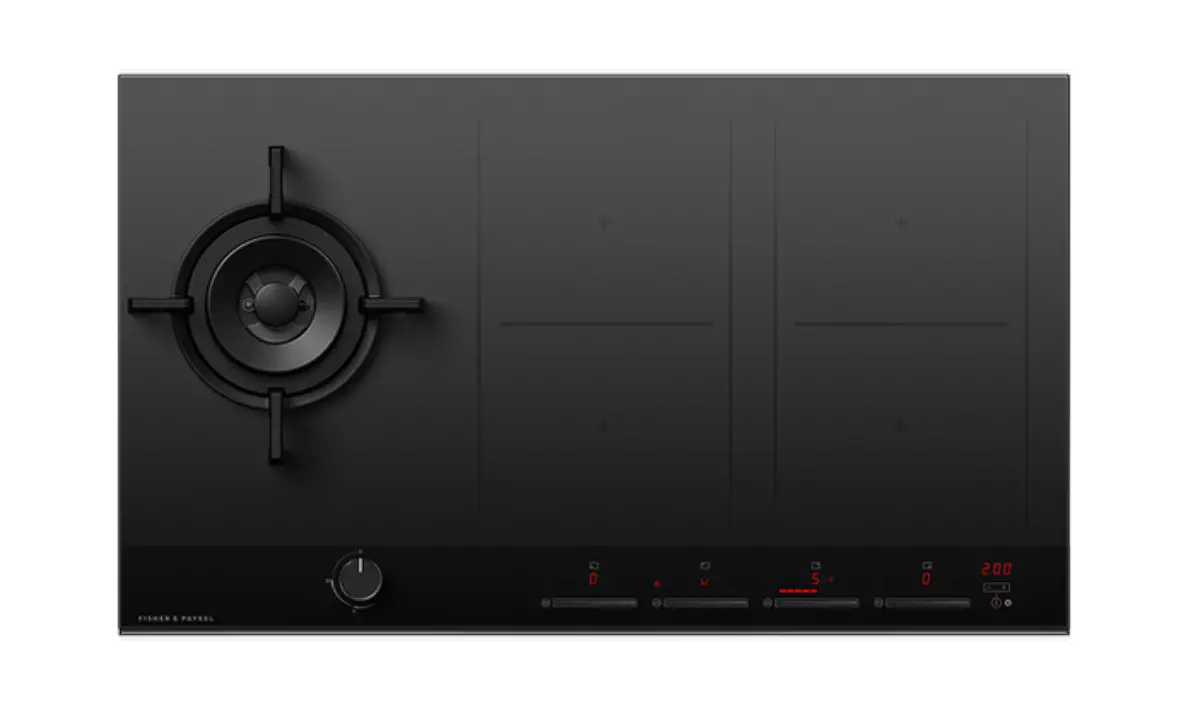

FISHER PAYKEL CGI905DNGTB4 90cm Gas + Induction Cooktop

The power of gas pairs with the precision of induction in this large cooktop, for ultimate flexibility and culinary creativity.

A dual fuel cooktop with a gas wok burner, plus four induction zones that can be paired to form two SmartZones.
With black detailing and Minimal styling to suit any kitchen design.
With a flame-failure safety device and an induction surface that remains cool until a pot or pan is placed on top.
PowerBoost activates a very high heat, bringing liquid to boil in less than a minute.

DIMENSIONS

Height	126mm
Width	899mm
Depth	530mm

FEATURES & BENEFITS

Combination cooking

Experience the best of combination cooking with our dual fuel gas and induction cooktop. Featuring a powerful wok burner combined with two induction cooking zones for ultimate flexibility in the kitchen.

Precise control

Our induction cooktops offer extremely accurate temperature control from very high to very low heats, so you can sear, sauté and temper like a pro. The powerful gas burner has consistent flame and heat distribution, perfect for wok-style cooking.

Complementary design

The subtle black glass, durable matte black detailing, and black dial blend elegance with durability. With premium styling, these cooktops seamlessly blend with other appliances for a cohesive, considered kitchen design.

Safe and sound

Induction cooktops remain cool to touch until a pot or pan is placed on the surface – so they are safer for everyone. The flame failure safety device automatically turns off the gas on the burner if the flame is accidentally extinguished

Easy cleaning

With a single cooking surface across both gas and the induction, this cooktop is simple to clean. On the induction cooktop, the surface around your cookware stays cool when you cook, preventing baked-on spills and making cleaning up a breeze.

Large, flexible cooking area

SmartZone links two cooking zones and controls them as one, giving you the flexibility to use large pans and griddles and easily handle bigger food items such as a whole fish. This cooktop comes with a small pot support and wok stand to complement different cooking styles.

Quality materials

Our cooktops are built from a single panel of toughened ceramic glass with larger support frame, ensuring lasting quality.

SPECIFICATIONS

Accessories
Small pan support	•
Wok stand	•

Burner ratings
Dual wok burner (inner only)	2.4MJ/h
Dual wok burner power	20.5MJ/h
Wok burner (natural gas)	20.5MJ/h

Cleaning
Easy clean cooktop design	•
Flat easy clean glass surface	•
Quick component removal	•

Controls
Auto cut-off timer for each	•
Dual wok control	•
Minute timer	•
Soft-touch electronic controls	•
Touch and slide controls	•
Toughened fused glass	•

Performance
Auto rapid heat	•
Blue flame burner	•
Both LPG & NG models	•
Cast iron trivets	•
Dual colour display	•
Electronic ignition	•
Heat settings	9
Induction cooking technology	•
PowerBoost	•
Quick connect gas valves	•
Zone bridging	•

Power requirements
Amperage	30A
Supply voltage	220 – 240V

Product dimensions
Depth	530mm
Height	126mm
Width	899mm

Safety
Individual hot surface	•
Keylock	•
Safety time out	•
Spillage auto off	•
Surface hot indicators	•

Warranty
Parts and labour	2 years

Zone ratings
Left front zone (PowerBoost)	2100W (3700W)
Left rear zone (PowerBoost)	2100W (3700W)
PowerBoost	up to 3700W
Right front zone (PowerBoost)	2100W (3700W)
Right rear zone (PowerBoost)	2100W (3700W)

SKU

82203

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
