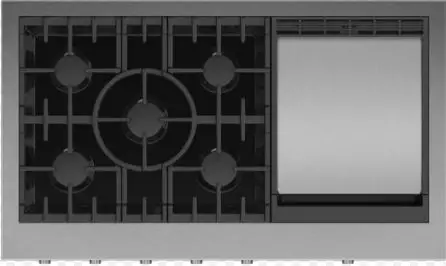

FISHER PAYKEL CPV3-485GD-L Gas Cooktop
INTRODUCTION
BRAND Fisher & Paykel
VOLTAGE 120VAC 60Hz
MODEL CPV33-485GD-L FP US CA
PRODUCT CODE 82011-A
MODELS
- The models covered by this manual are listed on the front cover.
- The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions.
KIT PARTS
Where a part number is shown against the descriptions for kit components, they are also available as separate items. In addition, some parts may be supplied with these kits that are not available as separate items, and are therefore either not listed, or a part number is not shown against the part description in this manual.
PARTS LIST KEY
NI As a part reference, indicates the part is not illustrated on the diagram.
NOT USED As a part number, indicates the diagram part reference is not used in this manual.
NS As a part number, indicates the part is not servicable.
US CA
Fisher & Paykel Appliances Inc.
DCS Customer Care
695 Town Center Drive, Suite 180
Costa Mesa.
CA 92626-1902
USA
Customer Care: 1-888-936-7872
Fax: (714) 372-7003
email: [email protected]
www.dcsappliances.com

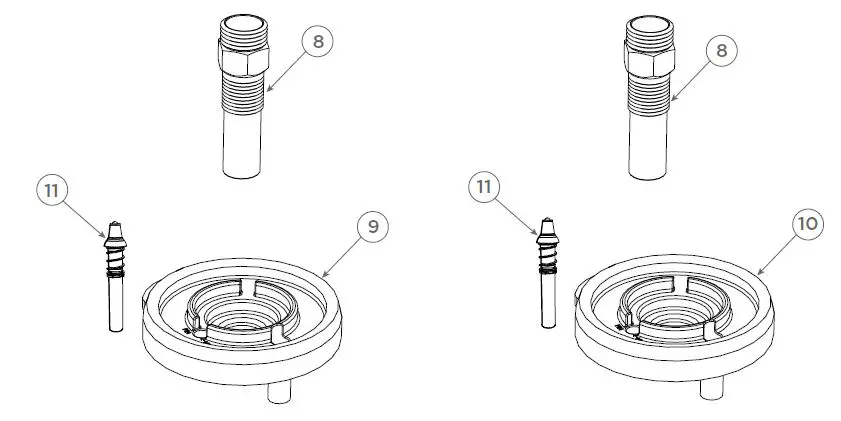

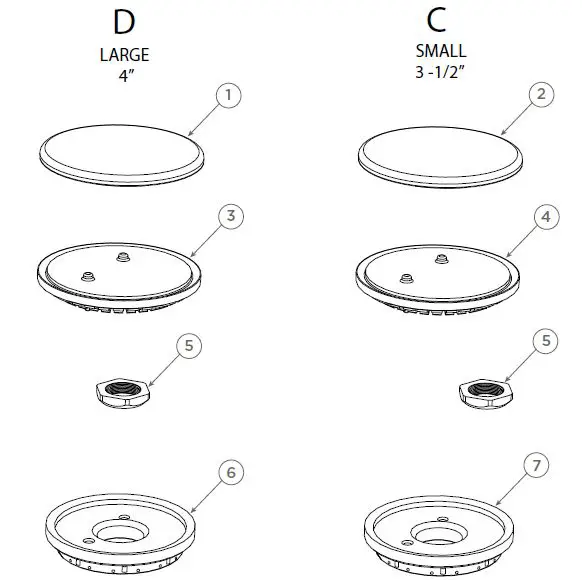

SEALED BURNER COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 210608 | D BURNER CAP | ||
| 2 | 210609 | C BURNER CAP | ||
| 3 | 248603 | RING 3MM D-PORT DUAL STAGE | ||
| 4 | 248602 | RING 3MM C-PORT DUAL STAGE | ||
| 5 | 211526 | NUT W/CHAMFER | ||
| 6 | 239124 | RING SIMMER D BURNER | ||
| 7 | 239123 | RING SIMMER C BURNER | ||
| 8 | 210913 | VENTURI W/CHAMBER | ||
| 9 | 248978 | D BURNER BASE EVO2 | ||
| 10 | 248979 | C BURNER BASE EVO2 | ||
| 11 | 217994 | KIT IGNITER SPRING AND CLIP | ||
| NI | 592187 | BK UG CPV3 USCA EN FR | ||
| NI | 592189 | BK INSTALL CPV3 USCA |

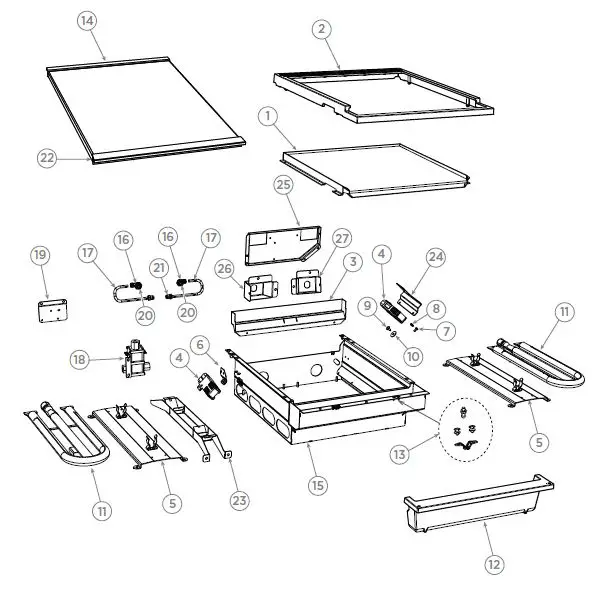

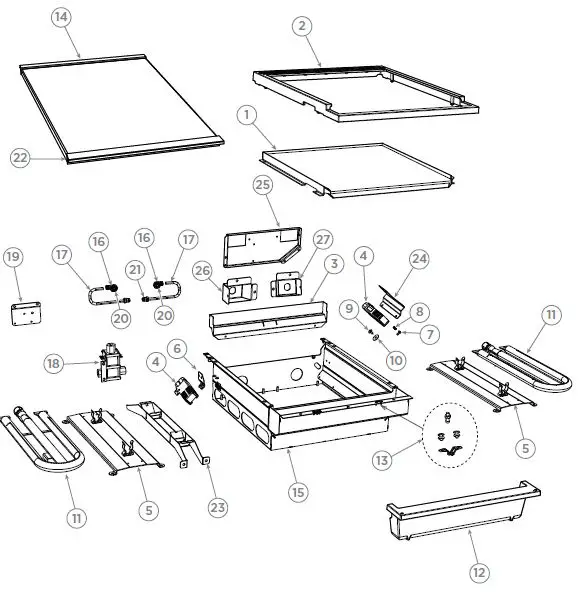

GRIDDLE COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 247896 | PLATE GRIDDLE W/A 17 INCH | ||
| 2 | 248220 | TRIM GRIDDLE 17INCH M/C | ||
| NI | 247073P | MS 10-32 X 3/8 PH PAN SS PKT10 | ||
| 3 | 249597 | FLUE ASSY GRIDDLE 17” WA V2 | ||
| 4 | 249763 | IGNITER HOT SURFACE GD GL | ||
| 5 | 252268 | SUPPORT U BURNER V2 CO | ||
| 6 | 243694 | SUPPORT IGNITER BURNER (LH) | ||
| 7 | 211306P | MS 8-32 PH PN HD SS (10PK) | ||
| 8 | 211480P | NUT 8-32 KEPS SS (10PK) | ||
| 9 | 211226P | SM10X1/2 PH TRHD TYASS (PKT 10 | ||
| 10 | 211371P | WASHER FLT SS #10 3/4 (10PK) | ||
| 11 | 243201 | U BURNER UNITED GD ASSY 17” | ||
| 12 | 247747 | CUP GREASE – 17 INCH | ||
| NI | 211226P | SM10 X 1/2 PH TRHD TYASS (10PK) | ||
| 13 | 243740P | KIT BALL STUD/CLIP | ||
| Includes | BALL STUD 421-5 | |||
| Includes | CLIP 8LBS, BALL STUD | |||
| Includes | RIVET 1/8 X 0.264 SS | |||
| 14 | 243808 | COVER 17” ASSY GRIDDLE | ||
| Includes | COVER GRILL GRIDDLE 17 (X 1) | |||
| Includes | MS 4-40 X 3/4 PH FLT SS (X 4) | |||
| Includes | NUT HEX 4-40 SS (X 4) | |||
| Includes | WASHER #4 EXT TOOTH (X 4) | |||
| Includes 245437 | HANDLE COVER 17” (X 2) | |||
| Includes 247098P | KIT GRILL/GRIDDLE FEET SP | |||
| 15 | NS | HOUSING 17” GRIDDLE W/A V2 | ||
| 16 | 212139 | FITTING ELBOW 3/8-27 – 9/16-24 | ||
| Includes | NUT 3/4-16 | |||
| 17 | 245089P | KIT J-TUBE RG/CU486GD/364GD/GL | ||
| Includes | LOXIT FITTING FOR 3/8 OD TBNG | |||
| 18 | 210782 | DUAL THERMAL GAS VALVE | ||
| NI | 211238P | SM 10X1/2 SL TD HWH SMS (PKT10) |
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 19 | 245593 | BRACKET TERMINAL BLOCK | ||
| 20 | 210694 | JET SPUD 1.07MM (58DMS) | ||
| 21 | 212373 | LOXIT FITTING FOR 3/8 OD TBNG | ||
| 22 | 245437 | HANDLE COVER 17” | ||
| 23 | 249593 | HOLDER BULB ASSY V2 | ||
| NI | 247098P | KIT GRILL/GRIDDLE FEET SP | ||
| NI | 211396P | NUT KEPS 6-32 ZN (10 PK) | ||
| 24 | 242919 | BRACKET IGNITER MTG | ||
| 25 | 247634 | BOX 17IN GD | ||
| 26 | 248092 | BOX RH ORIFICE 17” GD | ||
| 27 | 247635 | BOX ORIFICE 17” GD |

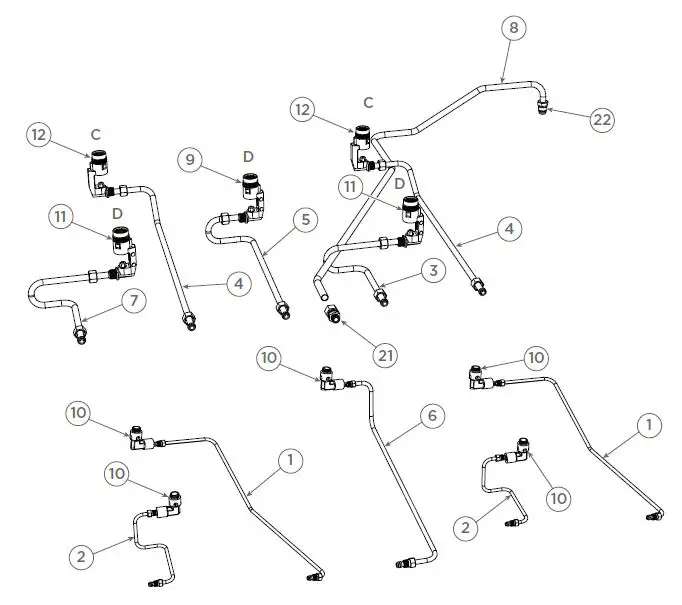

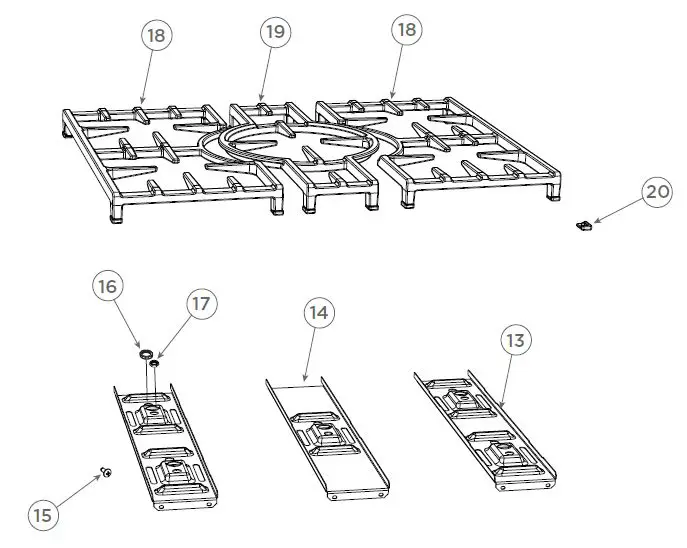

BURNER HANGER COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 243785 | TUBE ASSY SIMMER REAR | ||
| 2 | 244853 | TUBING SIMMER FRONT CU-36 | ||
| 3 | 244852 | TUBING MAIN FRONT CU-36 | ||
| 4 | 243786 | TUBE ASSY MAIN REAR | ||
| 5 | 244875 | TUBE MAIN CENTRE CU485 | ||
| 6 | 244868 | TUBE SIMMER CENTRE CU485 | ||
| 7 | 243909 | TUBE RIGHT FRONT 36 | ||
| 8 | 243901P | KIT TUBE SUPPLY RG/CU485GD | ||
| Includes 212373 | LOXIT FITTING FOR 3/8 OD TBNG | |||
| 9 | 249126 | JET HOLDER MAIN 1.24MM | ||
| Includes 249132 | JET MAIN DCS 1.24MM | |||
| 10 | 245996 | JET HOLDER SIMMER ASSY #79 | ||
| Includes 210573 | JET SIMMER 0.37MM (G) | |||
| 11 | 249128 | JET HOLDER MAIN 1.10MM | ||
| Includes 249135 | JET MAIN DCS 1.10MM | |||
| 12 | 249338 | JET HOLDER MAIN 0.95MM | ||
| Includes 247482 | JET MAIN DCS 0.95MM (63DMS) | |||
| 13 | 248777 | HANGER BURNER EV02 | ||
| 14 | 248778 | HANGER 5-BURNER CENTRE | ||
| 15 | 211238P | SM 10X1/2 SL TD HWH SMS (PKT10) | ||
| 16 | 210468 | NUT M22 JET HOLDER | ||
| 17 | 211502 | NUT SIMMER JET HOLDER | ||
| 18 | 249842 | TRIVET ASSY 5-BURNER SIDE EVO2 | ||
| Includes | FOOT ASSY BRASS-RUBBER X 4 | |||
| 19 | 249844 | TRIVET ASSY 5-BURNER CNTR EVO2 | ||
| Includes | FOOT ASSY BRASS-RUBBER X 4 | |||
| 20 | 249847P | KIT FOOT BRASS-RUBBER (PKT4) | ||
| 21 | 212203 | FITTING 1/8 NPT MALE-3/8 CC | ||
| 22 | 212373 | LOXIT FITTING FOR 3/8 OD TBNG |

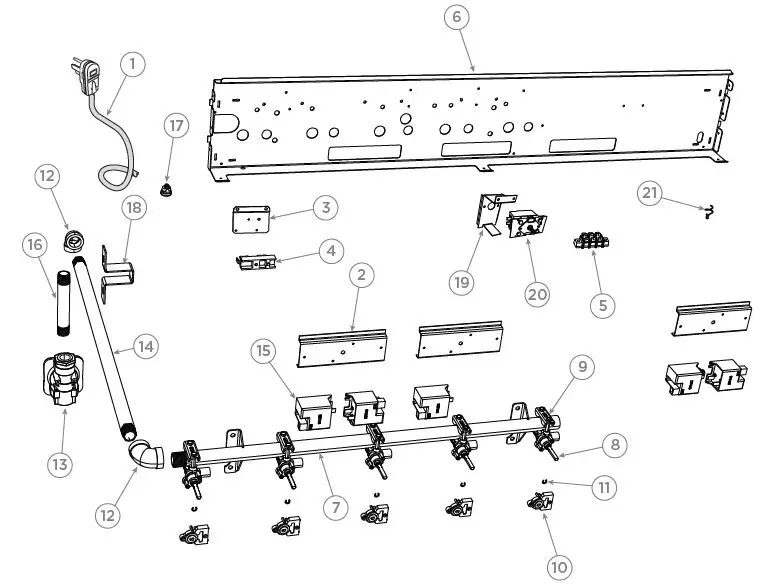

MANIFOLD COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 245666 | MAINS FLEX ASSY | ||
| 2 | 255071 | BRACKET IGNITOR MOUNT 3 PT RXX | ||
| 3 | 245593 | BRACKET TERM BLOCK | ||
| 4 | 211768 | TERMINAL BLOCK | ||
| NI | 211250P | MS10-24X 1PH PN TY F SS (10PK) | ||
| 5 | 255605 | TERMINAL BLOCK (2 POSITION) | ||
| NI | 211276P | MS6-32 X 1-1/2PH PN HD SS (10PK) | ||
| NI | 211396P | NUT KEPS 6-32 ZN (10 PK) | ||
| 6 | NS | BAFFLE W/A CPV3 485GD | ||
| 7 | 249890 | MANIFOLD PTD (5 @ 5-1/2) | ||
| NI | 211342P | MS 10-32 X 1 HEXHD ZN (PKT 10) | ||
| 8 | 253746 | VALVE DUAL FLOW 60C #77 RANGE | ||
| NI | 211323P | HB 1/4-20 X 1/2 X FULL SS 10PK | ||
| 9 | 210506 | CLAMP VALVE | ||
| 10 | 211804P | SWITCH IGNITOR (1 PK) | ||
| 11 | 210508 | C-CLIP VALVE STEM | ||
| 12 | 212164 | ELBOW 1/2 – 1/2 FEMALE | ||
| 13 | 241669P | REGULATOR NAT/LP (1 PK) | ||
| 14 | 212133 | 1/2 NPT X 21.25 NIPPLE BLK | ||
| 15 | 253844 | REIGNITION BOX RI 120FB | ||
| NI | 211248P | SM 6-32X3/8 PH PAN TY F SS (10PK) | ||
| 16 | 212186 | BLACK NIPPLE 1/2 X 5 | ||
| 17 | 211132 | BUSHING STRAIN RELIEF 0.625” | ||
| 18 | 232225 | BRACKET PIPE HOLD | ||
| NI | 211238P | SM 10 X 1/2 SL TD HWH SMS (PKT10) | ||
| 19 | 249162 | BRACKET GRIDDLE EVO2 RANGE | ||
| NI | 211238P | SM 10 X 1/2 SL TD HWH SMS (PKT10) | ||
| 20 | 248069 | GRIDDLE THERMOSTAT 3/16” | ||
| NI | 239472P | MS6-32 X1/4”SS,PH TR HD (10PK) | ||
| 21 | 545874 | WIRE STANDOFF COIL | ||
| NI | 248882 | HARNESS MAINS GRIDDLE 17IN V2 | ||
| NI | 245425 | IGNITER WIRES 5 | ||
| NI | 252249 | HARNESS POWER CPV2 120V |

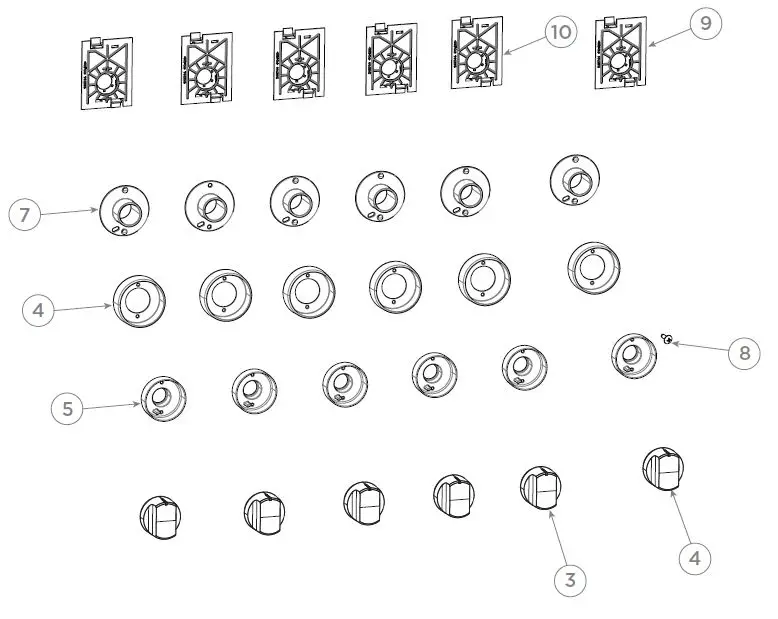

VALVE PANEL COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 255507P | PANEL VALVE CPV3 485GD W GFX | ||
| 2 | 556037P | SCREW ST 8X5/8 TAB PN PH (PKT 10) | ||
| 3 | 255426P | BURNER DIAL S7 PRO OR SP | ||
| 4 | 255427P | GRIDDLE DIAL ASM S7 PRO OR SP | ||
| NI | 530877P | SPRING KNOB BARBED (PKT 10) | ||
| 5 | 255221P | BEZEL S7 PRO RANGE SP | ||
| 6 | 255248P | LIGHTPIPE S7 REFRESH SP | ||
| 7 | 249804P | SCREW #6X1/2” PAN PZ T25 ZNPL | ||
| 8 | 255303P | SHIELD S7 OR PRO SP | ||
| 9 | 255397 | MOD LED DIAL S7 RED WHT 120V | ||
| Includes | HOUSING AND PCB | |||
| 10 | 255528 | MOD LED DIAL S7 RED 120V | ||
| Includes | HOUSING AND PCB | |||
| NI | 255407 | HARNESS CTOP 2BNR SHT 120V S7 | ||
| NI | 255408 | HARNESS CTOP 2BNR LNG 120V S7 | ||
| NI | 255406 | HARNESS CTOP 1 BNR MED 120V S7 | ||
| NI | 245999 | WIRE EARTH THERMOSTSAT | ||
| NI | 248882 | HARNESS MAINS GRIDDLE 17IN V2 | ||
| 11 | 255568 | MOUNT SELECTOR CPV3 485 | ||
| 12 | 211238P | SM 10 X 1/2 SL TD HWH SMS (PKT10) |

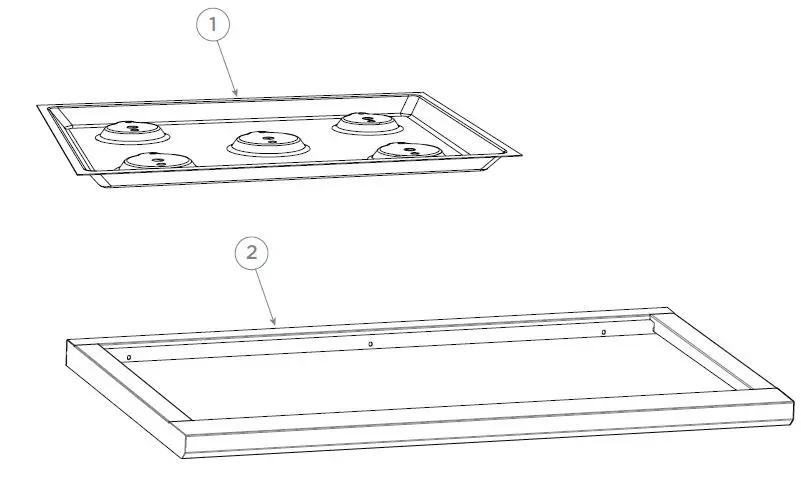

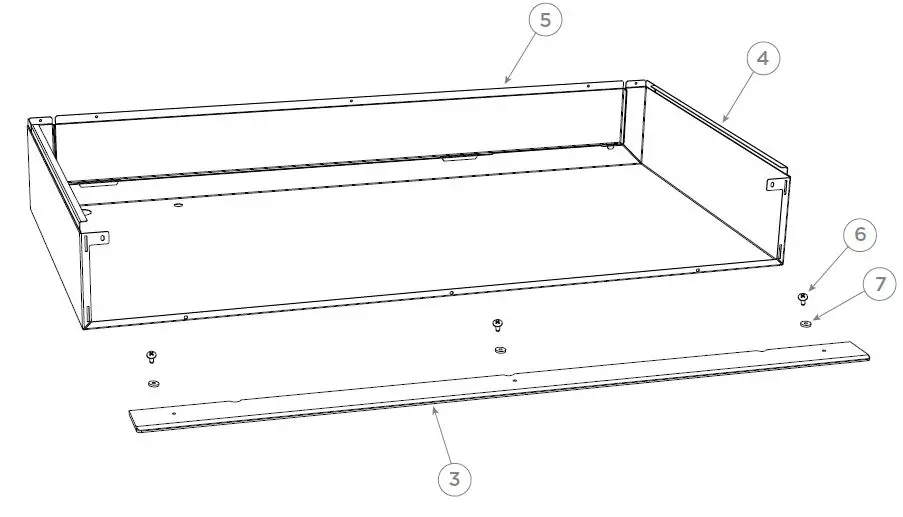

STRUCTURE COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 255239P | HOB ENAM ASSY 485 PRO RANGE S9 | ||
| 2 | 255387 | LANDING LEDGE WA CPV3 48 | ||
| 3 | 243539 | COVER REAR 48” (CP) | ||
| NI | 211238P | MS 10X1/2 SL TD HWH SMS (PKT 10) | ||
| 4 | NS | BOX OUTER 48 (CP) | ||
| 5 | 245945 | TRIM 48 CP VALVE PANEL FLAT | ||
| 6 | 245914 | SPACER TRIM 6MM | ||
| 7 | 556037P | SCREW ST 8X5/8 TAB PN PH (PKT 10) |
CONVERSION & HI ALTITUDE KITS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| NI | 255903 | KIT CONV LP TO NG RDV3/RGV3/CP | ||
| Includes | JET MAIN DCS 2.20 MM | |||
| Includes | JET MAIN 2.10 MM | |||
| Includes | JET MAIN DCS 1.90 MM | |||
| Includes | JET SIMMER 0.57 MM (P) | |||
| Includes | JET SPUD 1.93 MM (48 DMS) | |||
| Includes | JET SPUD 1.85 MM (49 DMS) | |||
| Includes | JET SPUD 1.61 MM (52 DMS) | |||
| Includes | JET SPUD 2.49 MM (40 DMS) | |||
| Includes | JET SPUD 1.99 MM (47 DMS) | |||
| Includes | BYPASS JET VALVE 0.71 MM | |||
| Includes | JET SPUD 2.18MM (44DMS) | |||
| Includes | LABEL NATURAL GAS DCS | |||
| Includes | LBL CONV LP-NG RDV3/RGV3/CPV3 | |||
| Includes | INST CONVKIT PRO RGCK EVO3 USCA | |||
| NI | 516705 | KIT HI ALT LP 3-6K EVO3 | ||
| Includes | JET MAIN 1.10MM (57DMS) X 2 | |||
| Includes | JET MAIN 1.00MM (61DMS) X 2 | |||
| Includes | JET MAIN 0.91MM (64DMS) X 4 | |||
| Includes | JET MAIN 0.84MM (66DMS) X 2 | |||
| Includes | JET SPUD 1.18MM (56DMS) X 1 | |||
| Includes | JET SPUD 1.07 (58DMS) X 2 | |||
| Includes | JET SPUD 0.97MM (62DMS) X 1 | |||
| Includes | JET SPUD 1.32MM (55DMS) X 2 | |||
| Includes | LBL ALT CONV RDV3/RGV3/CPV3 | |||
| Includes | INST CONVKIT PRO RGCK EVO3 USCA |
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| NI | 516704 | KIT HI ALT LP 6-9K EVO3 | ||
| Includes | JET MAIN 1.02MM (60DMS) X 2 | |||
| Includes | JET MAIN 0.95MM (63DMS) X 2 | |||
| Includes | JET MAIN 0.84MM (66DMS) X 4 | |||
| Includes | JET MAIN 0.75MM (69DMS) X 2 | |||
| Includes | JET MAIN 0.91MM (64DMS) X 1 | |||
| Includes | JET SPUD 0.97MM (62DMS) X 1 | |||
| Includes | JET SPUD 1.18MM (56DMS) X 2 | |||
| Includes | LBL ALT CONV RDV3/RGV3/CPV3 | |||
| Includes | INSTR ALT CONV-RGV2/RDV2/CPV2 X 1 |
© Fisher & Paykel Appliances Ltd 2020. All rights reserved.
