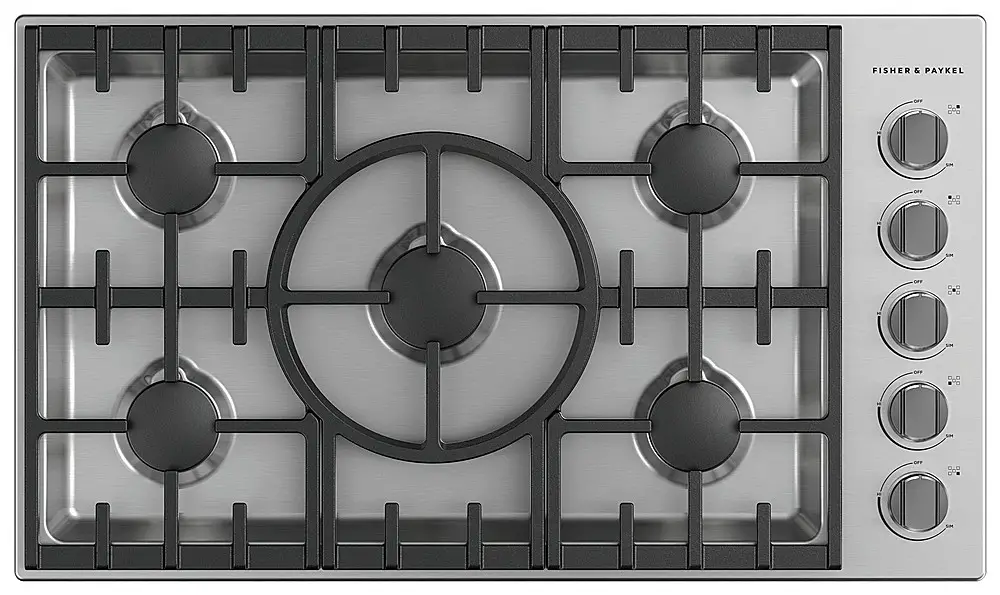

FISHER PAYKEL CDV3-365-L 36-Inch Built-In Gas Cooktop
INTRODUCTION
| BRAND | VOLTAGE | MODEL | PRODUCT CODE | |||
| Fisher & Paykel | 120VAC 60Hz | CDV3-365-L FP US CA | 82021-A |
MODELS
- The models covered by this manual are listed on the front cover.
- The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions.
KIT PARTS
Where a part number is shown against the descriptions for kit components, they are also available as separate items. In addition, some parts may be supplied with these kits that are not available as separate items, and are therefore either not listed, or a part number is not shown against the part description in this manual.
PARTS LIST KEY
| NI | As a part reference, indicates the part is not illustrated on the diagram. |
| NOT USED | As a part number, indicates the diagram part reference is not used in this manual. |
| NS | As a part number, indicates the part is not serviceable. |
US CA
Fisher & Paykel Appliances Inc.
DCS Customer Care
695 Town Center Drive, Suite 180 Costa Mesa.
CA 92626-1902
USA
Customer Care: 1-888-936-7872
Fax: (714) 372-7003
email: [email protected] www.dcsappliances.com

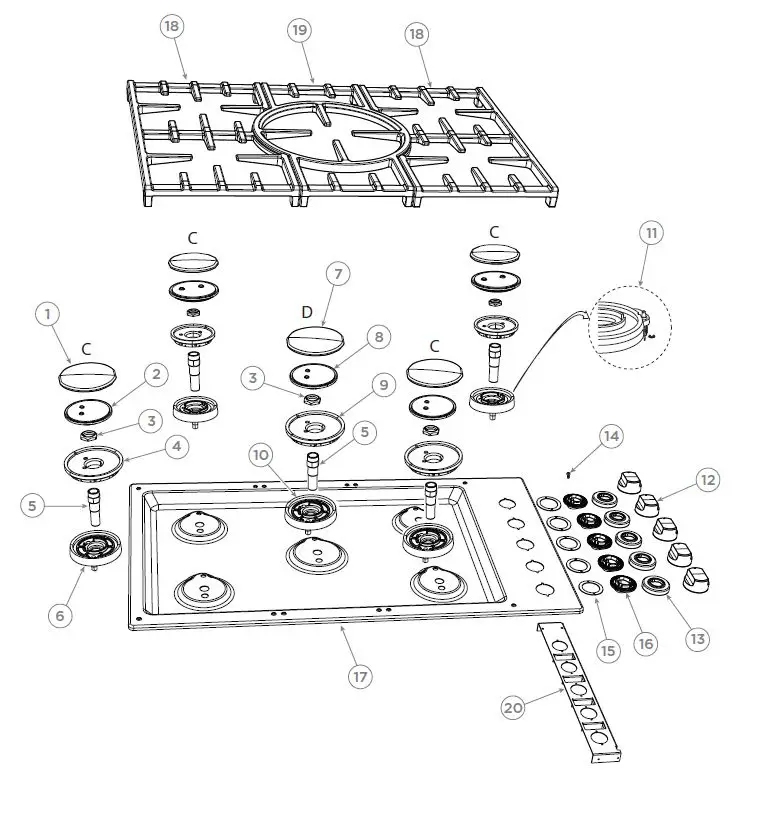

BURNER COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 210609 | C BURNER CAP | ||
| 2 | 248602 | RING 3MM C-PORT DUAL STAGE | ||
| 3 | 211526 | NUT W/CHAMFER | ||
| 4 | 239123 | RING SIMMER C BURNER | ||
| 5 | 210913 | VENTURI W/CHAMFER | ||
| 6 | 248979 | CBURNER BASE EVO2 | ||
| 7 | 210608 | D BURNER CAP | ||
| 8 | 248603 | RING 3MM D-PORT DUAL STAGE | ||
| 9 | 239124 | RING SIMMER D BURNER | ||
| 10 | 248978 | DBURNER BASE EVO2 | ||
| 11 | 217994 | KIT IGNITER SPRING & CLIP | ||
| Includes | LONG ELECTRODE IGNITER | |||
| Includes | SPRING ELECTRODE | |||
| Includes | CLIP ELECTRODE | |||
| 12 | 255386 | DIAL ASSY COOKTOP S7 | ||
| 13 | 255384 | BEZEL COOKTOP S7 | ||
| 14 | 211260P | SM 6X1/2 PH PN Z AB 10PK | ||
| 15 | 249559 | SEAL BEZEL CLIP STAND DICT | ||
| 16 | 249720 | BEZEL CLIP ASSY DICT | ||
| NI | 530877P | SPRING KNOB BARBED (PKT 10) | ||
| 17 | 537111P | HOB CDV3 365 FP LSD SP | ||
| 18 | 249922 | GRATE ASSY 5BRNR SIDE DI-EVO2 | ||
| 19 | 249923 | GRATE ASSY 5BRNR CNTR DI- EVO2 | ||
| NI | 249925P | KIT FOOT RUBBER DI-EVO2 (PKT8) | ||
| 20 | 249611 | BRACKET CIRCUIT DROP-IN | ||
| NI | 211248P | SM 6-32X3/8 PH PAN TY F SS (10PK) | ||
| NI | 592190 | BK UG CDV3 USCA EN FR | ||
| NI | 592192 | BK INSTALL CDV3 USCA |

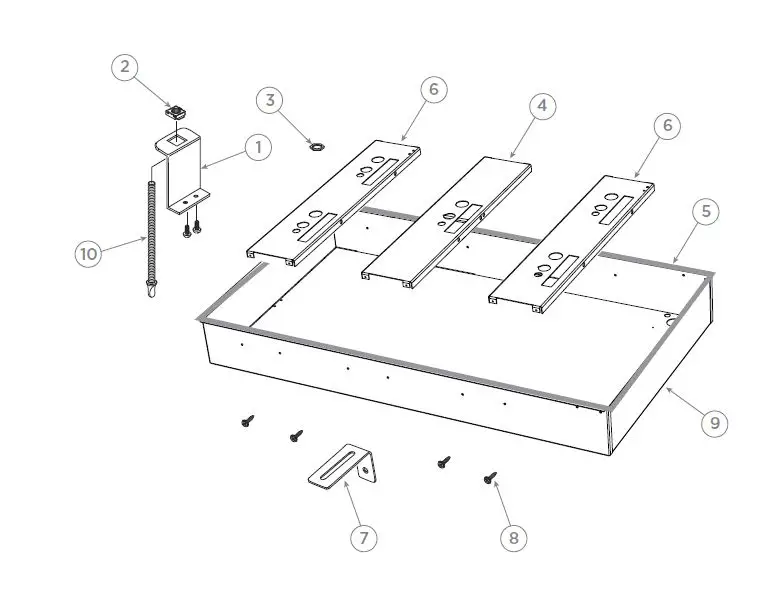

STRUCTURE COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 216594 | BRACKET HOLD DOWN | ||
| 2 | 211408P | NUT W/RET 1/4-20 BLK (10PK) | ||
| 3 | 211502 | NUT SIMMER JET HOLDER | ||
| 4 | 232446 | HANGER CENTER BURNER | ||
| NI | 211222 | SM 6 X 3/8 PH PN HD TY AB ZI | ||
| 5 | 211063 | TAPE FOAM (MUST BE ORDERED BY THE FOOT) | ||
| 6 | 232447 | HANGER LEFT/RIGHT BURNERS | ||
| NI | 211222 | SM 6 X 3/8 PH PN HD TY AB ZI | ||
| 7 | 216806 | BRACKET HOLD DOWN | ||
| 8 | 211222 | SM 6 X 3/8 PH PN HD TY AB ZI | ||
| 9 | NS | BASEPAN W/A CT 365 EVO2 | ||
| 10 | 211464 | THUMB SCREW 1/4-20 X 3 ZINC |

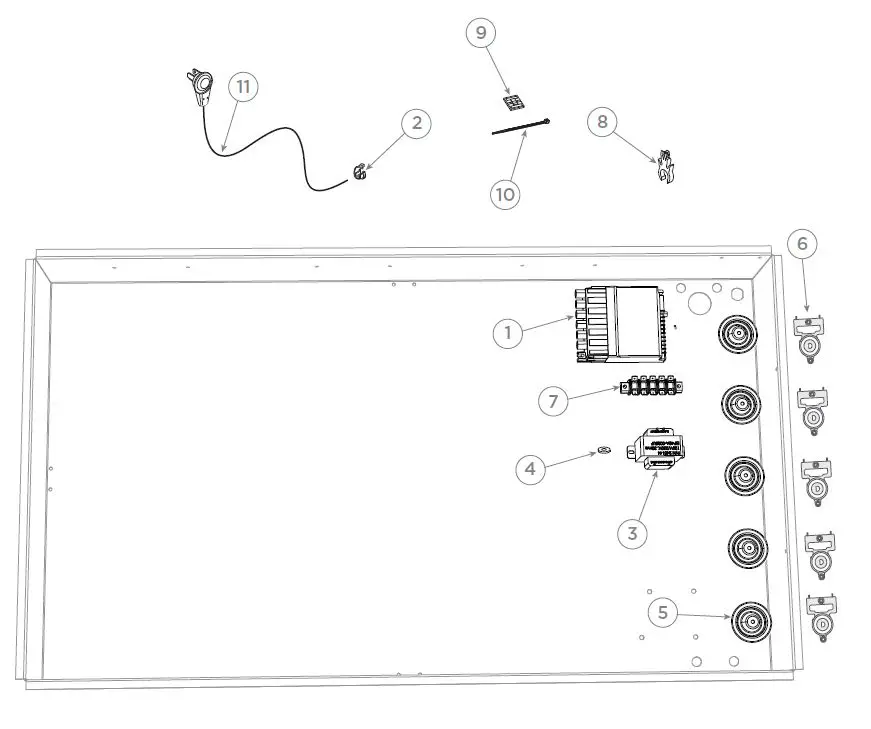

ELECTRICAL COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION | ||
| 1 | 211840 | RE-IGNITER (5 CIRCUIT) | ||
| NI | 220775 | SMS 6-32 X 3/4 PH PN TY F SS | ||
| NI | 211260P | SM 6X1/2 PH PN Z AB 10PK | ||
| NI | 550944P | WASHER LOCK 4MM EXT SERR PKT10 | ||
| 2 | 211132 | BUSHING, STRAIN RELIEF 0.625” | ||
| 3 | 249358 | TRANSFORMER 30 MA 120/230V | ||
| 4 | 211517P | WASHER FELT 1/2 OD-1/8 ID-.06 (10PK) | ||
| 5 | 534165 | SEAL GAS VALVE CT | ||
| 6 | 211804P | SWITCH IGNITOR (1PK) | ||
| 7 | 243936 | TERMINAL BLOCK (5-POSITION) | ||
| NI | 220774P | SM 6-32 X 1/4 PH PAN TY F SS 10PK | ||
| 8 | 531715P | SUPPORT IGNITER WIRE PKT10 | ||
| 9 | 220922 | CABLE TIE MOUNT PLATE – NYLON | ||
| 10 | 546309 | TIE CABLE 100MM | ||
| NI | 210293 | BUSHING, SNAP 0.312” | ||
| 11 | 249989 | MAINS FLEX ASSY DROPIN | ||
| 12 | 249341 | HOLDER MAGNET CONTROL KNOB | ||
| NI | 249175 | HARNESS DROP IN 365 STANDARD |
