luminii K45M Round with Sensor Instruction
Kendo 45M Round with Sensor Installation Instructions

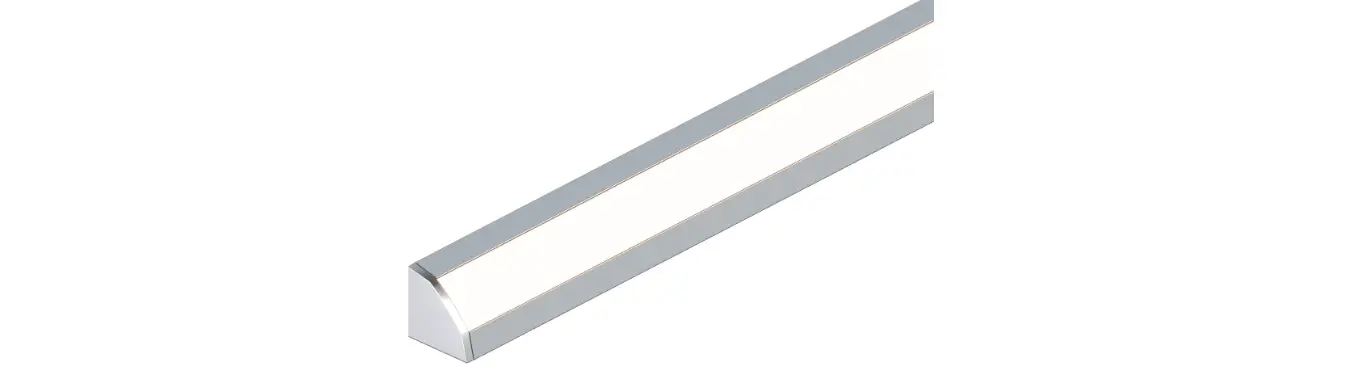

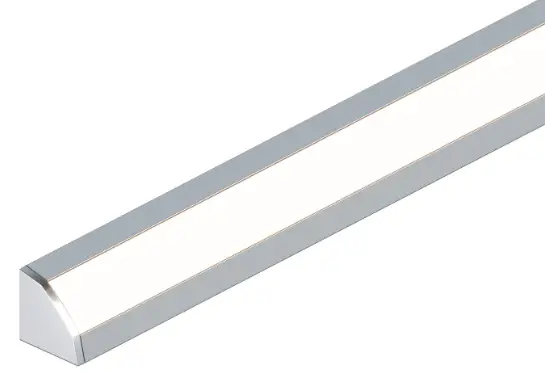

Model K45M Round with Sensor
Please read complete instruction prior to installation and keep for future reference!

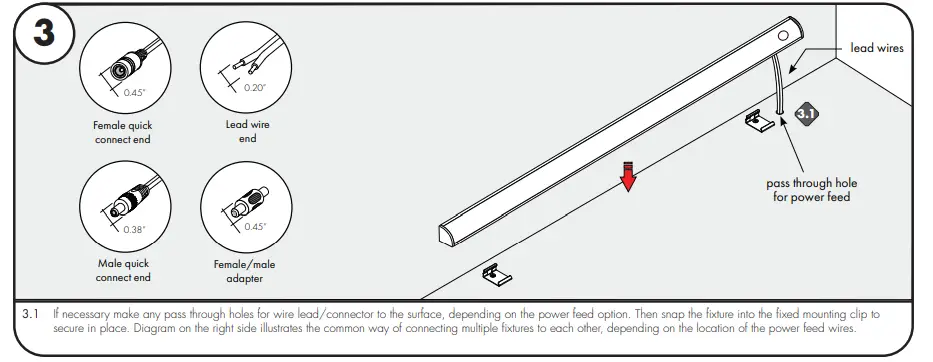

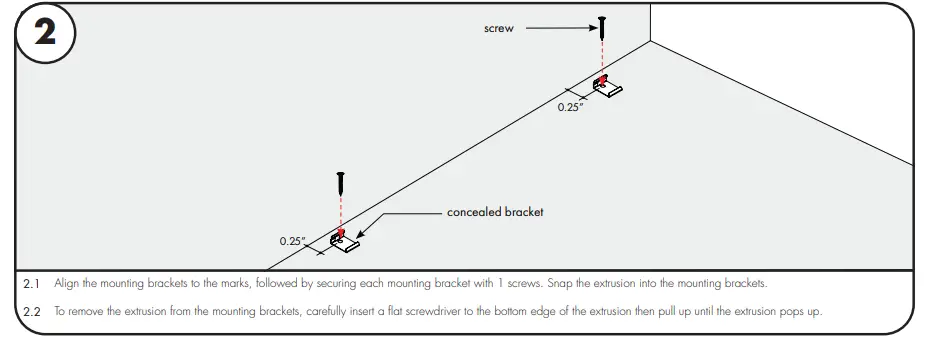

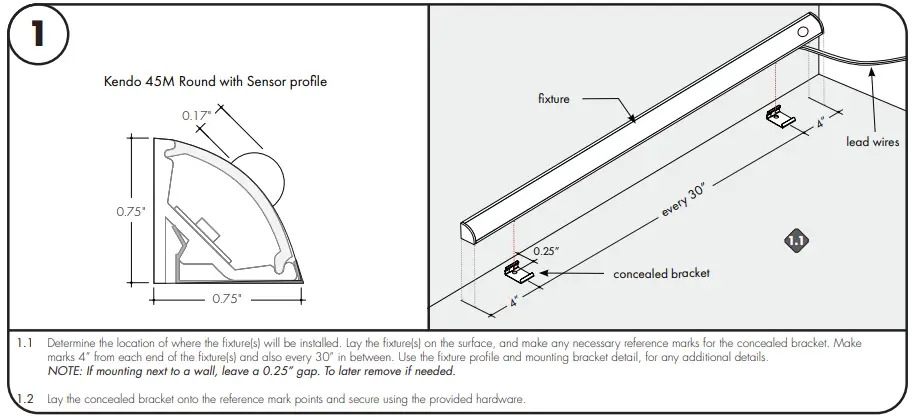

Mounting bracket installation
- Product to be installed by a qualified electrician.
- Use only with class 2 power unit
- 24 volts DC
- Suitable for damp locations
- Surface mount only
- Suitable for installation within the closet storage space

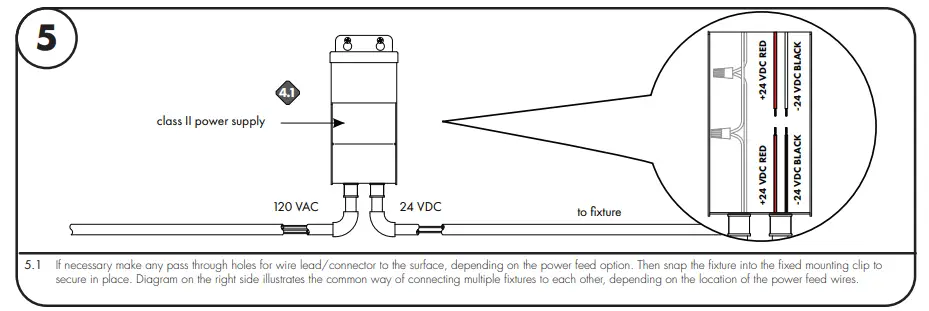

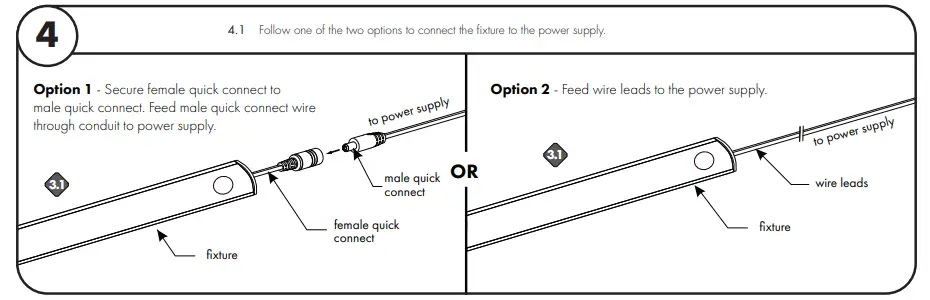

Connect to Power

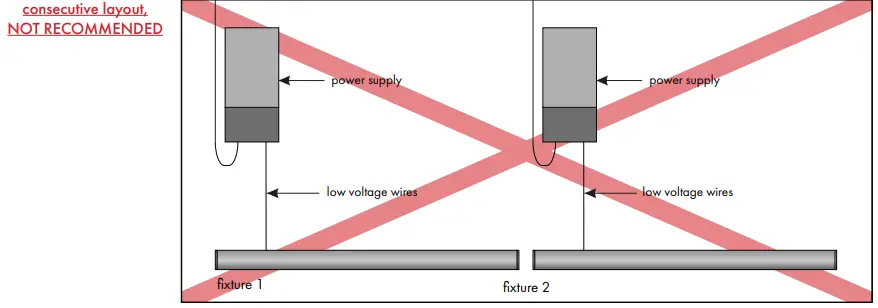

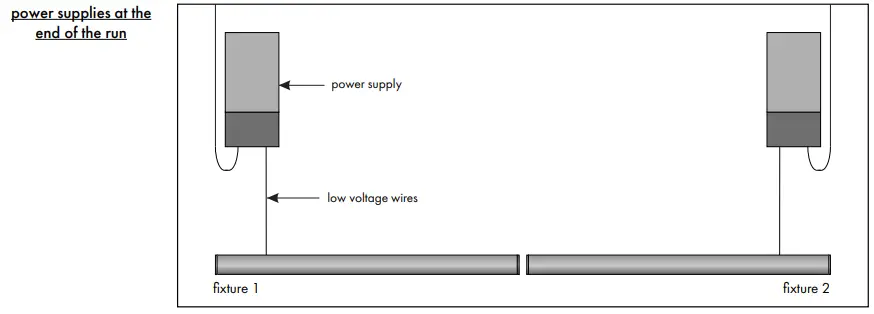

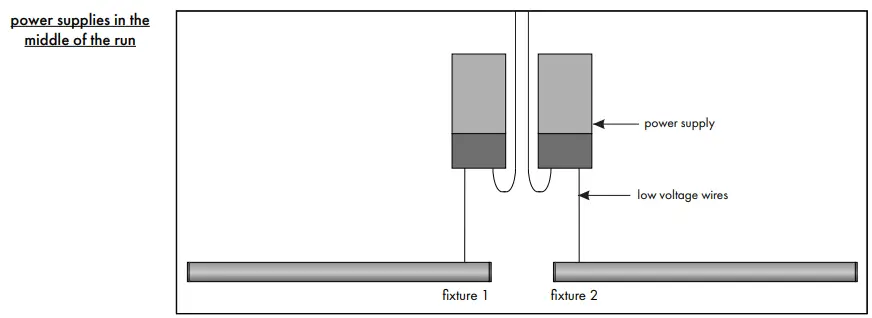

Power feed layout guide

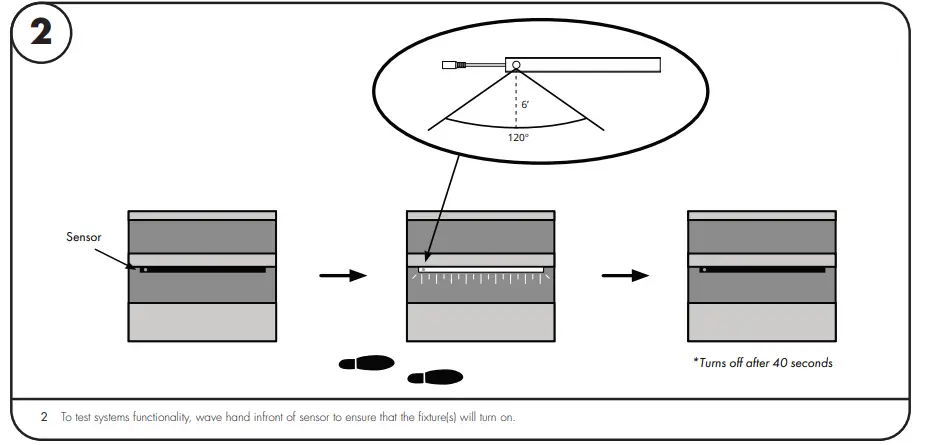

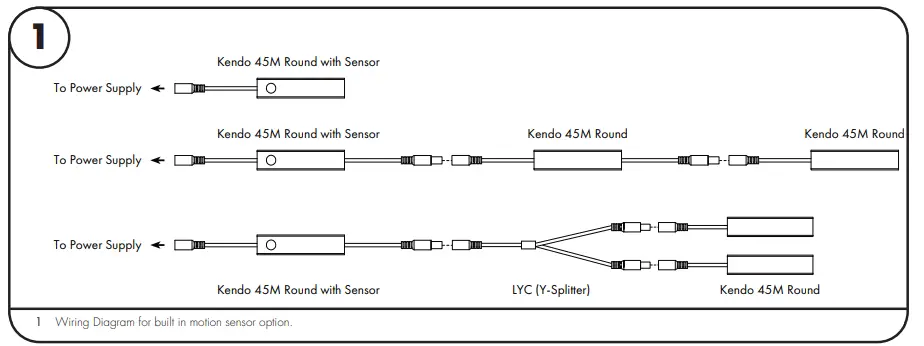

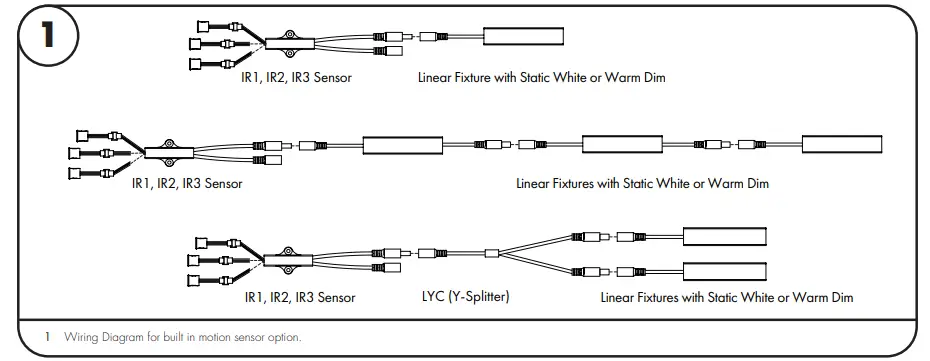

Option 1: With Internal Sensor
Option 2: With External Sensor
*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATIONS WITHOUT NOTICE
