CLAW /CLAW MINI MOUNTING INSTRUCTIONS
Instruction Manual
Claw Mini Waterproof Tail Bag
STEP 1

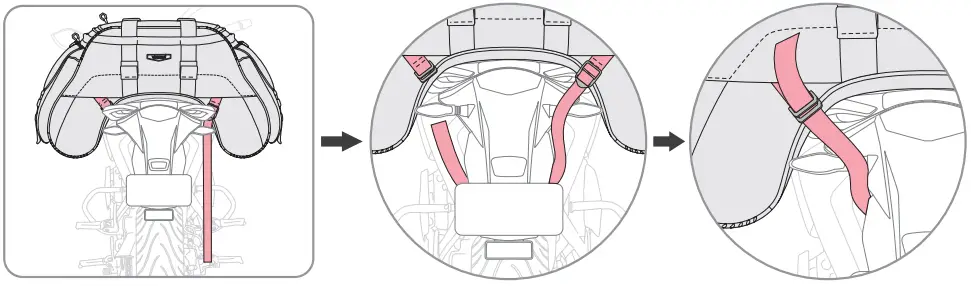

| Place the Claw / Claw Mini on the pillion seat. Pull the straps to far end on the right side which has the ladder lock | Wrap the strap around a non-moving point such as rear indicator, back rest or the tailtidy. | Mini Pass the other end of the strap through both the D rings |
 | ||

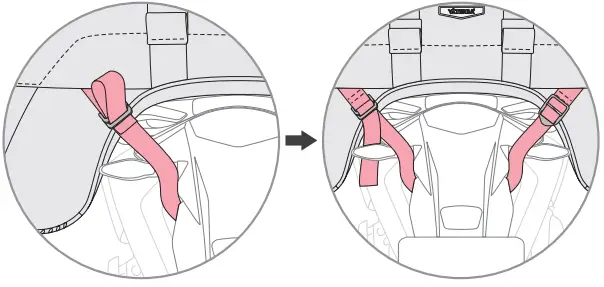

Then pass the strap over the top D ring and then through the bottom D ring and pull the strap to lock it.
Cut off the excess strap and burn the ends to avoid the strap from fraying.
If needed pull the other end on the RHS ladder lock to adjust the tension.
STEP 2

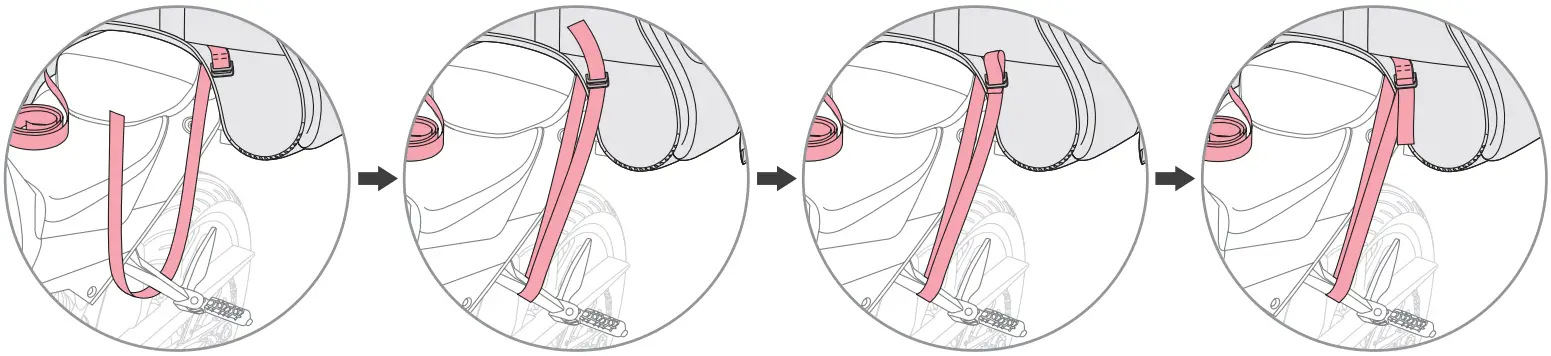

On the forward side, take the strap around a non- moving point such as the footrest
Pass the other end of the strap through both the D rings. Then pass the strap over the top D ring and then through the bottom D ring and pull the strap to lock it.
Cut off the excess strap and burn the ends to avoid the strap from fraying. If you plan to use this bag on multiple bikes do not cut the excess strap rather tie a knot to avoid the loose end from getting stuck on the chain or the wheel.
https://vimeo.com/695981241
Scan this QR code to watch more detailed step by step mounting instruction video
