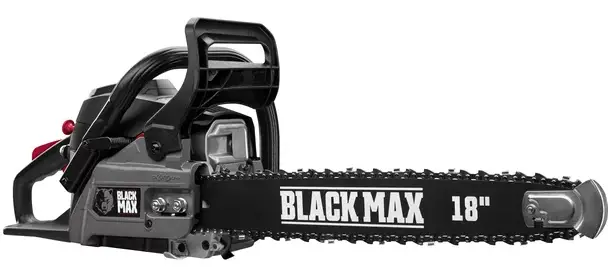

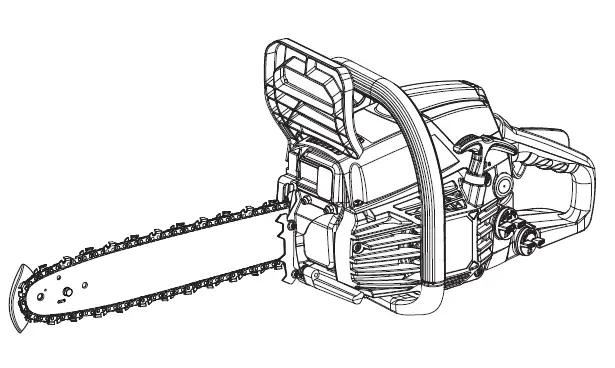

BLACK MAX BM3818VNM 38cc Chain Saw
INSTALLATION INSTRUCTION
| REPAIR SHEET | ||
| BRAND | DESCRIPTION | |
| BLACK MAX | ||
| MODEL NO. | MFG. NO. | |
| BM3818 BM3818VNM | 090382407 095382407, 095382415, 095382417 | 38cc Chain Saws |
| BM3716 | 090382408 | |
| BM3716VNM | 095382408, 095382416, 095382418 | |
|
| ||
HART CONSUMER PRODUCTS, INC.
P.O. Box 1348, Anderson, SC 29622
- 1-800-726-5760
- www.blackmaxtools.com 3-9-22 (Rev:04) The model number and manufacturing location will be found on a label attached to the product. Always mention this information in all communications regarding this product and when ordering parts.
BM3818/BM3818VNM/BM3716/BM3716VNM
PARTS LIST

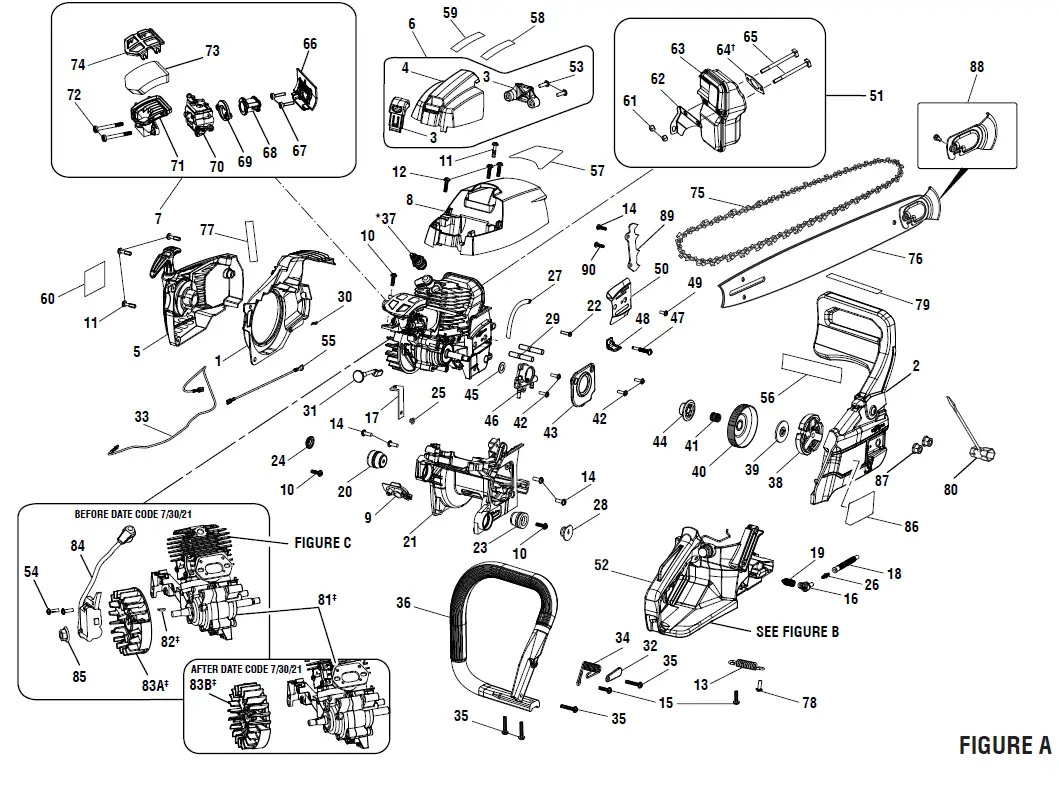

PARTS LIST| KEY NO. | PART NO. | DESCRIPTION | QTY. | KEY NO. | PART NO. | DESCRIPTION | QTY. | |||
| 1 | 533483002 | Cylinder Baffle | 1 | 29 | 660503006 | Bar Stud (5/16-18 x 23.5 mm /5/16-18 x 18 mm) | 2 | |||
| 2 | 313866007 | Clutch Cover Assembly (Inc. Key Nos. 56, 79, & 86, BM3716 & BM3716VNM) | 1 | 30 | 631034001 | Hair Pin | 1 | |||
| 31 | 518415008 | Choke Rod | 1 | |||||||
| 313866006 | Clutch Cover Assembly (Inc. Key Nos. 56, 79, & 86, BM3818 & BM3818VNM) | 1 | ||||||||
| 32 | 678332001 | Damper Plate | 1 | |||||||
| 33 | 291894001 | Lead Wire Assembly (Red) | 1 | |||||||
| 3 | 314046001 | Carburetor Cover Latch and Bracket Assembly | 1 | |||||||
| 34 | 678322001 | Damper Spring | 1 | |||||||
| 4 | 532595004 | Carburetor Cover Housing | 1 | |||||||
| 35 | 660918002 | Screw (M5 x 27 mm, T25 Torx Pan Hd.) | 4 | |||||||
| 5 | 313867004 | Starter Housing Assembly (Inc. Key Nos. 60 & 77) | 1 | |||||||
| 36 | 518691001 | Handle | 1 | |||||||
| 6 | 313868004 | Carburetor Cover Assembly (Inc. Key Nos. 58-59) | 1 | |||||||
| 37 | 870174002 | * | Spark Plug (Torch/L7RTC) | 1 | ||||||
| 7 | 311457003 | Intake Assembly | 1 | |||||||
| 38 | 310535001 | Clutch | 1 | |||||||
| 8 | 313869004 | Cylinder Housing Assembly (Inc. Key No. 57) | 1 | |||||||
| 39 | 678313002 | Thrust Plate | 1 | |||||||
| 9 | 518417001 | Grommet | 1 | |||||||
| 40 | 309418001 | Clutch Drum | 1 | |||||||
| 10 | 660918003 | Screw (M5 x 16 mm, T25 Torx Pan Hd.) | 3 | |||||||
| 41 | 681933001 | Clutch Drum Needle Bearing | 1 | |||||||
| 11 | 660637001 | Screw (M5 x 22 mm, T25 Torx Pan Hd.) | 4 | |||||||
| 42 | 660916003 | Screw (M4 x 14 mm, T20 Torx Pan Hd.) | 4 | |||||||
| 12 | 660918001 | Screw (M5 x 14 mm, T25 Torx Pan Hd.) | 3 | |||||||
| 43 | 518414001 | Oil Pump Cover | 1 | |||||||
| 13 | 678321001 | Damper Spring | 1 | |||||||
| 44 | 518865001 | Oil Pump Drive Gear | 1 | |||||||
| 14 | 660917003 | Screw (M5 x 0.8 mm, T25 Torx Pan Hd.) | 5 | |||||||
| 45 | 638289001 | Washer (ID10.2 x OD18 x 1t) | 1 | |||||||
| 15 | 660918004 | Screw (M5 x 14 mm, T25 Torx Pan Hd.) | 2 | |||||||
| 46 | 309516001 | Oil Pump | 1 | |||||||
| 16 | 561421001 | Oil Filter Grommet | 1 | |||||||
| 47 | 660931001 | Screw (M4 x 33 mm, T25 Torx Pan Hd.) | 1 | |||||||
| 17 | 901376002 | Band Stopper | 1 | |||||||
| 48 | 631035004 | Chain Catcher | 1 | |||||||
| 18 | 561449001 | Pipe In Oil Pump Rubber | 1 | |||||||
| 49 | 660916001 | Screw (M4 x 12 mm, T20 Torx Pan Hd.) | 1 | |||||||
| 19 | 678407001 | Cone Spring | 1 | |||||||
| 50 | 638309003 | Chain Guard Plate | 1 | |||||||
| 20 | 561428001 | Rubber Damper | 1 | |||||||
| 51 | 311458001 | Exhaust Assembly | 1 | |||||||
| 21 | 518442004 | Engine Case | 1 | |||||||
| 52 | 307246012 | Chassis & Handle Components | 1 | |||||||
| 22 | 518411001 | Pin (Oil Pump Outlet) | 1 | |||||||
| 53 | 660922001 | Screw (M4 x 10 mm, T20 Torx Pan Hd.) | 2 | |||||||
| 23 | 561426001 | Damper Rubber | 1 | |||||||
| 54 | 660916003 | Screw (M4 x 14 mm, T20 Torx Hd.) | 2 | |||||||
| 24 | 518435001 | Damper Cap | 1 | |||||||
| 55 | 291893001 | Lead Wire Assembly (Black) | 1 | |||||||
| 25 | 678320001 | Eyelet | 1 | |||||||
| 56 | 941009094 | Chain Brake Label (BM3716 & BM3716VNM) | 1 | |||||||
| 26 | 518413001 | Joint For Pipe In Comp | 1 | |||||||
| 941009095 | Chain Brake Label (BM3818 & BM3818VNM) | 1 | ||||||||
| 27 | 563968002 | Oil Pump Rubber Tube (Outlet) | 1 | |||||||
| 57 | 941009044 | Warning Label | 1 | |||||||
| 28 | 518434001 | Damper Cap (T) | 1 | |||||||
PARTS LIST — FIGURE A (cont.)
| KEY NO. | PART NO. | DESCRIPTION | QTY. | KEY NO. | PART NO. | DESCRIPTION | QTY. | ||||
| 58 | 941166026 | Starting Label (Right) | 1 | 77 | 940654088 | Combustion Warning Label | 1 | ||||
| 59 | 941009097 | Starting Label (Left) | 1 | 78 | 660917002 | Screw (M5 x 14 mm., T25 Torx Pan Hd.) | 1 | ||||
| 60 | 941009096 | Starting House Label | 1 | 79 | 941009045 | Pull To Release Brake Label | 1 | ||||
| 61 | 678311001 | Hex Nut (M5, Muffler) | 2 | 80 | 631055005 | Combination Wrench | 1 | ||||
| 62 | 638293004 | Muffler Bracket | 1 | 81 | 309893007 | ‡ | Short Block | 1 | |||
| 63 | 309377006 | Muffler | 1 | 82 | 690688001 | ‡ | Woodruff Key (Used with Key 83A only) | 1 | |||
| 64 | 901380001 | † | Gasket (Muffler) | 1 | 83A | 309001004 | ‡ | Flywheel Assembly (B.D.C. 7/30/21) | 1 | ||
| 65 | 660915001 | Screw (M5 x 62 mm, Square Hd.) | 2 | 83B | 309001005 | ‡ | Flywheel Assembly (A.D.C. 7/30/21) | 1 | |||
| 66 | 518864003 | Heat Dam | 1 | 84 | 309266003 | Ignition Assembly | 1 | ||||
| 67 | 662395001 | Bolt (M9 x 19 mm, T25 Torx Pan Hd.) | 2 | 85 | 690689001 | Hex Flange Nut (M8) | 1 | ||||
| 68 | 570243003 | Intake Boot | 1 | 86 | 941166024 | Bar Cover Label | 1 | ||||
| 69 | 678694002 | Intake Bracket | 1 | 87 | 678339003 | Hex Nut (5/16-18) | 2 | ||||
| 70 | 308054203 | Carburetor Assembly | 1 | 88 | 314926002 | Bar Nose Kit | 1 | ||||
| 71 | 518465002 | Air Box Base | 1 | 89 | 631039002 | Bucking Spike | 1 | ||||
| 72 | 660454015 | Screw (M5 x 44 mm,T25 Torx Hd. Carburetor) | 2 | 90 | 660917004 | Screw (M5 x 11 mm, T25 Torx Hd.) | 1 | ||||
| 73 | 560873013 | Foam Air Filter | 1 | Not Shown: | |||||||
| 74 | 534173001 | Air Filter Retainer | 1 | 995000939 | Operator’s Manual | ||||||
| 75 | 901361002 | 16 in. Chain (3/8LP, 56DL, BM3716 & BM3716VNM) | 1 | 580527001 | 16 in. Scabbard (BM3716 & BM3716VNM) | ||||||
| 901361003 | 18 in. Chain (3/8LP, 56DL, BM3818 & BM3818VNM) | 1 | 580464002 | 18 in. Scabbard (BM3818 & BM3818VNM) | |||||||
| 76 | 315339001 | 16 in. Guide Bar Assembly (Inc. Key No. 88, BM3716 & BM3716VNM) | 1 | 308552007 | Carrying Case (BM3818 & BM3818VNM) | ||||||
| 315338001 | 18 in. Guide Bar Assembly (Inc. Key No. 88, BM3818 & BM3818VNM) | 1 | |||||||||
BM3818/BM3818VNM/BM3716/BM3716VNM

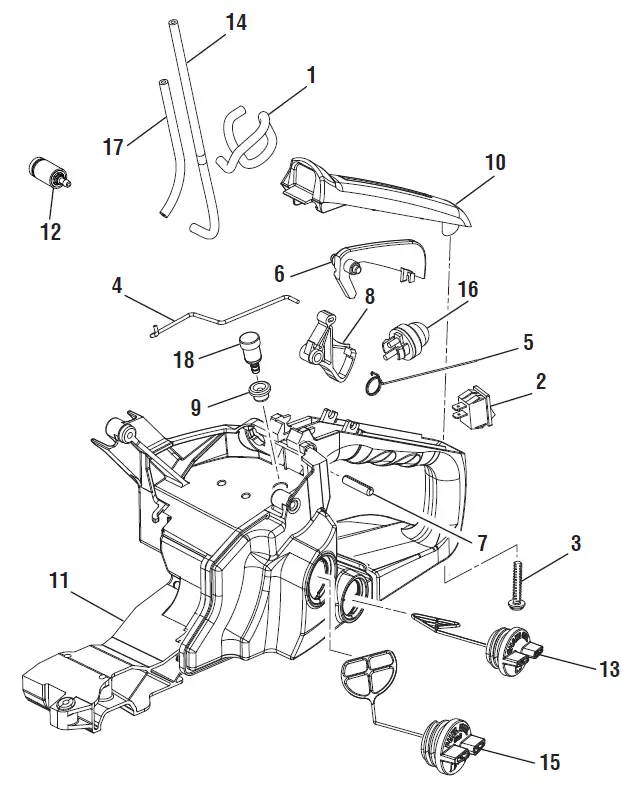

PARTS LIST — FIGURE B
| KEY NO. | PART NO. | DESCRIPTION | QTY. |
| 1 | 570373019 | Fuel Hose (Primer Assembly to Carburetor, 160 mm) | 1 |
| 2 | 760961009 | Switch | 1 |
| 3 | 660918002 | Screw (M5 x 27 mm, T25 Torx Pan Hd.) | 1 |
| 4 | 638295001 | Throttle Rod | 1 |
| 5 | 678325001 | Throttle Spring | 1 |
| 6 | 518428007 | Safety Lockout | 1 |
| 7 | 638296001 | Spring Pin | 1 |
| 8 | 518466007 | Trigger | 1 |
| 9 | 561424001 | Grommet | 1 |
| 10 | 518429001 | Grip Cover | 1 |
| 11 | 308550006 | Handle | 1 |
| 12 | 300759011 | Fuel Filter Assembly | 1 |
| 13 | 308612006 | Chain Oil Cap | 1 |
| 14 | 562967003 | LP-1500 Tubing (205.00 mm) | 1 |
| 15 | 308611005 | Fuel Cap Assembly | 1 |
| 16 | 300780003 | Primer Assembly | 1 |
| 17 | 570373017 | Fuel Hose (Primer Assembly to Tank, 153 mm) | 1 |
| 18 | 308583001 | Fuel Breather Assembly | 1 |

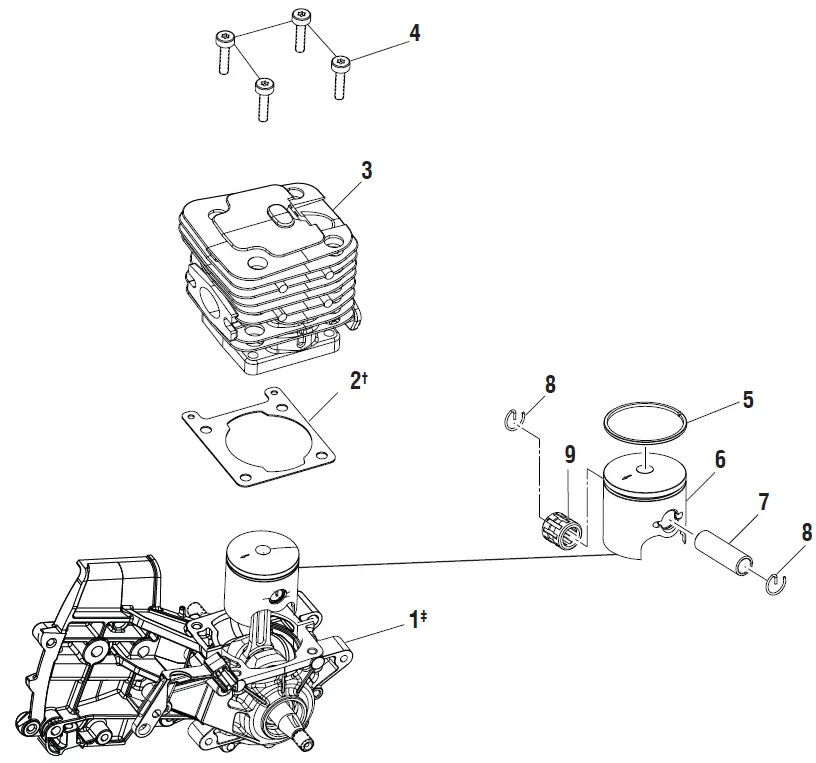

PARTS LIST — FIGURE C
| KEY NO. | PART NO. | DESCRIPTION | QTY. | |
| 1 | 311455002 | ‡ | Crankcase & Crankshaft Assembly | 1 |
| 2 | 903036002 | † | Crankcase Gasket | 1 |
| 3 | 640213001 | Cylinder | 1 | |
| 4 | 660613003 | Screw (M5 x 20 mm, T25 Torx Hd.) | 4 | |
| 5 | 698288001 | Piston Ring | 2 | |
| 6 | 309120005 | Piston | 1 | |
| 7 | 620719001 | Piston Pin | 1 | |
| 8 | 678077001 | Piston Pin Clip | 2 | |
| 9 | 678078002 | Needle Bearing | 1 | |
- Non-Reusable Parts
- When replacing key 1, models before date code 7/30/21 must also order key 83B Flywheel Assembly on page 4. This assembly has an integrated key, so your existing Woodruff Key will no longer be needed.
