Instructions for use
Air fryer
Art. 7420.42

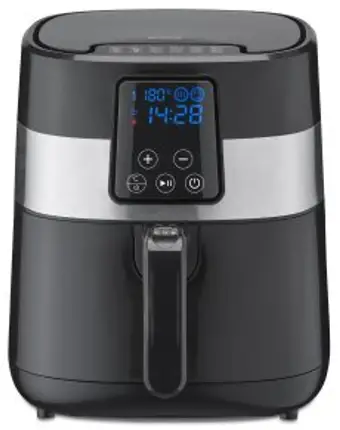

7420.42 Air Fryer
Use
Uporaba naprave
Safety instructions
Mains connection: The voltage must comply with that shown on the appliance label.- Always switch off the device and plug out the power cable whenever you leave it unattended, before assembling / disassembling, cleaning, when it fails to work properly, after use. The plug must be within reach at all times.
- Regulary check if the power cable / appliance / extension lead is defective. Never switch on damaged appliances (incl. mains lead) – have repairs carried out / obtain replacement from the manufacturer, the manufacturer’s service point or from qualified experts. Never open the appliance yourself – risk of injury!
- Never carry or pull the appliance by the flex. Don’t pull the flex over sharp edges. Don’t wedge it. Don’t bend it. A short circuit can occur if the cable breaks.
- Switch the appliance off and pull the plug out of the mains when it is not in use. Don’t wind the flex around the appliance. Never pull on the mains cable / with damp hands.
- Never immerse appliance in water / other fluids. Danger of short-circuiting!
Children aged 8 years or over and persons with reduced physical, sensory or mental capabilities, lack of experience or knowledge may only use the appliance if they are supervised by a person who is responsible for their safety or if they have been shown how to use the appliance safely and they have understood the risks inherent in its use. Cleaning and maintenance tasks may not be carried out by children without supervision.- Children should not be allowed to play with the appliance. Keep the appliance and its power cable out of reach of children aged under 8. Never leave the appliance unattended while in operation.
- Keep packaging (e.g. plastic bags) away from children.
- Never place the appliance / cable on hot surfaces or near open flames. Do not store / expose the appliance to intense heat (from radiators, prolonged sunshine). Only extinguish burning appliances using a fire blanket.
- Do not use attachments not recommended / sold by the manufacturer.
- The appliance is designed for household use and not for industrial operation. Do not operate the appliance outdoors.
- Use the appliance on a dry, even, stable and heat resistant surface. Allow appliance to cool before storing away.
Do not use this appliance near the water (bath-tubs, washbasins, etc.) nor expose it to rain or other humidity. Ensure hands are dry when using appliance!- Should however the appliance fall into water, only take it out after pulling the plug. Do not use the appliance anymore. It has to be checked by an authorized service department first.
Only trained experts should repair electrical appliances. Unskilled repairs can cause considerable danger to the user.- No warranty for any damage can be accepted if the appliance is used for improper purpose, wrongly operated or unprofessionally repaired. In such a case, any warranty claim is void.
- The appliance is not intended to be operated or connected to an external timer or separate remote control switch.
- Never place fingers or objects into appliance openings. Do not cover appliance opening.
- A heat-resistant cloth (cotton) under the appliance base prevents stains on the table.
- Hot steam is released through the air outlets while in use. Keep hands and face away from outlets – risk of scalding!
- Do not cover air outlets and appliance with covers, cloths or objects while in use – fire hazard!
Never touch appliance / deep frying basket while hot – otherwise you may burn yourself!- Never move appliance when filled.
Disposal
- Make worn out appliances unusable. Pull out the mains plug and sever the cord. Electric appliances are to be returned to a shop of sale or handed over to an official dump. No household waste. Must be disposed of in accordance with local regulations.
Welcome
Please read all the information provided in these instructions. Keep the instructions in a safe place and pass them on to further users. The appliance must only be used for the intended purpose according to these instructions. Observe the notes on safety regulations. Appliance is best operated using an RCD (max. 30 mA).

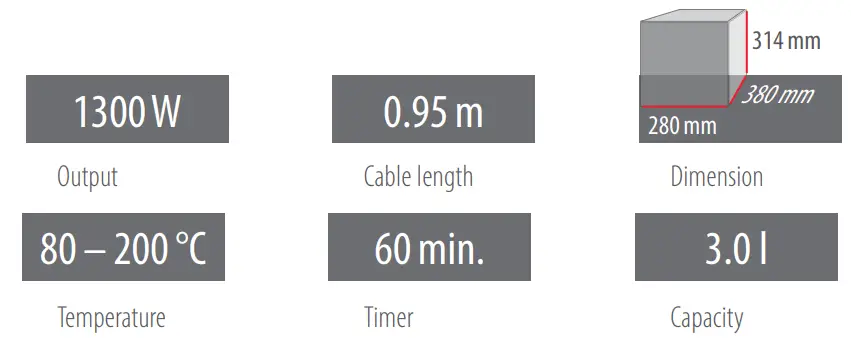

Technical data
Appliance description
Before using the appliance for the first time
Control
Check appliance and attachments for completeness / damage and proper functioning.

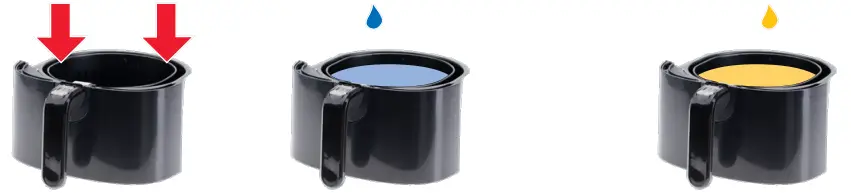

Preparation
 | ||

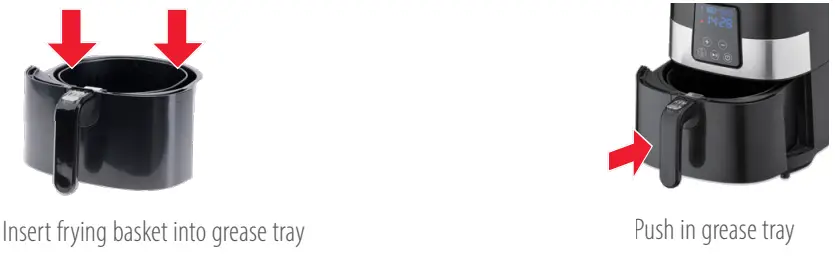

| Insert frying basket | Pour water into grease tray | If required: Add washing up liquid, vinegar or lemon juice |
Boiling
 | |
| Push in grease tray | Heat up appliance |
Residue from manufacturers is burned. Smell / smoke may develop – open a window!
Cleaning
Allow to cool, clean appliance (see «Cleaning», p. 44)
Important advices
- Excess oil from foodstuffs collects at the bottom of the grease tray.
- Do not cook any extremely fatty foods (e.g. sausages) in the air fryer.
- Do not pour any oil into the grease tray – fire hazard!
- Degree of crispiness depends on the water content of the potatoes, their thickness as well as the amount of oil brushed onto them.
- Small snacks that are cooked in the oven can also be cooked in the air fryer. Turn food occasionally while cooking to ensure it bakes evenly.
- To obtain a regular frying result, turn the food once in a while. Better results are achieved by cooking in smaller batches.
Use

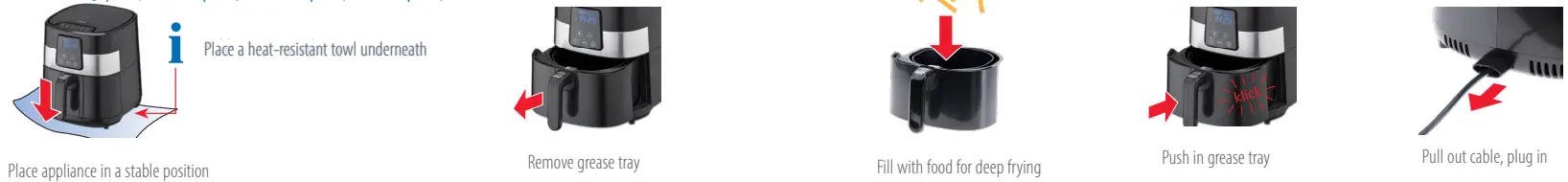

Preparation
Leave a gap of at least 10 cm on all sides.

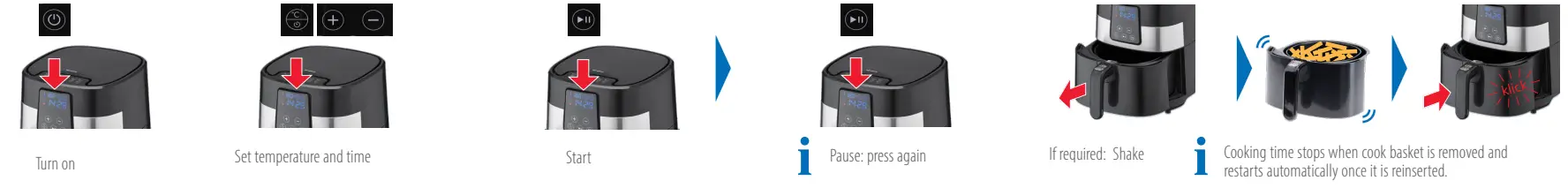

Prepare
Do not cover the appliance during operation – the air flow will be interrupted and the frying results will be impaired.

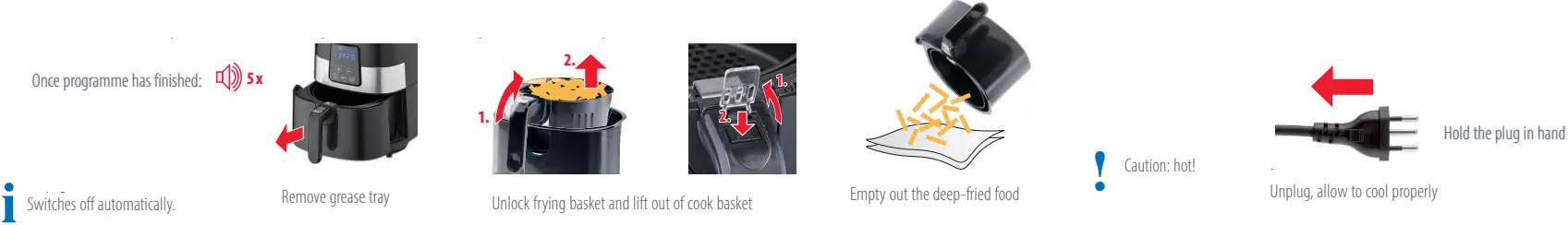

After processing
Table for deep frying
| Foods | Volume | Temperature | Deep frying time (min.) |
 Frozen chips | 300 g – 400 g | 200 °C | 15 – 20 |
| Shrimps | 100 g – 500 g | 180 °C | 10 – 18 |
| Fish | 100 g – 500 g | 200 °C | 18 – 22 |
| Chicken drumsticks | 100 g – 600 g | 200 °C | 15 – 22 |
| Steak / Chops | 100 g – 500 g | 200 °C | 15 – 20 |
| Chicken nuggets | 100 g – 600 g | 200 °C | 6 – 10 |
| Spring rolls | 100 g – 500 g | 200 °C | 10 – 15 |
| Stuffed vegetables | 100 g – 500 g | 160 °C | 10 – 15 |
 Muffins | 400 g | 180 °C | 15 – 18 |
| Heat up | 100 g – 500 g | 150 °C | 5 – 10 |
Use baking tin Shake occasionally Do not press the release button when shaking. Please note that temperatures and cooking times given are only guidelines. If the appliance is still cold, cooking time can be extended by up to 5 mins. If necessary, fry the food longer to obtain the desired result.
For preparing dishes in liquids: the drip tray can be used without the frying basket.
Warning: hot! – Remove tray with caution.
Cleaning
Always unplug the power plug and allow appliance to cool prior to cleaning.

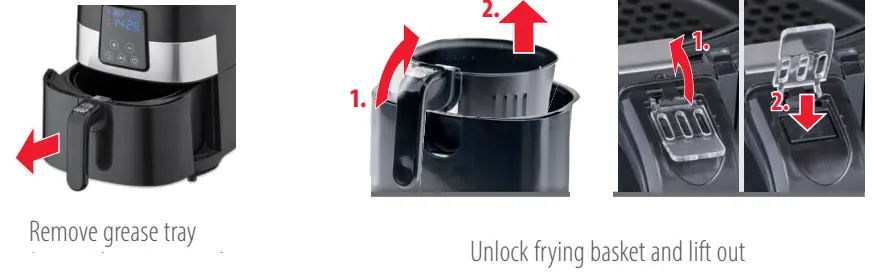

Dismantling the appliance
Clean appliance
Clean using washing-up water or water with a little vinegar, dry off. To loosen heavy soiling: pour warm washing-up water into grease tray, insert frying basket and leave to soak for 10 mins. The drip tray and frying basket are dishwasher safe.
Can be wiped with a damp cloth, then dried.
Do not use scourers or solvents. Never immerse the appliance in water.
Assemble appliance
Store in a dry, dust-free place, protected from frost and out of the reach of children.
Problem / Cause |
Appliance not working
– Is the appliance plugged in / switched on?
– Is the fuse defective?
– Has the programme started?
Preparation not satisfactory
– Is the preparation / processing of the food incorrect?
– Quantity incorrect?
Note………..
Warranty information
With this appliance you get a 5 year guarantee starting from the date of purchase. Under the guarantee, in the case of material or manufacturing defects, the appliance will be replaced or repaired. Replacement with a new appliance or money back return is not possible. Excluded from the guarantee is normal wear and tare, commercial use, alterations to the appliance as purchased, cleaning activities, consequences of improper use or damage by the purchaser or a third person, damage, that can be attributed to external circumstances or caused by the batteries. The guarantee requires that the faulty appliance be returned at the purchaser’s expense along with the retail outlets dated and signed guarantee card or a sales receipt.
Service & support
www.trisaelectronics.ch
In accordance with the European guidelines for safety and EMC.
We reserve the right to make changes in design, equipment, technical data as well as errors.
