Skybound Acc-ldr04-001 3 Step Ladder User Manual

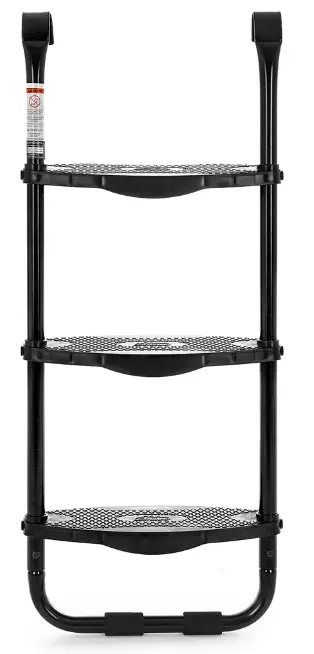

skybound ACC-LDR04-001 3 Step Ladder

WARNING

1. Do not use trampoline ladder if children are under 6 years of age.
2. Remove trampoline ladder when trampoline is not in use
3. Max user weight:330Lbs.

PARTS

STEP LADDER ASSEMBLY

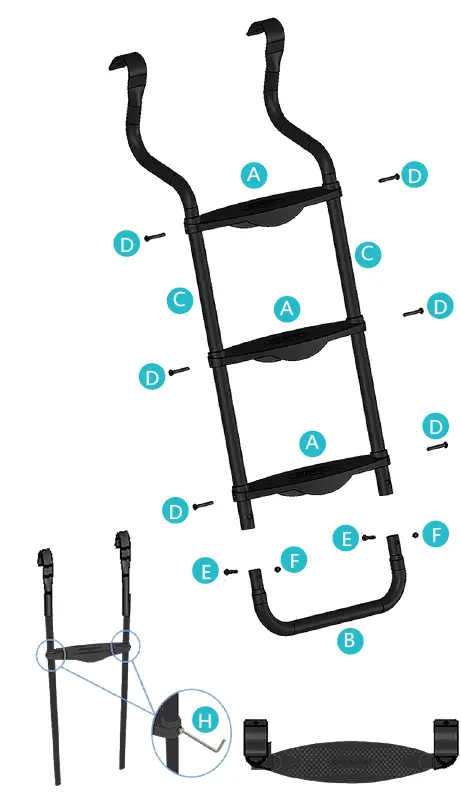

DIAGRAM 1

Reference Diagram 1 to proceed with the installation:

1. Install Part A (Steps) to the corresponding positions. Note that Part D (Long Screws) should not be fully tighten until the end of the installation process.
2. Insert Part B (Ladder Base) into Part C (Ladder Frame).
3. Align Part F (Nuts) with the hole position first, and then install Part E (Short Screws) and tighten.
4. Install Part D (Long Screws) from the top to the bottom and tighten.

DIAGRAM 2

Reference Diagram 2 to proceed with the installation:

1. Insert Part G (Elastic Rope) through the opening of the top of Part C (On the Hook of the ladder frame).
2. Loop the elastic rope around the frame of the trampoline.
3. End of the elastic rope must be wrapped around the ball.

Make sure that the SkyBound logo is facing front while the handlebars are facing back

For customer service, please contact: 888-891-4689
Monday through Friday
8:00 am to 5:00 pm PST
or visit www.SkyBoundUSA.com [email protected]
