Fire Legend
YOUR PALM-SIZED
PORTABLE HOME
THEATER

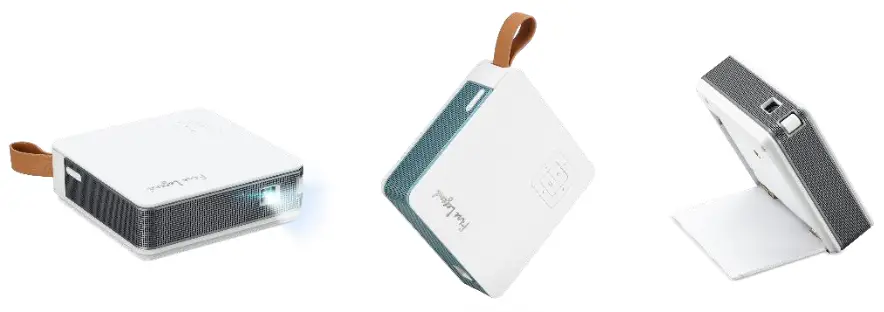

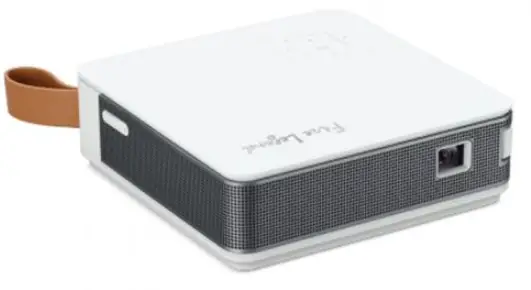

Fire Legend PV12

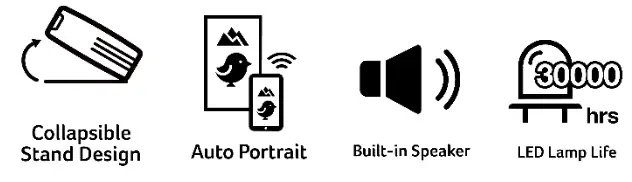

Superior LED lighting
Auto Portrait Mode 1
Collapsible Stand Design
Palm-sized portable projector
Wireless projection
Variable Refresh Rates
| Model name | PV12 |
| Display panel | Single LCD |
| Light source | LED |
| Resolution | Native 480p (854 x 480) Maximum UXGA (1,600 x 1,200) |
| Brightness | 700 Lumens (LED brightness) 150 Lumens (Standard) |
| Aspect ratio | 16:9 (Native), 4:3 (Supported) |
| Contrast ratio | 5,000:1 |
| Throw ratio | 1.3 (70@2m) |
| Projection lens | F = 1.60, f = 5.02mm, Manual Focus |
| Keystone | +/-25° (Vertical, Manual & Auto), +1-14° (Horizontal, Manual) |
| Lamp life | 20,000 Hours (Standard), 30,000 Hours (ECO) |
| Battery Run time | 5 Hours (ECO), 2 Hours (Standard) |
| Speaker | 2W Speaker x 1 |
| Input interface | HDMI (Video, Audio, HDCP) x 1, USB (Type A) x 1, USB (Wireless dongle, Type A) x 1 |
| Output interface | DC 5V Out (USB Type A) x 1, share w/ input, Headphone Out (Stereo mini jack) x 1 |
| Power | DC input 15V via a 30W power adapter (AC input 100-240V, 50/60 Hz to DC 15V) |
| Dimensions | 115 x 115 x 36.3 mm (4.5″” x 4.5″” x 1.43″”)(w/ feet) |
| Weight | 440 g (0.97 Ibs) |
Feature Highlights
Expressive display
- LED light source
- 700 lumens LED light source 150 lumens brightness
- User-friendly UI
- Variable Refresh Rates
Remarkable portability
- Compact & size-friendly
- Built-in Bluetooth speaker
- 2W x 1 built-in speaker
- Collapsible Stand Design
- Instant-on/off
Hassle-free projection
- Auto Portrait mode

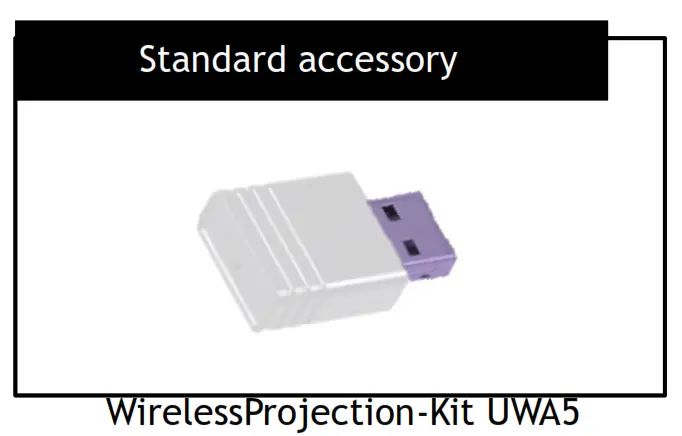

- Wireless Projection 1
- Mobile & PC USB display 2,3,4,5
- Multimedia playback
- 4-corner keystone
- Battery up to 5 hours with Eco-mode
Eco-friendly functionality
- Up to 30,000 hours lamp life
- Mercury-free
1-Support Miracast, Airplay, and EZ-cast mirroring.
2-Android 5.0 or above
3-iOS 12 or above
4-Win10
5-Mac OS 10.14 or above
Colors and specifications vary depending on model and/or region.
LED Light Source
LED lighting lets you enjoy outstanding color performance wide color gamut, creating vibrant visuals and delivering consistent colo saturation. Its greater bulb durability provides up to 30,000 hours long lifespan. In addition, by eliminating the potential pollution from mercury lamp disposal.
LED Light Source
LED lighting lets you enjoy outstanding color performance wide color gamut, creating vibrant visuals and delivering consistent colo saturation. Its greater bulb durability provides up to 30,000 hours long lifespan. In addition, by eliminating the potential pollution from mercury lamp disposal.
Auto Portrait mode
Normal projectors only allow you to project in one standard angle.
With Portrait mode, the PV12 lets you change your projection orientation on the fly! Portrait mode 1 allows the projector to be installed with one side of the projector facing down. Just stand it up, and the PV12 helps remove those pesky black bars when you enter portrait mode*.
Multimedia playback
Projection can be this easy! Project your content directly from a plugged-in USB drive or MicroSD card. No extra connected device is required. Play video or movie fast & easily.
The specifications depicted may be subject to change without prior notice.
All trademarks are copyright of their respective owners. © AOPEN Inc.
*This is a co-branded model from Aopen and Acer More information is at www.aopen.com.
