Hama 00186312 Weather Station Color Edge Instruction Manual

00186312

Weather Station Color Edge
Wetterstation

Operating instruction

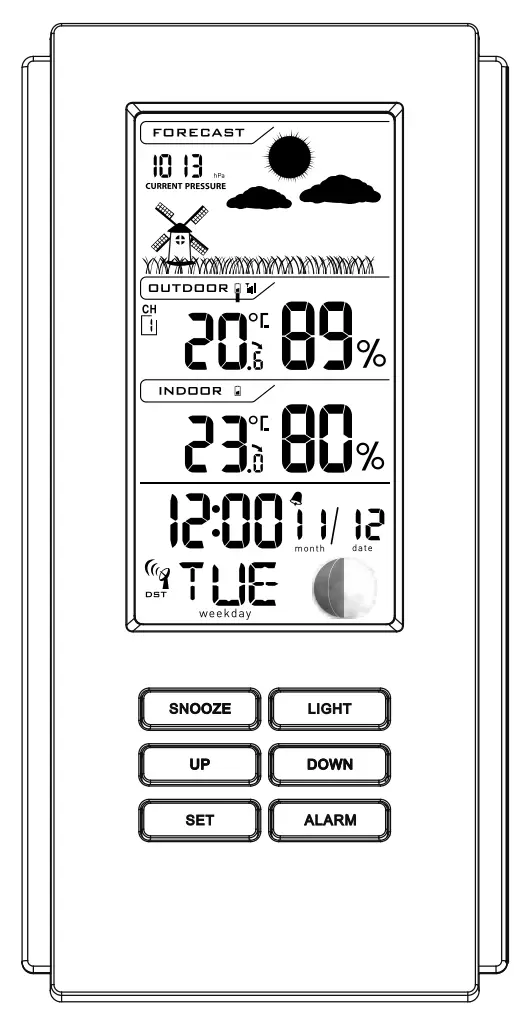

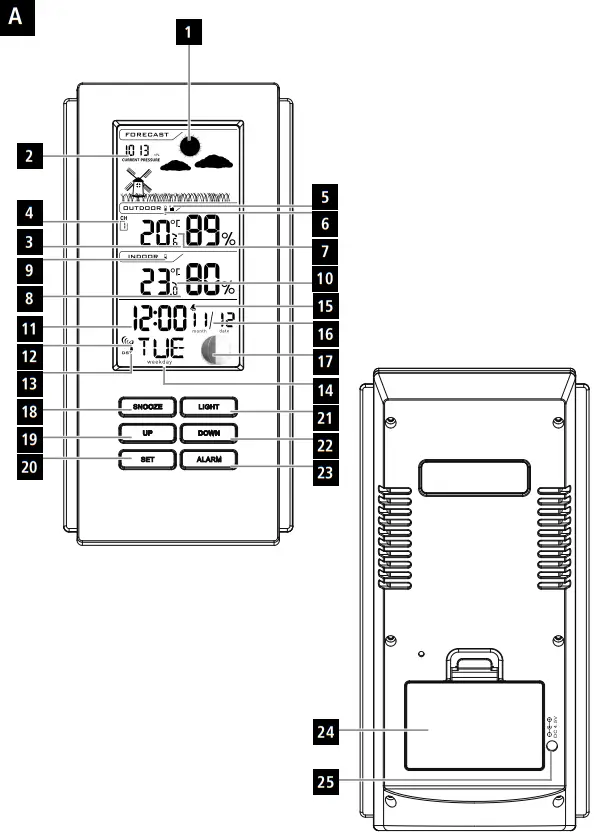

A Base station

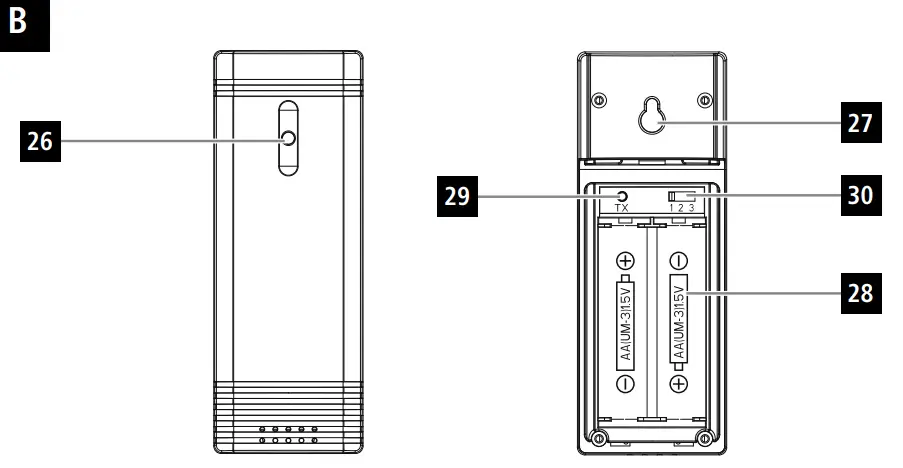

B Measuring station

Explanation of Warning Symbols and Notes

Warning
This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note
This symbol is used to indicate additional information or important notes.

Package Contents

• Color Edge weather station (base station for indoors/measuring station for outdoors)
• 3AAA batteries
• 2AA batteries
• These operating instructions

Safety Notes

• The product is intended for private, noncommercial use only.
• Do not operate the product outside the power limits given in the specifications.
• Do not use the product in moist environments and avoid splashes.
• Do not use the product in the immediate vicinity of heaters or other heat sources or in direct sunlight.
• Do not use the product in areas where the use of electronic devices is not permitted.
• Do not place the product near interference fields, metal frames, computers, TVs, etc. Electronic devices and window frames can negatively affect the functionality of the product.
• Do not drop the product and do not expose it to any major shocks.
• Do not open the device or continue to operate it if it becomes damaged.
• Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts.
• Keep the packaging material out of the reach of children due to the risk of suffocation.
• Dispose of packaging material immediately according to locally applicable regulations.
• Do not modify the product in any way.Doing so voids the warranty.
• Protect the product from dirt, moisture, and overheating, and only use it in an adry environment.
• Keep this product, like all electrical products, out of the reach of children!
• Use the item only in moderate climatic conditions.

Warning –Batteries

• When inserting batteries, note the correct polarity (+ and -markings) and insert the batteries accordingly.  Failure to do so could result in the batteries leaking or exploding.
• Only use batteries (or rechargeable batteries) that match the specified type.
• Before you insert the batteries, clean the battery contacts and the polar contacts.
• Do not allow children to change batteries without supervision.
• Do not mix old and new batteries or batteries of a different type or make.
• Remove the batteries from products that are not being used for an extended period (unless these are being kept ready for an emergency).
• Do not short-circuit batteries.
• Do not charge batteries.
• Do not throw batteries in a fire.
• Keep batteries out of the reach of children.
• Never open, damage, or swallow batteries or allow them to enter the environment. They can contain toxic,  environmentally harmful heavy metals.
• Immediately remove and dispose of dead batteries from the product.
• Avoid storing, charging, or using the device in extreme temperatures and extremely low atmospheric pressure(for example, at high altitudes).

Getting Started

Insert batteries

Note
Before use, ensure you insert the batteries in the measuring station first and then in the base station.
Measuring station

• Open the battery compartment (28) and
  remove the contact breaker.
• Then close the battery compartment cover.
• The status LED lights up.

Base station

• Open the battery compartment (24) and remove the contact breaker.
• Then close the battery compartment cover.

Replacing the batteries
Note –Replacing the batteries

• Note that the stations have to be resynchronized each time after you change the batteries in the measuring or base station.
• To do this, remove the batteries from the other station and then reinsert them, or change them as required.

Measuring station

• If the symbol isdisplayed (next to ‘OUTDOOR’), replace the two AA batteries of the measuring station with two new ones.
• Open the battery compartment (28), remove and properly dispose of the dead batteries and insert two new  AA batteries with the correct polarity. Then close the battery compartment cover.

Base station

• If the symbol is displayed (next to ‘INDOOR’), replace the three AAA batteries in the base device with new ones.
• Open the battery compartment (24), remove and properly dispose of the dead batteries and insert three new AAA batteries with the correct polarity. Then close the battery compartment cover (24).

Installation

Note –Installation

• We recommend initially placing the base and measuring stations in the intended locations without installing them and making all the settings described in 6. Operation –todo.
• Only install the stations once the appropriate settings have been made and a stable wireless connection is established.

Note

• The wireless transmission range between the measuring station and base station is up to 30 min open spaces.
• Before installation, ensurethat wireless transmission will not be disrupted by interference or obstacles like buildings, trees, vehicles, high-voltage lines, etc.
• To avoid transmission interference, do not operate adjacent wireless devices on the same frequency (433 MHz).
• Before the final installation, ensurethat there is sufficient reception between the intended installation locations.
• When installing the measuring station, ensurethat it is protected from direct sunlight and rain.
• The international standard height for measuring air temperatureis1.25 m(4ft) above ground.

Warning

• Buy special or suitable installation material from a specialized dealer for wall-mounting.
• Ensurethat no faulty or damaged parts are installed.
• Never apply force during installation. This could damage the product.
• Before installation, ensurethat the chosen wall is suitable for the weight to be mounted, and make sure that there are no electrical wires, water, gas, or other lines at the installation site on the wall.
• Do not mount the product above locations where persons might linger.

Base station

• Use the base to position the base station on a level surface.

Measuring station

• You can also position the measuring station on a level outdoor surface.
• We recommend installing the measuring station securely on an outdoor wall using the recess (27).
• Install an anchor, screw, nail, etc. in the wall of your choice.
• Hang up the base/measuring station using the opening (27) intended for this purpose.

Operation

Connection to the measuring station

• When the batteries have been inserted, the base station automatically searches for a connection to the measuring station and to the radio signal.

Note

• The respective symbols will flash during the connection attemptsconnection to the measuring station connection to the DCF signal
• Do not press any buttons during setup. Otherwise, values may not be transmitted correctly and there is a risk of value errors and inaccuracies.
• Do not change the location of the base station during the search processes.
• The process is completed when the indoor (8) and outdoor (3) measurement data is displayed.

Basic and manual settings
Automatic setting using the DCF signal When the base station has been switched on for the first time and  successful transmission has been established between the base station and the measuring station, the clock will automatically search for the DCF signal. During the search, the radio symbol flashes.

Display	Search for the DCF signal
Flashing display Manual entry not possible!	Active
Constant display	Successful –signal is being received
No display	Inactive

If the station still does not receive the signal, press and hold the UP button (19) for approximately 3seconds to start the manual search for the DCF signal. The radio symbolstarts to flash.

Note –Time settings

• The search process can take up to 7 minutes. If it fails, the radio symbol will go out.
• In the meantime, however, you can set the time and the date manually.

Note –Time settings

• The clock automatically continues to search for the DCF signal on a daily basis (at 1 am and 5 am). If the  signal is received successfully, the manually set time and date are overwritten.

Note –Summertime
The clock automatically switches to summer time DST appears on the display as long as summertime is activated.

Manual settings

• Press and hold the SET button (20) for approximately 3seconds to make the following settings one after  the other:
• Time zone (from -12to+12 hours CET)
• Hour
• Minute
• Year
• Month
• Day
• Unit of atmospheric pressure(hPaorinHg)
• Press the UP button (19) or DOWN button (22) to select your setting. Press the SET button (20) to confirm your entries.

Note –Timezone

• The DCF signal can be received over long distances, but always transmits the current Central European  Time in Germany.Make sure you account for the time difference in countries in other time zones.
• If you are in Moscow, the time is 3hours later than in Germany. This means that you should set +3 for the time zone. The clock then sets the time automatically to 3hours ahead after receiving the DCF signal or according to the manually set time.

Alarm

• Press and hold the ALARM button (23) for approximately 3seconds to set the time of the alarm displayed.  The hour’s display begins to flash.
• Press the UP button (19) or DOWN button (22) to select the hour for the alarm time and confirm your selection by pressing the ALARM button (23).
• Repeat the process to set the minutes for the alarm time.
• Repeat the entire process to set the second alarm.
• Press the ALARM button (23) once to display the alarm time. Press the ALARM button (23) once more to activate the alarm.
• Press the ALARM button (23) a third time to deactivate the alarm.
• If the alarm is triggered, the alarm symbol is displayed and an alarm will sound.
• Press UP (19), DOWN (22), SET (20) or ALARM to stop the alarm.

Note –Snooze function

• While the alarm signal is sounding, press the SNOOZE button (18) or LIGHT button (21) to activate the snooze function. The icon begins to flash on the display.The alarm signal will stop for approximately 10 minutes, after which it will sound again.
• Press UP (19), DOWN,(22), SET (20) or ALARM to stop the snooze function and the alarm.

Temperature (Celsius/Fahrenheit)

• Press the UP button (19) to switch between °C and °F for the temperature display.
• The weather station indicates a trend as to how the values for the indoor and outdoor temperature are likely to develop over the next few hours.

Display	Trend
	Increasing
	Constant
	Decreasing

Atmospheric pressure (HPA/inHg)

Note –Snooze function

• While the alarm signal is sounding, press the SNOOZE button (18) or LIGHT button (21) to activate the snooze function. The icon begins to flash on the display.The alarm signal will stop for approximately 10 minutes, after which it will sound again.
• Press UP (19), DOWN,(22), SET (20) or ALARM to stop the snooze function and the alarm.

Note
Like all measurement values, atmospheric pressure is subject to a certain measurement tolerance.

• Press and hold the Set button (20) until the time begins to flash.
• Press the Set button (20) repeatedly until HPA or inHG appears on the display.
• Press the UP button (19) or DOWN button (22) to change the unit to inHG or HPA.
• The weather station gives a current value trend for atmospheric pressure.

Weather trend display
Based on changes in the atmospheric pressure and the data saved, the base station is able to make weather forecasts for the next 12 to 24 hours.
Note –Weather trend display
The weather forecast function is not available during the first few hours of operation because it requires data that is collected during operation.
The weather trend and the current weather are displayed using four different symbols (1):

Symbol	Weather
	Sunny
	Slightly cloudy
	Cloudy
	Rainy

Moon phases
The base station displays the current moon phase with the following symbols:

	New Moon		Full Moon
	Waxing Crescent		Waning Gibbous
	First-quarter		Last quarter
	Waxing Gibbous		Waning Crescent

Backlight

• Ifyou press the SNOOZE button (18) or LIGHT button (21) in battery operation, the display will light up for approximately 10 seconds.
• By repeatedly pressing the SNOOZE button (18) or LIGHT button (21) in the operation of the main, you can specify the brightness level of the lighting and turn it off.

Note –Permanent backlight mode
Permanent backlight mode is only possible when the base station is operated using the ‘00121970’ power supply unit further information can be found at: www.hama.com. The power supply unit is not included.

Care and Maintenance

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents. Make sure that water does not get into the product.

Warranty Disclaimer

Hama GmbH &CoKG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product, or from failuretoobserve the operating instructions and/or safety notes.B

Technical Data

	Base station	Measuring station
Power supply	4.5 V 3x AAA batteries	3.0 V 2x AA batteries We recommend using AA lithium batteries for the outdoor sensors when outdoor temperatures are below 0°C/32°F.
	Additional power supply via ‘00121970’ power supply unit is possible:Output 4.5 V, minimum 100 mA
Measuring range: Temperature	0°C – 50°C 32°F – 122°F	-40°C – +60°C – 40°F – +140°F
Measuring range: Humidity	20 – 99%	20 – 99%
DCF radio-controlled clock	Yes	No
Alarm function	Yes	No
Max. number of measuring stations	3 Additional sensor 176933
Frequency	433 MHz
Range	≤ 30 m
