1 Power Dynamics PD612A 12 Inch Active Speaker

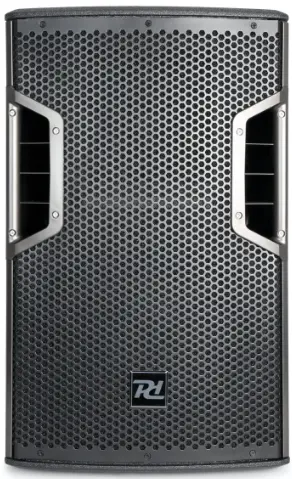

Power Dynamics PD612A 12 Inch Active Speaker

Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features. Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
The unit contains voltage-carrying parts. Therefore, do NOT open the housing.
Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
The unit is not suitable for continuous use.
Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
When unplugging the unit from a mains outlet, always pull the plug, never the lead.
Do not plug or unplug the unit with wet hands.
If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
To avoid fire and shock hazard, do not expose the unit to rain and moisture.
All repairs should be carried out by a qualified technician only.
Connect the unit to an earthed mains outlet (220- 240Vac/50Hz) protected by a 10-16A fuse.
During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.
To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.
Do not repeatedly switch the fixture on and off. This shortens the life time.
Keep the unit out of the reach of children. Do not leave the unit unattended.
Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
Do not force the controls.
This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
This unit is with built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
If the battery is damaged, please replace with same specifications battery. And dispose the damaged battery environment friendly.
If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
Keep away from electronic equipment that may cause interference.
Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard. This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to. The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!
NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice. Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

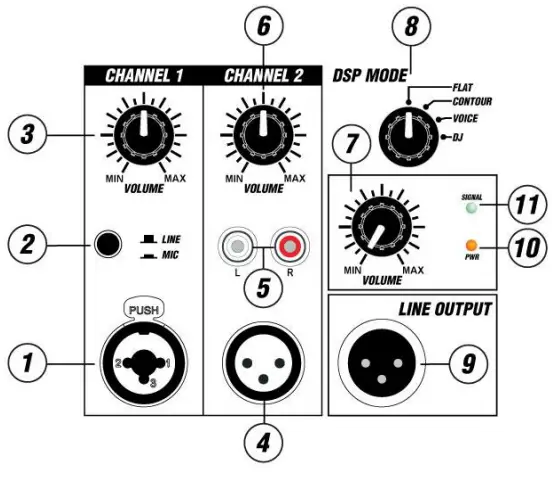

REAR PANEL

Balanced combi connector: XLR input / Jack 6.3mm (1/4”) input.
Input sensitivity switch; Line: normal mode
Mic: the input sensitivity is set to MIC level, suitable for the direct connection of a dynamic microphone. Do NOT use this setting when connected to a mixer output!
Volume control channel 1
Balanced XLR Input
RCA Line output
Volume control channel 2
Amplifier volume control. Turn it either clockwise to increase the volume or counterclockwise to decrease it.
DSP Mode
- Flat
- Contour
- Voice
- DJ
Balanced parallel XLR output. This output is linked in parallel with the audio input and is useful to connect another amplifier.
Power LED
When lit, the power is on.
Signal LED
When lit, the signal is present at the audio input.

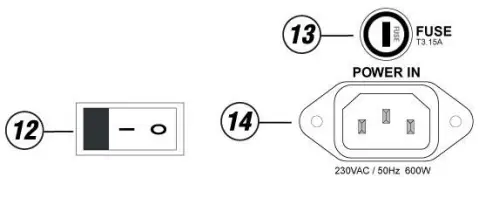

Power Switch
Push to turn ON / off the amplifier. Before switching the amplifier on, check all connections and turn fully counterclockwise the volume control (7).
Fuse 220-240V~ T3.15 AL 250V
Power cord input
Before connecting the power cord, check if the mains corresponds to the voltage indicated on the rating plate on the unit. Connect the power cord only to a mains socket outlet with a protective earthing connection.

TECHNICAL SPECIFICATION

	PD612A	PD615A	PD625A
Ref.nr:	178.972	178.975	178.978
Peak power	800W	1000W	1600W
Power max	400W	500W	800W
Power RMS	300W	400W	600W
Internal amplifier	Class D 250W + Class AB 50W	Class D 350W + Class AB 50W	Class D 550W + Class AB 50W
Impedance	4 Ohm	4 Ohm	8 Ohm
Frequency Response	45Hz – 20kHz	40Hz – 20kHz	35Hz – 20kHz
Crossover Frequency	2.5kHz	2.5kHz	3.3kHz
Sensitivity	98dB	103dB	106dB
SPL Max	124dB	130dB	135dB
Woofer	12”	15”	2×15”
Driver	1.35” Titanium	1.75” Titanium	1.75” Titanium
Voicecoil	2.5”	3”	3”
Rated voltage	AC 240V~ 50Hz	AC 240V~ 50Hz	AC 240V~ 50Hz
Fuse	T3.15A	T3.15A	T3.15A
Weight	18.6kg	23.6kg	33.6kg
Dimensions	400 x 380 x 620mm	467 x 435 x730mm	467 x 435 x 1125mm

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice. The products referred to in this manual is conforming European and UK legislation directives to which they are subject:

European Union United Kingdom
Tronios B.V., Bedrijvenpark Twente Noord 18, 7602KR Almelo, The Netherlands Tronios Ltd., 130 Harley Street,
London W1G 7JU, United Kingdom

2014/35/EU S.I. 2016:1101
2014/30/EU S.I. 2016:1091
2011/65/EC S.I. 2012:3032
